SPECIFICATIONS

With Water Pipes: Yes

Water Spray Type: Water Column

Water Pipes Length: 5-10m

Origin: Mainland China

Nozzle Material: Alloy

Interface Material: Alloy

Handle Type: Finger Grip

Brand Name: EAFC

Body Material: Alloy

Product Highlights:

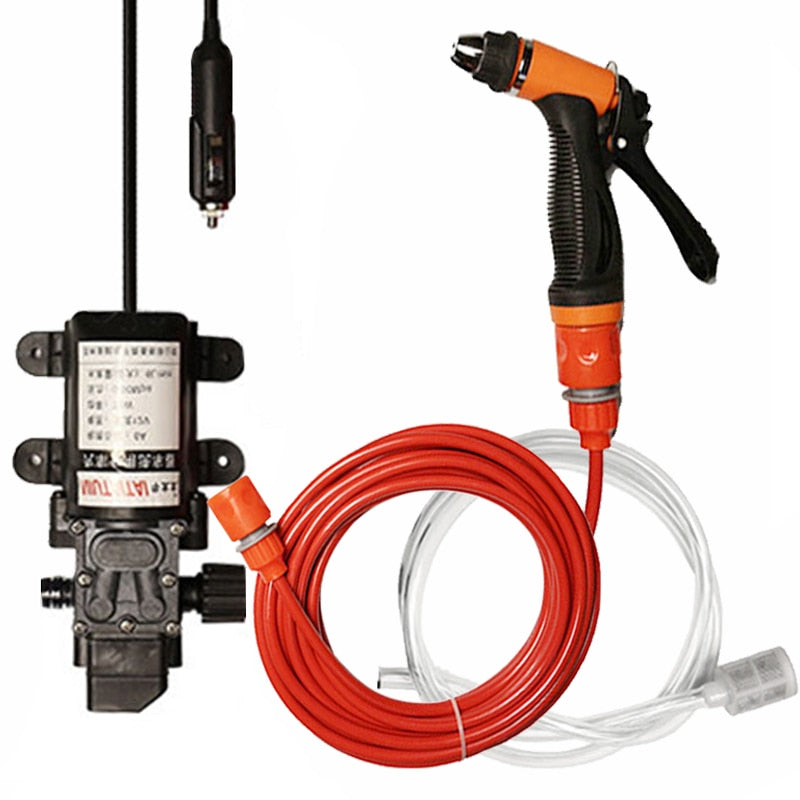

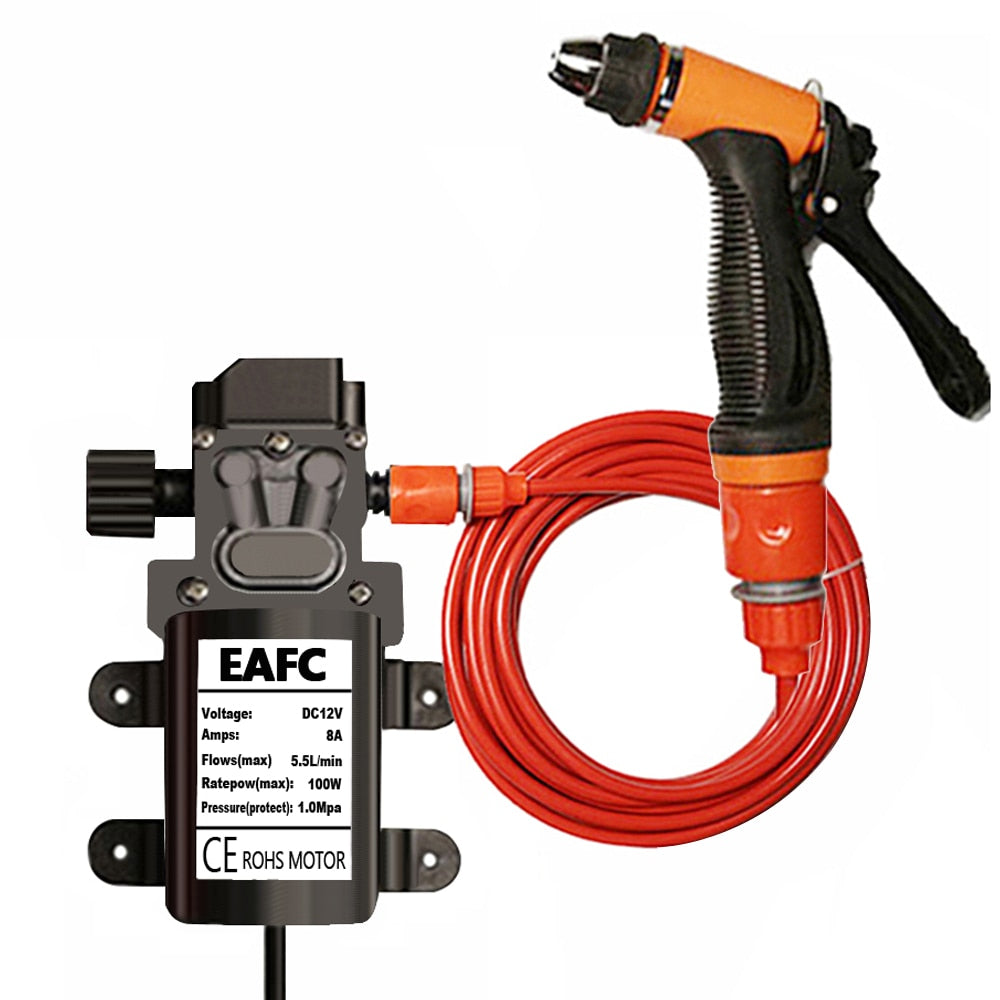

Efficient 12V DC Diaphragm Pump - Equipped with a pressure switch, the pump's motor automatically stops when the outlet pipe's switch is closed.

Cost-Effective Car Wash Solution - Designed for direct use on vehicles with its 12V power supply, ensuring convenience, practicality, and safety.

Low Power Consumption and Extended Lifespan - Offers long service life and minimal power usage.

Resistant to Corrosion - Built to withstand various conditions for durable performance.

Technical Specifications:

• Voltage: 12V
• Current: Approximately 5-6A
• Maximum Pressure: 0.68Mpa
• General Pressure: 0.4-0.5 MPA
• Maximum Flow: 4L / min
• Size: 160X100X60mm

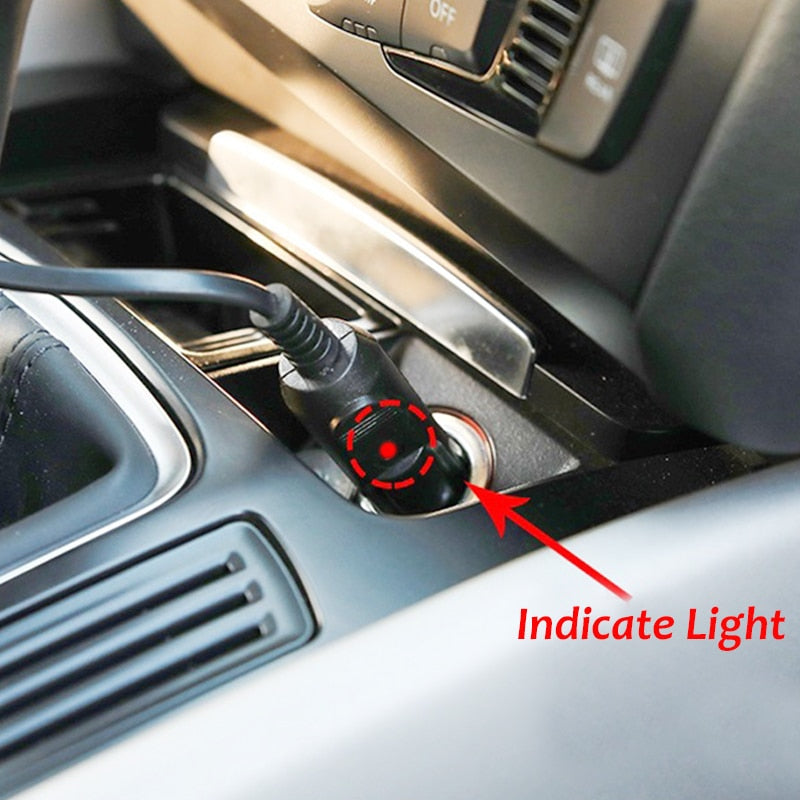

• Power Supply: DC 12V Cigarette Lighter (Approximately 70W)
• Working Current: 6A
• Pressure: 0.68Mpa
• Flow: 4L / min

Versatile Application:

Suitable for:

• Vehicle Cleaning
• Ship Maintenance
• Carpet Cleaning
• Water Purification
• Beverage Processing
• Ground Cleaning
• Water Treatment Equipment
• Solar Industry
• Agricultural Production
• Food and Beverage Processing
• Domestic Water Supply
• Water Purification Industry
• Other Liquid Transfer and Metering Systems

Important Note:

When using the water gun, keep the trigger pressed for more than 15 seconds to automatically fill the water gun before normal use.

Method of use:

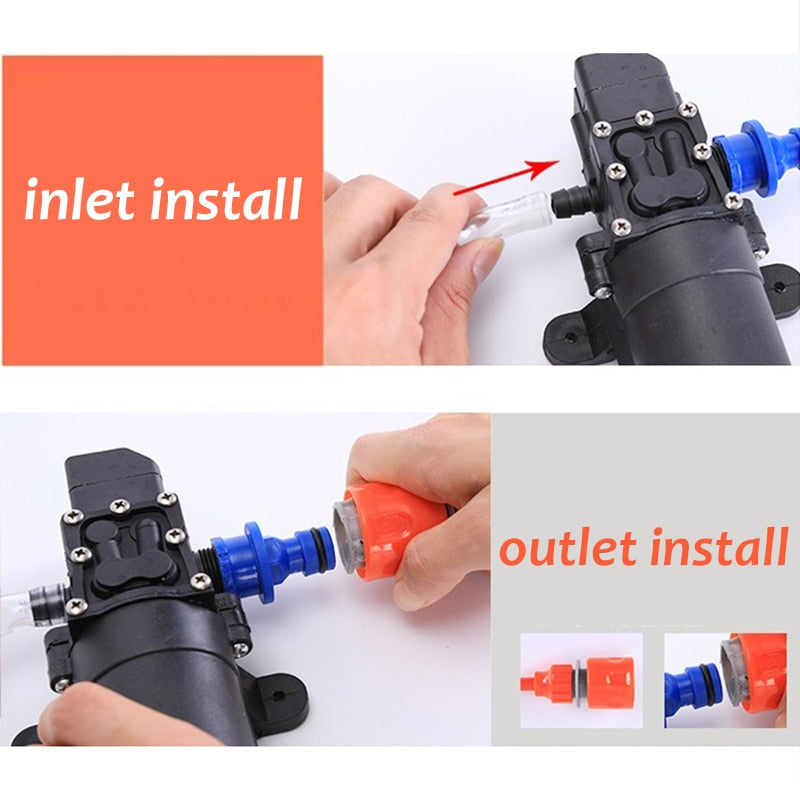

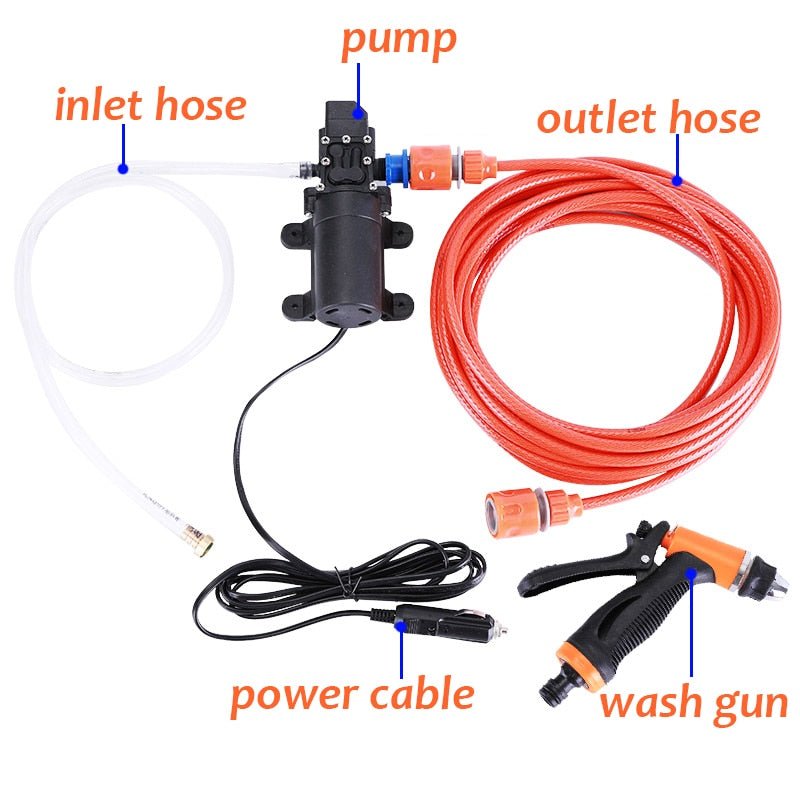

1. The direction of the arrow on the pump is the outlet.

2. The wire is not divided into positive and negative.

3. The pump can be placed in any direction.



Precautions for use:

1. Do not immerse in water.

2. The pressure adjustment screw cannot be adjusted at will. Before leaving the factory, the pressure has been adjusted. If it is adjusted at will, it is easy to increase the reflux pressure and burst the water pipe. 3. The water inlet must be equipped with filtering device, and impurities cannot enter. Otherwise, it is easy to block the water pump, resulting in reduced pressure and even no water.



Common faults and troubleshooting:

1, there is electricity, and the pump does not rotate. Check that the wires behind the motor fall off.

2. The water pump rotates and sprays water, but the fog is small and the pressure decreases. Turn on the water pump and check whether there are sundries in the pump chamber. Whether the motor bracket is loose, tighten the screws. Note that the inlet and outlet valves cannot be installed in reverse.

3. After the pump is used for half a year or one year, the pressure drop and spray quantity are small. Turn on the water pump and tighten the motor bracket screws. Change the direction of the small die in the cavity up and down, or change the small grinding plate.
