5A DC to DC CC CV Lithium Battery Charger Board XL4015 LED Step Down Buck Battery 5A Fast Charging Power Converter Module

5A DC to DC CC CV Lithium Battery Charger Board XL4015 LED Step Down Buck Battery 5A Fast Charging Power Converter Module

Regular price $11.00
Regular price $0.00 Sale price $11.00
Sale Sold out
Shipping calculated at checkout.
Color

SPECIFICATIONS



is_customized: Yes

Ues 3: Step-down circuit

Ues 2: Voltage converter

Ues 1: dc step-down module

Type 3: constant current

Type 2: Down-converter

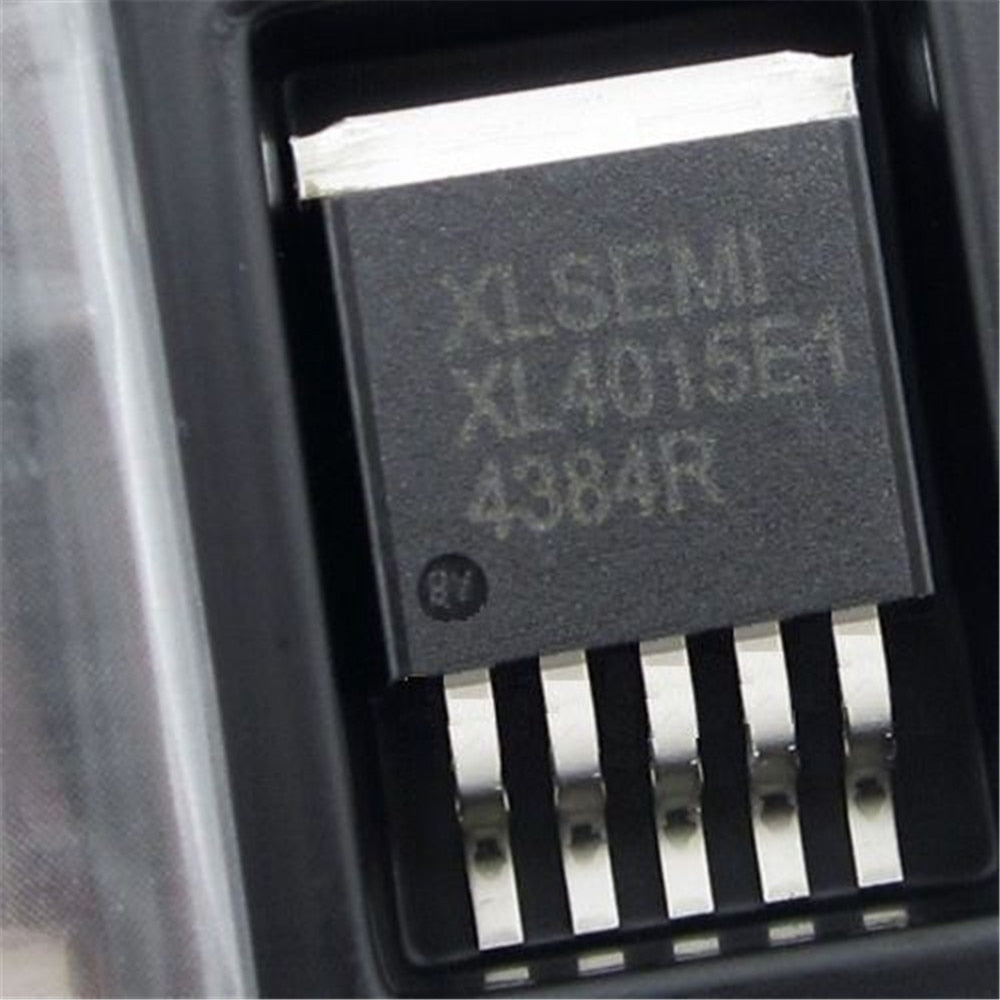

Type 1: xl4015

Type: Voltage Regulator

Supply Voltage: 0.8-30V To 5-32V

Package: TQFP

Origin: Mainland China

Operating Temperature: as the description

Model Number: XL4015

Dissipation Power: as the description

Condition: New

Brand Name: Ziqqucu

Application: Computer

Specification:

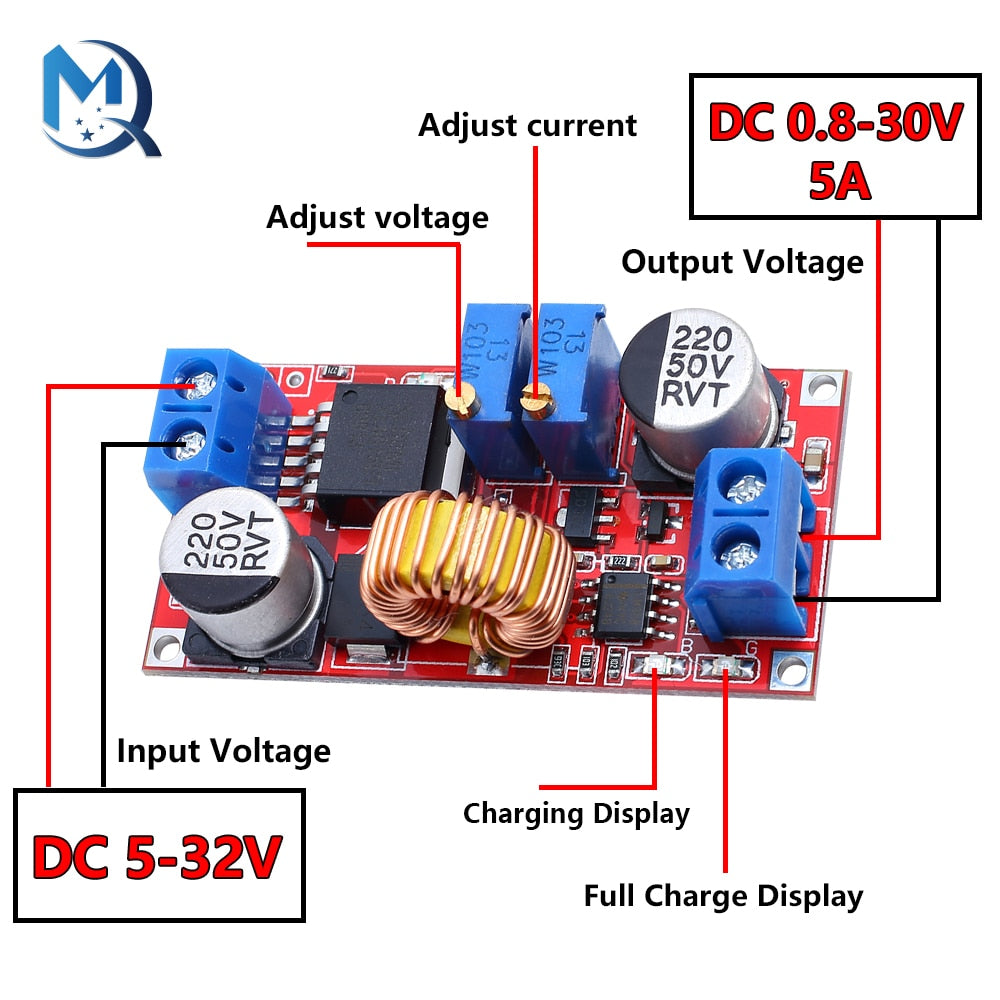

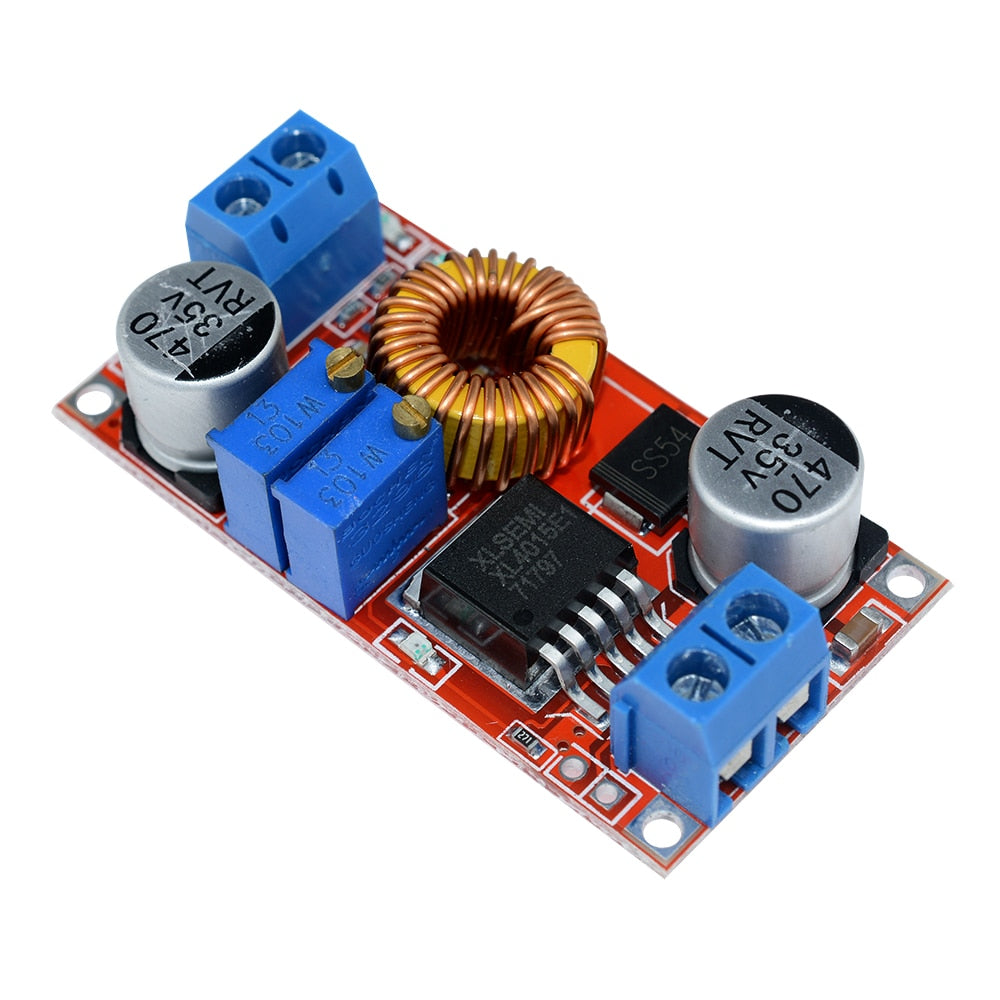

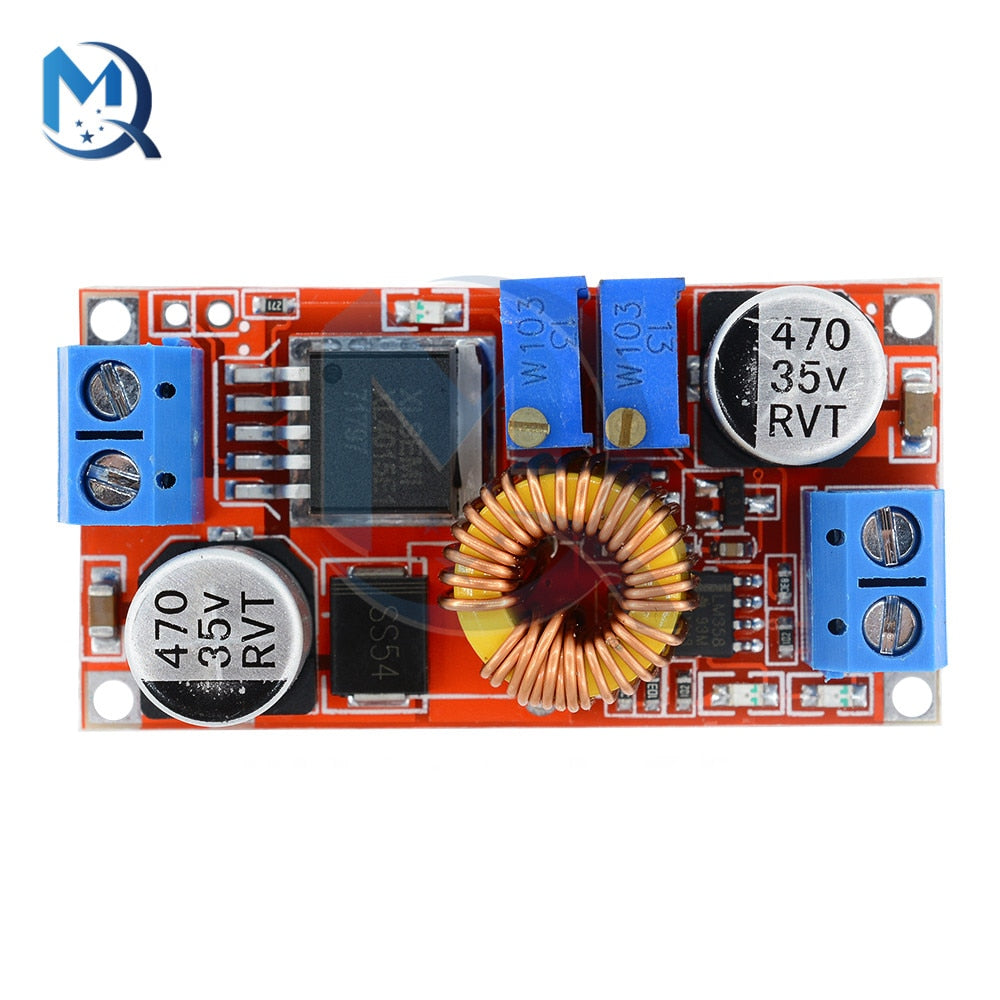

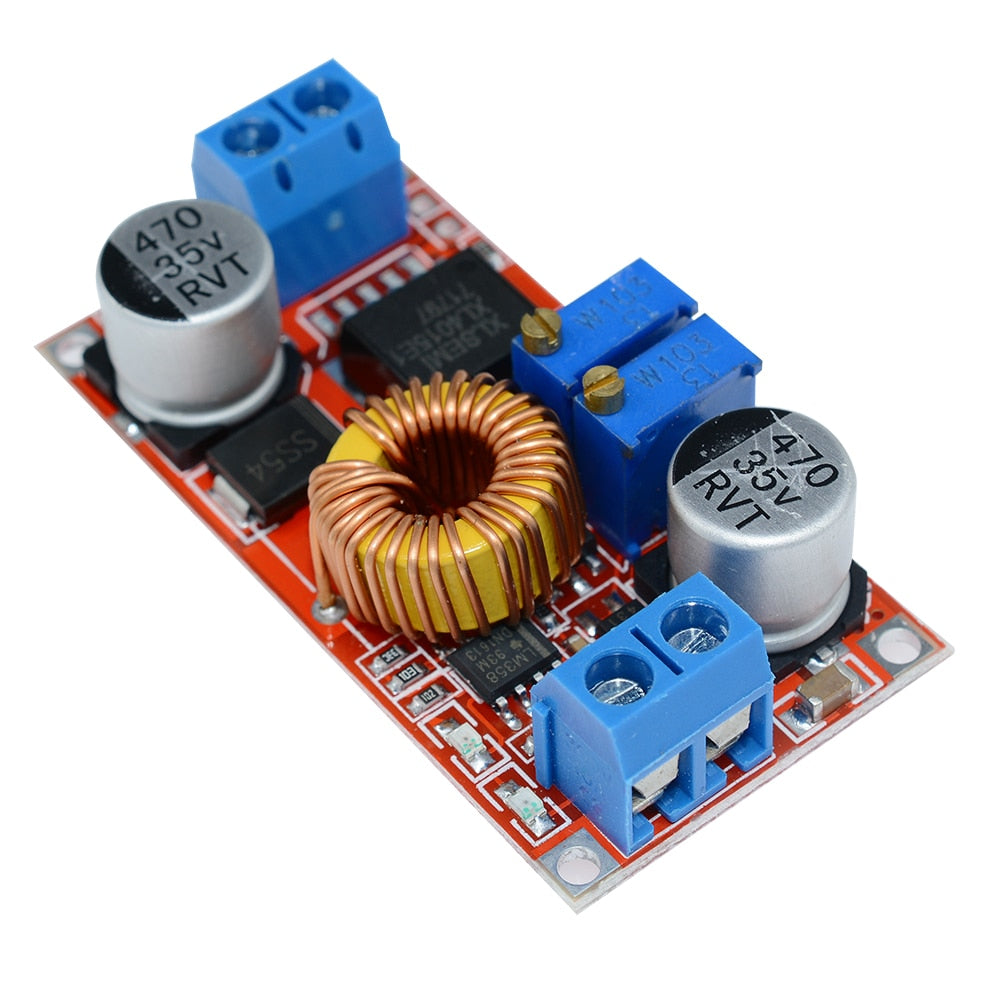

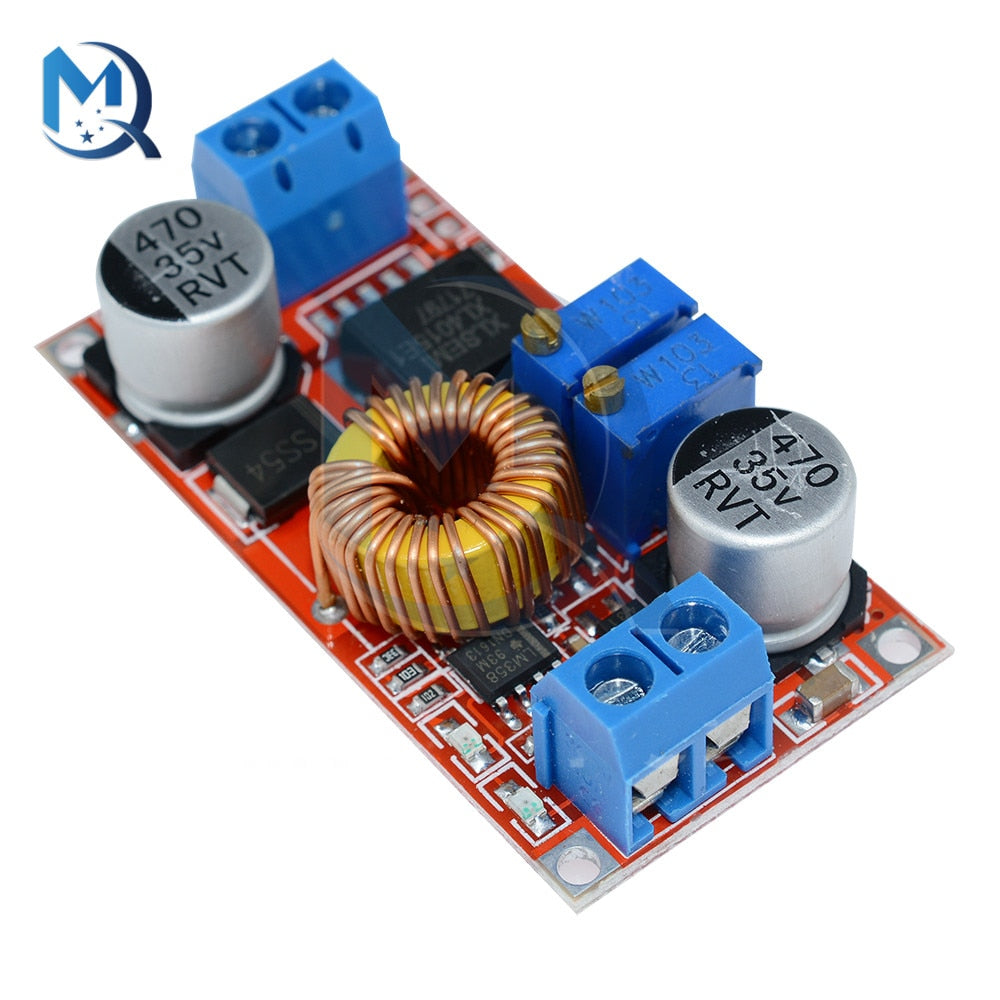

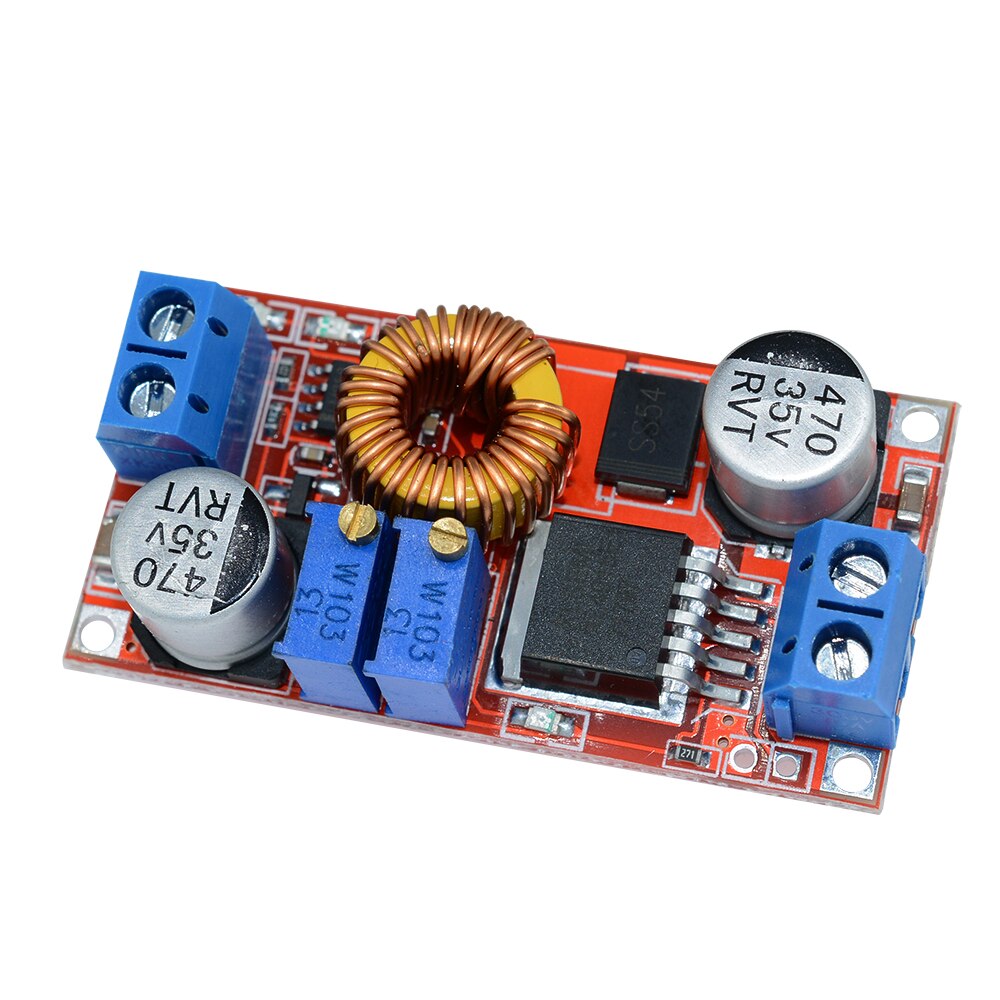

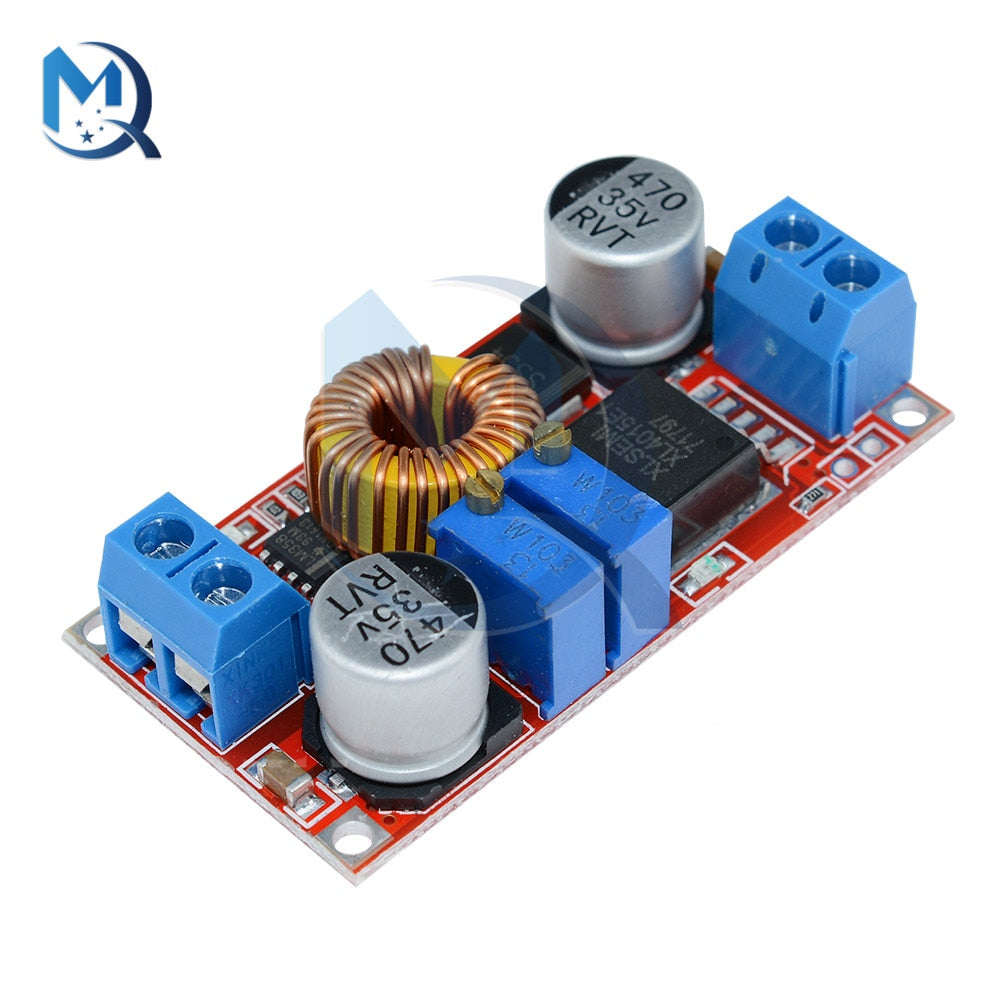

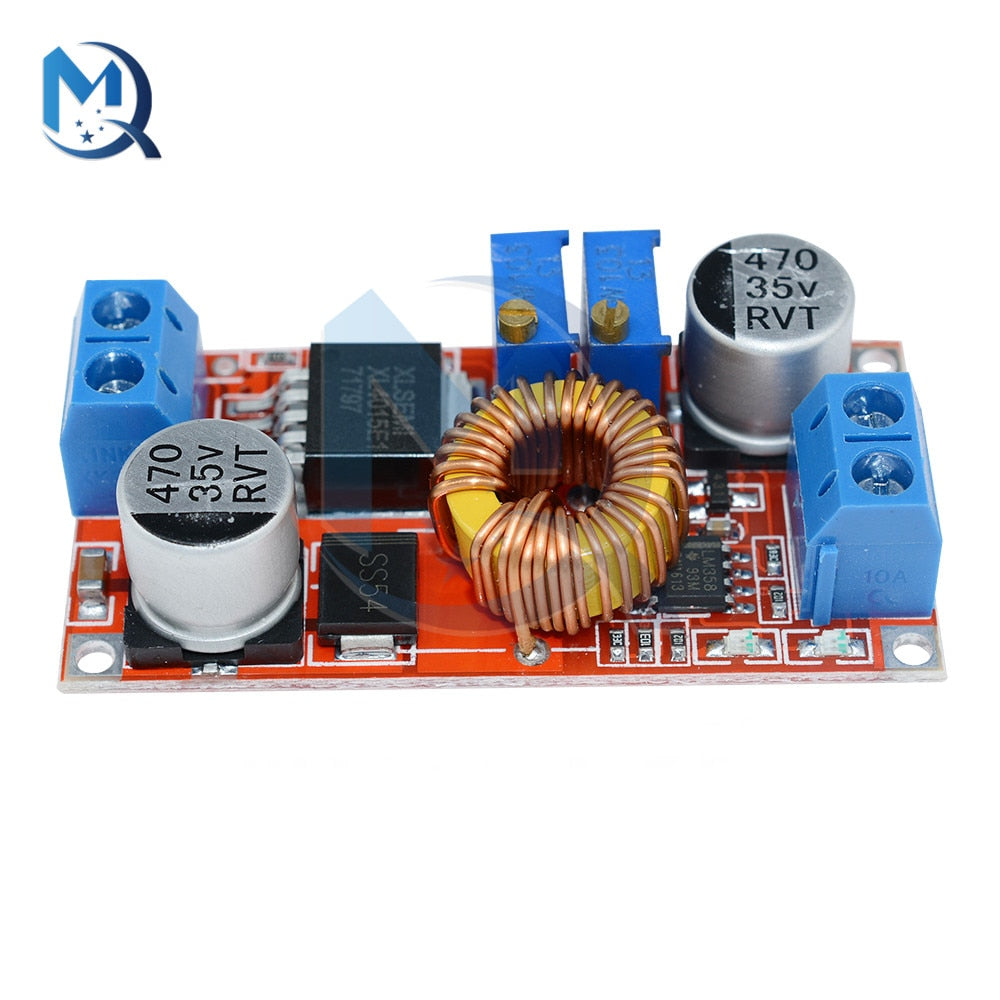

XL4015 red

:Size: 51 * 26.3 * 14 (L * W * H) (mm)

: Operating Temperature: -40 ° to +85 °

: Voltage Regulation: ± 2.5%

: Load Regulation: ± 0.5%

: Output ripple: 50mV (max) 20M bandwidth

: Switching frequency: 300KHz

: Conversion efficiency: 95% (the highest)

: Output current: adjustable maximum 5A

: Output voltage: 0.8V-30V

: Input voltage: 5V-32V

:Rectification: non-synchronous rectification

: Module Properties: non-isolated constant current and voltage module.

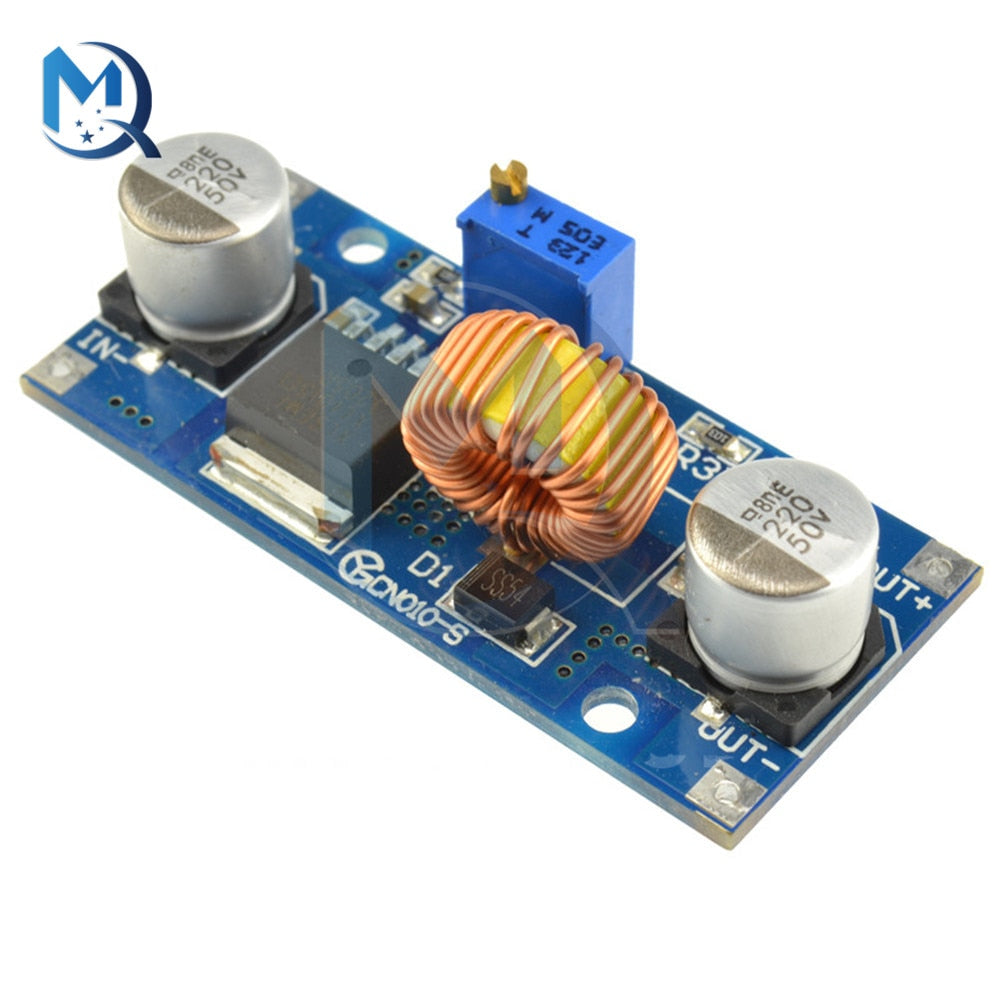

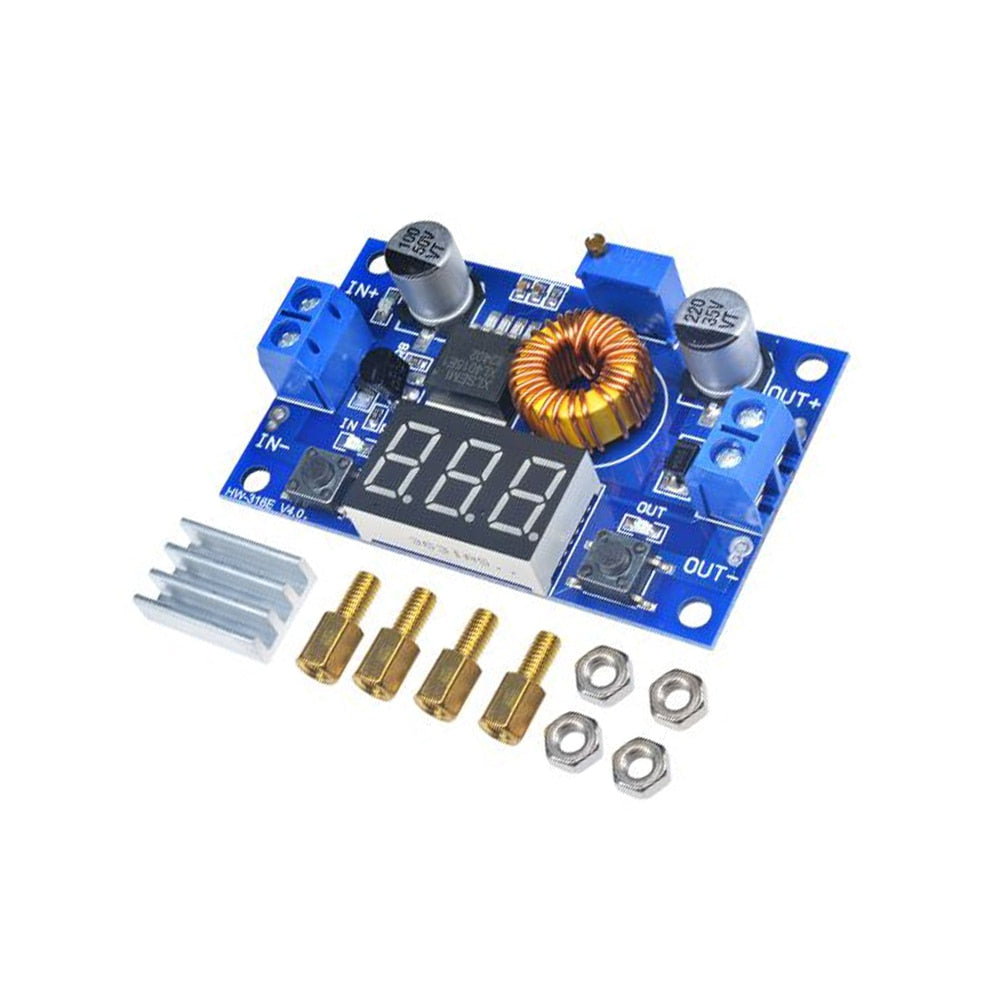

XL4015 With Radiator

: Module nature: non-isolated step-down module (BUCK)

: Input voltage: 4-38V (please try not to exceed 38V for input)

: Output voltage: 1.25-36V continuously adjustable

:Output current: 0-5A, it is recommended to use within 4.5A.

:Output power: It is recommended to use within 75W, if it exceeds 50W, please add a heat sink.

: Working temperature: -40~+85 degrees

: Working frequency: 180KHz

: Conversion efficiency: up to 96% (efficiency is related to input, output voltage, current, and voltage difference)

:Load regulation rate: S(I)≤0.8%

:Voltage regulation rate: S(u)≤0.8%

: Power indicator: yes

: Short circuit protection: yes (limited current 8A)

: Over-temperature protection: yes (automatically turn off the output after over-temperature)

: Input reverse connection protection: no, (if necessary, please connect a high current diode in series with the input)

: Installation method: 2pcs 3mm screw

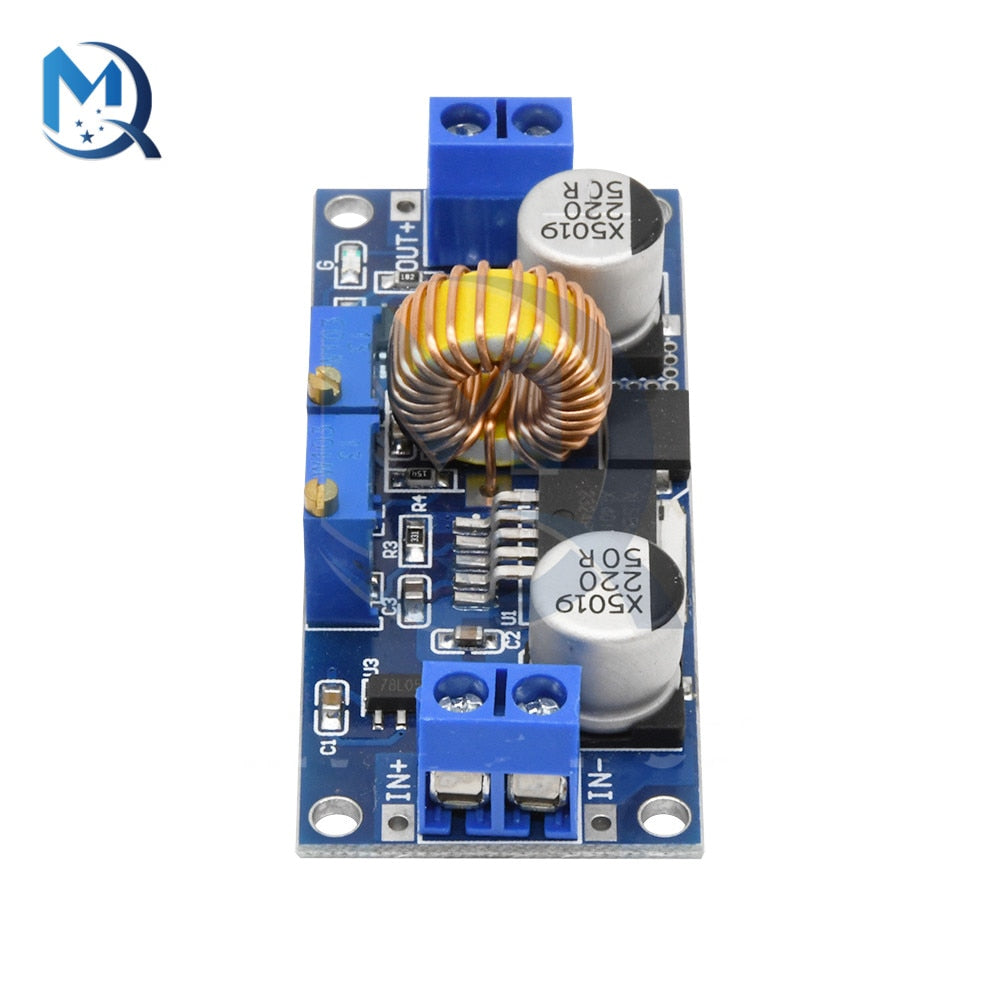

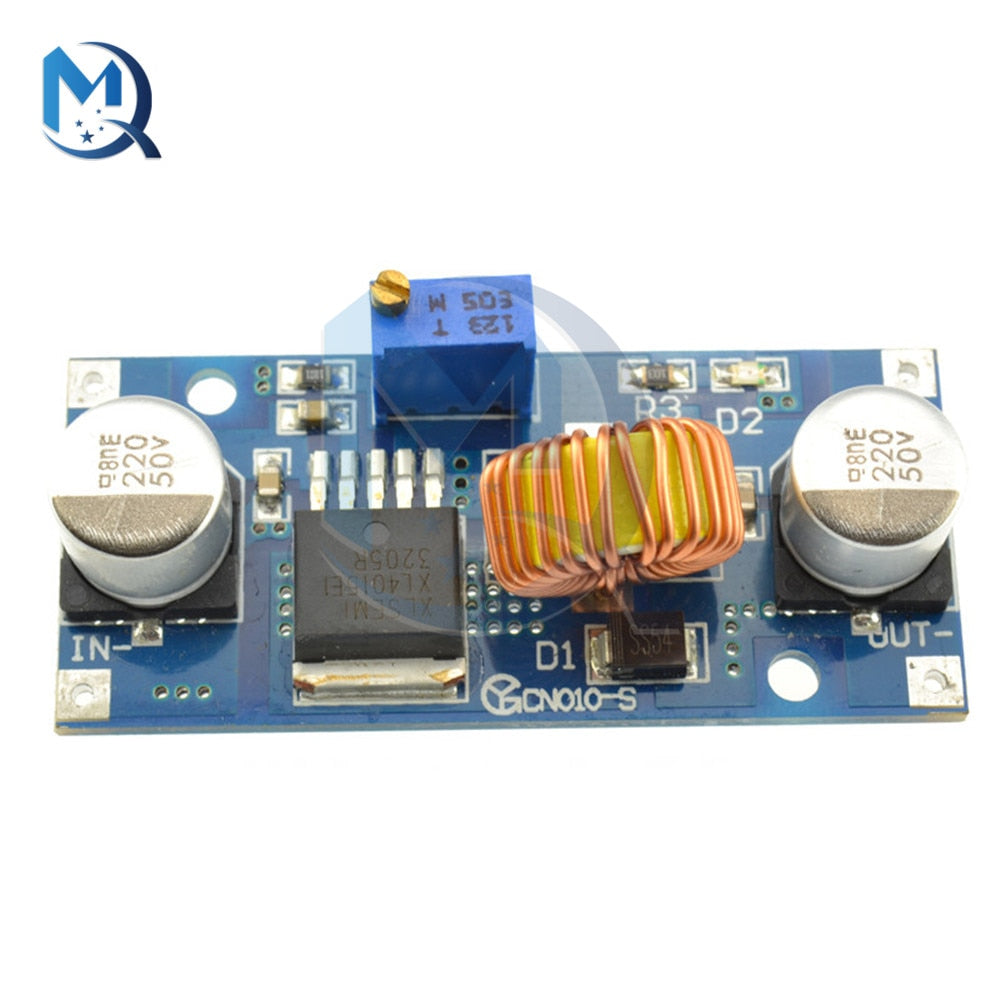

XL4015 Blue

: Input voltage: 4-38V

: Output voltage: 1.25-36V continuously adjustable

: Output current: adjustable, maximum 5A

: Output power: max 75W

: Working temperature: -40~+85 degrees

: Working frequency: 180KHz

: Conversion efficiency: up to 96%

: Short circuit protection: yes (limited current 8A)

: Over-temperature protection: yes (automatically turn off the output after over-temperature)

: Input reverse connection protection: no, (if necessary, please connect a high current diode in series with the input)

: Installation method: 4pcs 3mm screw

: Wiring method: wiring terminal or welding terminal, V-IN is input, V-OUT is output

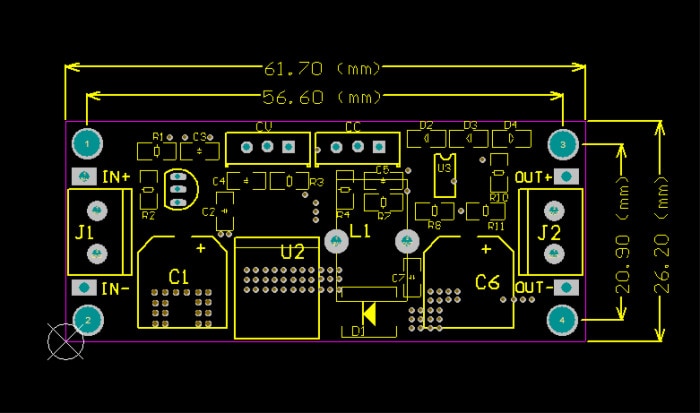

: Module size: length 61.7mm width 26.2mm height 15mm



Package Contents:

:1* 5A Lithium Charger Step down

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

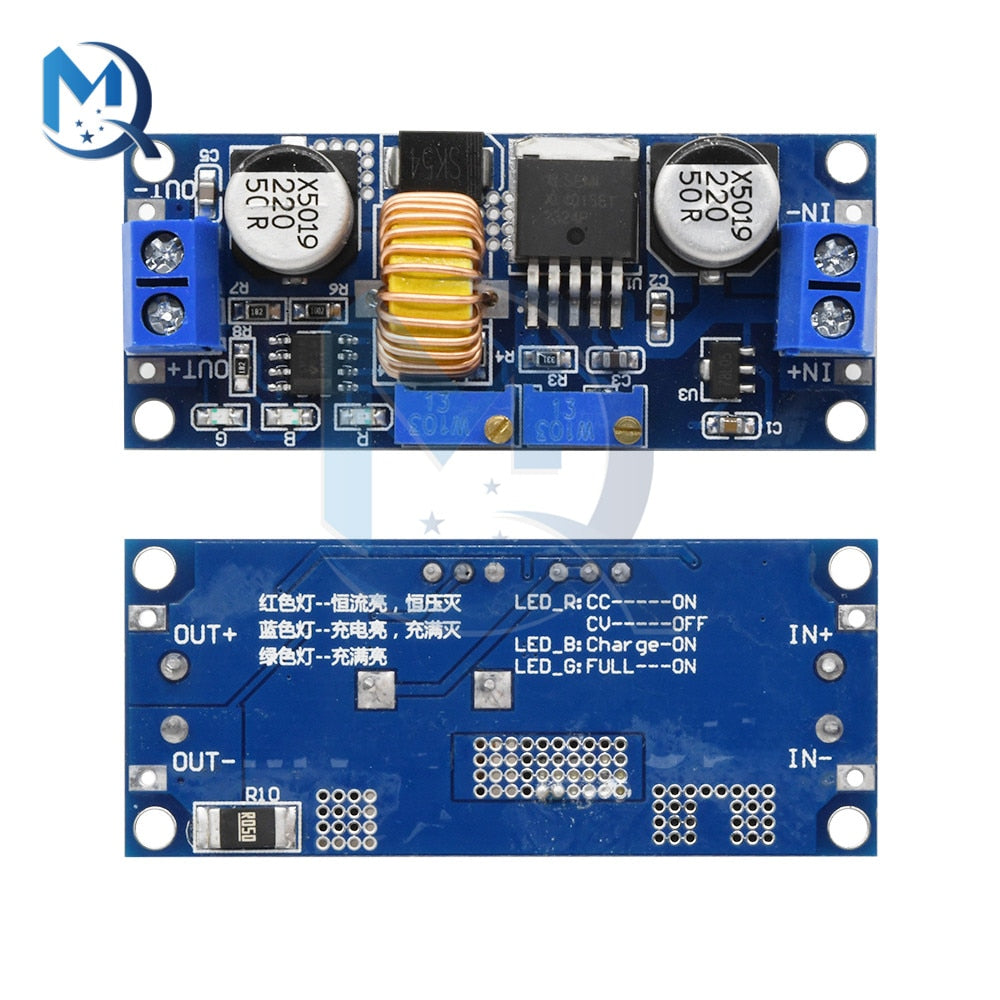

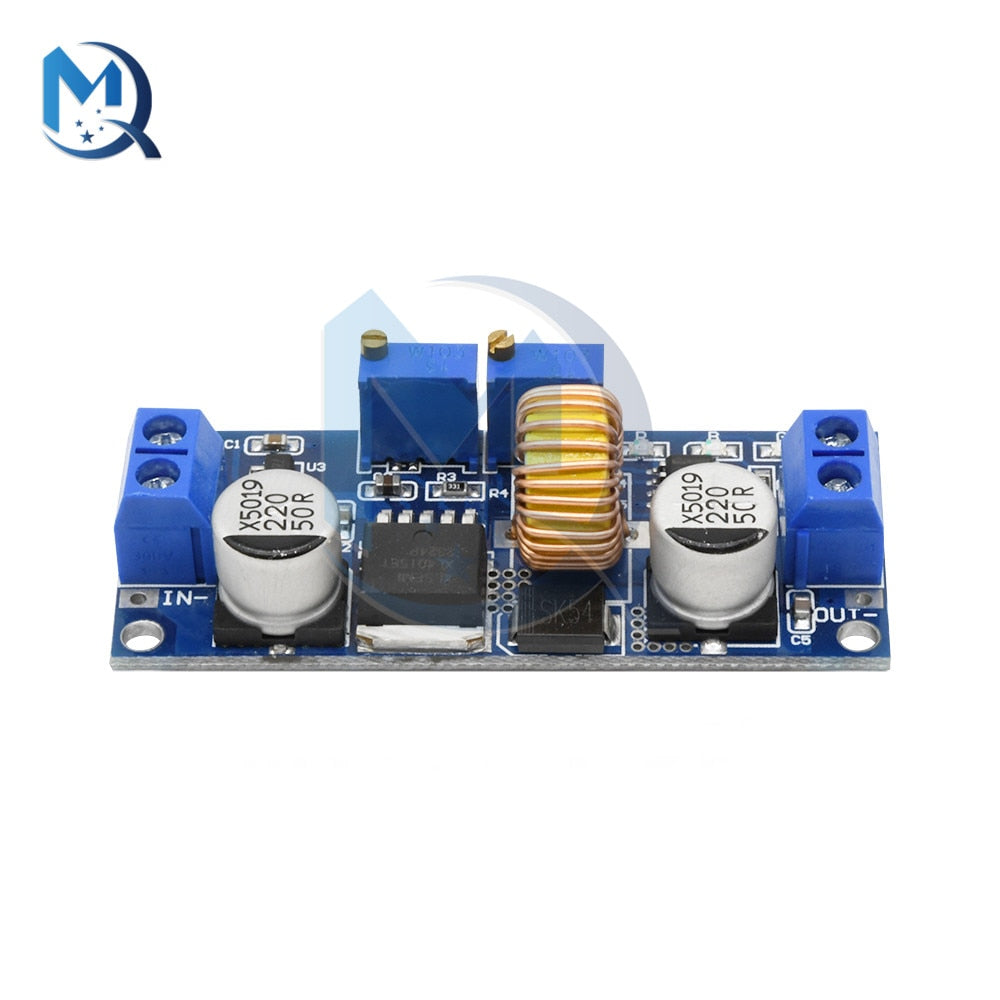

XL4015 blue



When you use the product, the module inputs and outputs are isolated from ground
Specifications
1.Input voltage range:638VDC(Note:input voltage not exceeding 38V)
2. Output voltage range:1.25-36VDC adjustable
3. Output current: 0-5A
4. Output power: 75W
5. High efficiency of up to 96%
6. Built-in thermal shutdown function
7. Built-in current limit function
8. Built-in output short protection function
9. Input reverse polarity protection: None (if required, the high current diode in series with the input).
10.L x W x H =61.7*26.2*15mm
11. Weight: 20g

Application
1. Use as a step-down module with overcurrent protection capabilities
Usage:
(1) adjust the “voltage potentiometer” so that the output voltage reaches the value you want.
(2) use a multimeter to measure the output short-circuit current with 10A stalls, while regulating the “current potentiometer” so that the output current reaches a predetermined overcurrent protection value. (For example, the meter displays the current value of 4A, then you can use the module to a maximum current of 4A)
(3) Connected to the load.

2. Use as a battery charger
Usage:
(1). Make sure you need to charge the battery float voltage and charging current; (if lithium parameters 3.7V/2200mAh, then the float voltage is 4.2V, and the maximum charging current is 1C, ie 2200mA)
(2). Under no-load conditions, adjust the “Voltage potentiometer” so that the output voltage reaches the float voltage; (if to 3.7V rechargeable lithium battery, the output voltage can be adjusted to 4.2V)
(3). use a multimeter to measure the output short-circuit current with 10A stalls, while regulating the “current potentiometer” so that the output current reaches a predetermined Charging current value.
(4). Charge turn lamp current factory default is 0.1 times the charging current; (Battery during charging current is gradually reduced, if the charge current setting is 1A, then when the charge current is less than 0.1A, blue lights turned off, the green light is on, which means that the battery is fully charged)
(5).connected to the battery charge.
(1,2,3,4 step as Output is unloaded, do not connect the battery)

3. Use as a LED constant current driver module
Usage:
(1). adjust the “voltage potentiometer” so that the output voltage reaches the value you want.
(2). use a multimeter to measure the output short-circuit current with 10A stalls, while regulating the “current potentiometer” so that the output current reaches a predetermined LED operating current.
(3). Connect LED, work.
(1,2 steps as Output is unloaded, do not connect LED)

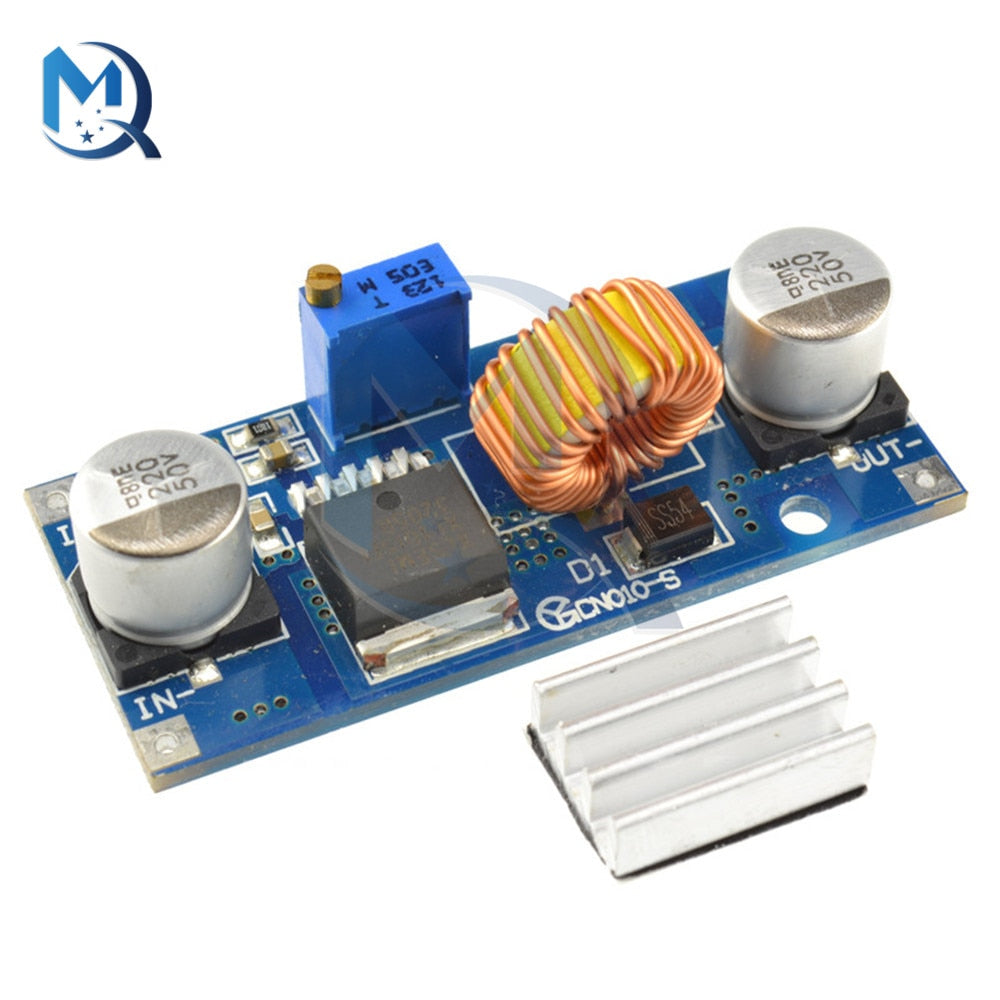

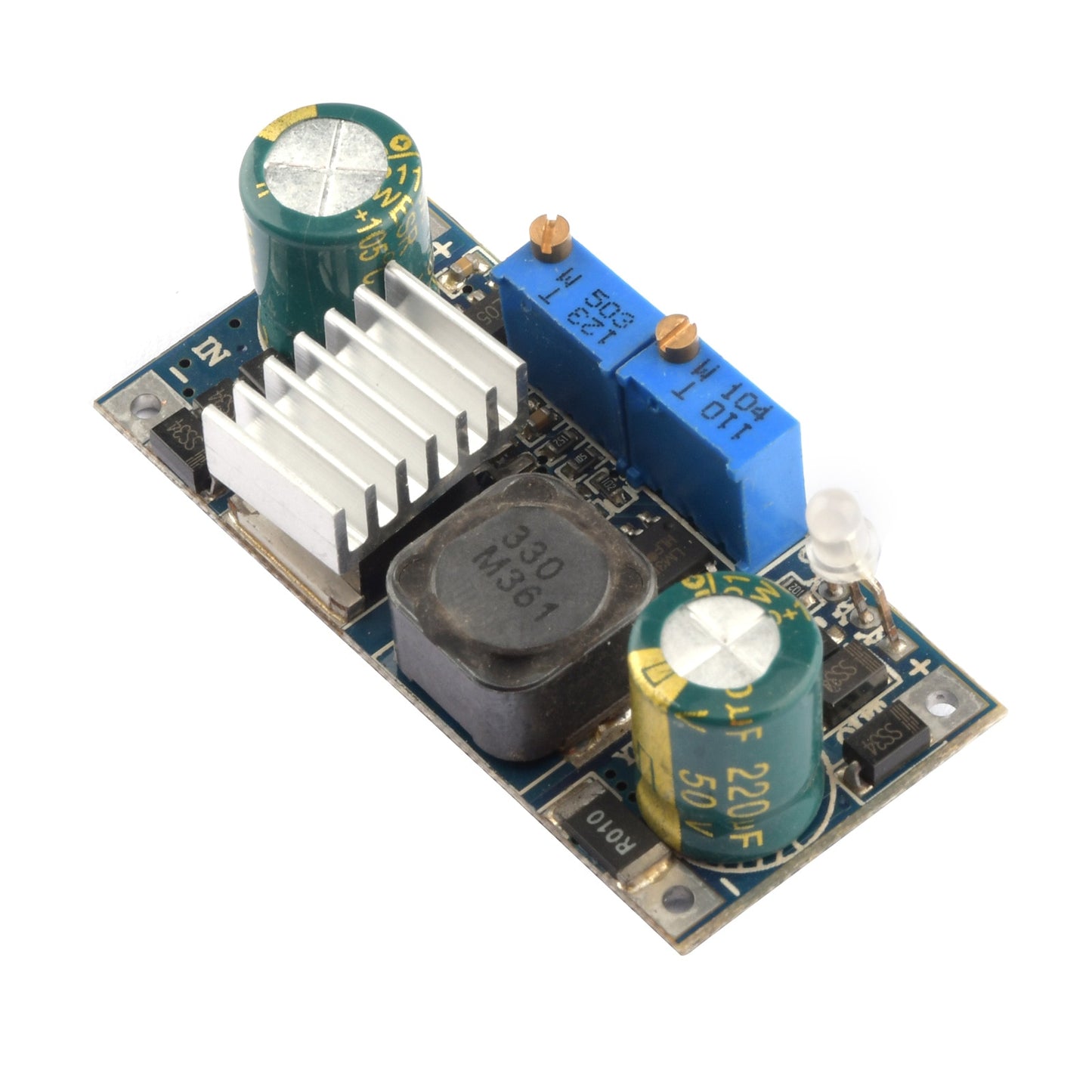

XL4015 with radiator



The DC-DC module based on LM2596 advocates current to 3.0A, but only to 1.8A. However, being introduced module adds a heatsink, using high-power devices. This module can easily reach 4A, and 50W, add heat sink circumstances can reach 75W, and has a high price!!

The module highlights 5A high power. high efficiency and low ripple with power indicator !!!

1.Input voltage range:4~38VDC(Note:input voltage not exceeding 38V)

2. Output voltage range:1.25-36VDC adjustable

3.Output current: 0-5A, recommended for use in 4.5A.

4. Output power: 75W

5. Working temperature: -40~+85 degrees

6. Operating frequency: 180KHz

7.Efficiency:96%(max)

8.Short circuit protection: yes(limit current 8A).

9. Over-temperature protection

10. Input reverse polarity protection: None (if required, the high current diode in series with the input).

11.L x W x H = 54 * 23 * 18mm

Application:

The DC/DC buck module applications the input voltage is higher than the output voltage of the buck field, such as batteries, power transformers, DIY adjustable regulated power supplies, 24V Vehicle notebook power supplies, industrial equipment buck.12V buck to 3.3V, 12V buck to 5V,  24V buck to 5V,24V buck to 12V,  36V buck to 24V, etc.
