SPECIFICATIONS



Widely used in: the calibration of fuel injectors of diesel engines of automobiles and tractors

Type: Diesel Fuel Injector Nozzles Tester 60MPa

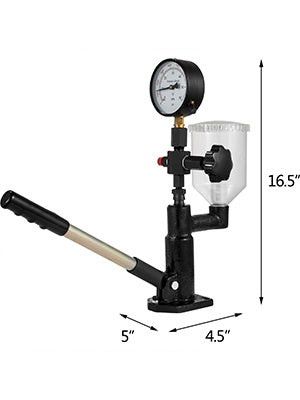

Product Size: 5x4.5x16.5 in / 12.7x11.4x41.9 cm

Pressure: 0-60Mpa

Plunger Hole: 2/5 inch

Origin: Mainland China

Oil Cup: 0.8L

Nozzle connector: M14X1.5-M14X1.5, M14X1.5-M12X1.25, M14X1.5-M12X1.5

Measuring ranges: 0 to 600 bar & 0 to 8000 PSI

Max Measuring Range: 200 PSI & Above

Fuel tank capacity: 4000mL

For: 6190/6200/6170 Diesel Engine

Certification: CE

Can test pressure:: ≥35.0MPa (350 bar)

Brand Name: VEVOR

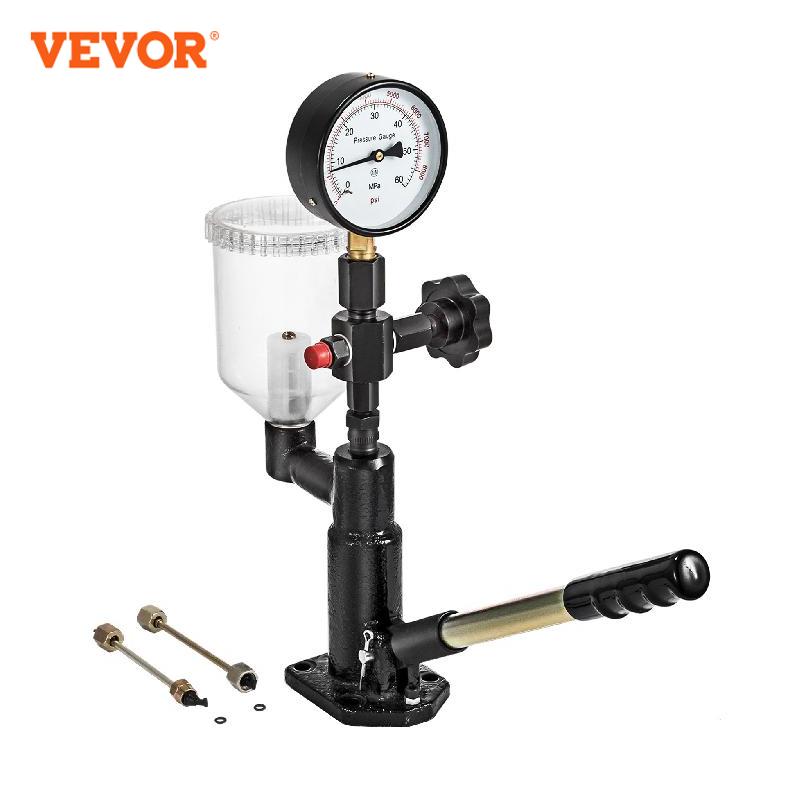

Diesel Fuel Injector Nozzles Tester 60MPa

This tester is used to adjust the injector opening pressure and a seat nozzle oppression, and performs leak tests, spraying atomization repetition modeling tests, and characteristic testing of gossip. This diesel injector tester comes with a heavy 0 to 600 BAR / 0 to 8000 PSI dual scale gauge, which helps stabilize vibrations in the needle, providing more accuracy in results and increasing the life of the gauge.

• Premium Aluminum Quality
• Large Measuring Range
• Superior Tests Ability
• Standard Accessories





Tough Equipment & Tools, Pay Less

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service



Tough Equipment & Tools, Pay Less

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

Key Features

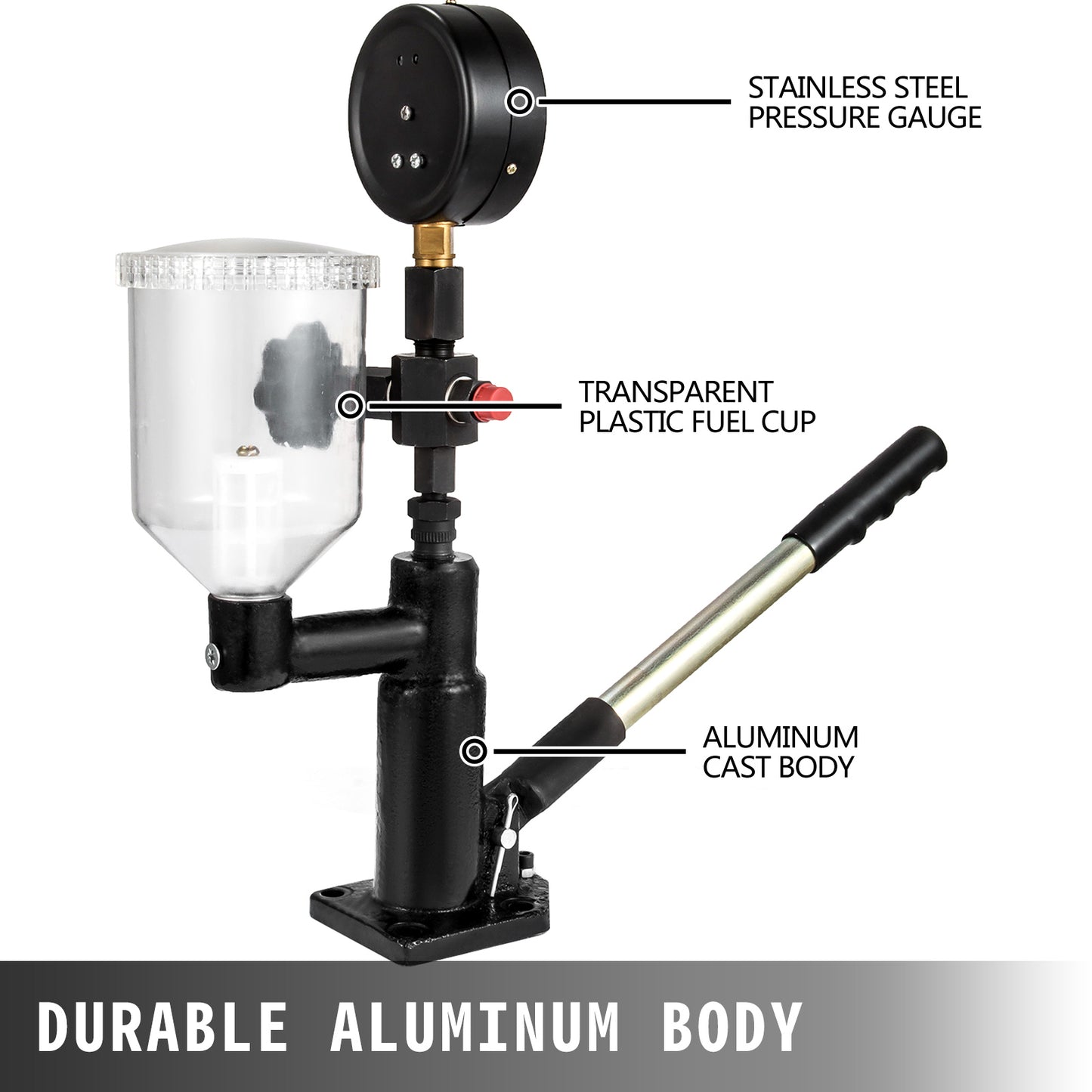

Durable Aluminum Body



The fuel injection nozzle tester is made of selected high-quality materials to ensure long-lasting use. It has a sturdy aluminum body, a stainless pressure gauge, and a plastic transparent oil cup.

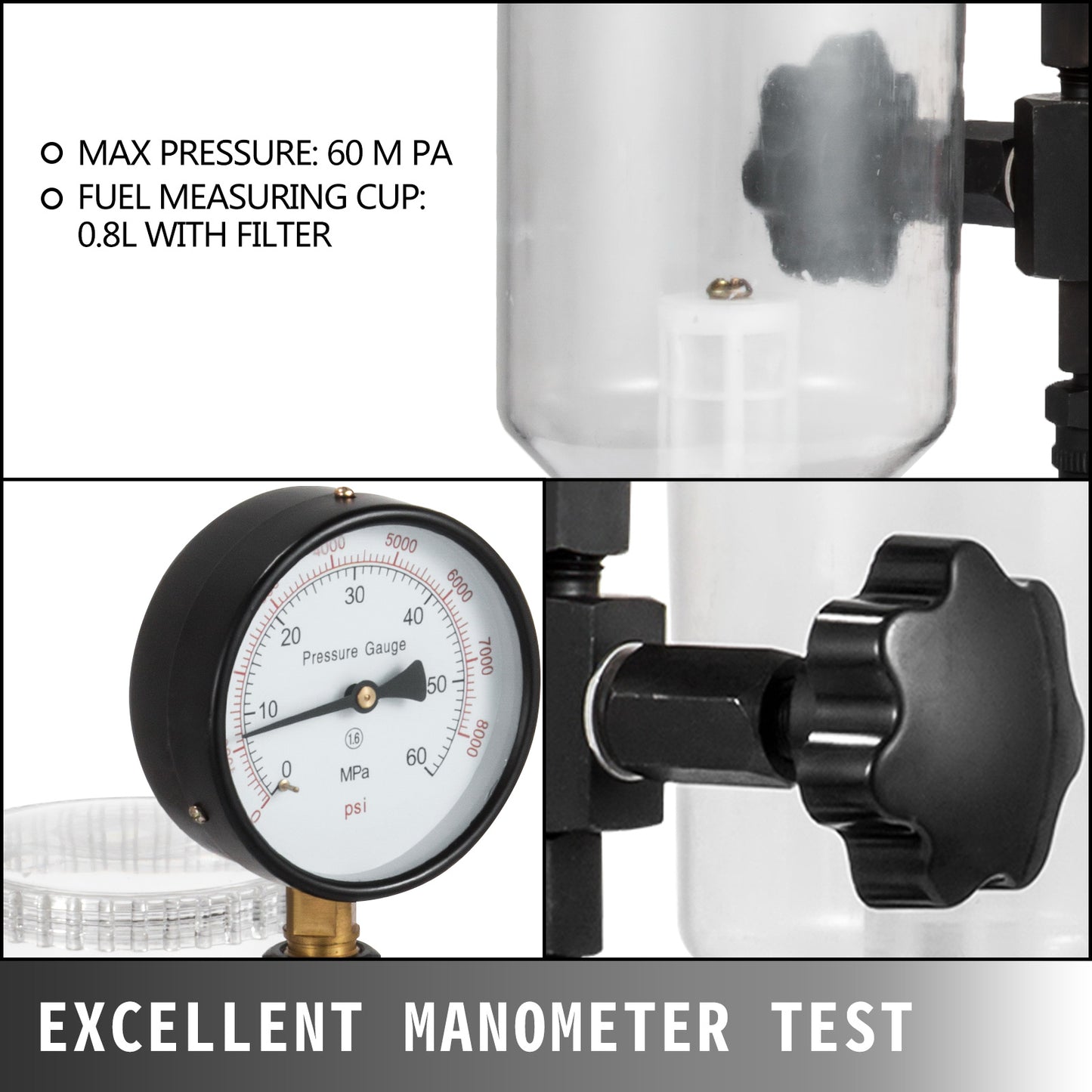

Excellent Manometer Test



In basic design 0-60M Pa (0-600 bar/ 0-8000 psi) pressure gauge and 0.8L fuel measuring cup with a 5-micron original Bosch filter help to test the opening pressure of the injector and the valve accurately.

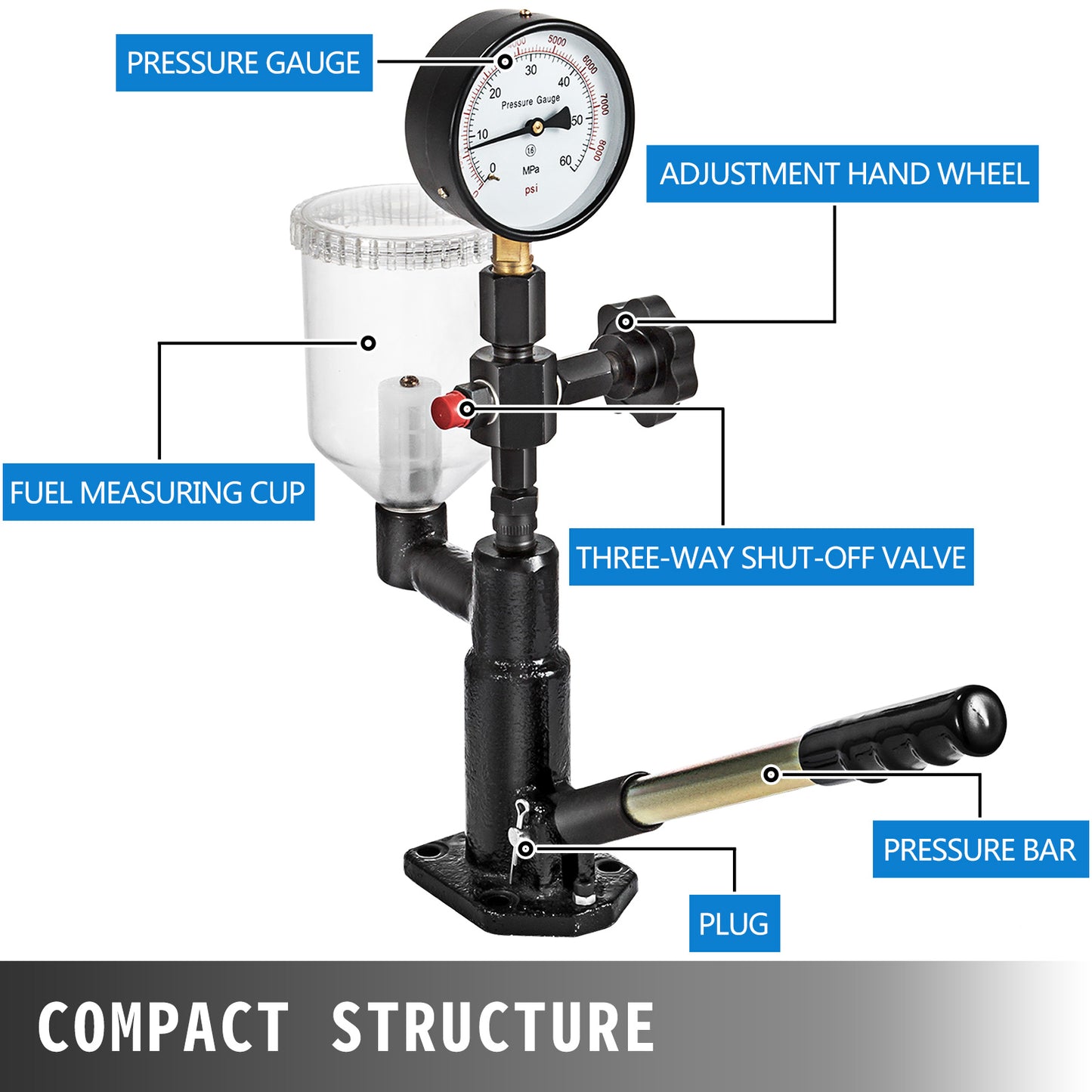

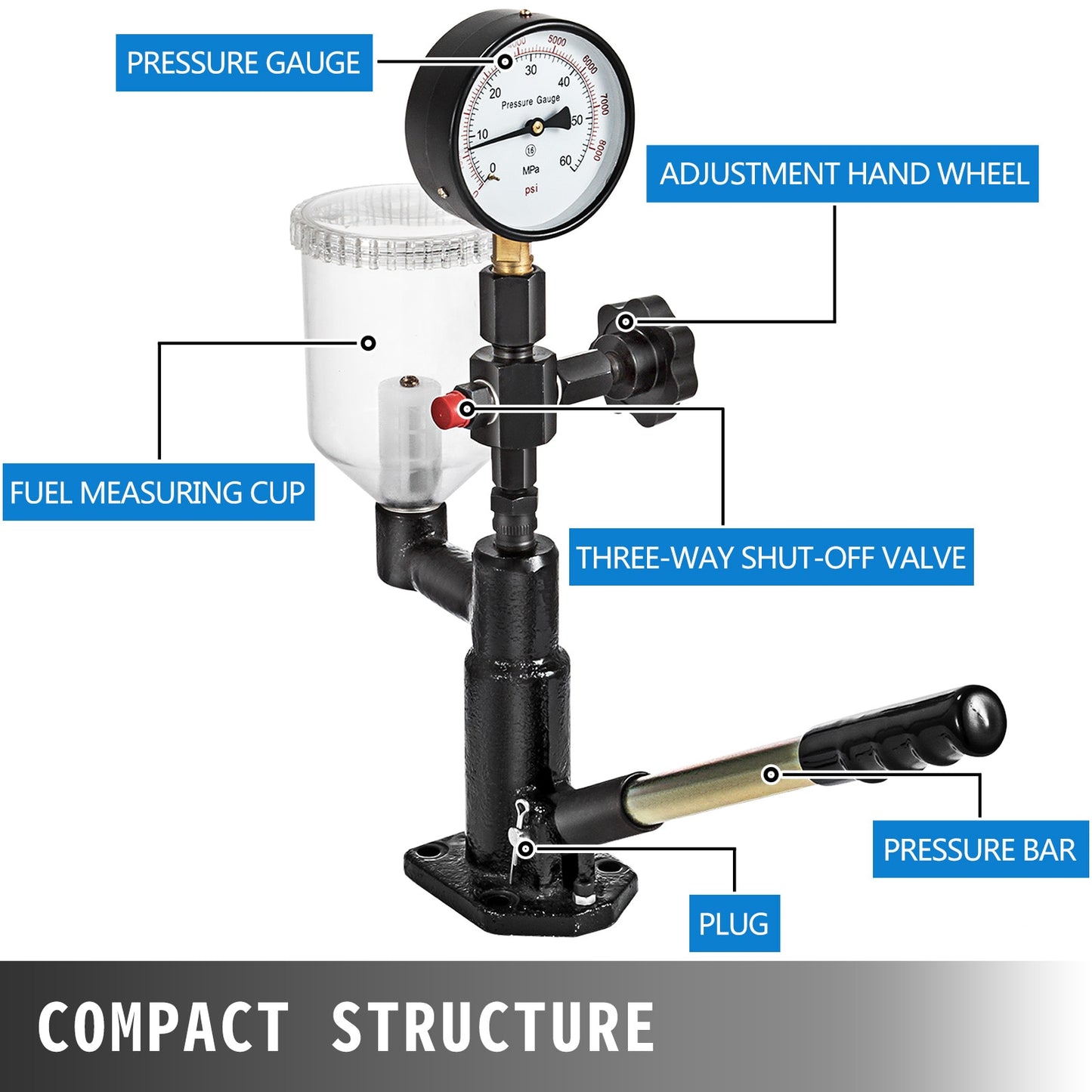

Compact Structure & Exquisite Detail



The fuel pressure tester has a compact structure, a three-way stop valve guards the safety, and convenient connection, a solid mounting base ensuring the balance, and a 2/5" plunger hole providing the power.

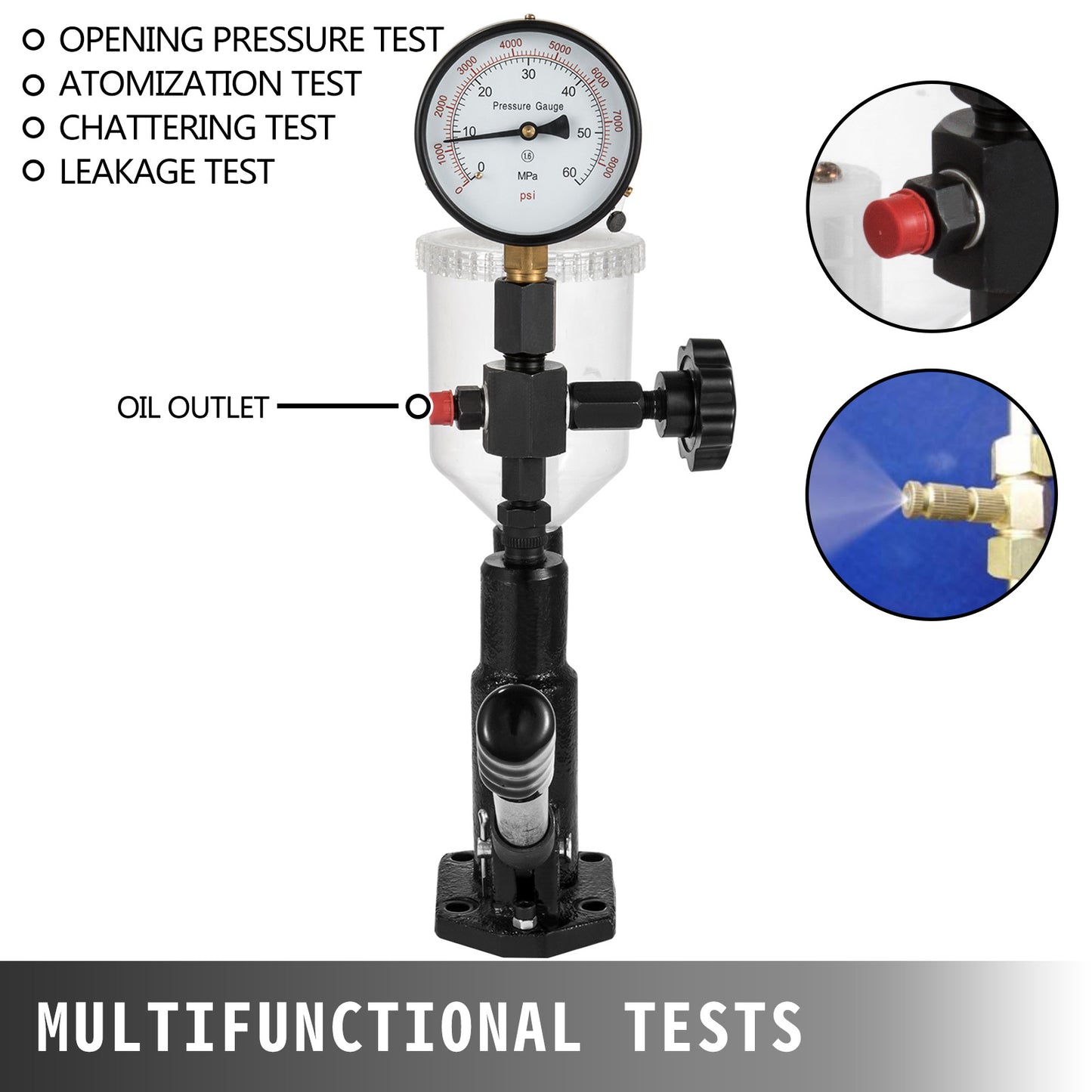

Multifunctional Tests



This fuel injector tester is the special equipment for inspecting fuel injectors. It can verify various mechanical tests of fuel injectors, such as opening pressure tests, leakage tests, atomization, and chattering tests. With diverse functions, and simple operation.

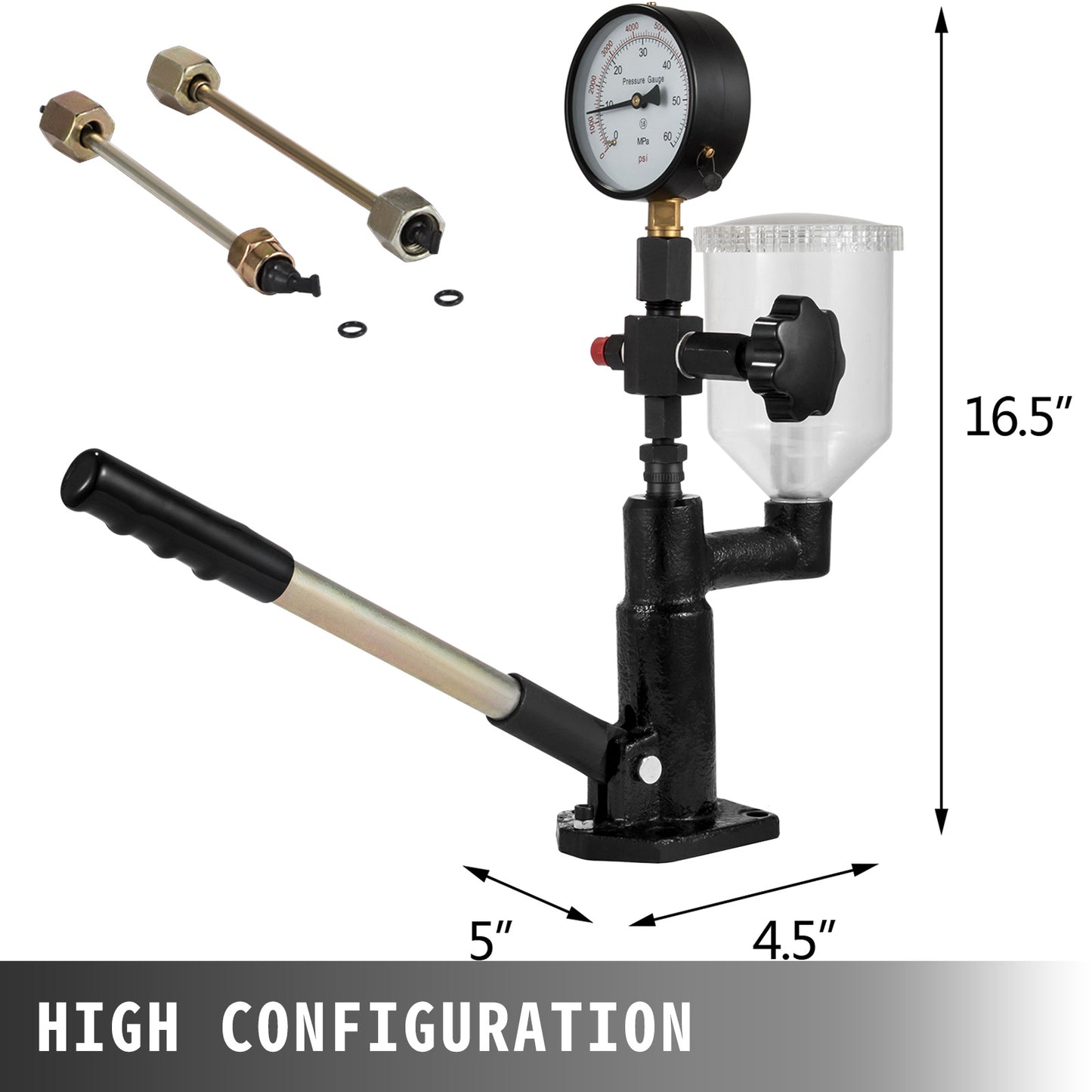

High Configuration



The tool kit contains the main parts for fuel injector calibration and all accessories required during its installation process. For your first use, please flush the inside of the tester by operating a lever and spraying it into the extraction unit without the nozzle.

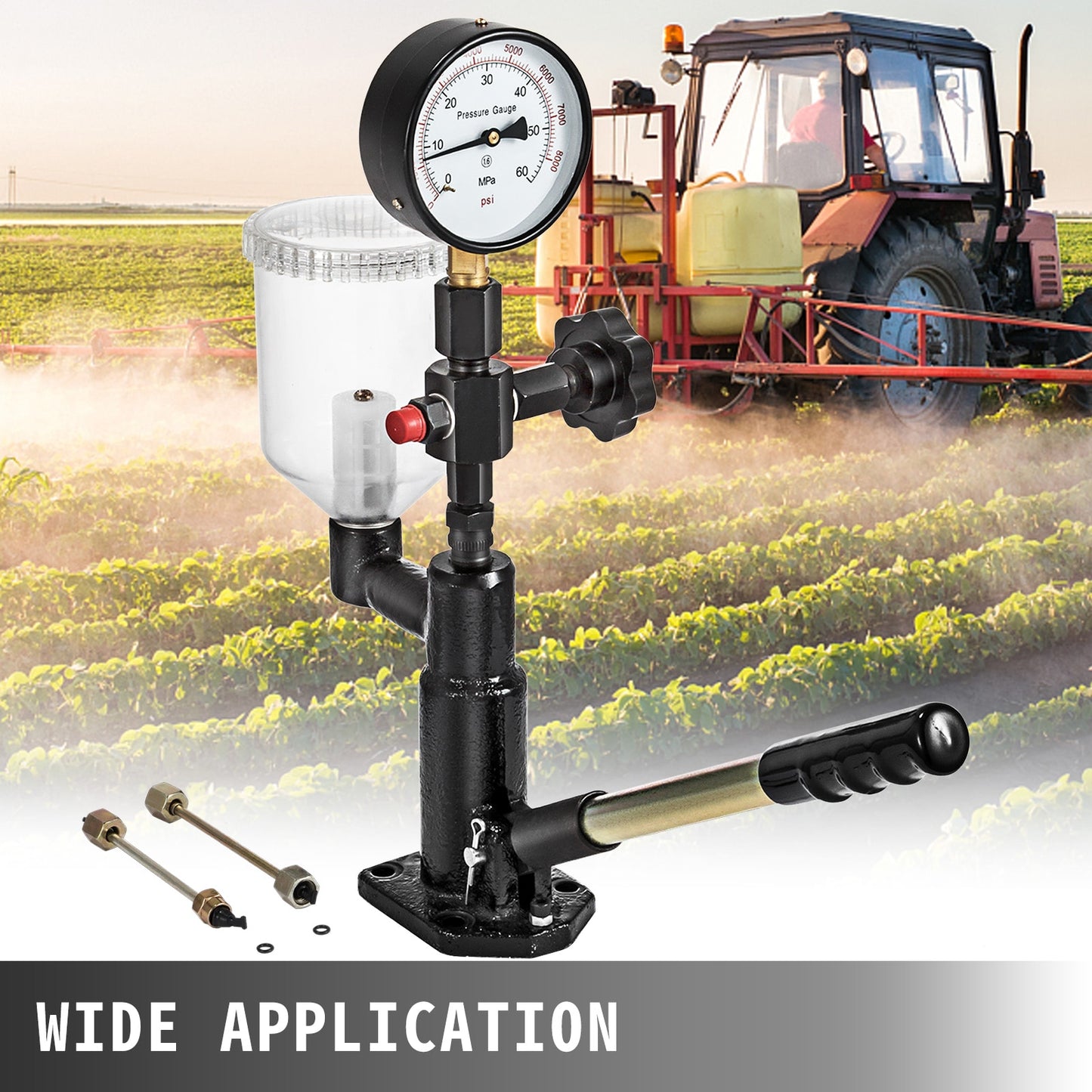

Wide Application



Widely used in the calibration of fuel injectors of diesel engines of automobiles and tractors. It is suitable for all types of diesel injectors except (CRDI) Common Rail Diesel Injectors.

Specifications

• Color: Black
• Measuring ranges: 0 to0600 bar & 0 to 8000 PSI
• Pressure range: 60Mpa (600 bar)
• For 6190/6200/6170 Diesel
• Can test pressure: ≥35.0MPa (350 bar)
• Fuel tank capacity: 4000mL
• Oil Cup：0.8L
• Pressure: 0-60Mpa
• Plunger Hole: 2/5''
• Nozzle connector: M14X1.5-M14X1.5, M14X1.5-M12X1.25, M14X1.5-M12X1.5
• Applicable models: Diesel engine vehicle
• Packing size: 19X11X7inch/48X26X17cm
• G.W.: 14lbs/6 kg

Package Content

• 1 X Diesel Injector Nozzle Tester

Features & Details

【HIGH-QUALITY ALUMINUM BUILD】- Crafted from premium aluminum through precision casting, the diesel injector tester boasts enhanced durability and rigidity. It incorporates a plastic fuel cup to securely hold fuel and features a stainless steel pressure gauge to accurately monitor air pressure.

【EXTENSIVE MEASUREMENT RANGE】- Equipped with a precision dual-scale gauge, this tool covers a measuring range of 0-600 bar / 0-8000 psi, with a maximum test pressure of up to 60 MPa (100 mm Dial, 3/8" BSP thread). The transparent fuel measuring cup can accommodate 0.8L of oil and comes with a filter for a variety of injector nozzle tests.

【VERSATILE TESTING CAPABILITY】- This tool set excels in conducting various tests, including proper injection nozzle opening pressure tests, leakage tests, chattering tests, spray pattern inspections, and atomization assessments. Its multifunctional testing ability makes it the ideal choice for comprehensive auto diesel injector examinations.

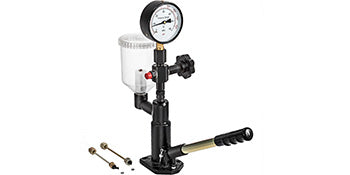

【COMPLETE ACCESSORIES】- The injector pop tester kit comes complete with a 60MPa pressure gauge, handle, high-pressure pipes, A and B type connections with m.m. size nuts (12 X 1.5) and (14 X 1.5), a 0.8L fuel cup with a 5-micron original Bosch filter, piston/element, and delivery valve. Two additional oil pipes are included in the package for your testing needs.

【VERSATILE APPLICATION】- Widely employed for calibrating fuel injectors in diesel engines of automobiles and tractors, this diesel fuel injector tester is suitable for all types of diesel injectors except (CRDI) Common Rail Diesel Injectors.
