SPECIFICATIONS



Voltage: 110V (US)

Steel Line Length: 12 m/39.4 ft

Single-Line Lifting Speed: 10 m/min(32.8 ft/min)

Single-Line Height: 12 m/39.4 ft

Remote Control Cord Length: 1.45 m/4.8 ft

Power Cord Length: 0.65 m/2.1 ft

Power (for 800Kg): 1300W

Power (for 600Kg): 1150W

Power (for 400Kg): 850W

Power (for 200Kg): 500W

Power (for 1000Kg): 1800W

Origin: Mainland China

Housing Material: Cast Iron And Aluminum

Feature: Electric Hoist/ Lift Hoist/Lifting Engine Crane/Winch Hoist

Double-Line Lifting Speed: 5 m/min(16.4 ft/min)

Double-Line Height: 6 m/19.7 ft

Certification: CE

Brand Name: VEVOR

880LBS Lift Electric Hoist

850W Copper Motor & Anti-Rotate Steel Wire & High Security

• This lift electric hoist is designed for lifting and moving heavy-duty applications. The steel construction and pure copper motor make it durable and highly efficient. The hoist can be used with a single line 440 lbs/200 kg capacity or double lines 880 lbs/400 kg capacity. It is an ideal handling tool for factories, docks, warehouses, goods lifting, construction sites, and other places.

• 880LBS Load Capacity

• 850W Powerful Motor

• 4.8Ft Control Cord

• Premium Structure



Tough Equipment & Tools, Pay Less

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million plus members worldwide.

Why Choose VEVOR?

• Premium Tough Quality

• Incredibly Low Prices

• Fast & Secure Delivery

• 30-Day Free Returns

• 24/7 Attentive Service

Key Features

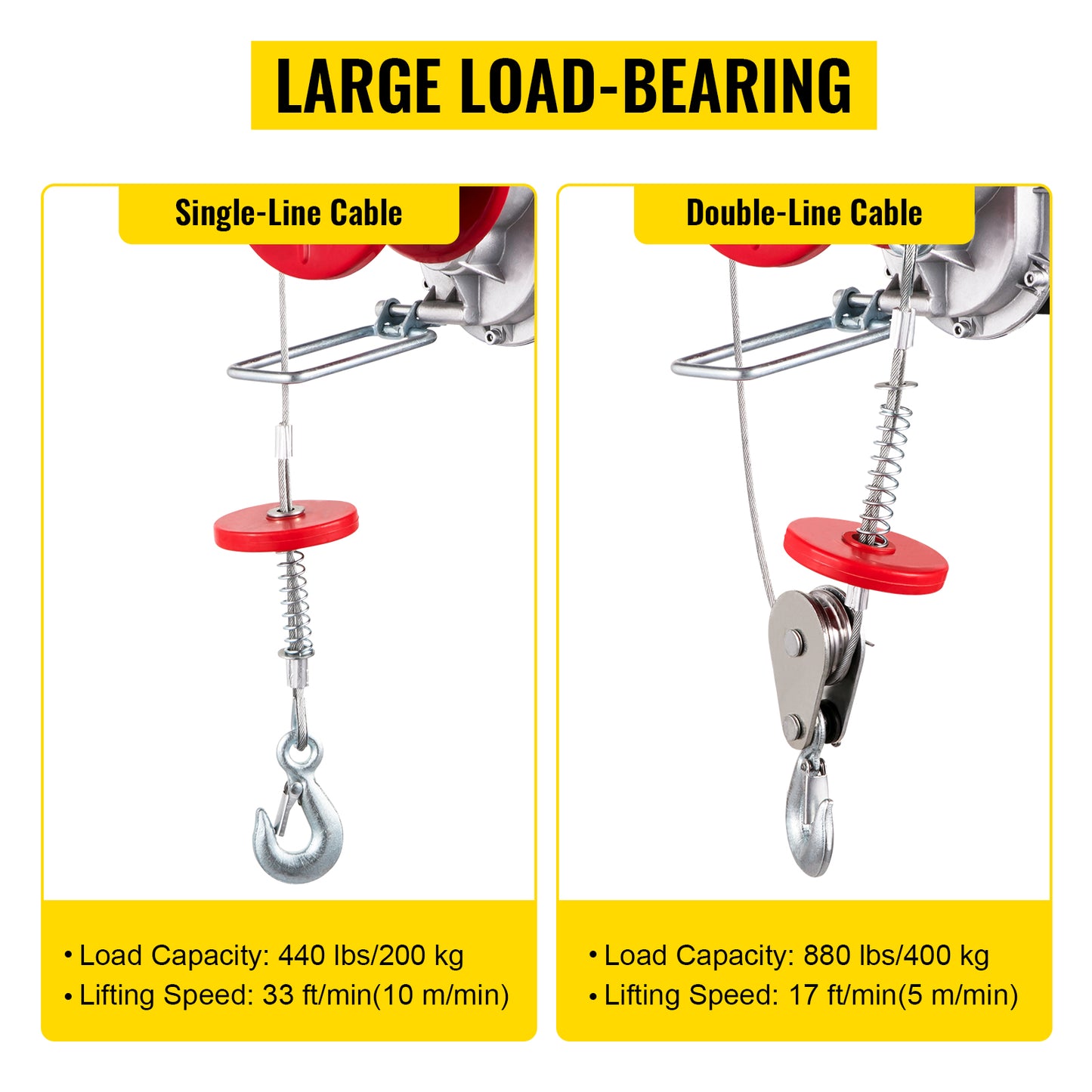

Large Load-Bearing

Our lift electric hoist meets your various demands on strength and hardness. The single line capacity and speed are 440 lbs/200 kg, 33 ft/min(10 m/min). Double line capacity and speed are 880 lbs/400 kg, 17 ft/min(5 m/min).

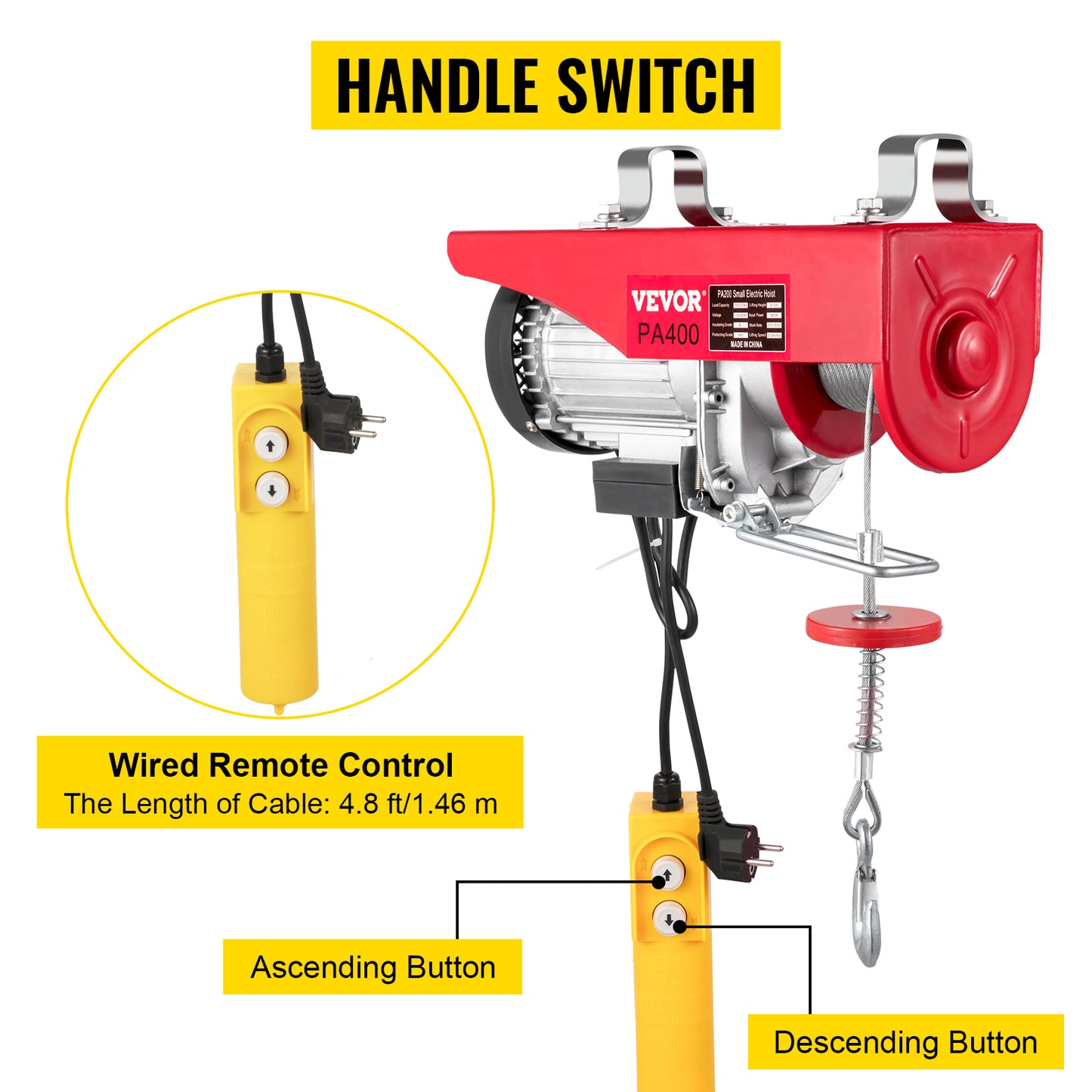

Handle Switch

The wired remote control in this hoist is achieved through a handle switch. The pressing upside is going up, conversely going down. Around 4.8 ft/1.45 m length cable allows you to operate at a certain distance.

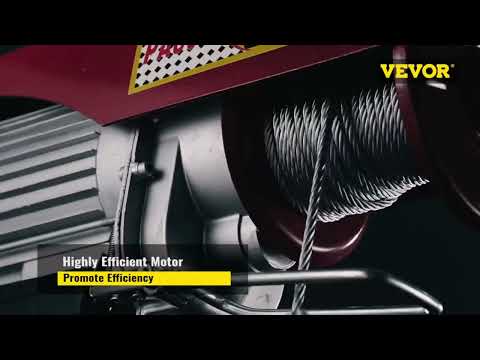

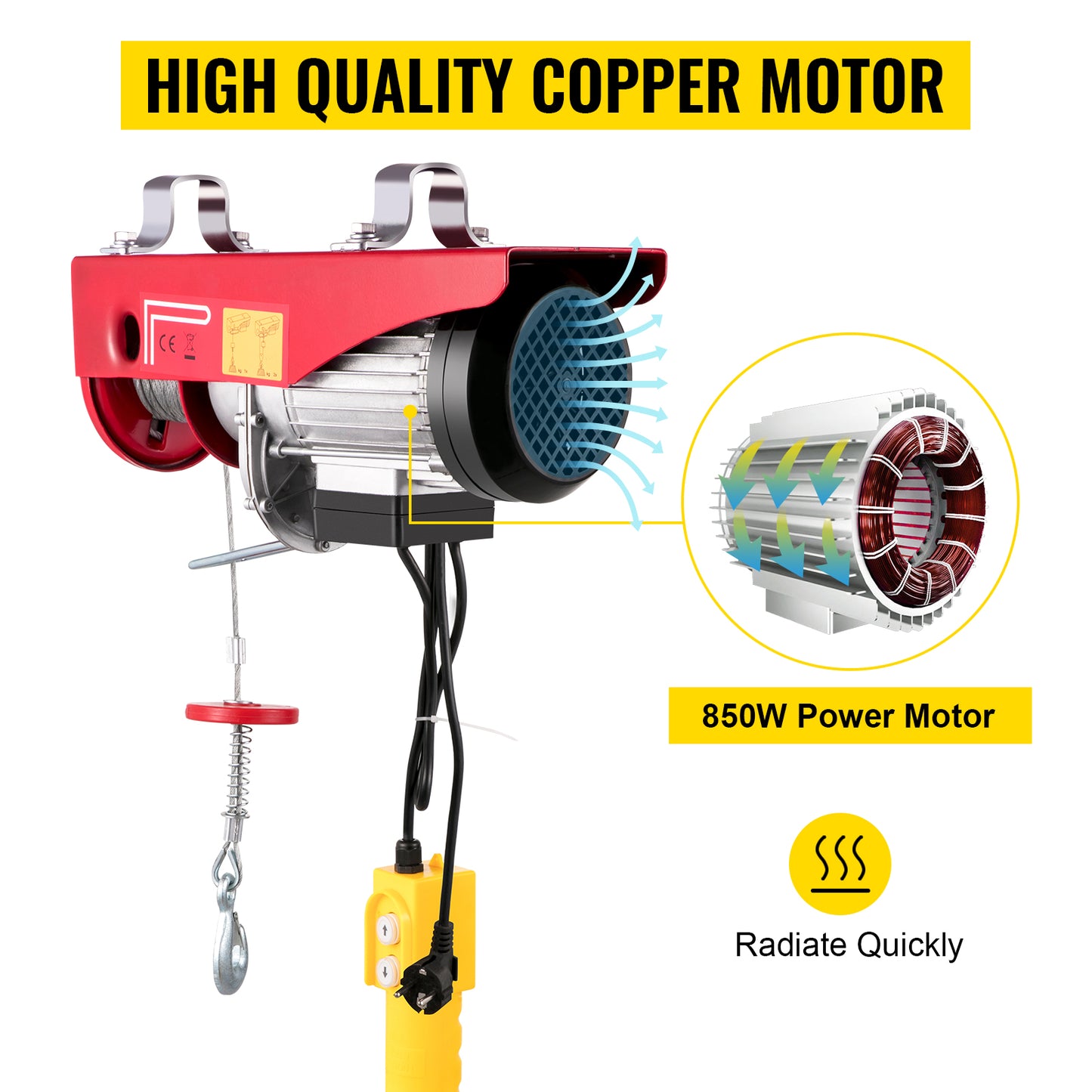

High-Quality Copper Motor

The electric hoist winch adopts an 850W pure copper motor, which features high efficiency and low noise. Furthermore, the electric winch can continuously work for a long time because it radiates rapidly.

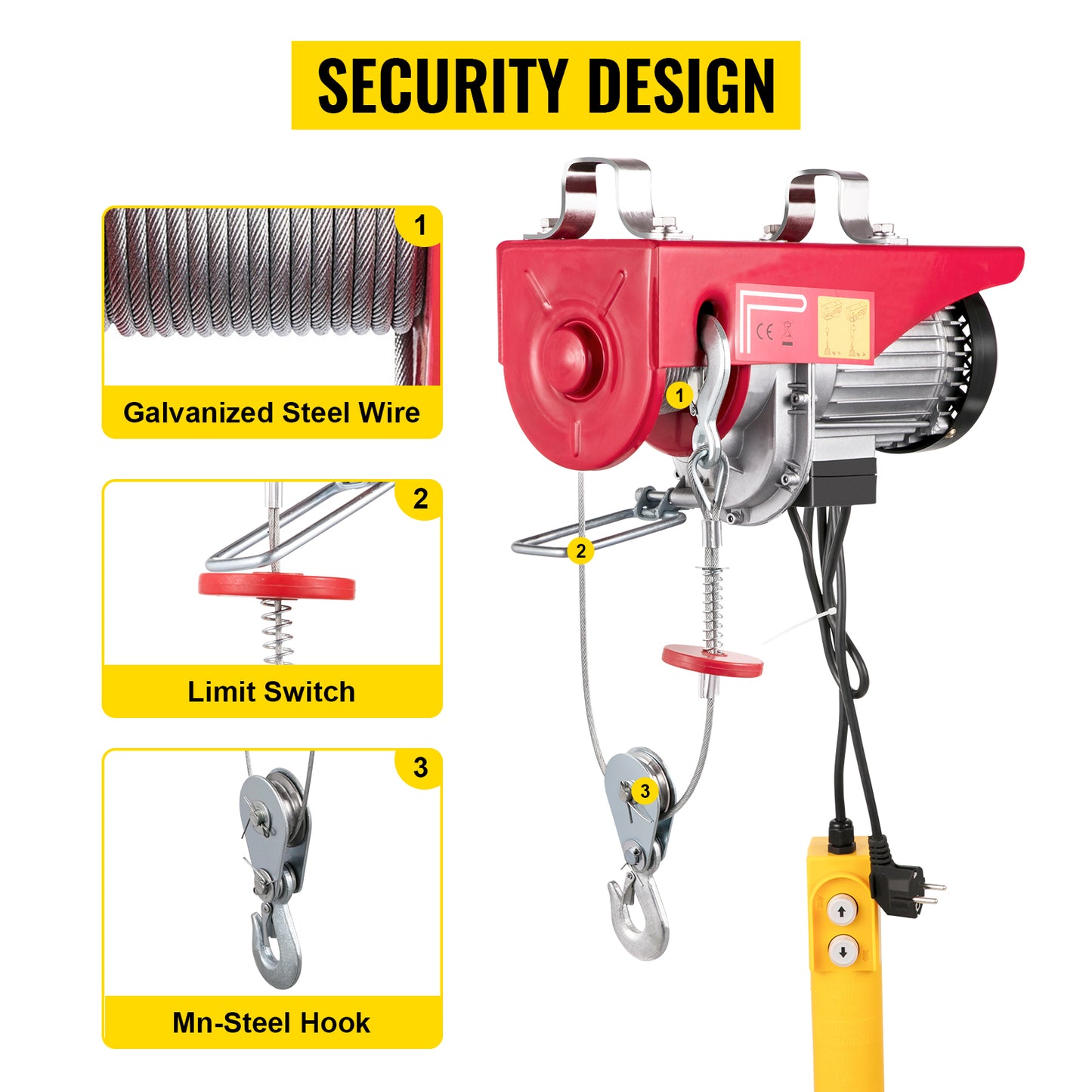

Security Design

When the red block touches the limit switch, the motor stops automatically to prohibit the chains from overloading. Moreover, the galvanized steel wire and hook with latch provide double-protected operation.

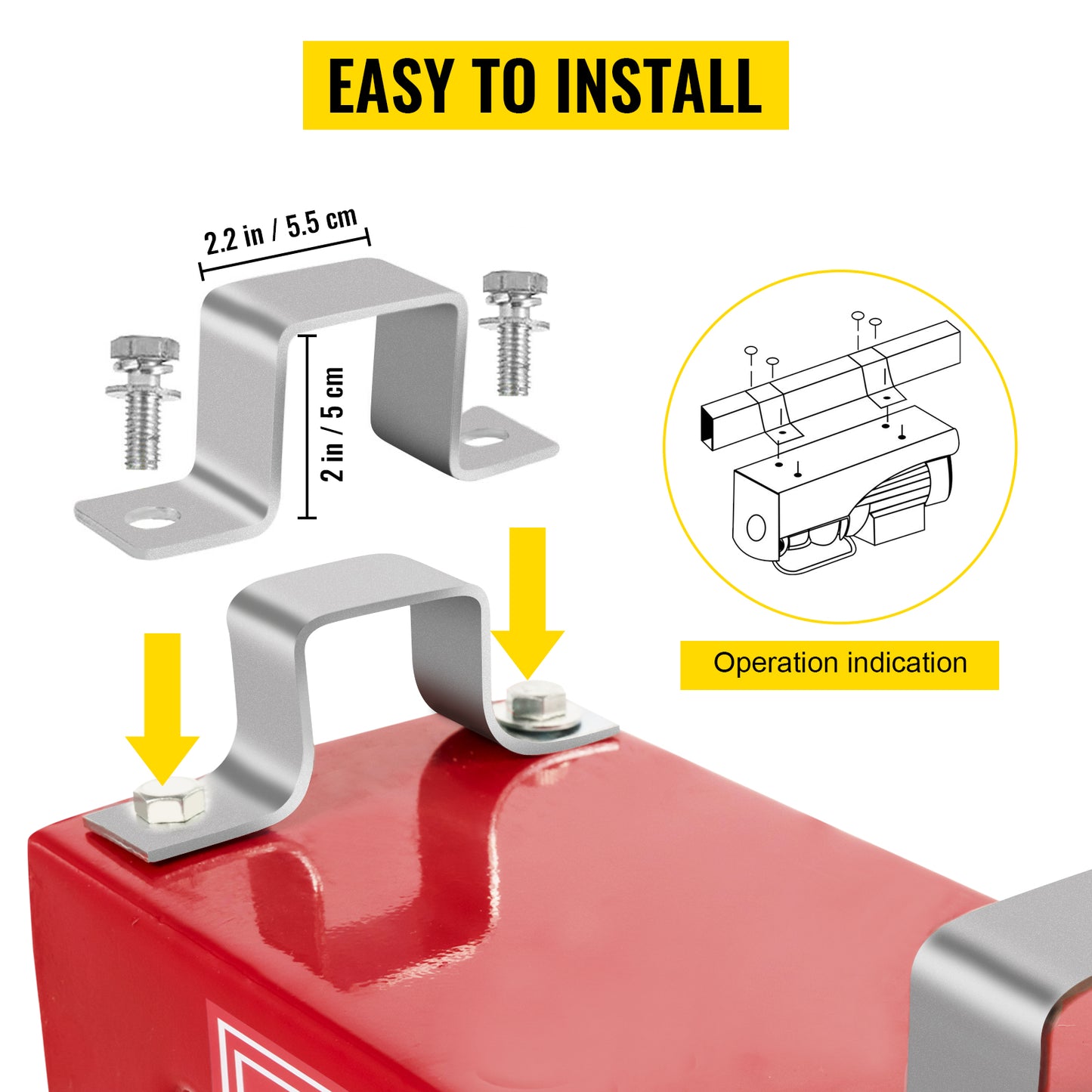

Easy to Install

For the purpose of satisfying your needs, our electric hoist is possessed of a metal fixing ring that is installed effortlessly. Just remember the bar's width and height shall not surpass the internal size of the mounting brackets. The ring width: is 2.2in/5.5 cm; the height: is 2in/5 cm.

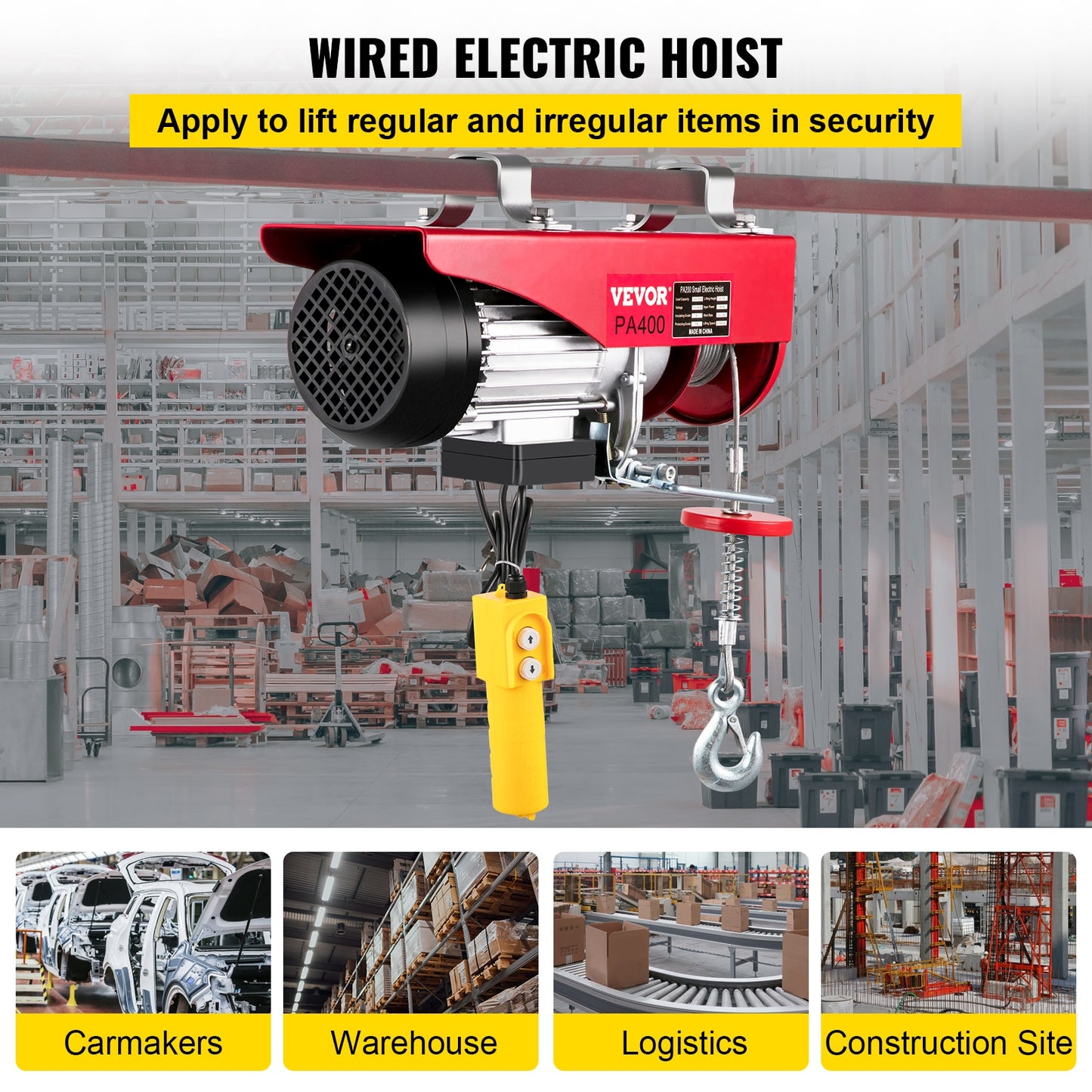

Extensive Uses

This power electric hoist is an excellent choice to lift regular or irregular shape things such as stones, trees, mowers, engines, and so on. As a result, it is widely used in carmakers, construction sites, logistics, warehouses, etc.

Specifications

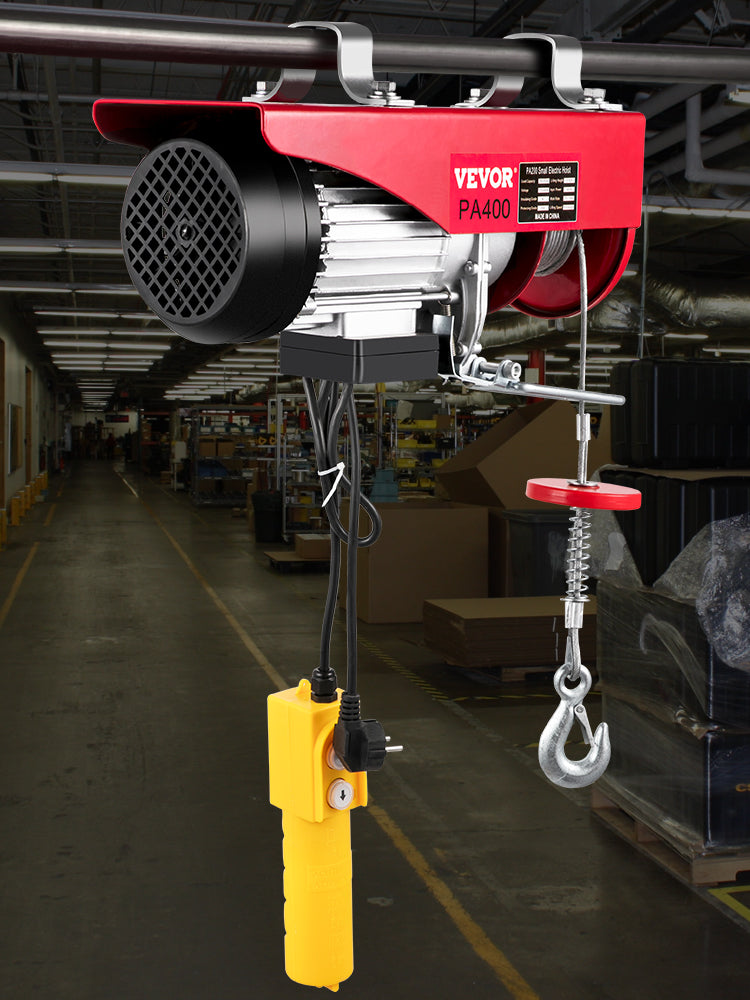

• Model: PA400

• Material: Cast Iron & Aluminum

• Voltage: 110V/220V

• Power: 850W

• Load Capacity: 440 lbs / 200 kg, 880 lbs / 400 kg

• Lifting Height: 39.4 ft / 12 m, 20 ft / 6 m

• Lifting Speed: 33 ft/min / 10 m/min, 17 ft/min / 5 m/min

• Steel Line Length: 39.4 ft / 12 m

• Remote Control Cord Length: 4.8 ft / 1.45 m

• Power Cord Length: 2.1 ft / 0.65 m

• Cable Gauge: 0.16 in / 4 mm

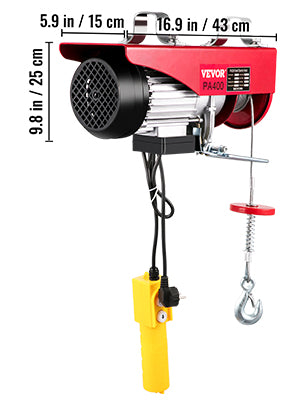

• Item Size: 16.9 x 5.9 x 9.8 in / 43 x 15 x 25 cm

• Item weight: 33.1 lbs / 15 kg

Package Content

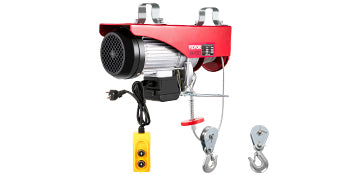

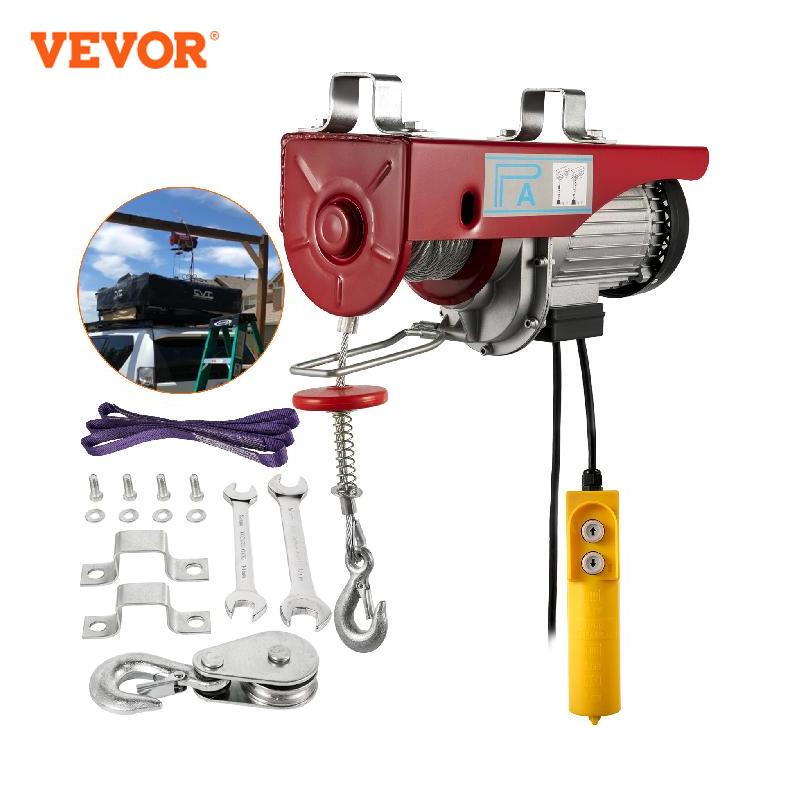

• 1 x Lift Electric Hoist

• 2 x Lifting Lugs

• 1 x Moveable Pulley

• 1 x Bag of Screws

• 1 x User manual

Specifications

• Model: PA200

• Material: Cast Iron & Aluminum

• Voltage: 110V/220V

• Power: 450W

• Load Capacity: 220 lbs / 100 kg, 440 lbs / 200 kg

• Lifting Height: 39.4 ft / 12 m, 20 ft / 6 m

• Lifting Speed: 33 ft/min / 10 m/min, 17 ft/min / 5 m/min

• Steel Line Length: 39.4 ft / 12 m

• Remote Control Cord Length: 4.3 ft / 1.3 m

• Power Cord Length: 2.1 ft / 0.65 m

• Cable Gauge: 0.1 in / 3 mm

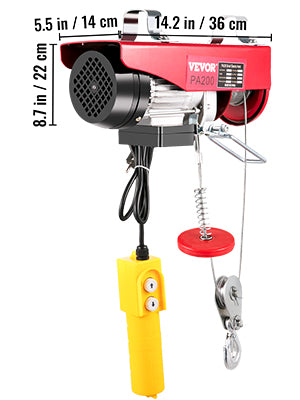

• Item Size: 14.2 x 5.5 x 8.7 in / 36 x 14 x 22 cm

• Item Weight: 24.3 lbs / 11 kg

Package Content

• 1 x Lift Electric Hoist

• 2 x Lifting Lugs

• 1 x Moveable Pulley

• 1 x Bag of Screws

• 1 x User Manual

Specifications

• Model: Electric Hoist 1760LBS

• Material: Cast Iron & Aluminum

• Voltage: 110V/220V

• Power: 1450W

• Load Capacity: 880 lbs(Single), 1760 lbs(Double)

• Lifting Height: 39.4 ft(Single), 20 ft(Double)

• Lifting Speed: 33 ft/min(Single), 17 ft/min(Double)

• Steel Line Length: 39.4 ft / 12 m

• Remote Control Cord Length: 4.8 ft / 1.45 m

• Power Cord Length: 2.1 ft / 0.65 m

• Cable Gauge: 0.2 in / 5 mm

• Item Size: 16.9 x 5.9 x 9.8 in / 43 x 15 x 25 cm

• Item Weight: 41.9 lbs / 19 kg

Package Content

• 1 x Lift Electric Hoist

• 2 x Lifting Lugs

• 1 x Moveable Pulley

• 1 x Bag of Screws

• 1 x Gebruikershandleiding

Specifications

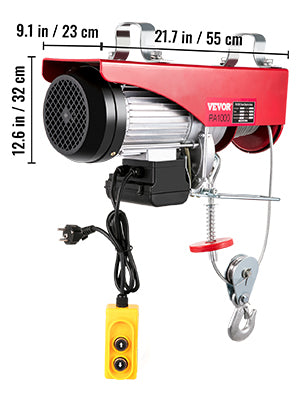

• Model: PA1000

• Material: Cast Iron & Aluminum

• Voltage: 110V/220V

• Power: 1800W

• Load Capacity: 1100 lbs / 500 kg, 2200 lbs / 1000 kg

• Lifting Height: 39.4 ft / 12 m, 20 ft / 6 m

• Lifting Speed: 33 ft/min / 10 m/min, 17 ft/min / 5 m/min

• Steel Line Length: 39.4 ft / 12 m

• Remote Control Cord Length: 4.8 ft / 1.45 m

• Power Cord Length: 2.1 ft / 0.65 m

• Cable Gauge: 0.24 in / 6 mm

• Item Size: 21.7 x 9.1 x 12.6 in / 55 x 23 x 32 cm

• Item Weight: 68.3 lbs / 31 kg

Package Content

• 1 x Lift Electric Hoist

• 2 x Lifting Lugs

• 1 x Moveable Pulley

• 1 x Bag of Screws

• 1 x Belt

• 1 x User Manual

Specifications

• Model: PA600

• Material: Cast Iron & Aluminum

• Voltage: 110V/220V

• Power: 1150W

• Load Capacity: 660 lbs(single line), 1320 lbs(double line)

• Lifting Height: 39.4 ft(single line), 20 ft(double line)

• Lifting Speed: 33 ft/min(single line), 17 ft/min(double line)

• Steel Line Length: 39.4 ft / 12 m

• Remote Control Line Length: 4.9 ft / 1.5 m

• Power Cord Length: 2.1 ft / 0.65 m

• Cable Gauge: 0.16 in / 4.5 mm

• Item Size: 16.9 x 5.9 x 9.8 in / 43 x 15 x 25 cm

• Item Weight: 37.5 lbs / 17 kg

Package Content

• 1 x Lift Electric Hoist

• 2 x Lifting Lugs

• 1 x Moveable Pulley

• 1 x Bag of Screws

• 1 x User Manual

Features & Highlights:

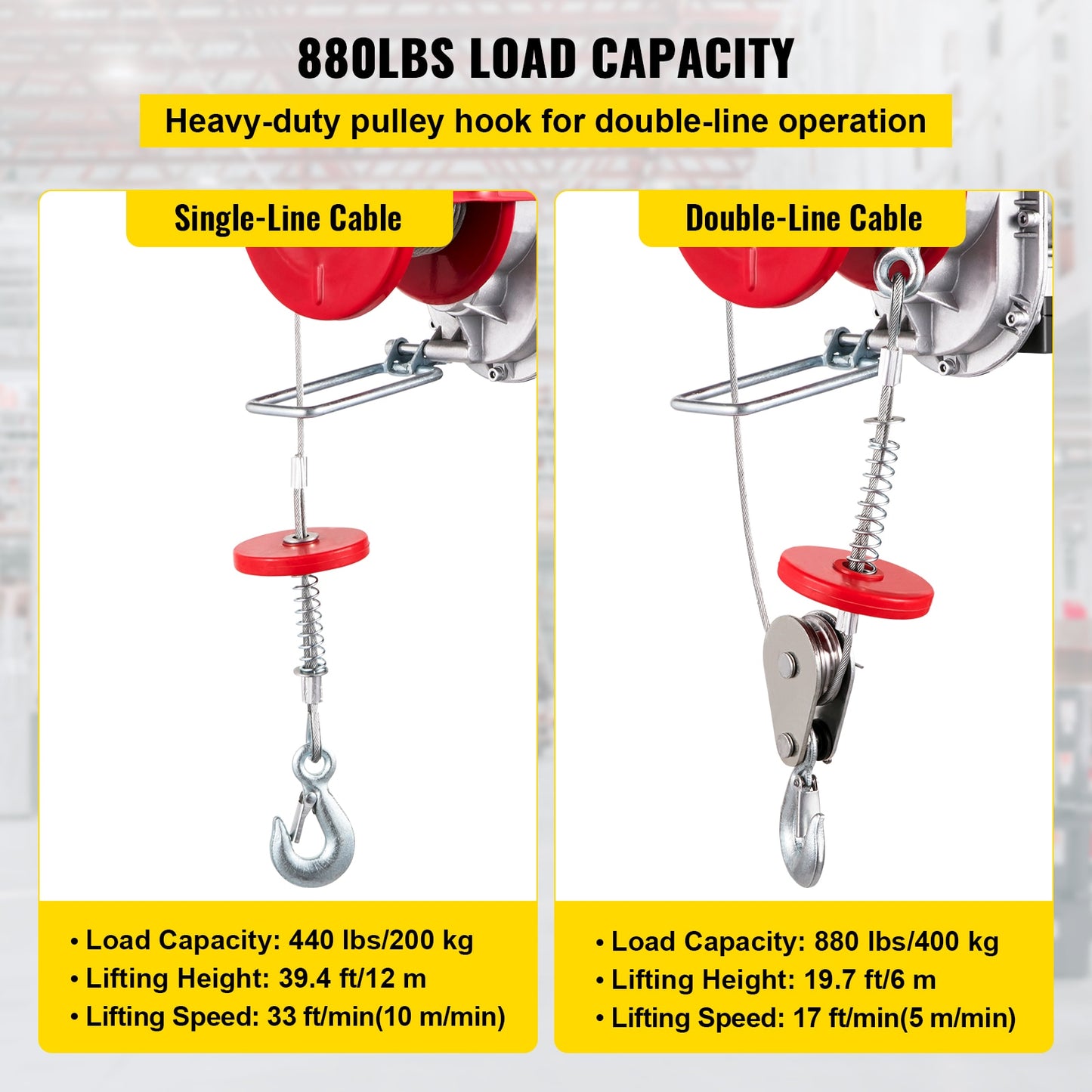

• 880LBS Load Capacity: This electric hoist effortlessly elevates small engines, transmissions, and building supplies with ease. It offers two lifting modes, complete with a secure latch steel hook. The single line has a capacity and speed of 440 lbs/200 kg, moving at 33 ft/min (10 m/min), while the double line boasts an impressive 880 lbs/400 kg capacity, moving at 17 ft/min (5 m/min).

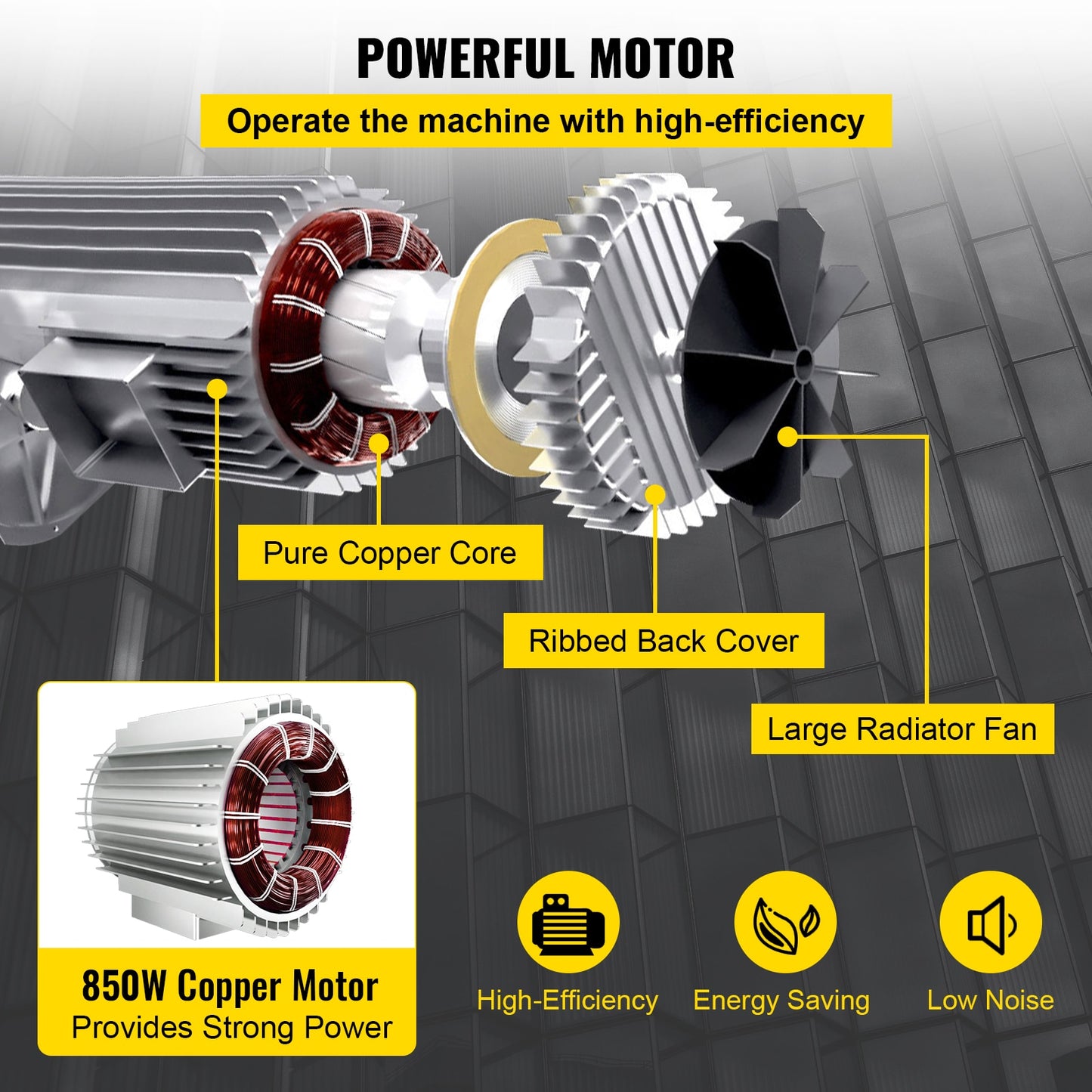

• 850W Robust Motor: With a high-quality copper motor generating 850W of power, this electric winch can withstand substantial forces without deformation. Its large radiator fan aids quick cooling and is complemented by overheat protection, ensuring efficient operation and energy savings.

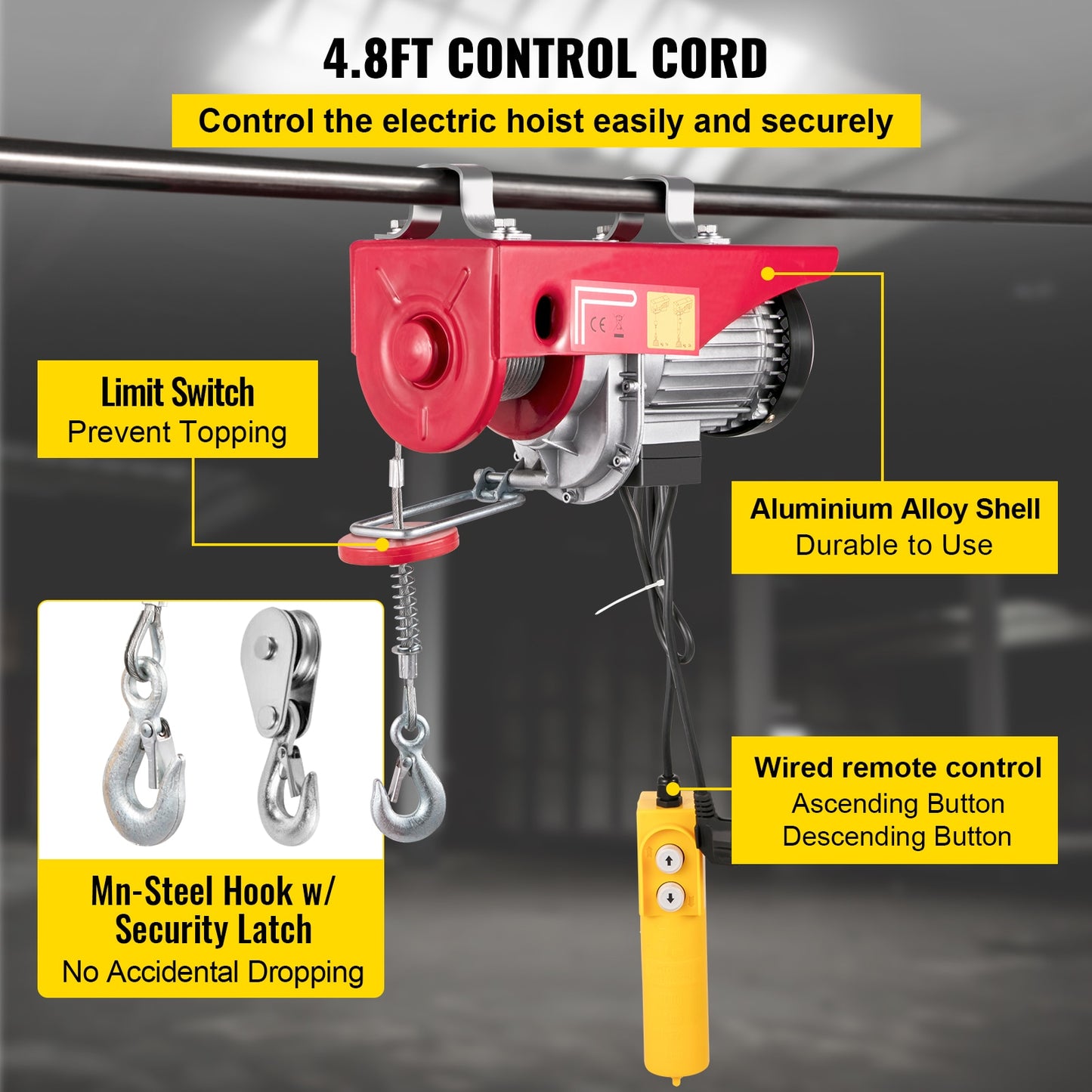

• 4.8Ft Control Cord: Operate the electric hoist via a remote control handle switch securely placed on the machine. Additionally, the hoist features a limit switch and buffer spring for automatic halting to prevent drooping.

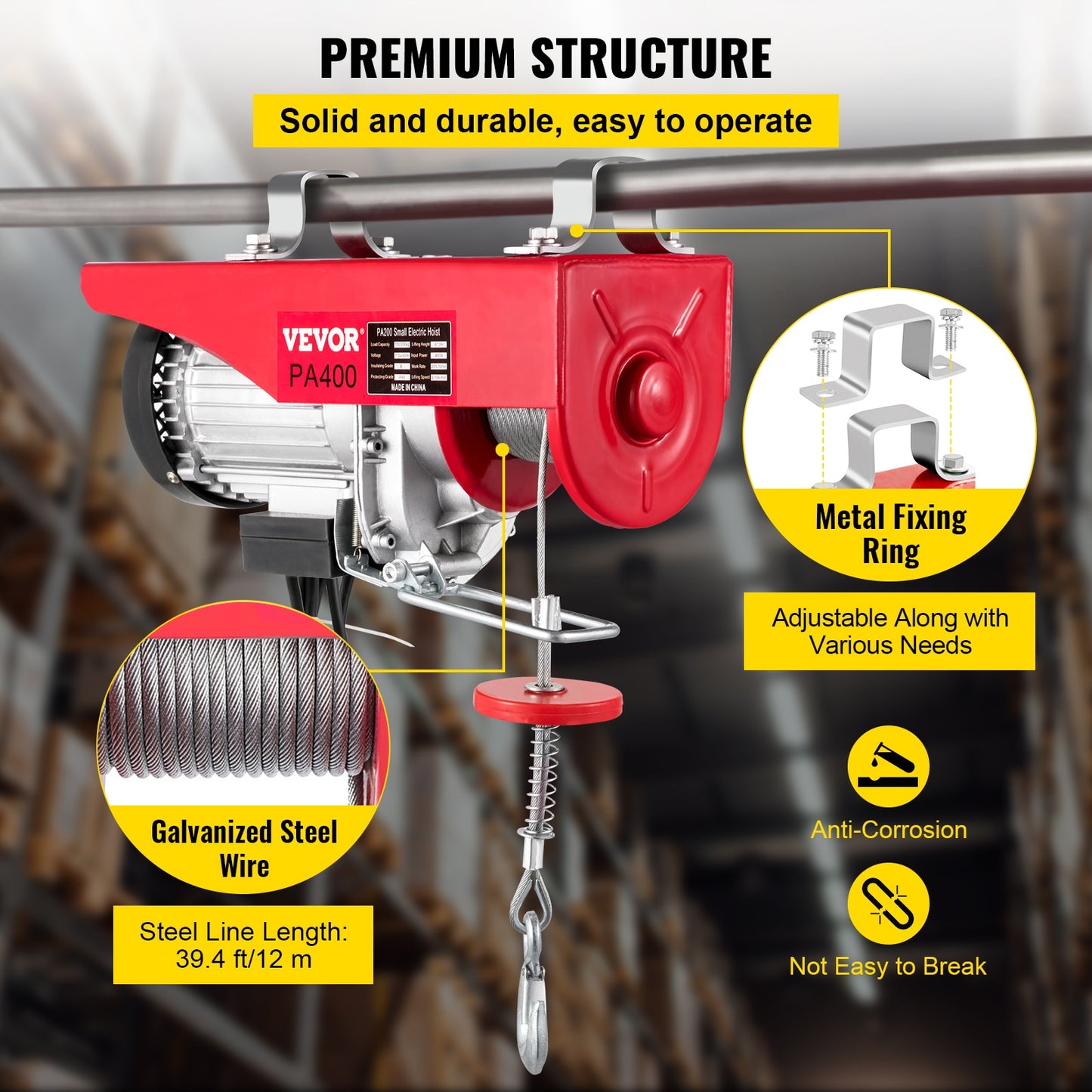

• Premium Build: Crafted from alloy shell and galvanized steel wire, this electric hoist winch is built to resist corrosion, rust, and rain. The steel line extends to a length of 39.4 ft/12 m with a diameter of 0.16 in/4 mm. The adjustable metal fixing ring easily accommodates various requirements, simplifying installation.

• Versatile Applications: Ideal for use in factories, warehouses, construction sites, automotive facilities, railway constructions, and more, this power hoist excels in both indoor and outdoor environments, even under challenging conditions. Ensure compatibility with mounting brackets by positioning it within the appropriate width and height constraints of the bar.
