SPECIFICATIONS



Test hose: Length=1.5 m QTY: 3PC

Pressure gauge 3: Diameter 63 mm-60 MPa(60 MPA/600 Kg/c㎡) QTY: 1PC

Pressure gauge 2: Diameter 63 mm-40 MPa(40 MPA/400 Kg/c㎡) QTY: 1PC

Pressure gauge 1: Diameter 63 mm-25 MPa(25 MPA/250 Kg/c㎡) QTY: 1PC

Origin: Mainland China

Brand Name: VEVOR

"Hydraulic Pressure Test Kit: 6/8/11 PCS Test Couplings for Accurate Measurements"

"Experience Reliable Pressure Testing with Our Hydraulic Pressure Test Kit: 6/8/11 PCS Test Couplings Included"

"Our Hydraulic Pressure Testing Set: 6/8/11 PCS Test Couplings for Precise Measurements"

"Enhance Precision with Our Hydraulic Pressure Test Kit: 6/8/11 PCS Test Couplings and More"

"Accurate Hydraulic Pressure Testing Made Easy: 6/8/11 PCS Test Couplings and Accessories Included"

"Tough Tools for Less: Explore VEVOR's Hydraulic Pressure Test Kit with 6/8/11 PCS Test Couplings"

"VEVOR's Quality Assurance: Hydraulic Pressure Test Kit with 6/8/11 PCS Test Couplings and More"

"Upgrade Your Pressure Testing with VEVOR: Hydraulic Pressure Test Kit Featuring 6/8/11 PCS Test Couplings"

"Reliable Hydraulic Pressure Testing: Complete Kit with 6/8/11 PCS Test Couplings from VEVOR"

"Efficient Pressure Measurements Made Simple: Hydraulic Pressure Test Kit with 6/8/11 PCS Test Couplings"

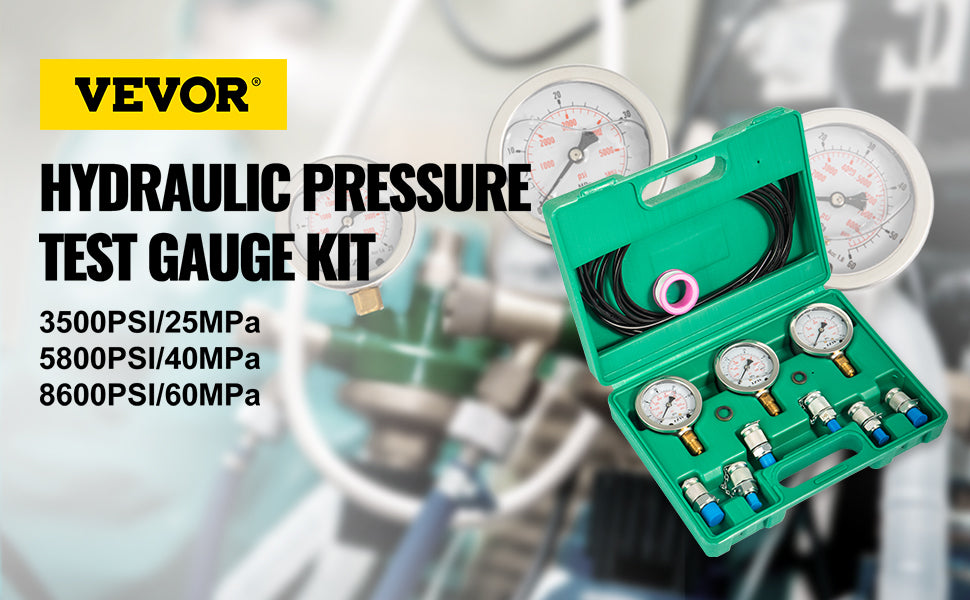

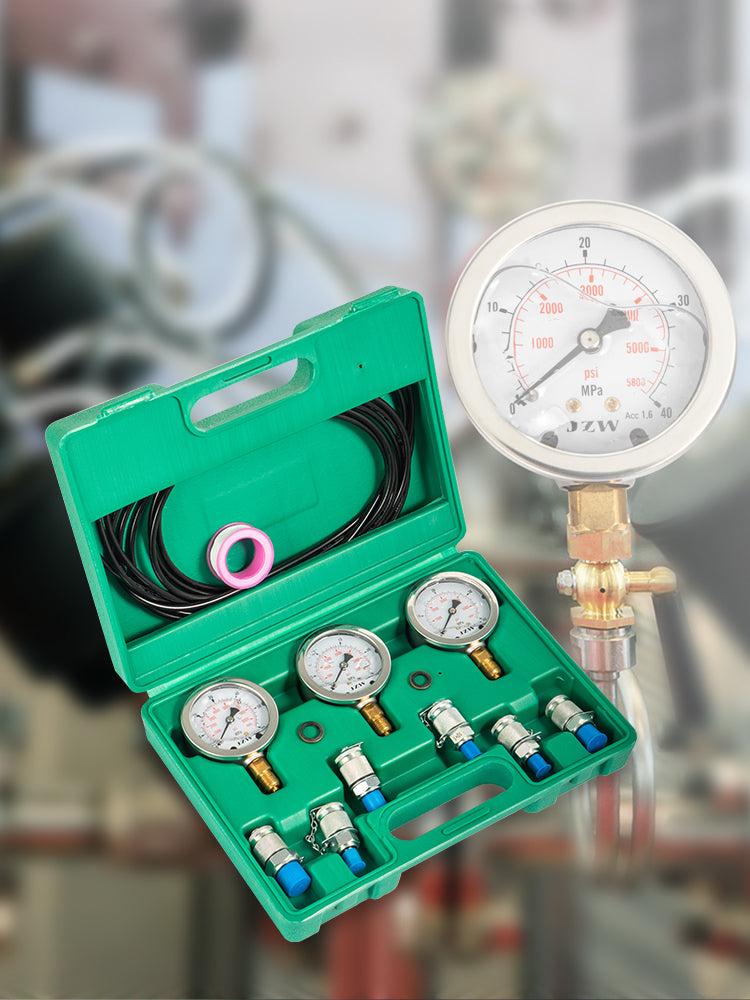

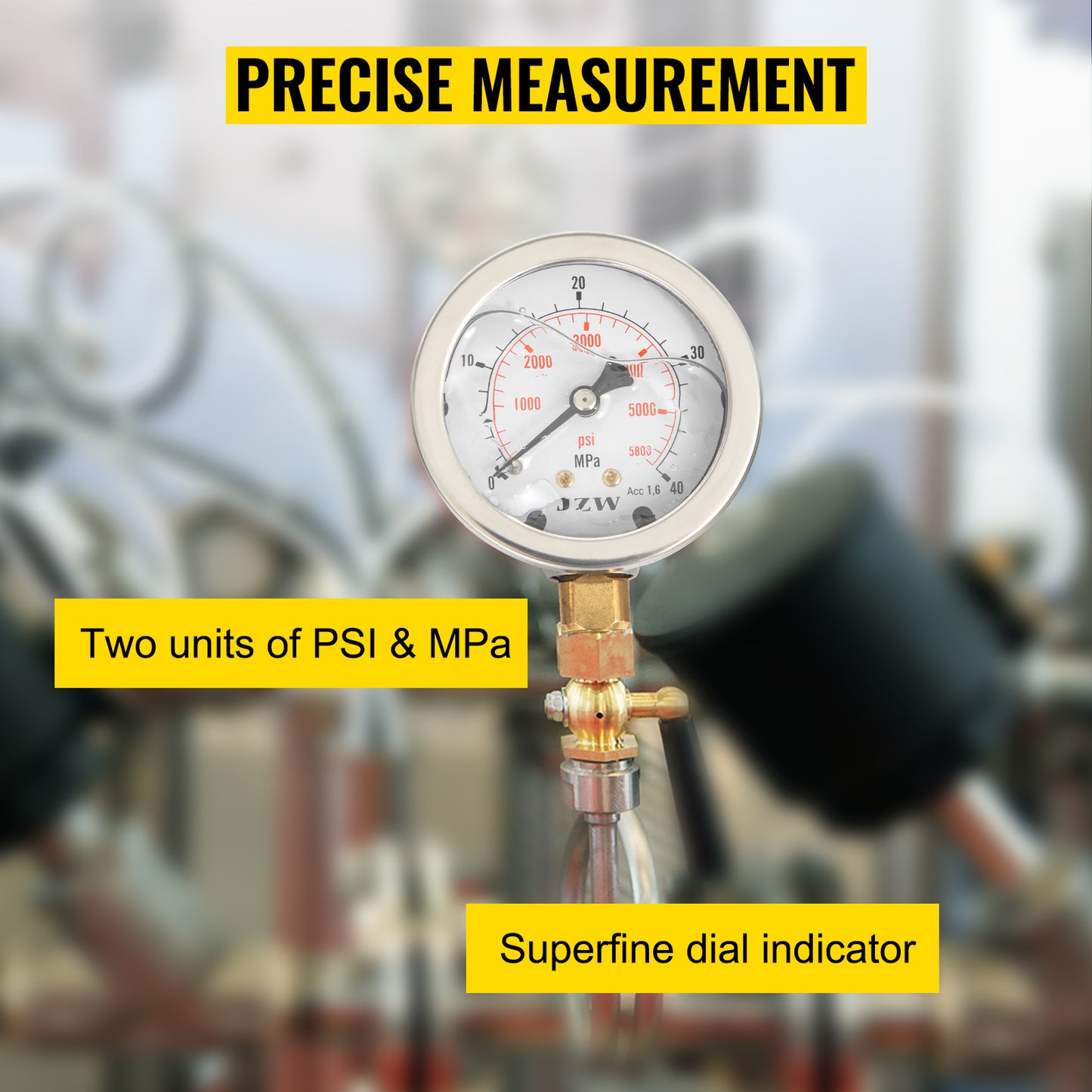

Accurate Pressure Gauge

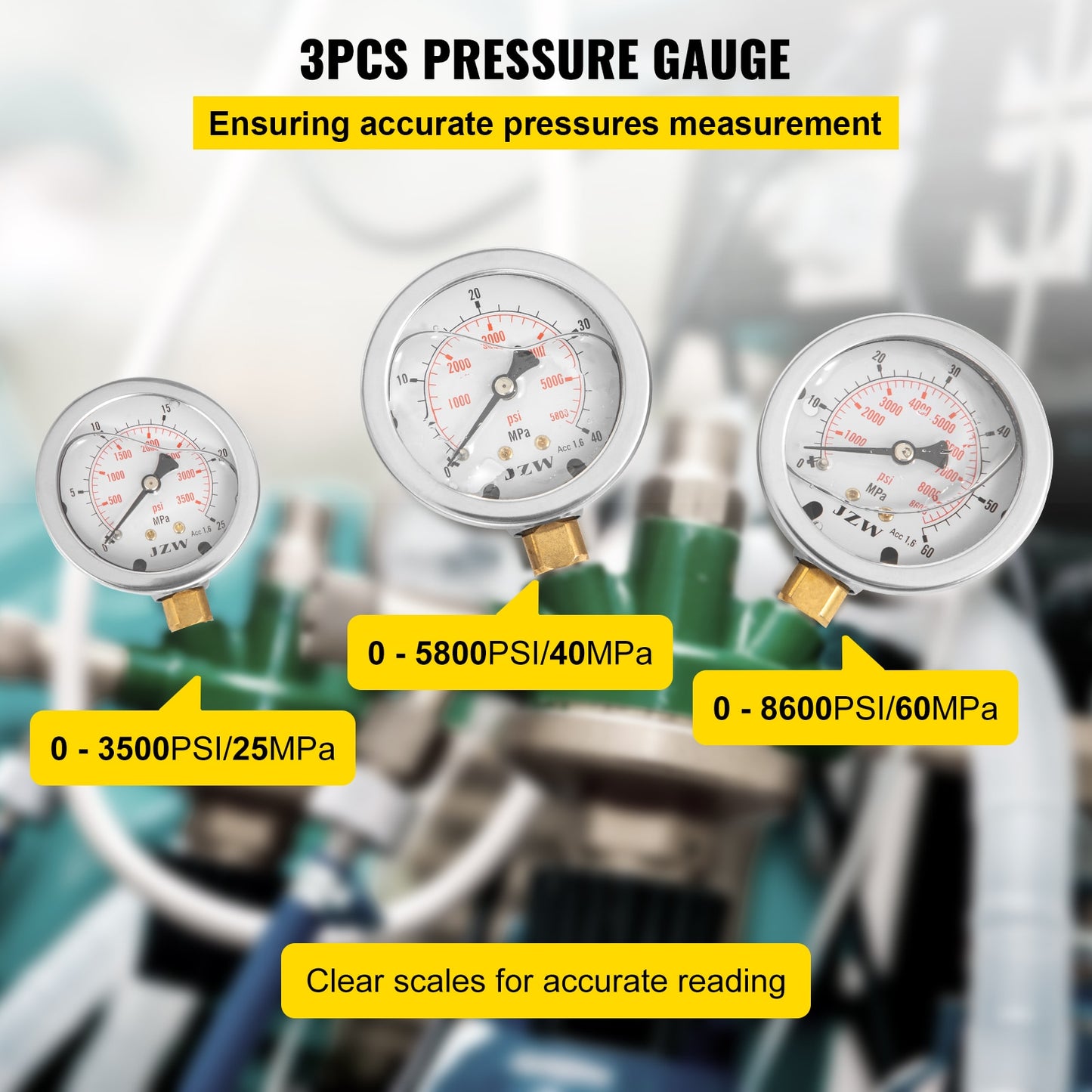

3 pressure gauge ranges: 0-25Mpa, 0-40Mpa, 0-60Mpa. Clear and accurate scale.

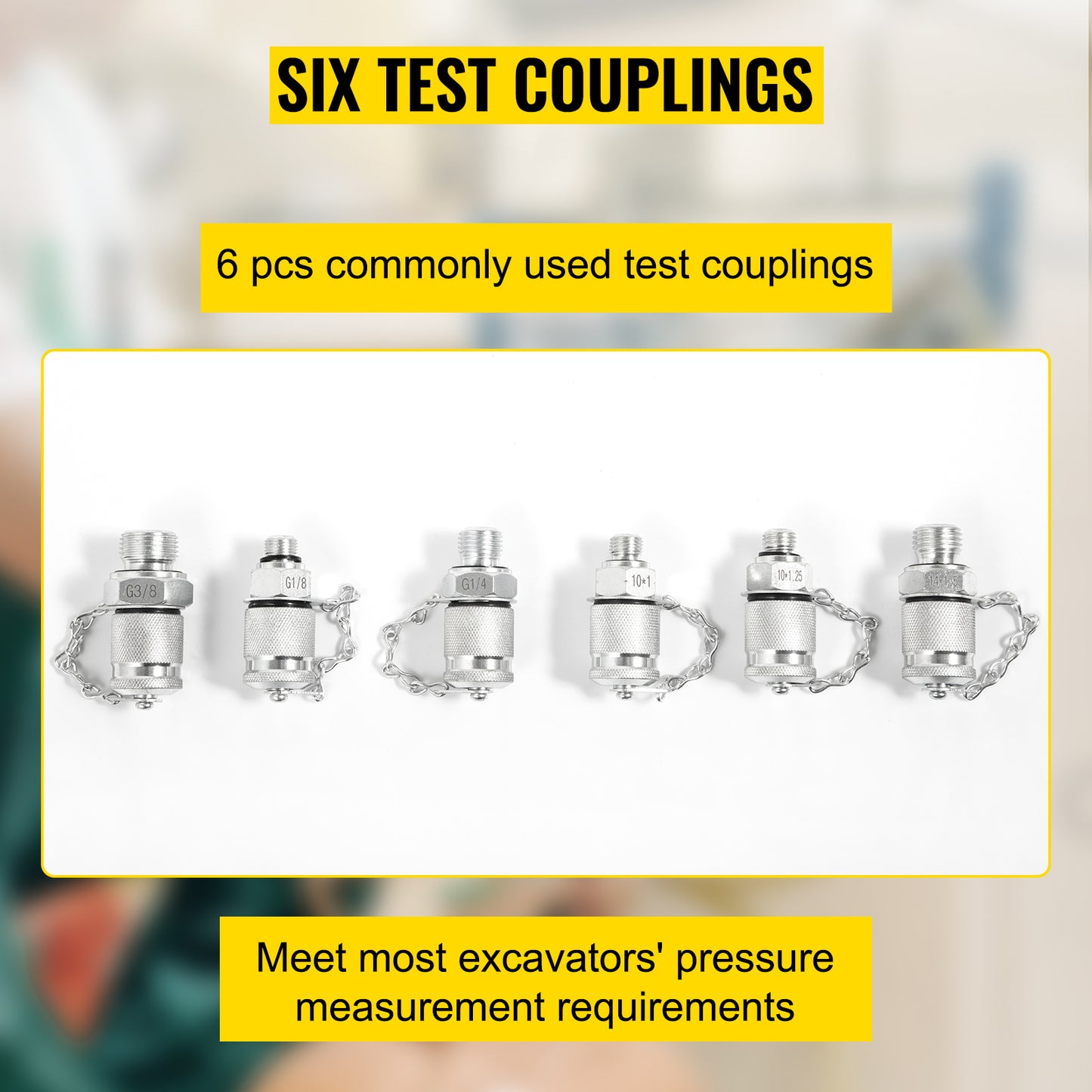

Various Test Couplings



This hydraulic test gauge kit comes with 6/8/11 PCS test couplings. High quality with resistance to oil, acid, alkali, corrosion, and high pressure.

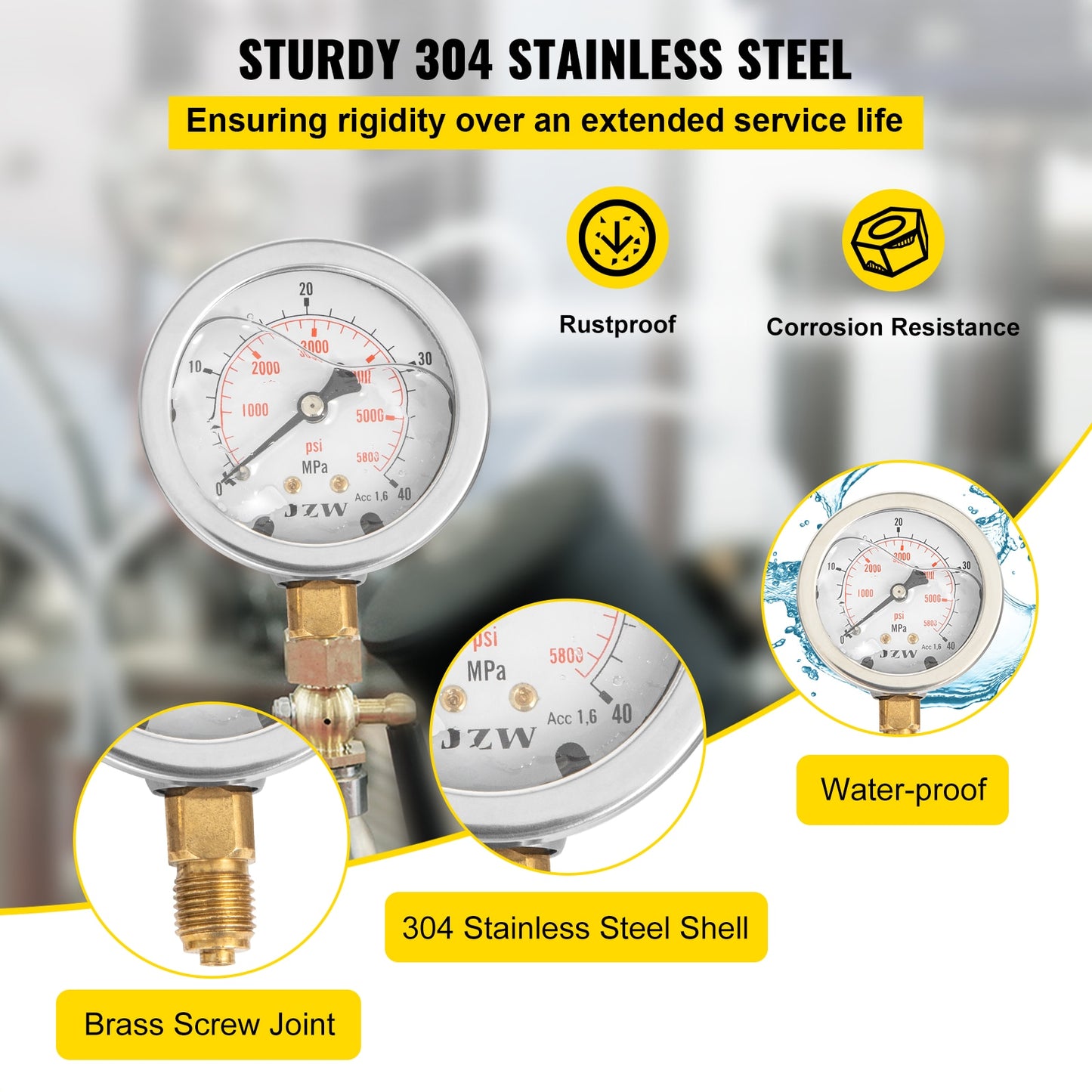

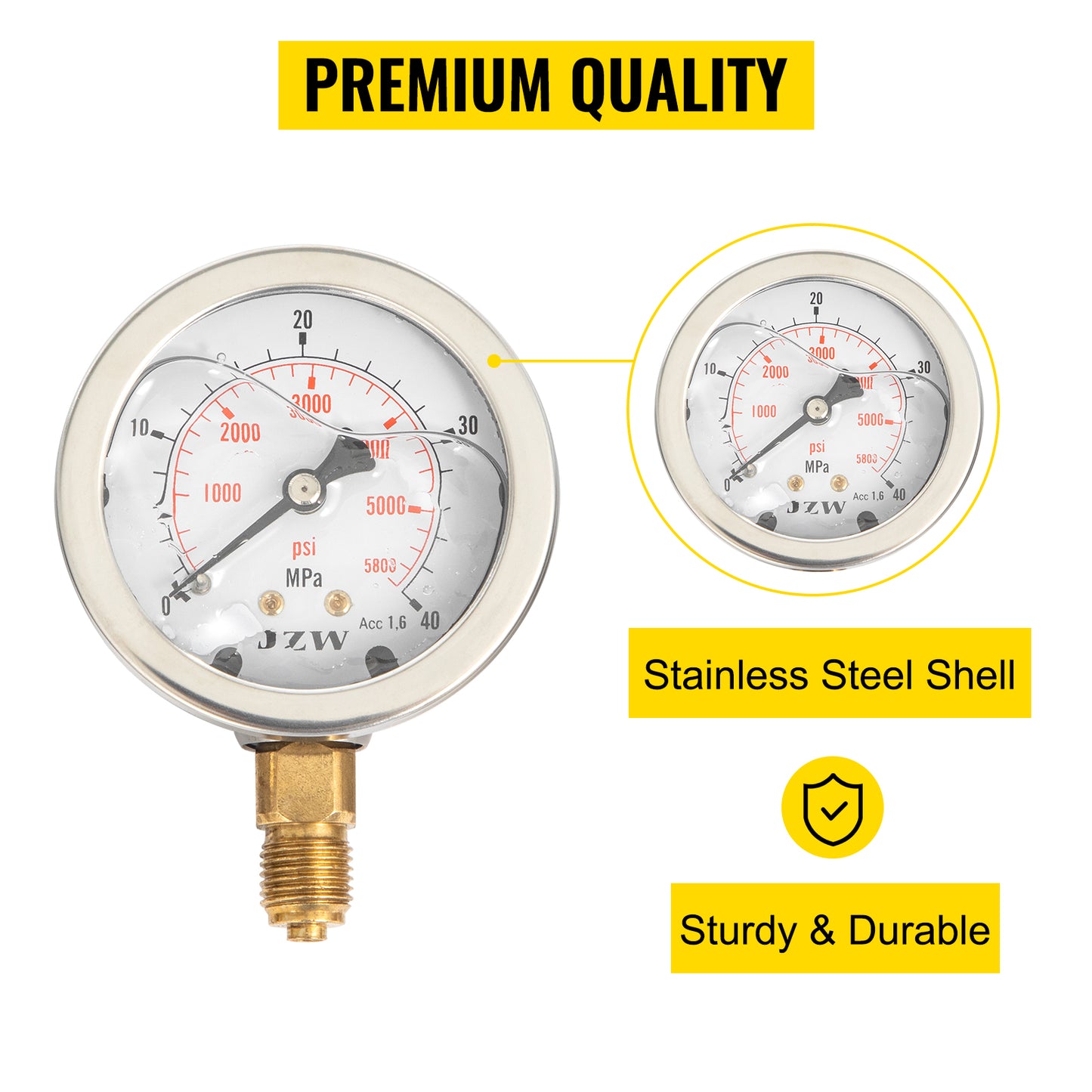

Premium Quality



The hydraulic gauges are constructed with 304 stainless steel and red copper. The couplings are made of carbon steel, making the device sturdy and durable to have a long service life.

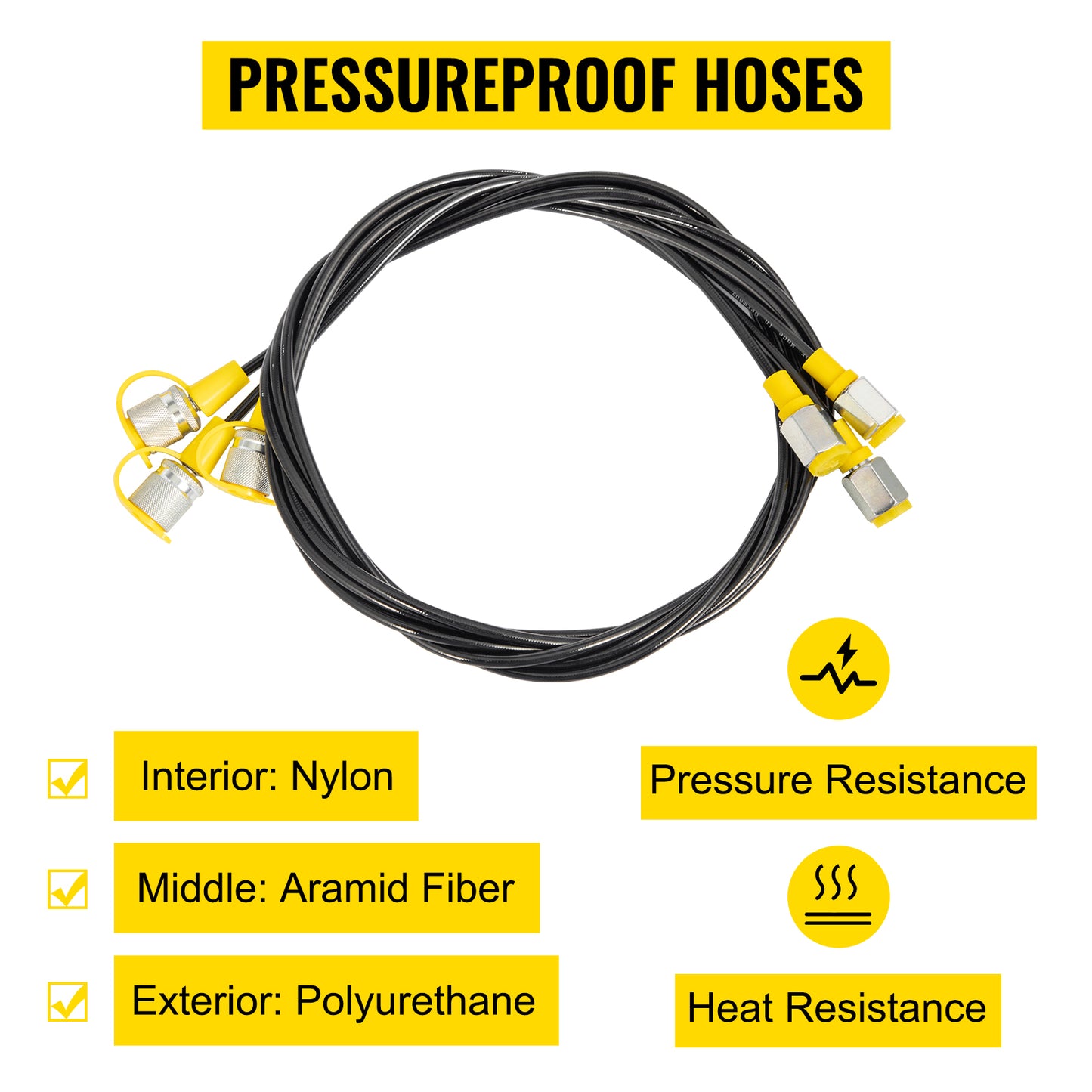

Pressure Proof Hoses



The test hoses have the characteristics of resistance to heat and pressure with premium material and particular structure. In addition, 5.25FT/1.6M long hoses allow you to work from a long distance.

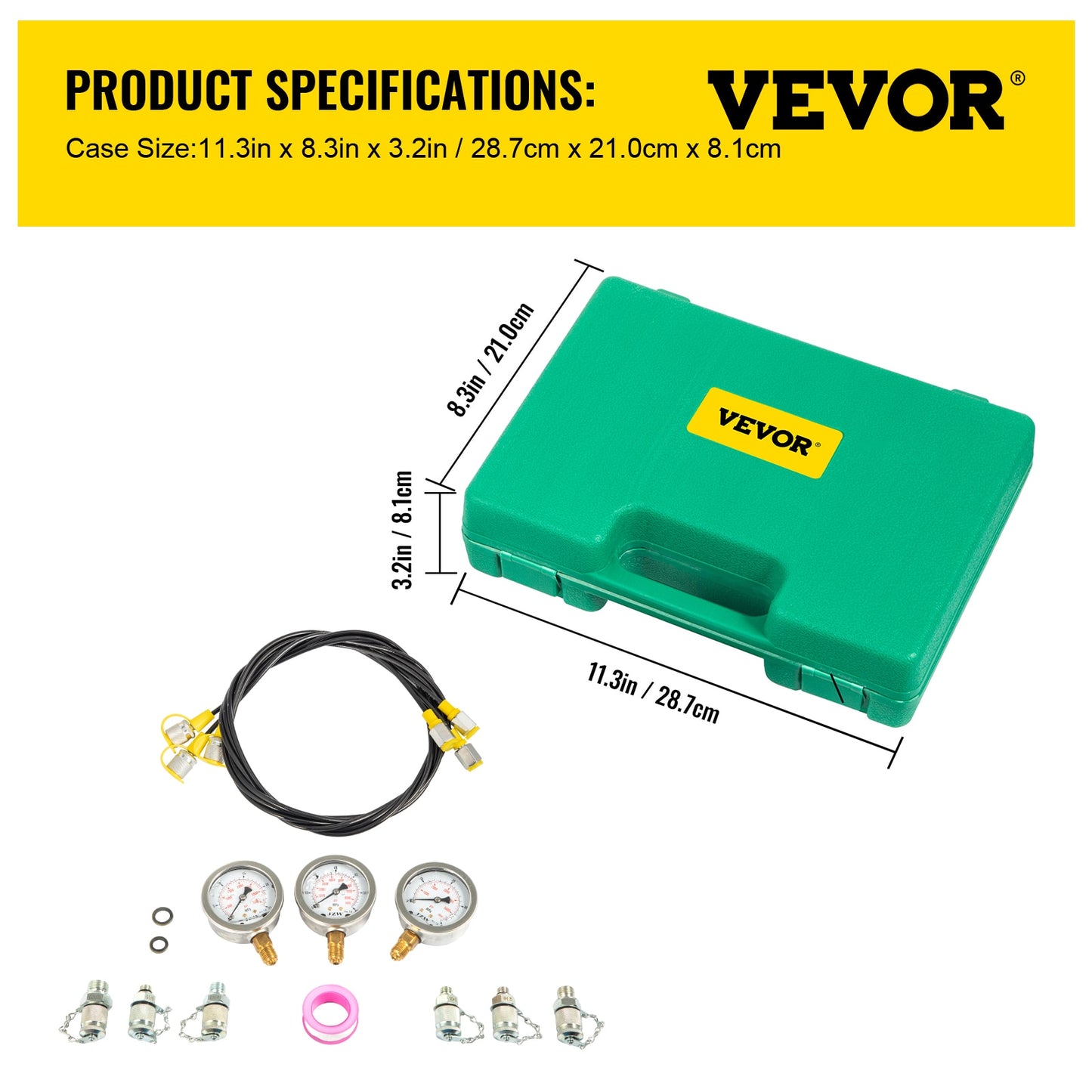

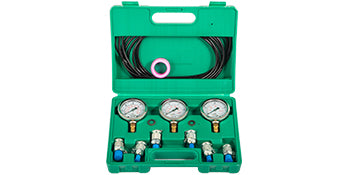

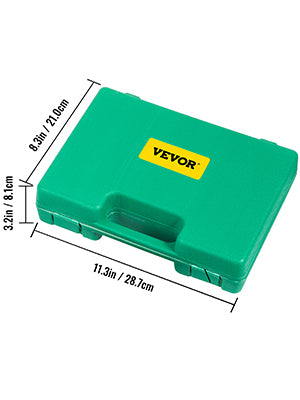

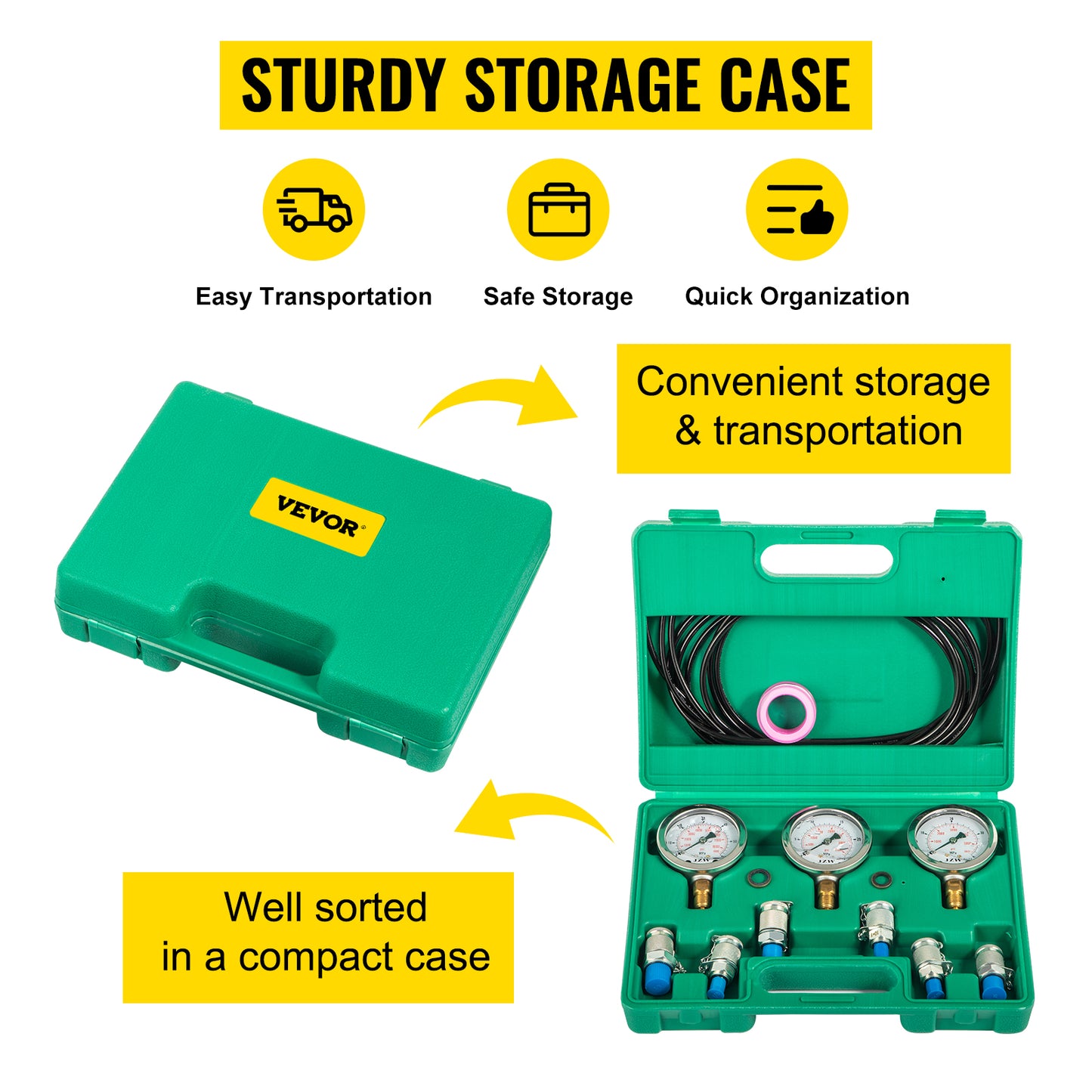

Sturdy Storage Case



The hydraulic kit comes with a robust plastic case. Its card slot design and compact size ensure neat storage and portable use.

Versatile Usage



The hydraulic gauge test kit is suitable for most excavators and machines on the market. It is widely used in construction, machinery, shipping, mining, petroleum, chemical industry, etc.

Specifications

• Materials: Stainless Steel, Red Copper, Carbon Steel
• Pressure Gauge 1: φ60 mm-3500PSI/25MPa
• Pressure Gauge 2: φ60 mm-5800PSI/40MPa
• Pressure Gauge 3: φ60 mm-8600PSI/60MPa

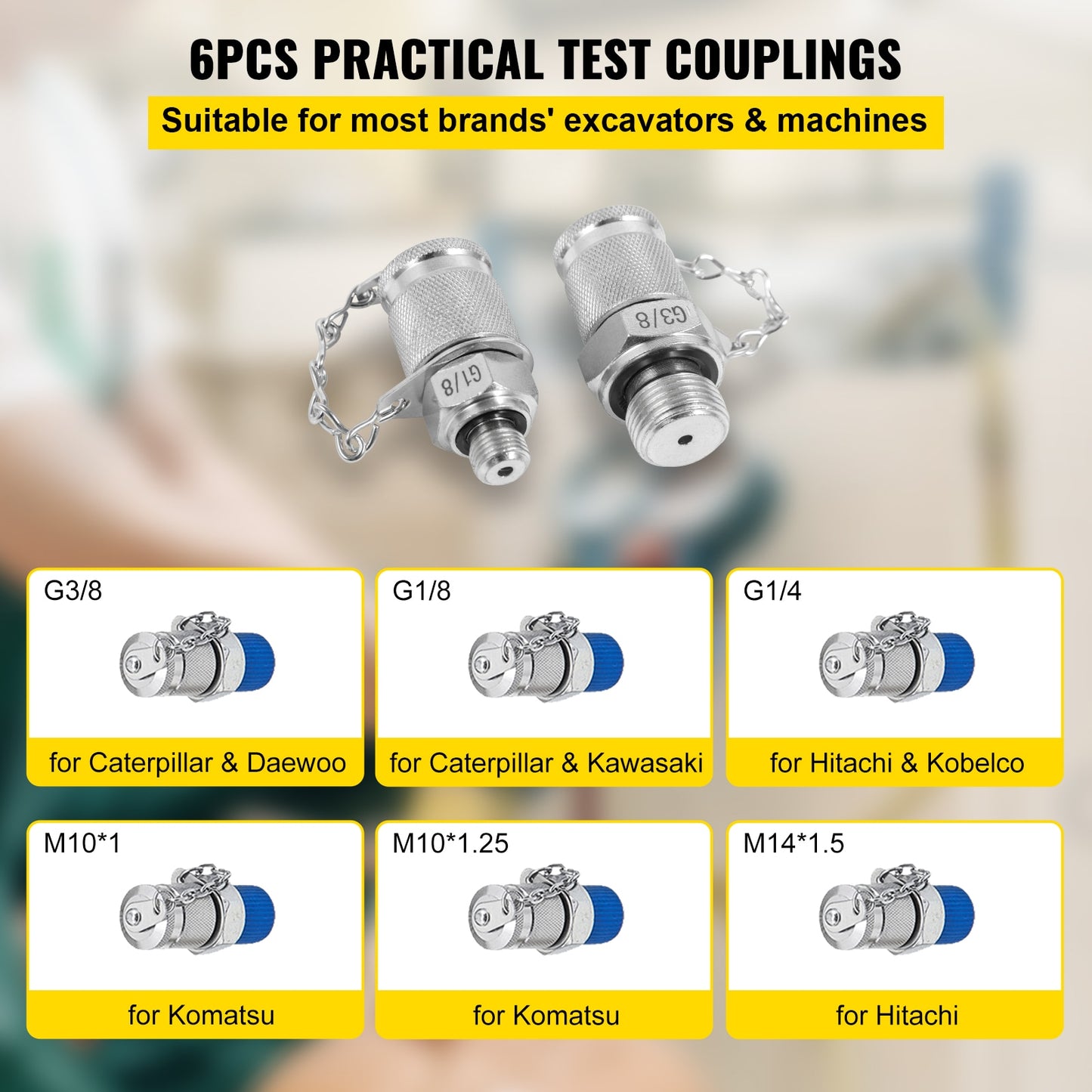

• Coupling Models: G1/4, G1/8, G3/8, M14x1.5, M10x1, M10x1.25
• Hose Length: 1.6 M / 63"
• Gauge Screw Size: J4/1

Package Content

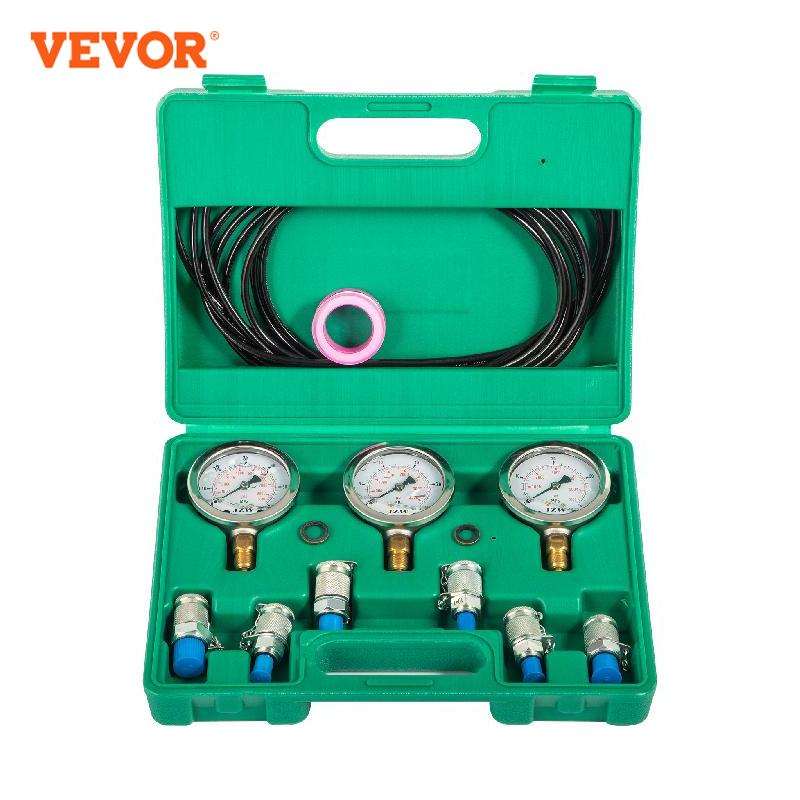

• 3 x Pressure Gauges
• 6 x Couplings
• 3 x Connect Hoses
• 1 x Storage Case

Specifications

• Material: Stainless Steel
• Pressure Gauge 1: φ60 mm-3500PSI/25MPa
• Pressure Gauge 2: φ60 mm-5800PSI/40MPa
• Pressure Gauge 3: φ60 mm-8600PSI/60MPa
• Connect Hose Length: 1.6 M / 63"
• Pressure Gauge Screw Size: G 4/1
• Quick Release Connector: G1/8
• Test coupling 1: G 1/4
• Test coupling 2: R 1/4
• Test coupling 3: G 3/8
• Test coupling 4: G 1/8
• Test coupling 5: M 10*1
• Test coupling 6: M 10*1.25
• Test coupling 7: M 1/8
• Test coupling 8: M14*1.5
• Test coupling 9: 7/16
• Test coupling 10: 9/16

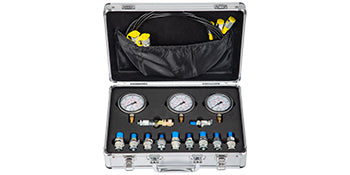

Package Content

• 3 x Pressure Gauge
• 10 x Couplings
• 1 x Quick Connector
• 3 x Connect Hose

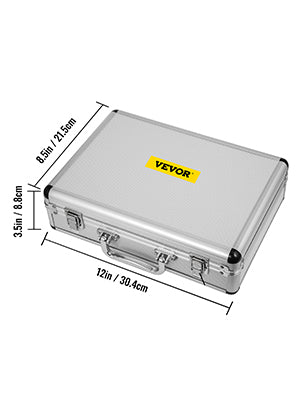

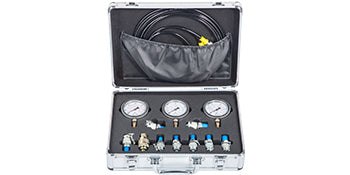

• 1 x Aluminum Carry Case

Specifications

• Pressure Gauge 1: φ60 mm-3500PSI/25MPa
• Pressure Gauge 2: φ60 mm-5800PSI/40MPa
• Pressure Gauge 3: φ60 mm-8600PSI/60MPa
• Test hose: Length=1.6 M / 63" QTY: 3PC
• Test coupling: G1/8 QTY: 1PC
• Test coupling: G1/4 QTY: 1PC
• Test coupling: G3/8 QTY: 1PC
• Test coupling: M10/1 QTY: 1PC
• Test coupling: M10/1.25 QTY: 1PC
• Test coupling: M14/1.5 QTY: 1PC
• Test coupling: UNF7/16-20 QTY: 1PC
• Test coupling: UNF9/16-18 QTY: 1PC
• Quick connector -(for Caterpillar CAT) QTY: 1PC

Package Contents

1 Complete Set of Hydraulic Pressure Test Kit for Excavators



Features & Specifications

【PRECISE MEASUREMENT】- Our hydraulic pressure gauge kit includes three gauges with different working pressures: 25/40/60 Mpa. The clear and precise scale ensures accurate pressure measurement, enhancing both efficiency and convenience.

【SWITCHABLE FITTINGS】- This hydraulic pressure tester is compatible with interchangeable test couplings of various sizes: G1/8, G1/4, G3/8, M10/1, M10/1.25, M14/1.5, UNF7/16-20, UNF9/16-18, and Quick connector.

【PREMIUM MATERIALS】- The test hose is constructed from a blend of nylon (interior), aramid fiber (middle), and polyurethane (exterior), combining heat resistance and pressure resistance characteristics.

【PROTECTIVE CARRYING CASE】- The rugged case, coupled with thick high-grade sponge padding, offers optimal protection for hydraulic test gauges, ensuring excellent pressure resistance. The compact size of the hydraulic gauge test kit makes it easily portable.

【VERSATILE APPLICATION】- Designed for compatibility with most excavators and machines available in the market, the hydraulic pressure gauge test kit finds applications in various industries, including construction, machinery, shipping, mining, petroleum, and chemical sectors.
