SPECIFICATIONS



Origin: Mainland China

Certification: CE

Brand Name: EDIAG

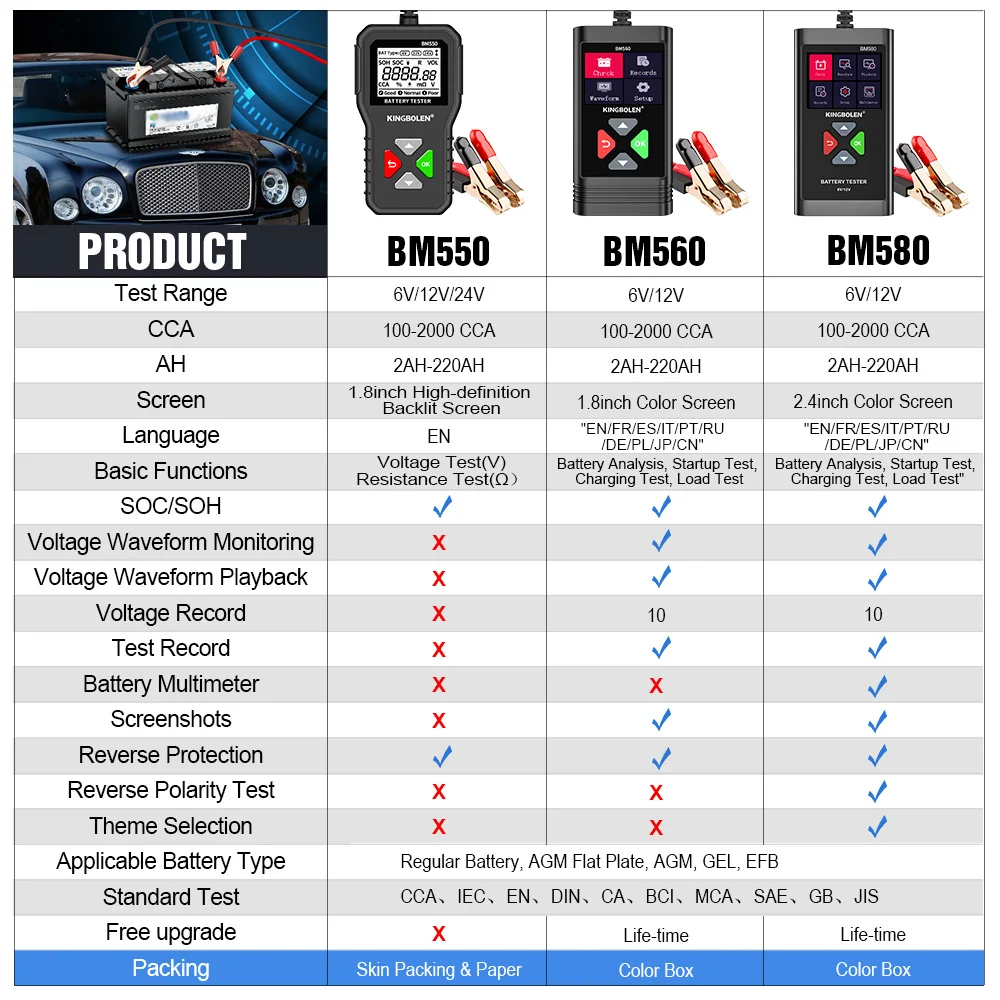

How To Choose KINGBOLEN BM560, BM580, or BM550 in our Link?

Please note, there are 3 styles in our link, 1 is BM560, 2 is BM580, and 3 is BM550, please choose the correct one to order

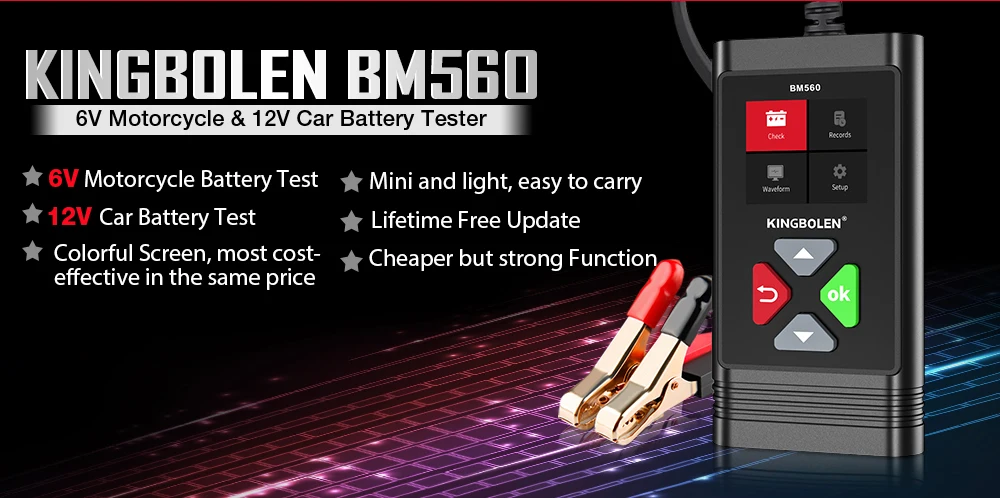

Kingbolen BM560 Car Battery Tester 6v/12V 100 to 2000CCA Cranking Charging Circut Tester Battery Analyzer 12 Volts Battery Tools

( PK KONNWEI KW208 , KONNWEI KW650, ANCEL BST100 , AUTOOL BT360 , FOXWELL BT100 , Topdon T1200 , TOPDON AB101 )

Kingbolen BM560 12V car battery tester is able to effectively analyze and read important car data such as voltage, internal resistance, cold cranking amp and AH capacity, battery health, and charge status. It provides accurate results, and calculates the cold cranking capability of the battery and the aging extent, allowing for a quicker, more precise car repair.

It provides techs or DTYer with a quick, simple, and cost-effective solution to know the battery's charging status better, check the battery's health, and detect faults.

Kingbolen BM560 Supports Languages :

English, French, Russian, German, Italian, Japanese, Spanish, Portuguese, Polish, Chinese



Top Reasons to Choose Kingbolen BM560 Car Battery Tester

1. [Multi-Functions]： Kingbolen BM560 Battery Tester includes Battery test, Cranking test, Charging test, Ripple Test, and load test functions. Mainly targeted to analyze the battery's healthy status. It directly detects whether the battery is good or bad, and presents suggested solutions.

2. [Convenience]: No internal batteries are required and gets the power directly from the 6V/12V battery. And testing can be done by connecting electrodes.

3. [Professional]： Test standards include most battery standards in the world, CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE

4. [Efficiency & Safety]： Using advanced conductive technology, it can directly display the high-accuracy results of vehicle info. Designed with polarity reverse connection protection. It will not damage the device or affect the car or battery.



Kingbolen BM560 Battery Tester Powerful 4 Testing Functions :

①Battery health test - tell if the battery is in good working condition;

②Cranking test - see if the electrical system has enough power to start the engine;

③Charging systems test - check if the generator/rectifier diode/charging current is normal;

④Load test - Check whether the battery has enough load capacity to run all electrical equipment such as playing car music etc.
This handy auto battery analyzer makes sure your summer road trips won’t end on a flat.



KINGBOLEN BM560 Display Voltage in Graph

Displayed voltage readings in a chart to better analyze the status of your car battery! You could playback the waveform in the tester or upload it to the computer for more precise analysis.



KINGBOLEN BM560 Supports Battery Health Test

Even a beginner can use this battery tester to analyze any 6V/12V/ batteries easily.

The battery tester will display test results: “Good, Normal or Replacement”, concise and easy to understand for your quick reference.



KINGBOLEN BM560 Supports a Wide Range of Applications

It can test 6V/12V batteries, suitable for a variety of common models and equipment. (For Motorcycle, Car, SUV, Light Truck, and Boat batteries)



KINGBOLEN BM50 Supports Multiple Battery Types



Kingbolen BM560 support measure standards:

Use a test a wide range of 12v batteries(Starting{SLI}, Deep Cycled and Marine) of Wet(Flooded), VRLA or Maintenance Free (MF), Sealed Maintenance Free (SMF), Absorption Glass Mat(AGM), EFB and GEL Cell.

1.CCA:100-2000

2.BCI:100-2000

3.CA:100-2000

4.MCA:100-2000

5.JIS:26A17-24SH52

6.DIN:100-1400

7.IEC:100-1400

8.EN:100-2000

9.SAE:100-2000

10. GB: 2AH -220AH



KINGBOLEN BM560 Battery Tester's Advantage - Fast and Accurate Results

With the built-in intelligent microprocessor which makes testing fast and accurate, compared with the US Midtronics



KINGBOLEN BM560 can test the battery In -Vehicle & Out-of-Vehicle

No matter the batteries in the vehicles or out of the vehicles, BM560 will finish its testing job excellently, pocketed size let you can bring it anywhere you want.



Kingbolen BM560 Supports Screenshot Function, it is better to keep the test data. BM560 is also Color Screen.

Long press "Up" and Down buttons can store up to 10 pictures, which is used to capture and save important data, fast and convenient.

Tired of the blurred blue screen?
BM560 battery tester with 1.8-inch color LCD screen is eye-friendly and easy to read. Provides you with a more comfortable visual experience at every inspection.



KINGGBOLEN BM560 Low-Frequency Constant Current Test

The KINGBOLEN BM-560 Battery Tester is extremely low power and won’t discharge the battery. Because of its menu-driven operation, it is quite simple to use. And the premium-quality copper clamps feature polarity reverse protection and spark proof if cables are inadvertently connected for a stable and safe connection in the testing process.



KINGBOLEN BM560 can Print the test Data

Before using the print data function, it is necessary to connect the tool to a computer via the USB cable. Once ready, please insert the CD into the computer.

Install the USB driver first.

Open the print software, and choose COM Port NO.

Then choose the function of print data to start printing.



How to operate Kingbolen BM560 ?

Step 1. Connect the 12V battery, red clips to the positive pole, and black clips to the negative pole.

Step 2. Battery Test: First select Quick test or Accurate test. If Quick test, just press directly, If Accurate test, pls press In Vehicles.

Step 3. Cranking Test: After selecting the cranking test function, follow the prompts to start the engine. Test completed.

Step 4. Charging Test: After entering the charging test function, follow the prompt to increase the speed to 2500 RPM for 5 seconds, then press OK. Test completed.

KINGBOLEN BM560 Parameter :

Screen Size: 1.8 inch TFT color screen

Connection Method: Big bite force alligator clip

Test Range: 6V/12V (100-2000 cCA)

Operating Voltage: 5～20V

Operating Temperature: -20°C～65°C

Product Material: PVC Industrial Material

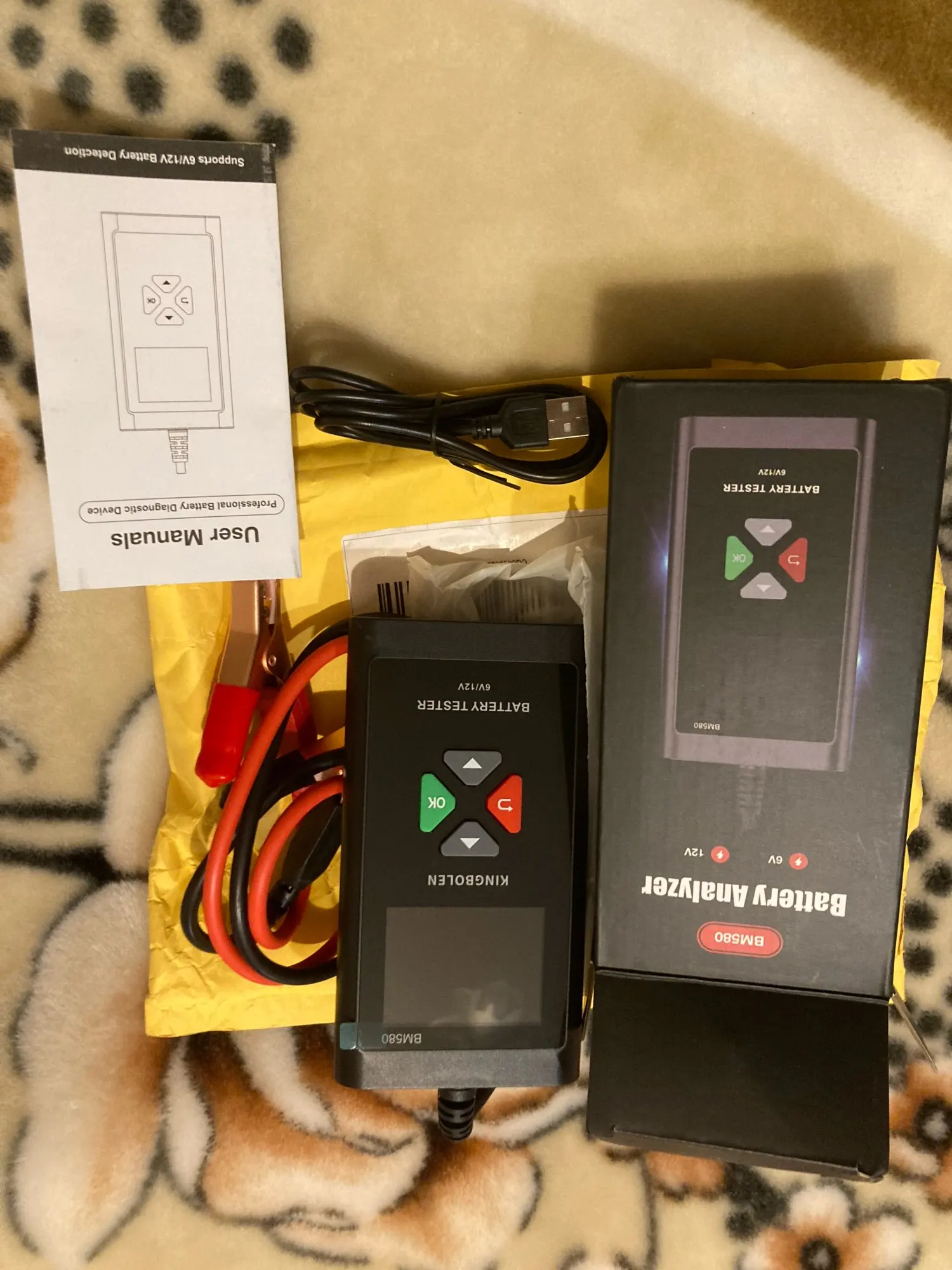

Kingbolen KW560 12V Battery Tester Packing list :

1pc * Packaging Box

1pc * BM560 Battery Tester With Alligator Clip

1pc * English User Manual
