SPECIFICATIONS



launch cr3001 Update: Lifetime Free Update

Technical Support: Free and in time

Software Version: Newest

Software Update: Yes

Origin: Mainland China

Language: German, French, Russian, Italian, English, Spanish

LAUNCH CR3001 Language: English, French, Russian, Spanish, German, Italian, Portuguese

Item Type: Code Readers & Scan Tools

Hardware Version: Newest

Creader 3001 functions: Support full OBDII/EOBD function

Creader 3001 feature 4: an auto diagnostic tool

Creader 3001 feature 3: code reader scanner

Creader 3001 feature 2: Freeze data

Creader 3001 feature 1: I/M readiness

Certification: CE

Brand Name: LAUNCH



LAUNCH Creader 3001 OBD2 Scanner Engine Fault Code Reader Mode 6 CAN Diagnostic Scan Tool for All OBDII Protocol Cars Since 1996 Lifetime Free Update



Notice

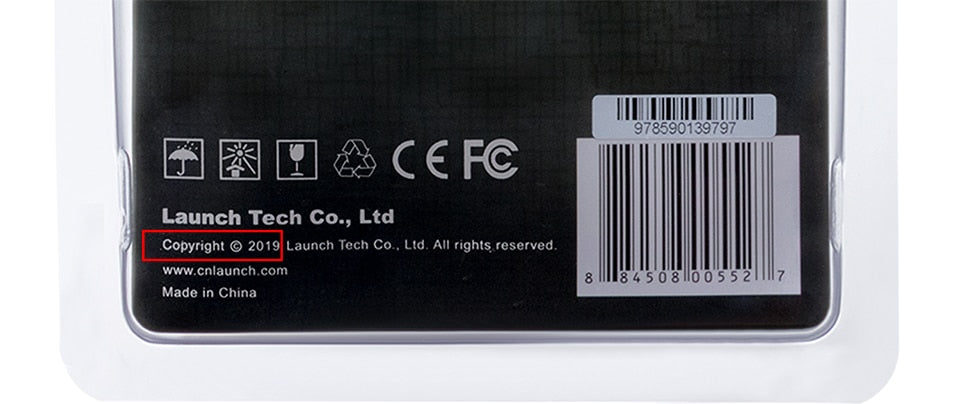

Many Customers has doubt about the time 2019 on the back of CR3001, please note, it is the Copyright time, not manufactory time !!!

If you care about it, please do not make the order, thank you!

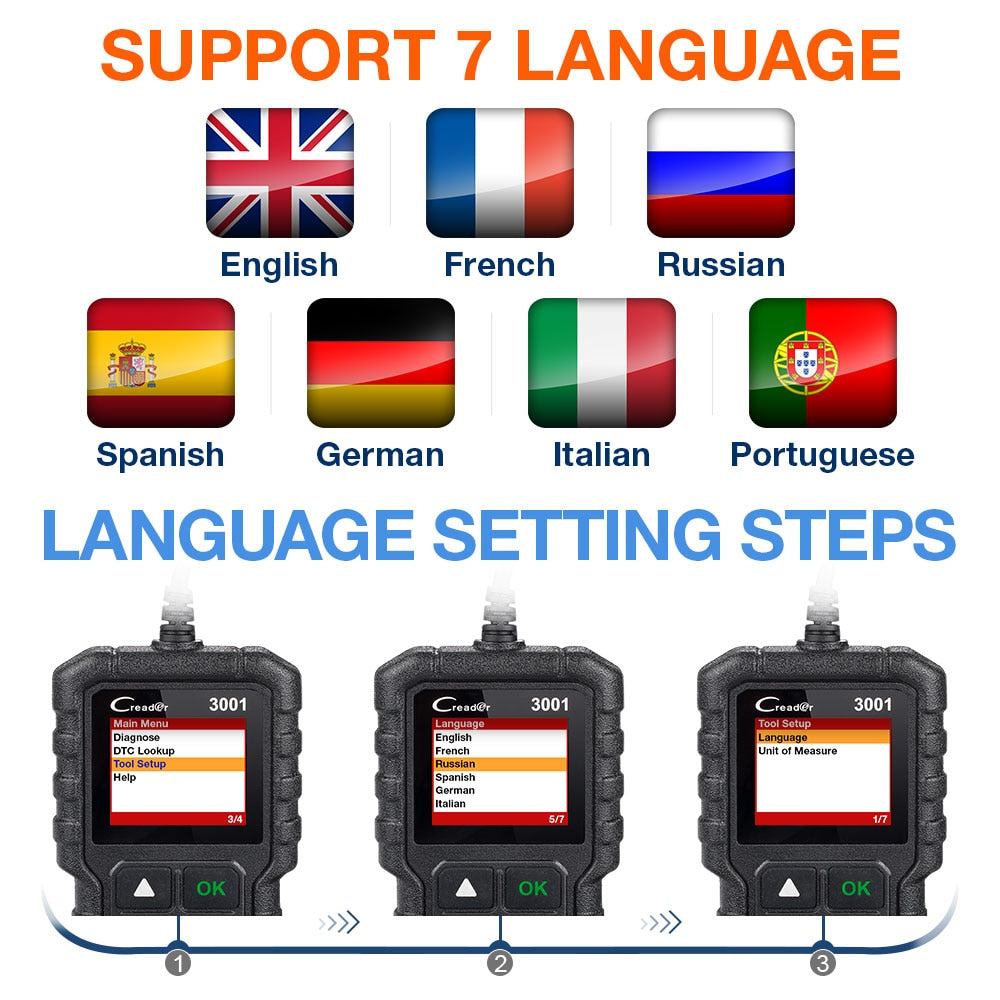

LAUNCH CR3001 Supports Languages :

English, French, German, Spanish, Russian, Italian, Polish



LAUNCH Creader 3001 OBD2 scanner is a very Cost-efficient full OBD2 function scanner on the market (the same functions need 40 ). Unlike other car code readers, Launch Creader 3001 is an all-in-one car code scanning tool. An upgraded version from the more basic code reader with additional functions. It is designed for car owners, DIYers as well as mechanics to determine the cause and solve the problem.

Why Choose LAUNCH Creader 3001?

1. LAUNCH Creader 3001 obd2 scanner Supports the O2 Sensor test, EVAP system test, and On-Board monitor test, While AD310 and AL319 do NOT!

2. LAUNCH CR3001 Add more car models, including cars, SUVs, minivans, and light-duty trucks all over the world. But the year supported may vary on different car makes and models.

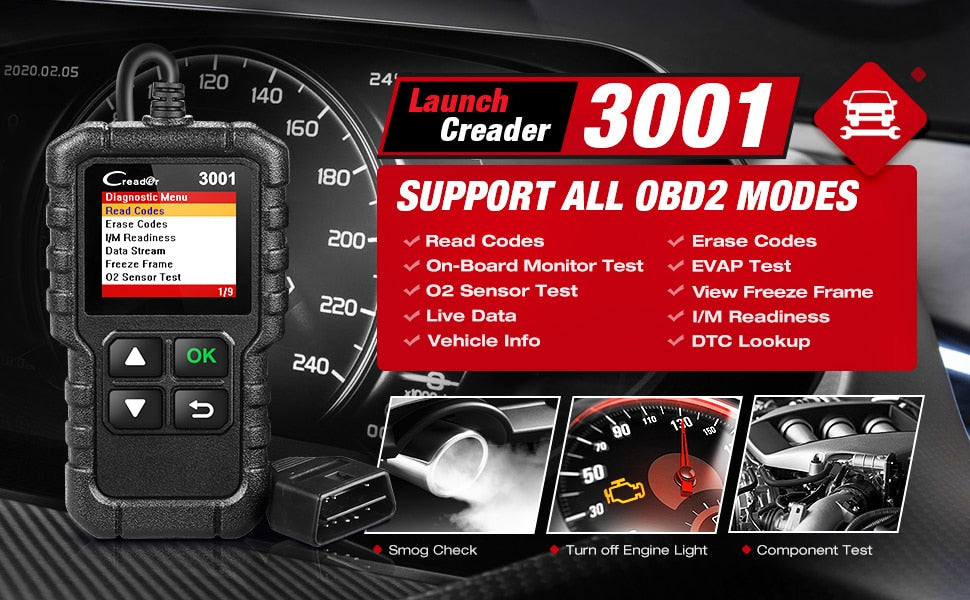

LAUNCH CR3001 Support Full OBD2 functions, Engine Check including :

Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)

Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes, and resets monitors.

Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and storing freeze frame data.

I/M Readiness Status: This shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

Read Live Data Stream: Show the information of continuous data stream from a vehicle in a live graphic (waveform) display.

View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the onboard computer at the time the emission-related fault occurs.

O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s onboard computer.

On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.

Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability

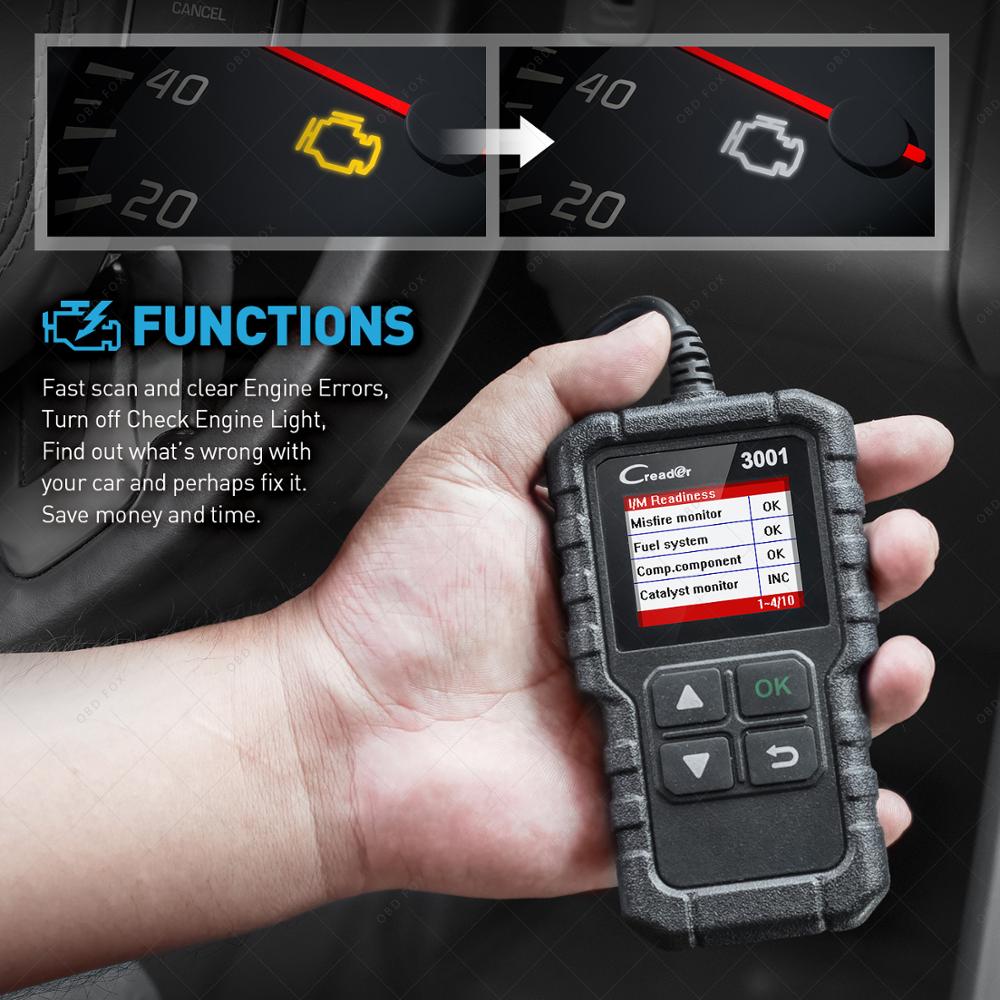

Turn Off the ''Check Engine'' Light



Parts that might cause your check engine light on include:
1. Gas Cap 2. Oxygen Sensor 3. Air Fuel Ratio Sensor 4. Mass Air Flow Sensor 5. Ignition Coils 6. Spark Plug Wires 7. Spark Plugs 8. Thermostat 9. EGR Valve 10. Evaporatative Emission Canister Purge Valve(EVAP) 11. Catalytic Converter.
If the engine light is not turned off in time
it will Cause Serious environmental pollution, Increased fuel consumption, and Increased engine noise. Increased in temperature, etc



How to verify whether the vehicle will pass the emission test with this code reader?

After entering the I/M Readiness, there will be 10 results on the list. Misfire monitor, fuel system, component monitor, catalyst monitor, heated catalyst, EVAP system, secondary air sys, 02 sensors, O2 sensor heater EGR and/or WVT. There will be an OK if each of them works fine. [Not all vehicles have these 10 parts]

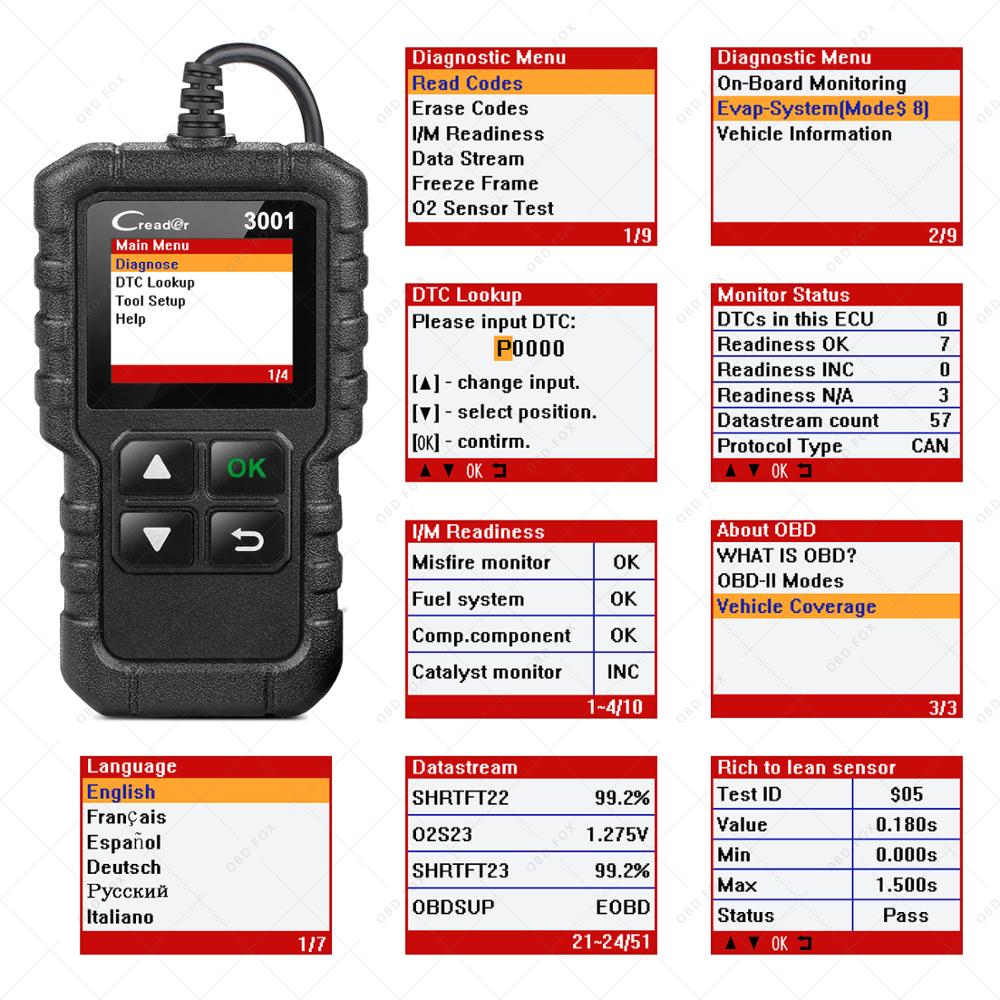

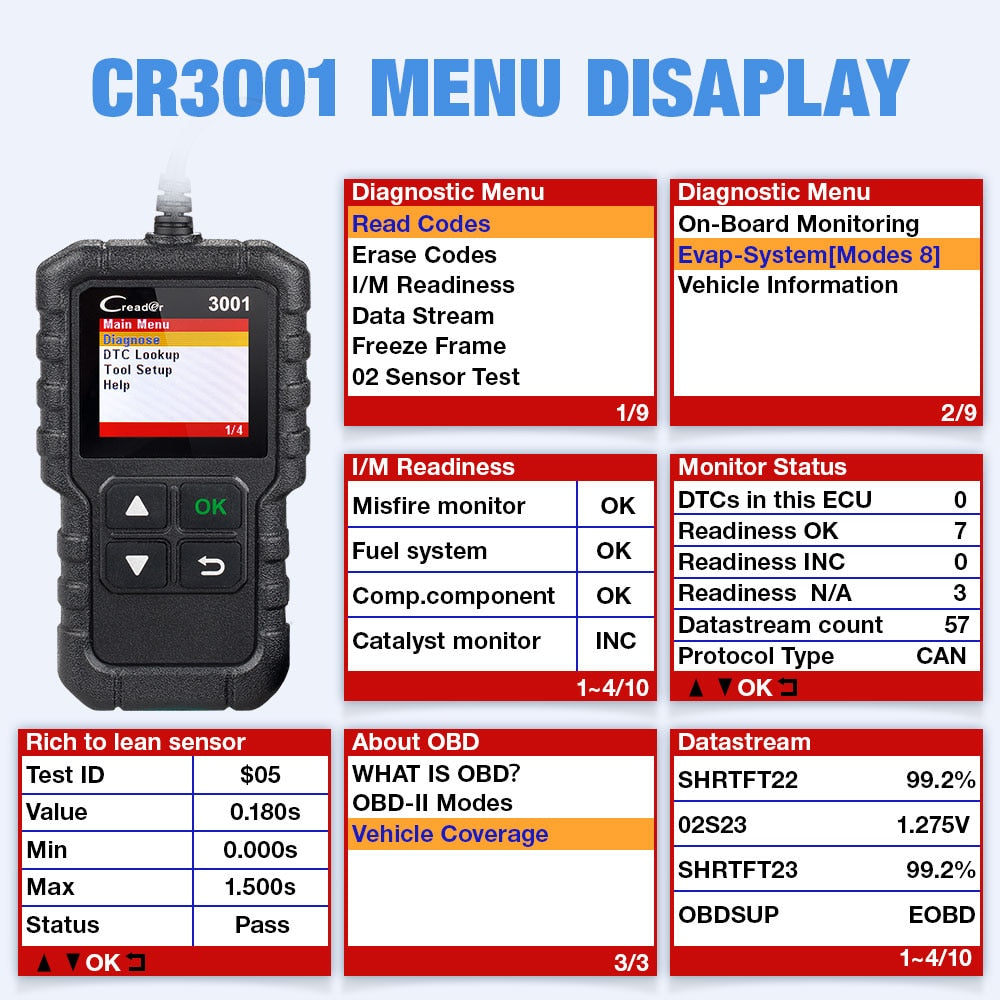

LAUNCH CR3001 Screen Display



Support Car Models for OBDII diagnostic function:

(Note: CR3001only Support 12V Gasoline& Diesel, Does not support 24V Truck)

American Car :
Need Standard OBD2 Protocols from 2000 to now
for Chrysler, Ford, GM, For Jeep ...

European Car :
Need Standard OBD2 Protocols from 2003 to now
For Alfa Romeo, for SAAB, for Acura, for Opel, for Audi for Seat, for Peugeot, for Renault
For Bentley, for Skoda, for Daewoo, for Benz, for Daihatsu, for Land Rover, for BMW, for Vauxhall, for Citroen, for Volvo, for Fiat, for VW, for Ford, for Jaguar...

Japanese/Korean Car:
Need Standard OBD2 Protocols from 2006 to now
for KIA, Isuzu, Honda, and Mitsubishi, for Hyundai, Dacia, and Lexus, for Mazda, for Nissan, for Subaru, for Suzuki, and for Toyota.

Chinese Car:
Need Standard OBD2 Protocols from 2009 to now

LAUNCH CR3001 Support OBD 2 protocols car :

1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)

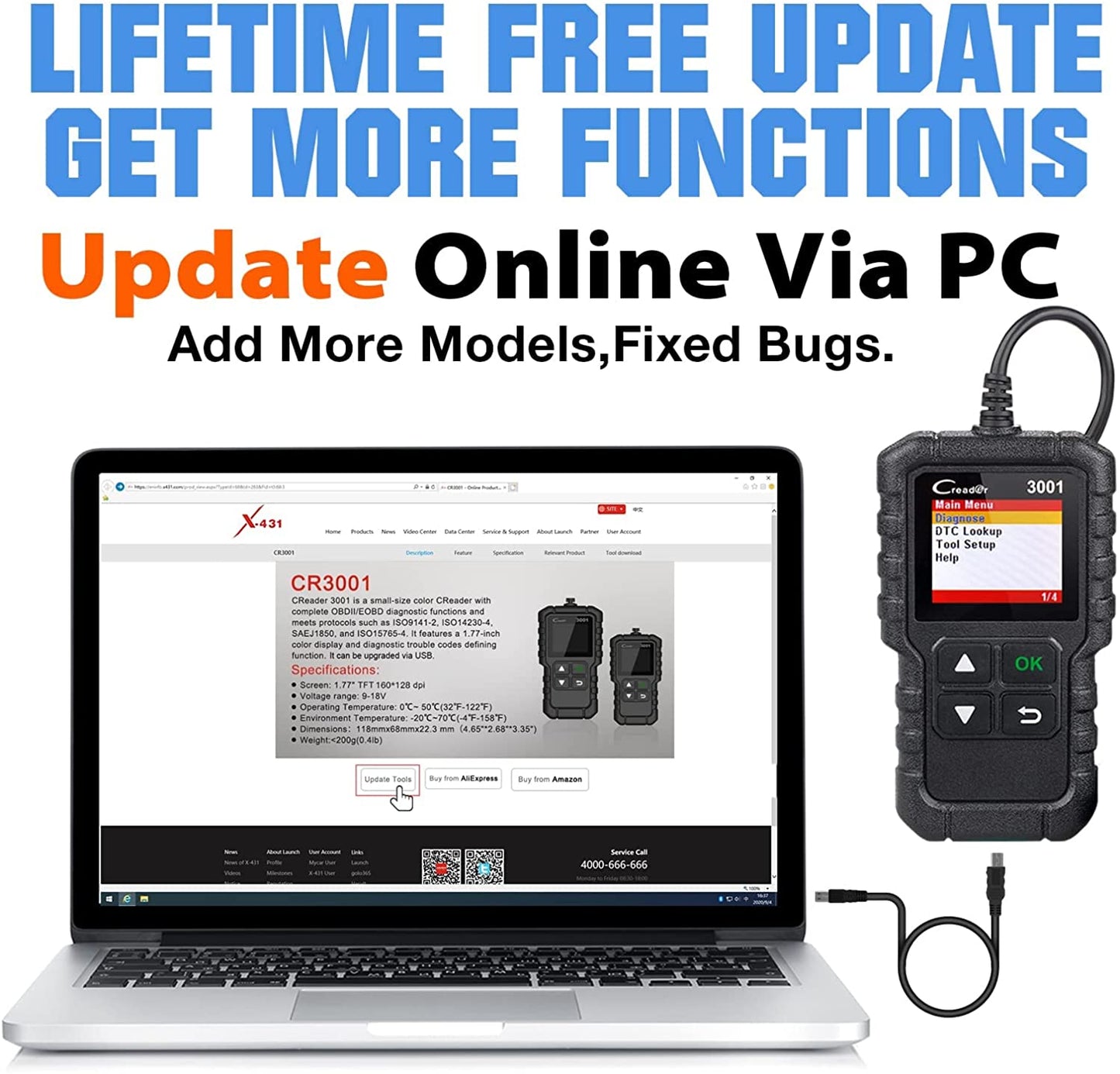

LAUNCH CR3001 with Lifetime Free Update

If the product displays a white screen or cannot support your car, you can solve it by upgrading

Support update system: compatible with Windows XP, Windows 7, Windows 8 & Windows 10

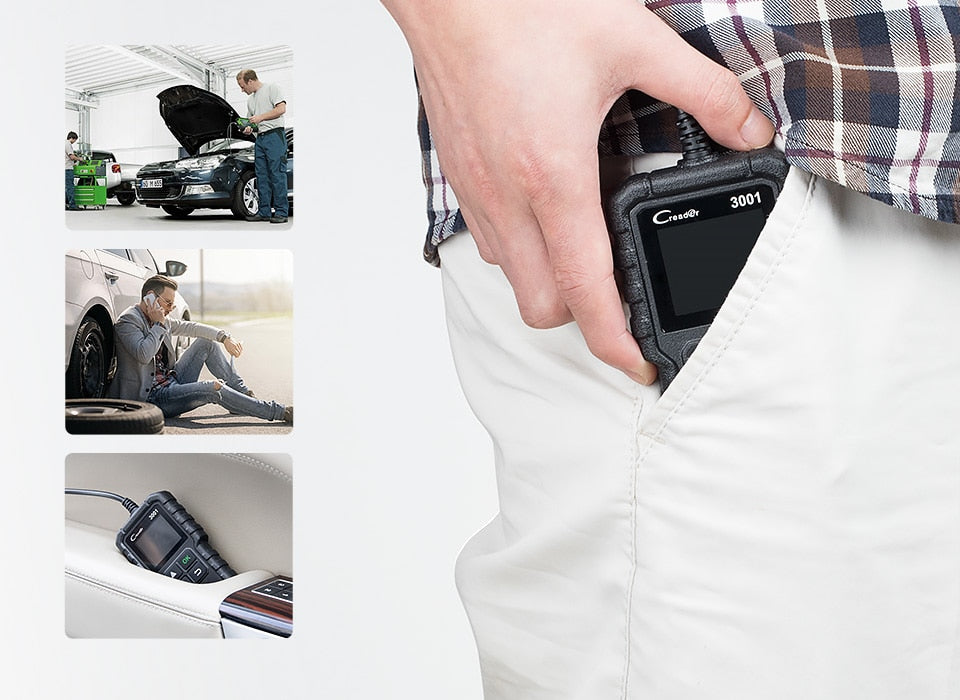

Easy to Carry

The OBD2 scanner's mini size fits comfortably in the palm of your hand. so that you can carry it around no matter in a garage or on a trip.

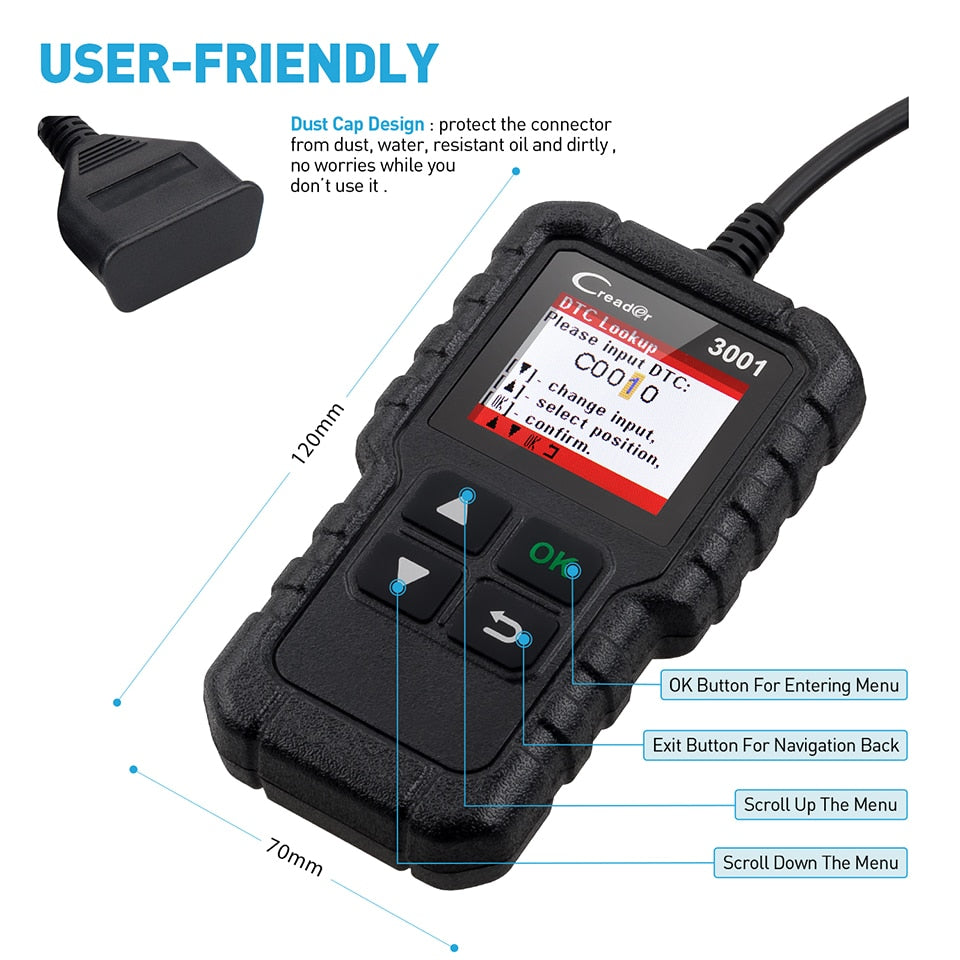

USER-FRIENDLY

Dust Cap Design: protect the connector from dust, water, resistant oil, and dirt

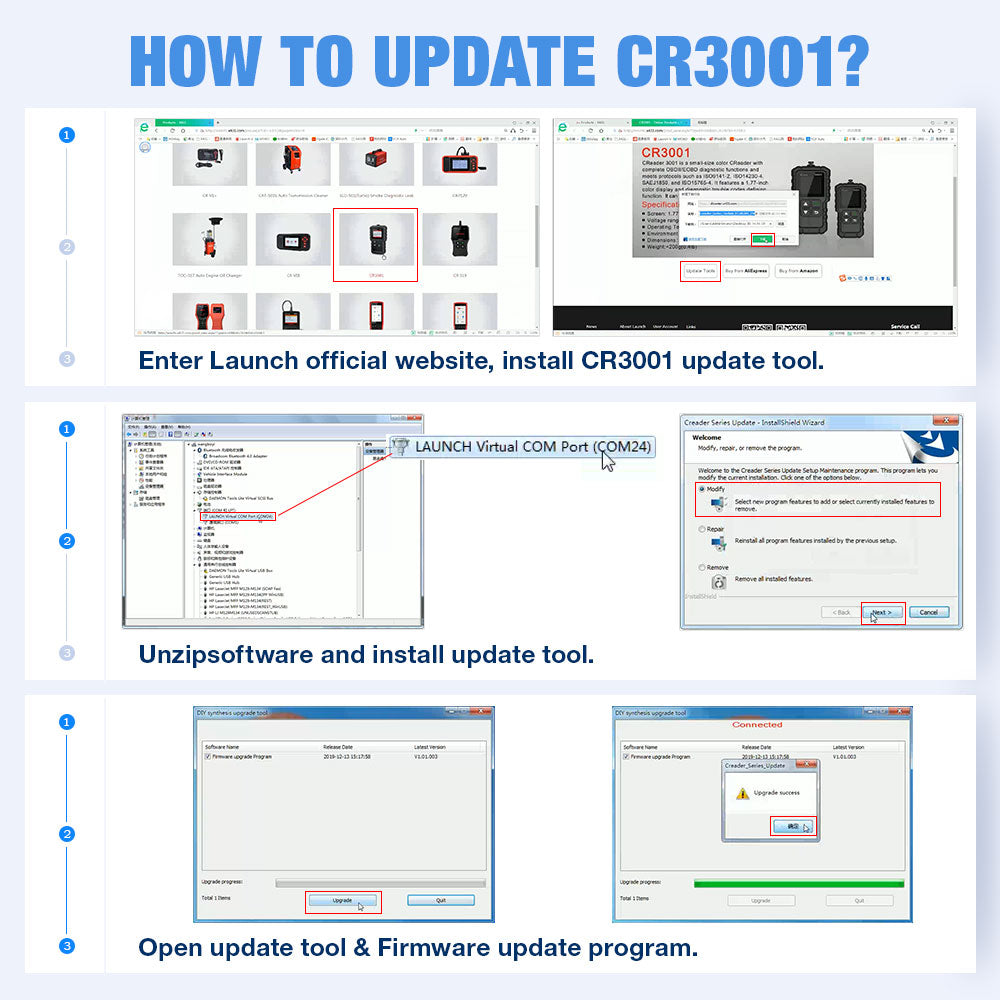

LAUNCH CR3001 Update Process :

Step 1: Go to LAUNCH Website: https://eninfo.x431.com/, to download Updatetool

Step 2: Install the update tool in your company

Step 3: Connect CR3001 with a computer, then Click the Update button to Update.

If you still do not know how to do it, pls check the updated video in the following

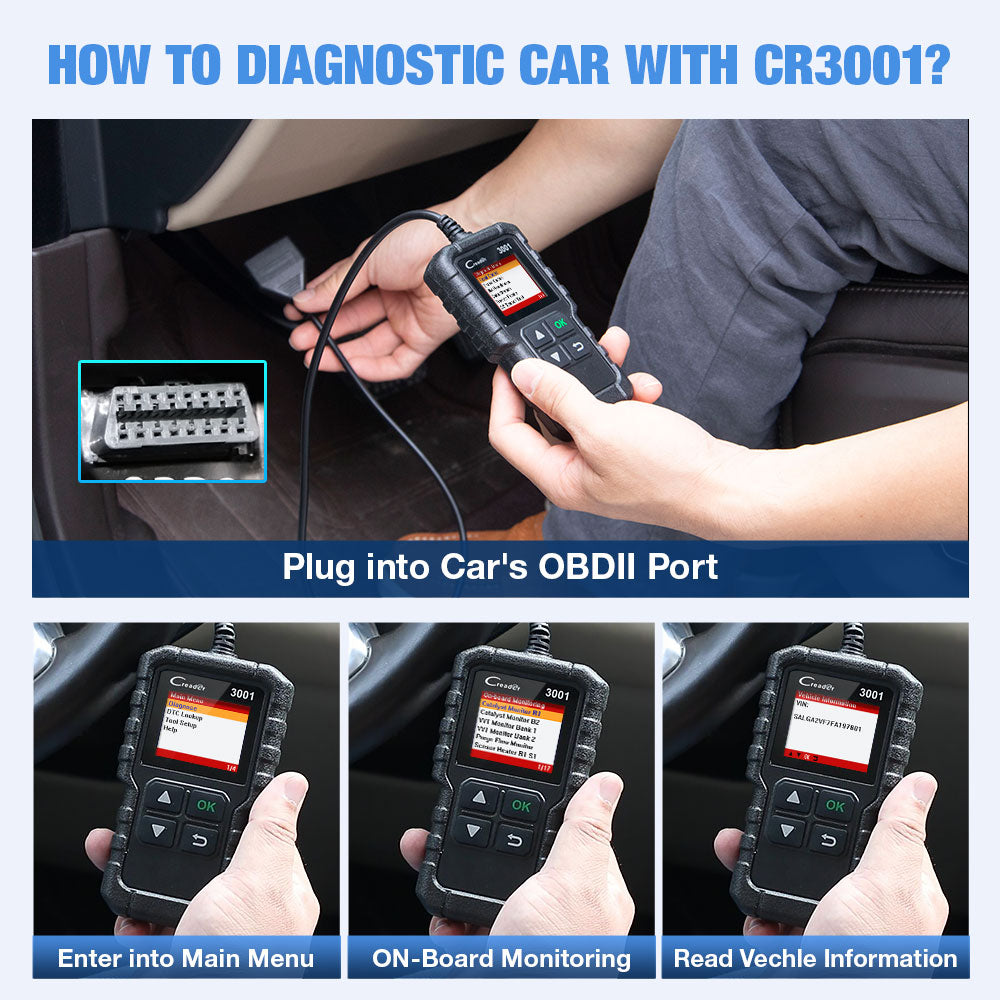

How to use CR3001?

LAUNCH CR3001 Specifications:

Screen:1.77 " TFT, 160*128dpi
Voltage Range: 9-18V
Operating Temperature :0℃ -50 ℃ (32 ℉ -122 ℉ )
Environment Temperature -20 ℃ -70 ℃ (-4 ℉ -158 ℉ )
Dimension : 118mm*68mm*22.3mm(4.65" *2.68 " *0.88 " )
Weight: <200g
