SPECIFICATIONS



Warranty: 1 year

Update: Free Update, Free Update Online

USA Car: Support from 1996 to Now

Support Protocols: ISO9141-2, ISO14230-4, SAEJ1850, and ISO15765-4,etc

Software Version: 2023 Version

Software Update: Yes

Screen: 2.8-inch color display

Print: Print data via PC

Origin: Mainland China

One Click Functions 3: DTC Lookup

One Click Functions 2: Battery Test

One Click Functions 1: One click Smog Check

Language: French, Russian, English, Spanish, Portuguese, Japanese, German

Japanese / Korean: Support from 2008 to Now

Item name: LAUNCH CR3008

Item Type: Code Readers & Scan Tools

Hardware Version: 2023 Version

Functions: full OBDII/EOBD diagnostic functions

Feature 9.10: Read Vehicle Information, EVAP System Test

Feature 7.8: On-Board Monitor Test, O2 Sensor Test

Feature 6: I/M Readiness Status,

Feature 4.5: Read Live Data, Read Freeze Frame

Feature 2.3: Read DTC, Clear DTC'S

Feature 2: Data record and replay

Feature: Graphical data streams

European Car: Support from 2003 to Now

Chinese Car: Support from 2014 to Now

Certification: CE

Brand Name: LAUNCH

Battery Test: the real-time display of the vehicle battery voltage

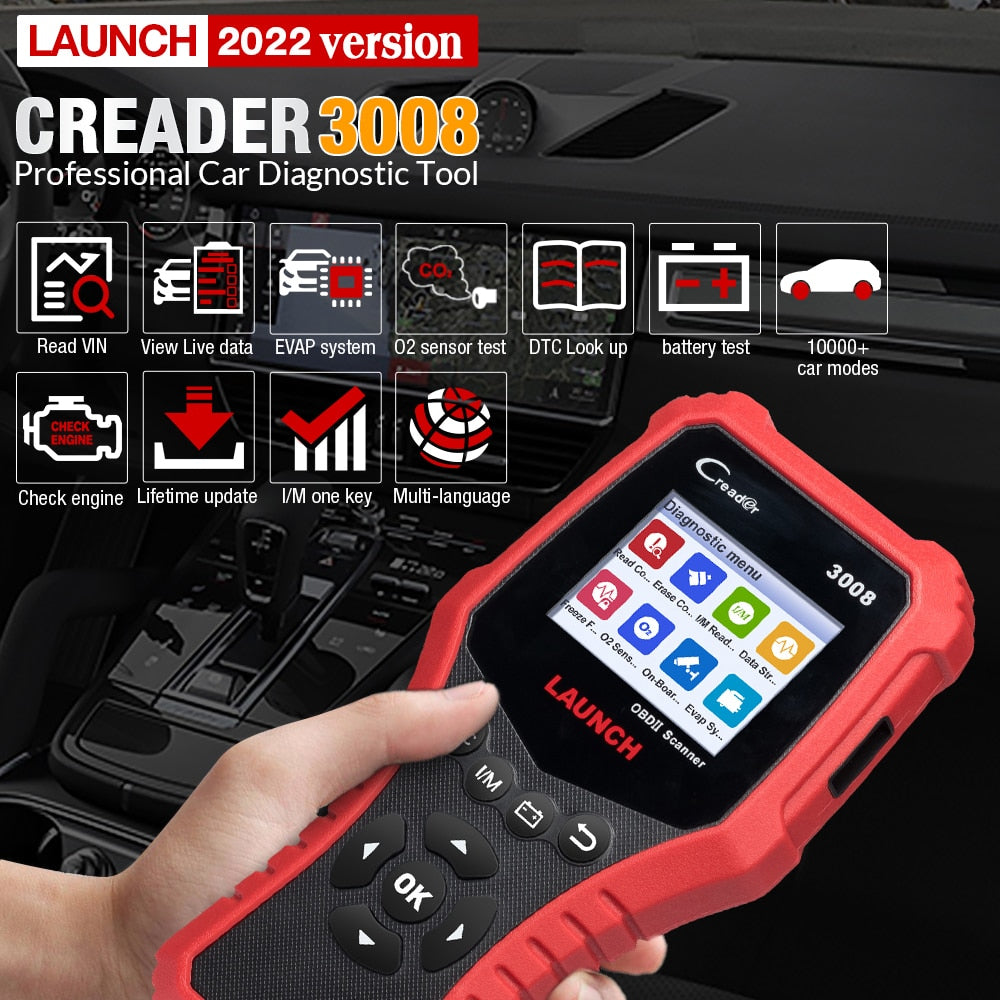

LAUNCH X431 CR3008 OBD2 Scanner Professional Mechanic OBDII Diagnostic Code Reader Tool for Check Engine Light battery Voltage Test

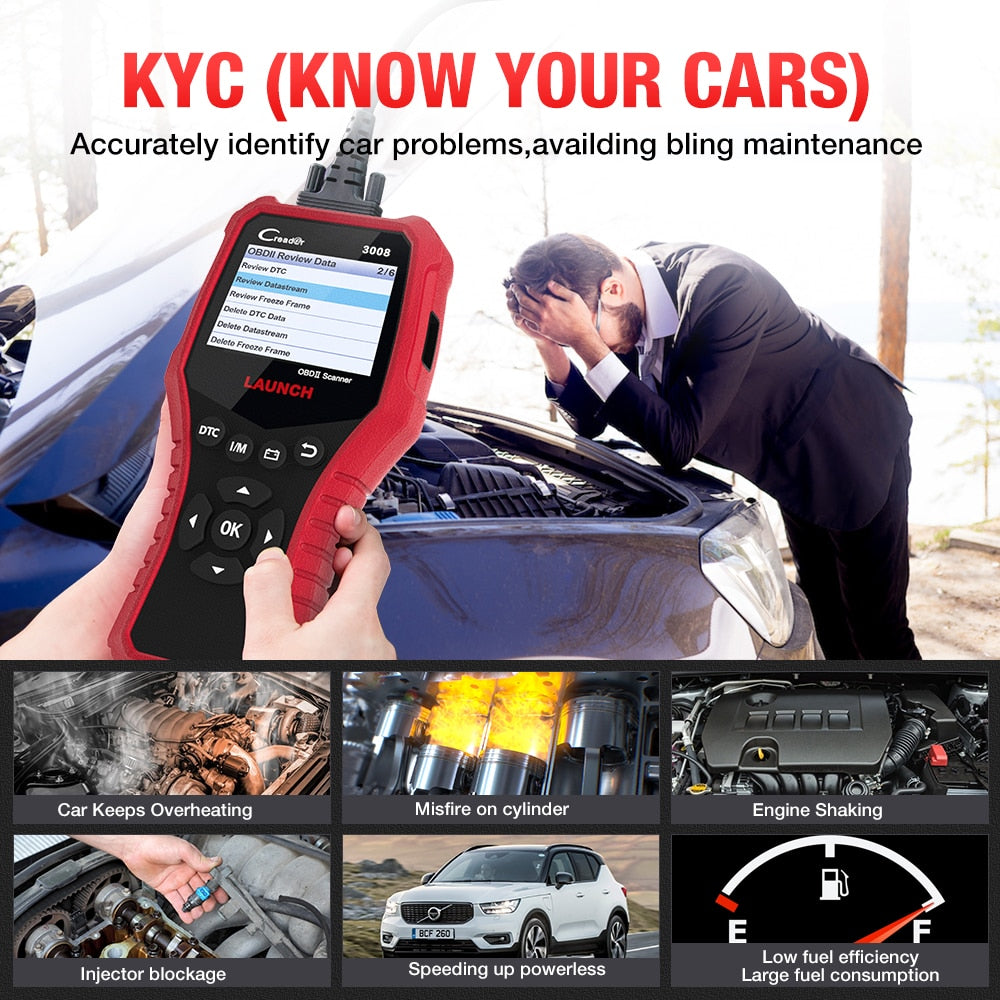

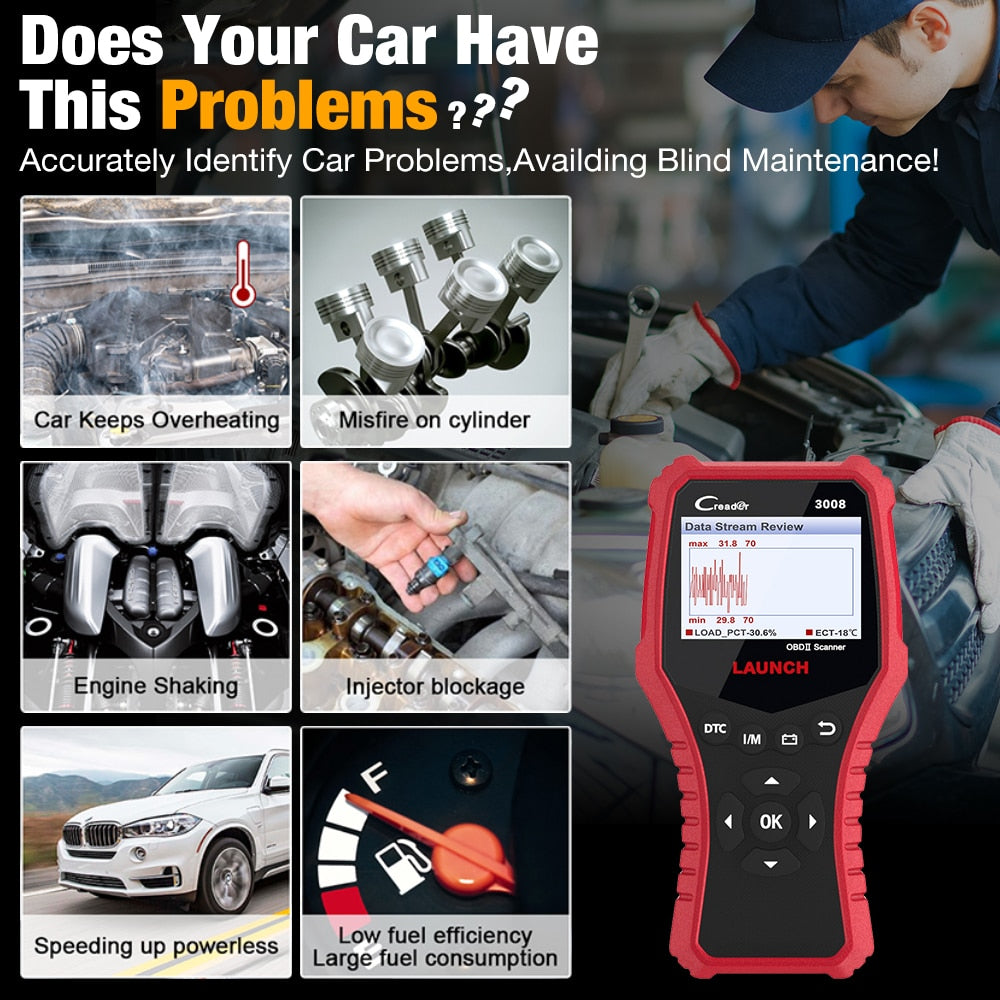

Does your car have those problems?





Why We Need LAUNCH CR3008 OBD2 Scanner?



LAUNCH CR3008 obd2 code scanner can read and erase codes which can also retrieve a wealth of information from the Engine Control Unit (ECU). The ECU is what triggers the Check Engine Light when there is a problem with your car. Parts that might cause your check engine light on include:

#1. Gas Cap #2. Oxygen Sensor #3. Air Fuel Ratio Sensor #4. Mass Air Flow Sensor #5. Ignition Coils #6. Spark Plug Wires #7. Spark Plugs #8. Thermostat #9. EGR Valve #10. Evaporatative Emission Canister Purge Valve(EVAP) #11. Catalytic Converter.

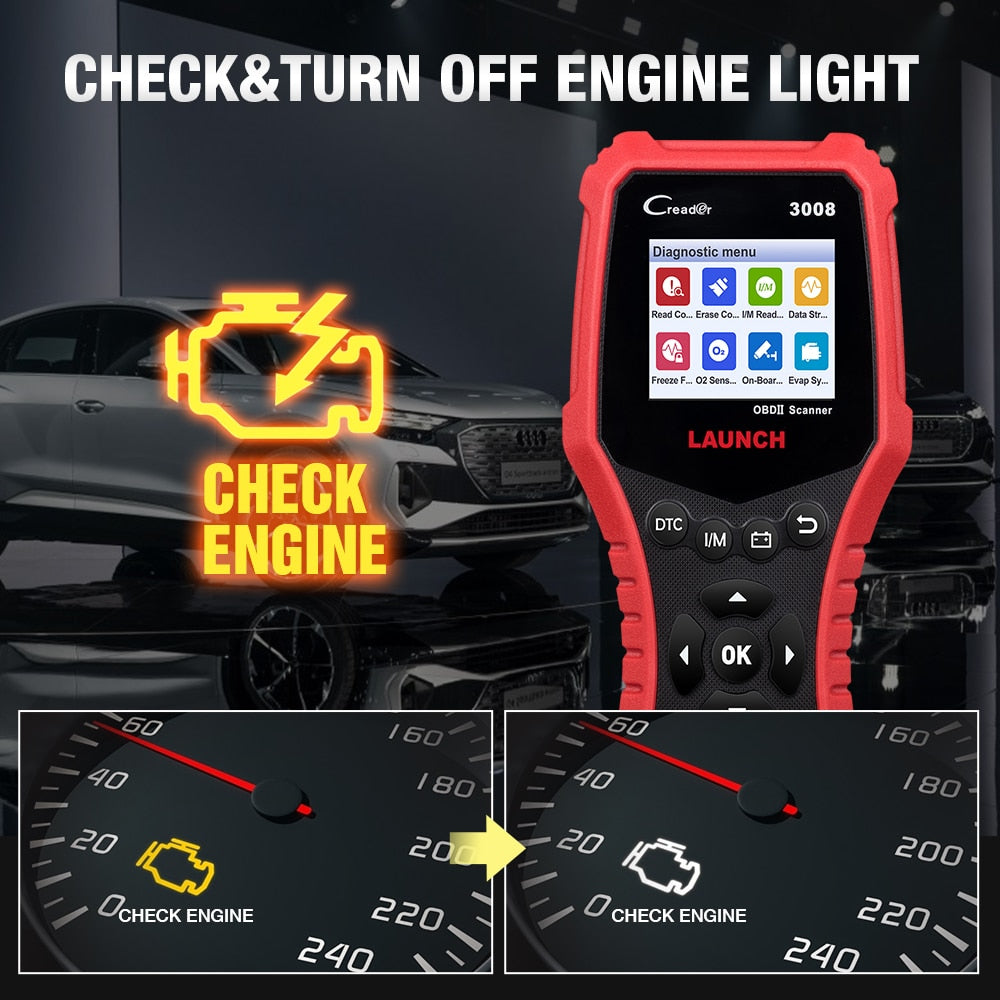

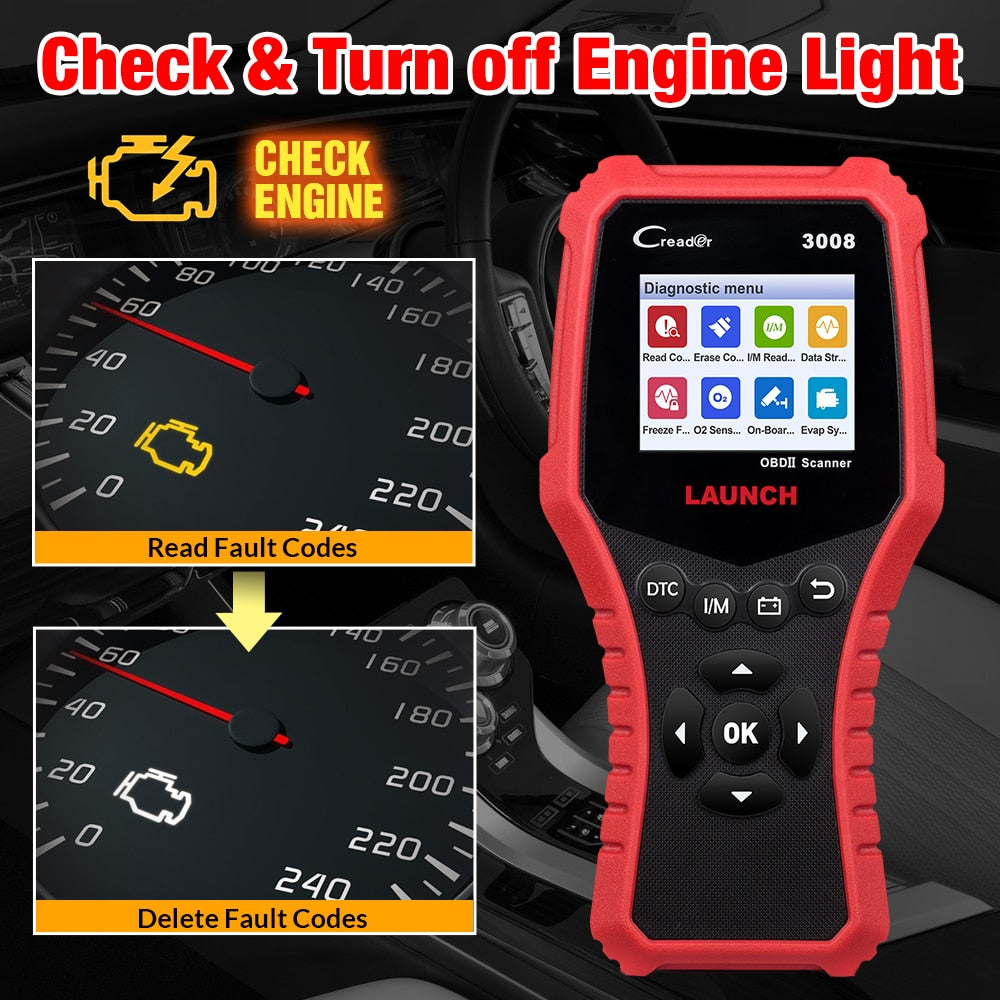

And LAUNCH CR3008 obd2 code reader will read codes indicating these fault parts. After the car problems have been solved, the LAUNCH CR3008 car code reader can erase these trouble codes and turn off the check engine light.

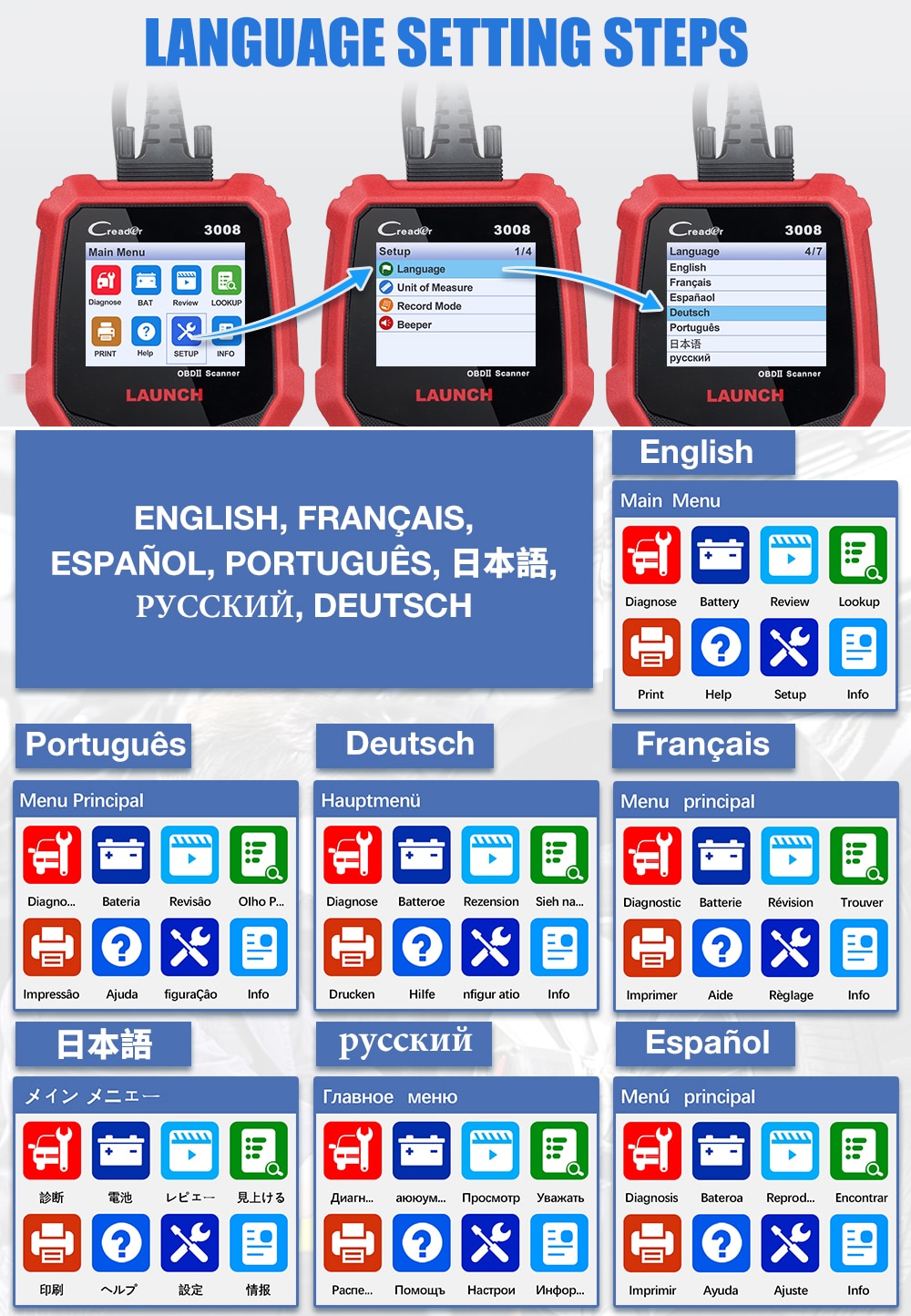

Multi-Language

easy to change the language to Portuguese, German, Japanese, Russian, Spanish, English, and French



Full OBD2 Check--Make a Better Detection for Car Engine System!

This scanner supports all 10 test modes for OBD-II cars which are great for daily repair work. The table below describes the purpose of each mode of operation:

1. Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)

2. Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes, and resets monitors.

3. Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and storing freeze frame data.

4. I/M Readiness Status: This shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

5. Read Live Data Stream: Show the information of continuous data stream from a vehicle in a live graphic (waveform) display.

6. View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the onboard computer at the time the emission-related fault occurs.

7. O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s onboard computer.

8. On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.

9. Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

10. Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

On-board Monitor Test

Retrieves and displays test results for emission-related powertrain components and systems. This is a way to find out if the engine has any misfire or compression problems on a particular cylinder or other data that might indicate a problem but isn’t severe enough to trigger a check engine light.

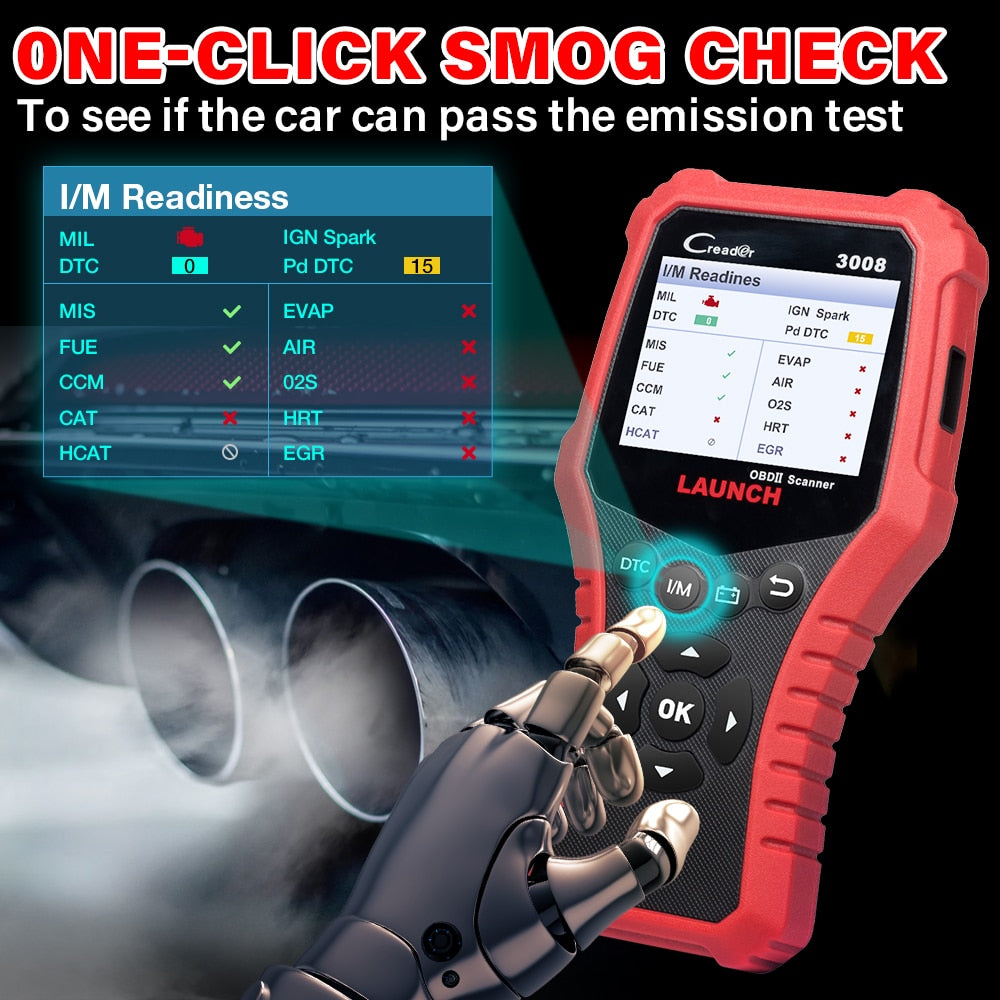

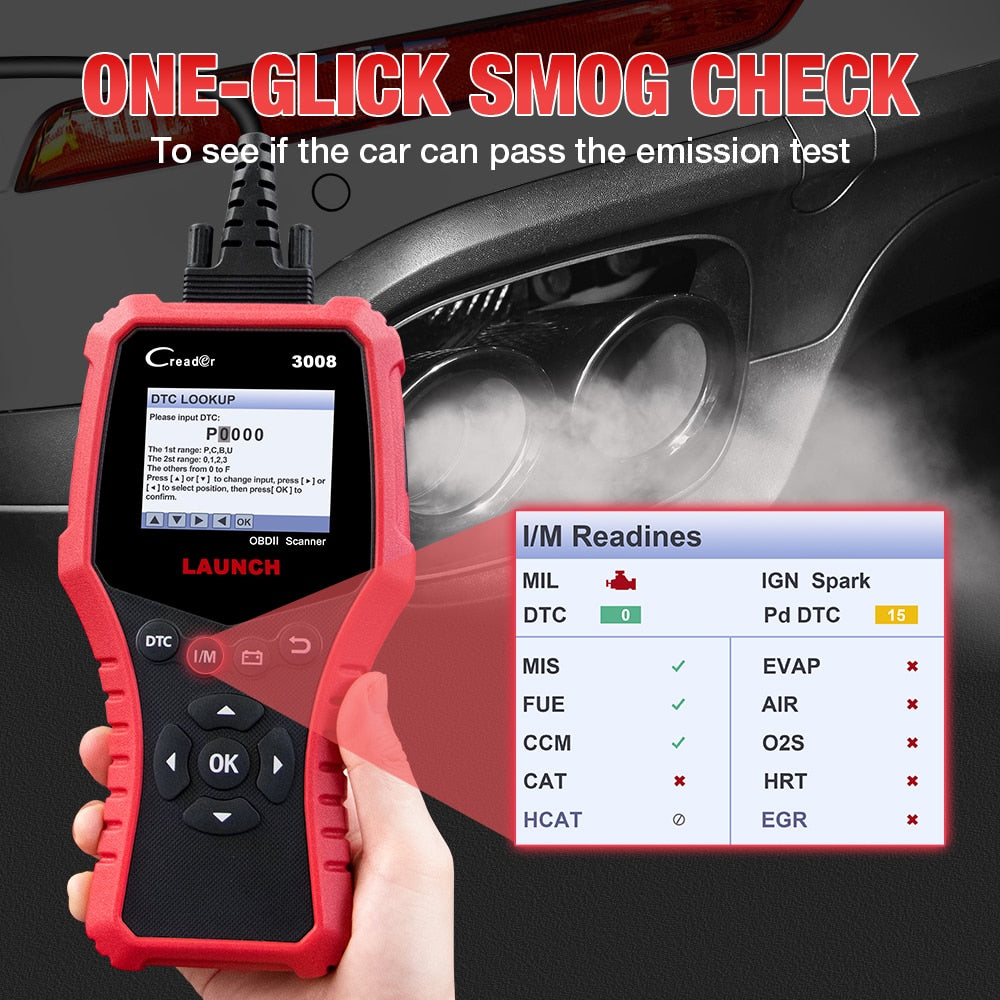

I/M One-Key Fast Check (Smog-Check)

Quick state emissions readiness check and drive cycle verification.

red-yellow-green LEDs and build-in speaker indicate emissions monitor status,
scanner automotivo erramentas para oficina automotiva obd2 tools herramienta diagnosis coche obd2 bluetooth obd tools outillage diagnostic auto valise diagnostique automobile outil tools
they can also help catch intermittent problems or confirm repairs during a drive cycle.

Live Data Stream Analyse in Graph

Diagnose and monitor your vehicle performance more intuitively, helping customers better analyze abnormal parameters.

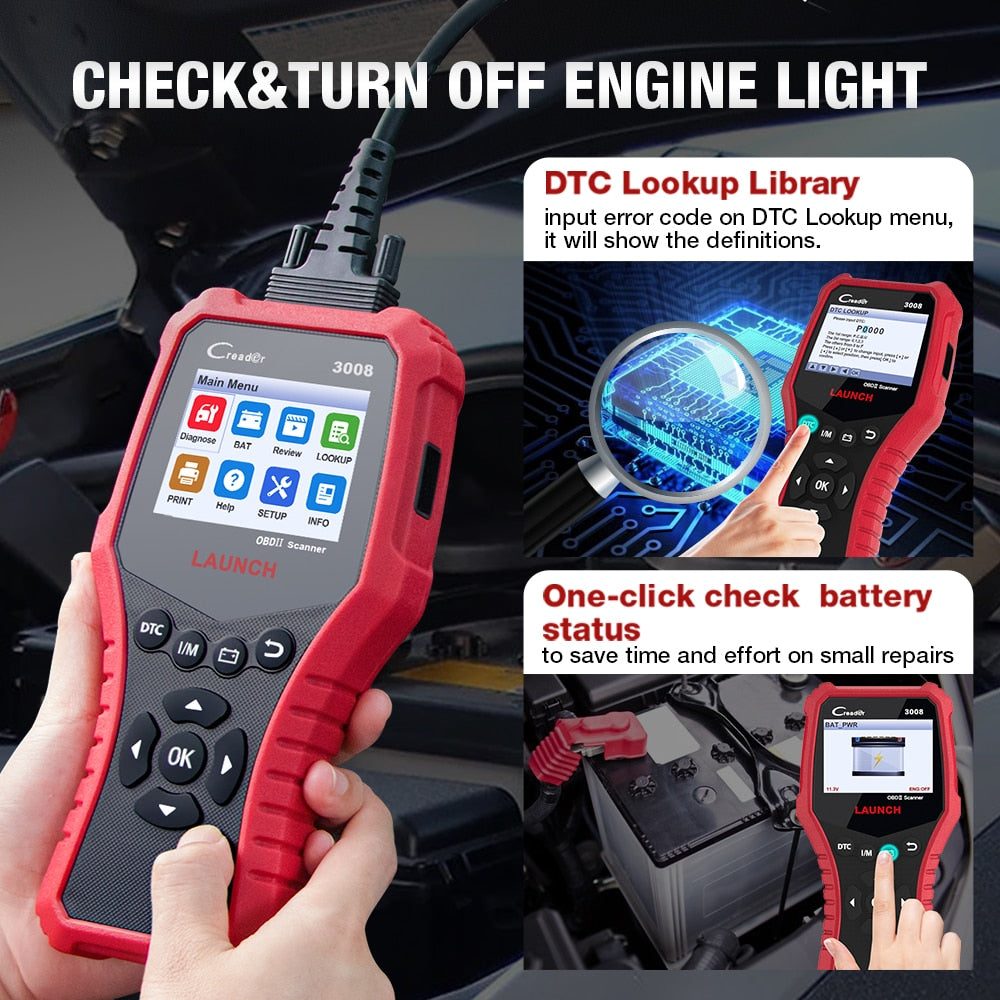

One Click DTC Lookup Library

Accurately identify car problems, avoiding blind maintenance. you don't need to search for the definition of the error code online. Go to the DTC Lookup menu, and input the error code, it will show the definitions.

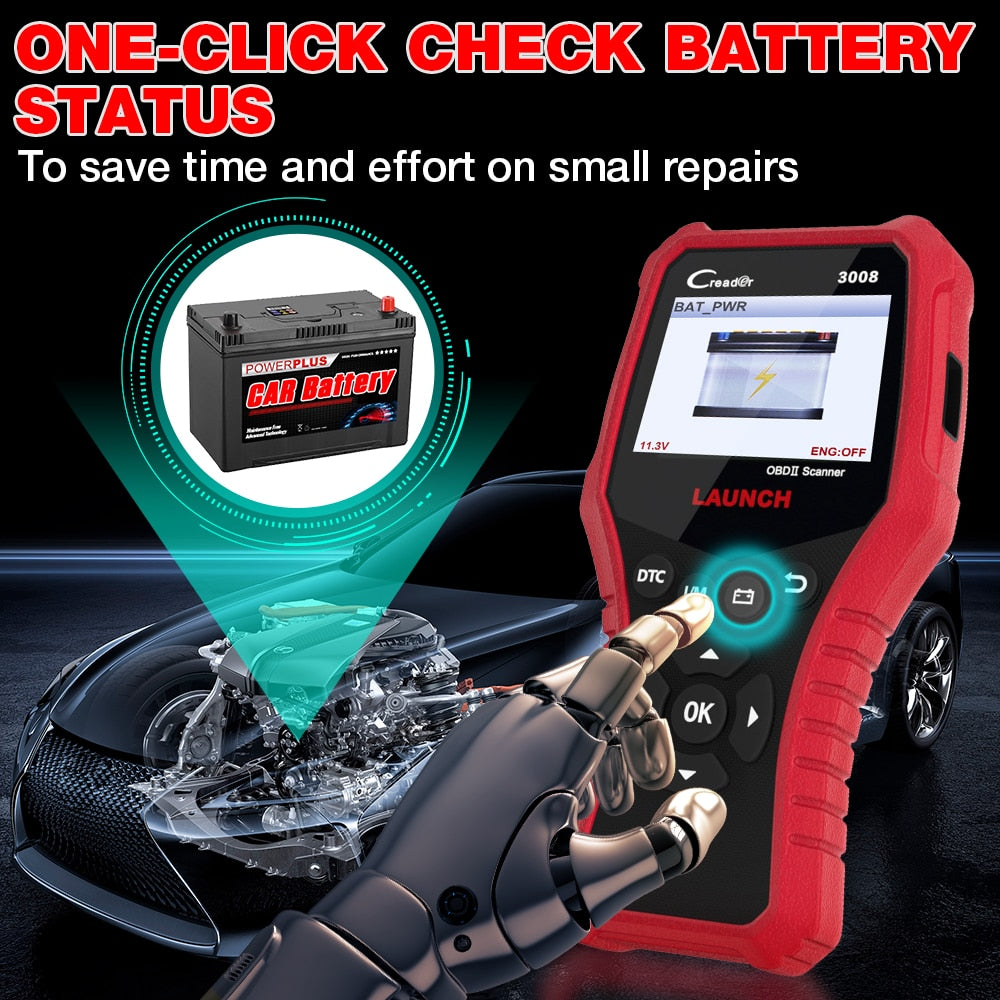

One-click check battery status

Real-Time battery voltage graphing helps to Judge the state of the battery;

LAUNCH CR3008 ODB2 Car Diagnostics Support vehicles

LAUNCH CR3008 supports both 12V diesel and gasoline vehicles, as long as the car is compliant with standard OBDII/EOBD protocols, with OBDII 16pins diagnostic port.

American (USA) cars

for Standard OBD2 Cars from 1996 to Now:
for Chrysler, Ford, GM, for Jeep

European cars

for Standard OBD2 Cars from 2003 to Now:
for Alfa Romeo, for SAAB, for Acura, for Opel, for Audi, for Seat, for Bentley, for Skoda, for Daewoo, for Benz, for Daihatsu, for Land Rover, for BMW, for Vauxhall, for Volvo, for VW, for Ford, for Jaguar

Japanese cars

for Standard OBD2 Cars from 2008 to Now:
for KIA, Isuzu, Honda, Mitsubishi, Hyundai, Dacia, Lexus, Mazda, Nissan, Subaru, Suzuki, and Toyota.

Chinese cars:

for Standard OBD2 Cars from 2014 to Now: for BYD, for Chery, for Geely, for Great Wall, for Karry

Warning Notice

1. Even though it is compatible with most cars, different regions support the vehicle OBD2 protocol at different times, or some car is a special design, so it may not be compatible with some cars which do not support the OBD2 protocol. Especially Japanese and Korean car brands.

2. Not Support Russian Cars before 2012, VAZ, UAZ, LADA; Not work with 24V trucks
for Renault, SsangYong, please contact us before purchasing.

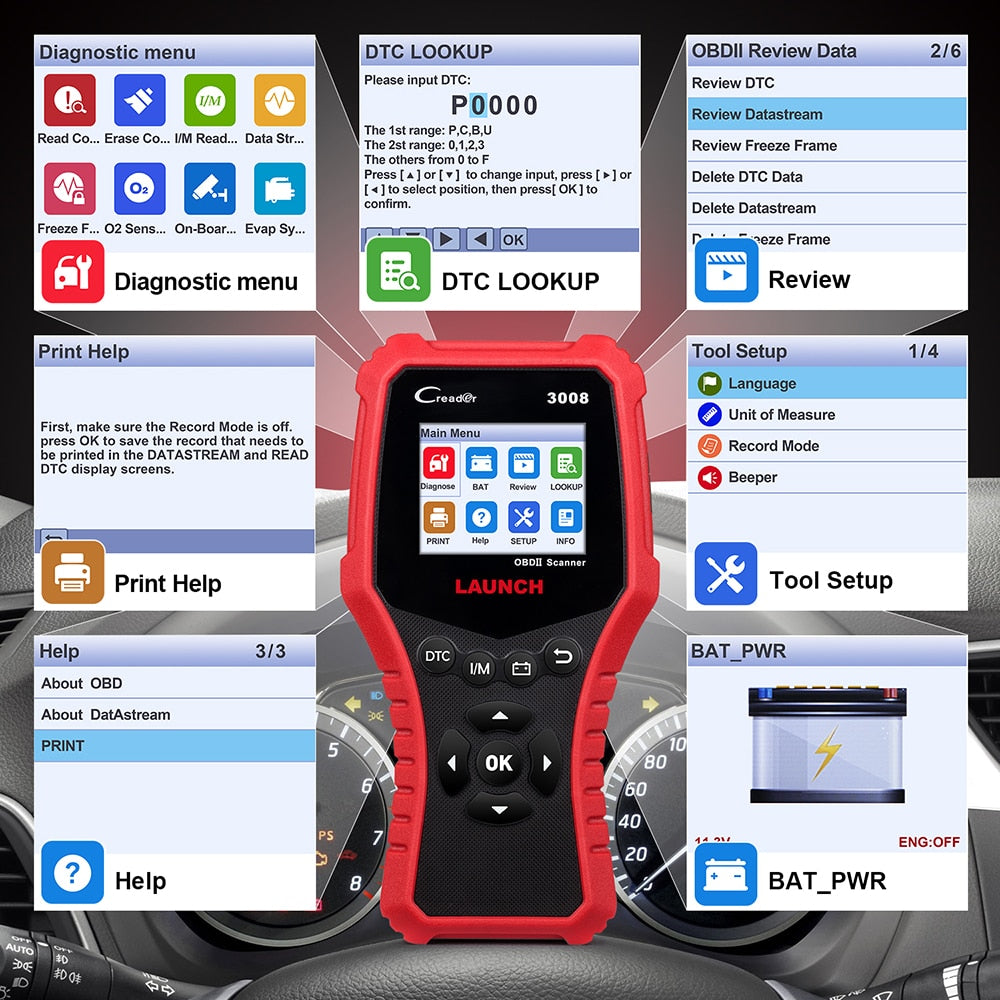

LAUNCH CR3008 Function Menu shows

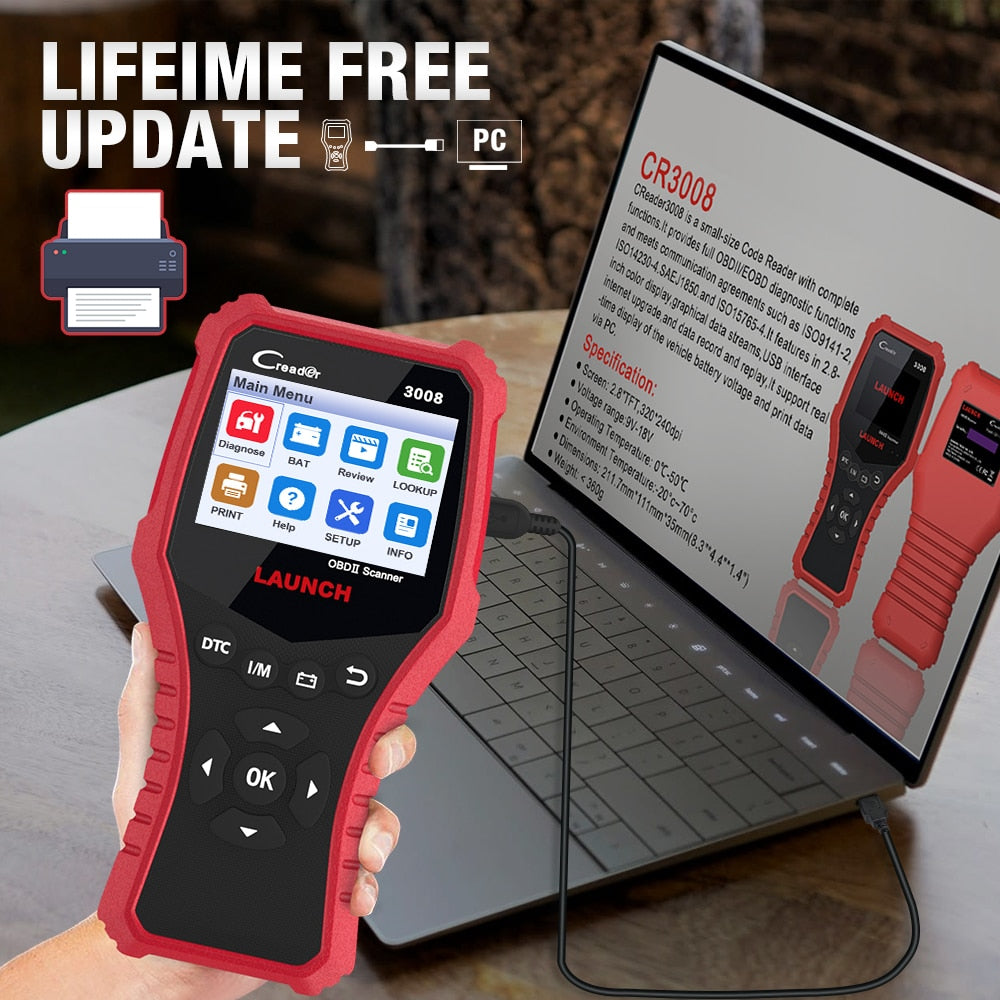

lifetime free update via PC, keep updated with the latest software version

CR3008 Quick Start Guide: (multi-Language)
https://en.cnlaunch.com/Private/Files/20201114/6374096763083436251225076.pdf

CR3008 User's Manual
http://en.cnlaunch.com/Private/Files/20190309/6368772544406827964282507.pdf

FAQ

Here we list some frequently asked questions and answers relating to CR3008.

1. Question: Does LAUNCH CR3008 support the diagnosis of ABS and SRS systems?
Answer: NO, it only supports the engine system and reads battery voltage

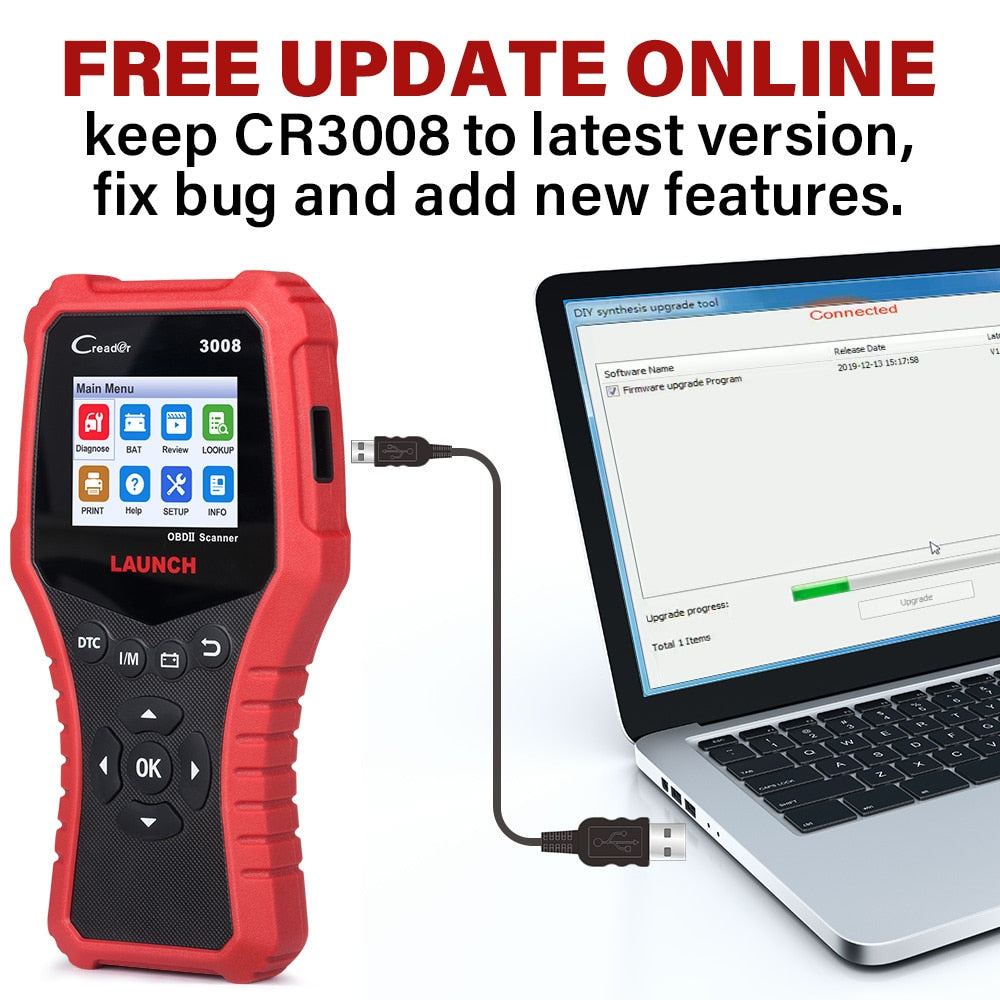

2. Question: How to update LAUNCH CR3008?
Answer: CR3008 can be updated via USB cable.
Follow the steps described below to perform the registration and update:
a. Go to http://www.cnlaunch.com and download the update tool to the computer.
b. Decompress and install it on your computer (compatible with Windows XP, Windows 7, Windows 8 & Windows 10).
c. After installation, connect one end of the USB cable to the USB port of the PC, and the other end to the tool. then update the device directly

2. Question: System halts when reading data stream. What is the reason?
Answer: It may be caused by a slackened connector. Please turn off the CR3008, firmly connect the connector, and switch it on again.

3. Question: The screen of the main unit flashes at engine ignition start.
Answer: Caused by electromagnetic disturbing, and this is a normal phenomenon.

4. Question: There is no response when communicating with an onboard computer.
Answer: Please confirm the proper voltage of the power supply and check if the throttle has been closed, the transmission is in the neutral position, and the coolant is at the proper temperature.

5. Question: Why are there so many fault codes?
Answer: Usually, it’s caused by poor connection or fault circuit grounding

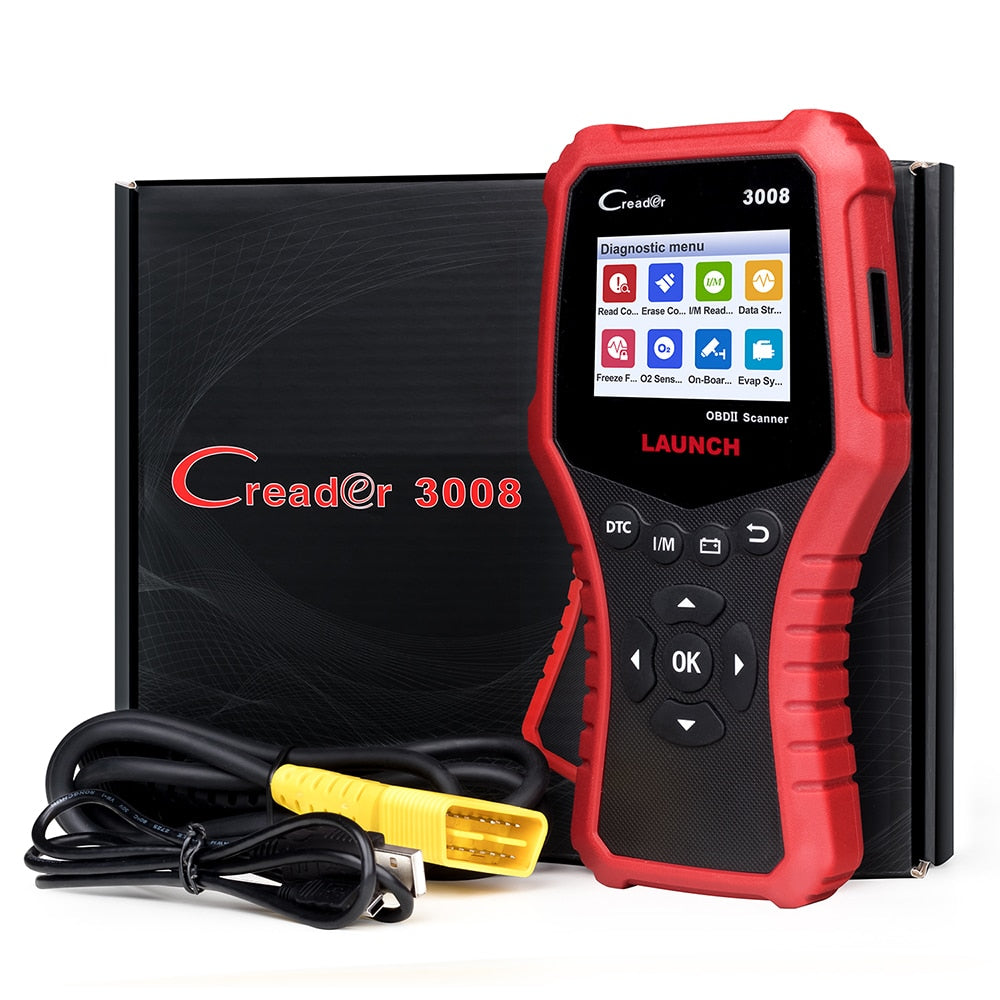

Packing List

1. CR3008 handset together with the diagnostic cable
2. USB cable
3. User’s manual
4. Quick Start Guide
