SPECIFICATIONS



launch x431 Creader elite for audi diagnostic tool function 7: Maintain Information

launch x431 Creader elite Function 6: Auto VIN Scan

launch x431 cre for audi Function 10: Screenshot & Screen Recorder, Print Diagnostic Report

launch x431 cre Function 9: Voltage Monitoring

launch x431 cre Function 11: Full obd2 Function

launch Creader Elite for audi diagnostic tool function 8: DTC Library

X431 Creader Elite For Audi function 5: Guide Function

Voltage: 12V

Special Features: Wifi

Software Version: Newest

Power: w

Origin: Mainland China

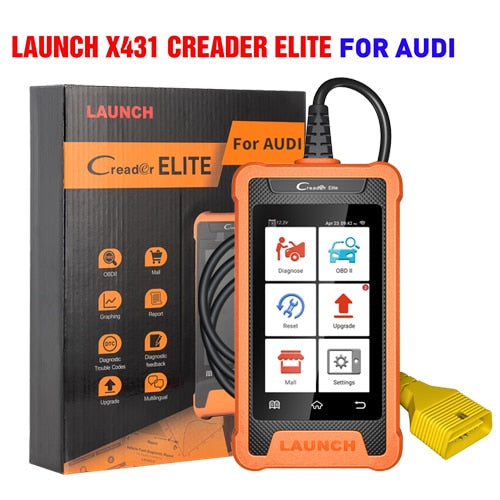

Model Name: LAUNCH X431 Creader Elite For Audi

Material Type: Plastics

LAUNCH X431 Creader Elite For Audi function 1: Full Systems Diagnostic

LAUNCH X431 Creader Elite For Audi Screen: 4-inch Touch Screen

LAUNCH X431 Creader Elite For Audi Language: English, French, Spanish, German, Italian, Russian, Portuguese, Korean, Japanese, Polish, Traditional Chinese

LAUNCH Creader Elite function 3: Active Tester( Bi-Directional Control )

LAUNCH Creader Elite function 2: Online & Offline ECU Coding

LAUNCH Creader Elite Update: Lifetime Free Update

LAUNCH Creader Elite Memory: 1GB + 16GB

LAUNCH Creader Elite For Audi function 4: more than 31+ reset function

LAUNCH Creader Elite For Audi car list: ( for VW, for Audi, for Seat, for Skoda, for Bugatti, for Bentley, for Lamborghini ) before the 2022 Year

Item Width: 10inch

Item Weight: 0.6kg

Item Type: Engine Analyzer

Item Length: 11inch

Item Height: 51inch

Hardware Version: Newest

External Testing Certification: CE

Electronic: Yes

Brand Name: LAUNCH





LAUNCH X431 Creader Elite For VAG ( for VW, for Audi, for Seat, for Skoda, for Bugatti, for Bentley, for Lamborghini ) Professional Full System Diagnostic Tools with 31+ Reset Functions Lifetime free Update, supports Online & Offline ECU Coding, Active Test to the New car before the 2022 Year OBD2 Code reader scanner with 11 Languages



LAUNCH X431 Creader Elite For VAG CARS Diagnostic Tool supports car list: 5054A



Support All for VAG CARS ( for VW, for Audi, for Seat, for Skoda, for Bugatti, for Bentley, for Lamborghini ) to the New Year!

LAUNCH X431 Creader Elite For VAG CARS supports Languages: vas



English, French, Spanish, German, Italian, Russian, Portuguese, Korean, Japanese, Polish, Traditional Chinese.



LAUNCH X431 Creader Elite For VAG CARS ( for VW, for Audi, for Seat, for Skoda, for Bugatti, for Bentley, for Lamborghini ) for Diagnostic Tool is an evolutionary smart code reader for professional technicians or DIYers. It only applies to passenger cars with 12V battery voltage.

LAUNCH X431 Creader Elite For Audi Diagnostic Tool is specially designed to work with all OBDII-compliant vehicles For Audi, including Controller Area Network (CAN). It is required by EPA that all 1996 and newer vehicles ( cars and light trucks ) sold in the United States must be OBD II compliant and this includes all American, Asian, and European vehicles.

LAUNCH X431 Creader Elite For VAG CARS Supports All Systems Full Diagnostic Function :

All Systems Including ABS System, Engine System, SAS System, TPMS System, IMMO System, Battery System, Oil Service System, SRS System, DPF System， Air Conditioning System， Transmission System..........

Full Diagnostic Function :

--read fault codes: read and decode the DTCs to identify where the fault location is;
--clear fault codes: erase the DTCs to turn off the MIL after repairs;
--retrieve ecu information: allows you to retrieve vehicle information;
--Graph live data stream: view the dynamic data stream to determine vehicle condition
--Freeze Frame: it will record the information of the vehicle running status at the moment when the fault occurs to confirm the fault.
--Vehicle information: such as Vehicle Identification Number (VIN), Calibration Mark (CALID), and Calibration Verification Number (CVN).
--Online & Offline ECU Coding: generally used for cars after replacing second-hand parts, then it can work.
--Active Tester( Bi-Directional Control ): to test whether the actuators of each system are normal, for analysis
--Special Function: more than 31+ reset functions, like airbag reset, AF Adjustment, DPF reset.........



LAUNCH X431 Creader Elite For VAG CARS Supports Online & Offline ECU Coding :

The advanced coding function is used to re-flash the vehicle control modules, which allows you to update the computer software on the vehicle to the latest version, as well as to reprogram adaptive data for certain components after making repairs or replacements, providing solutions for the issues of drivability, fuel efficiency, power loss, fault codes, the durability of mechanical parts, etc. But please note, ecu coding is NOT universal for all vehicles, please check compatibility with the VIN number before purchase.



LAUNCH X431 Creader Elite For VAG CARS Supports Active Tester( Bi-Directional Control ) :

Bi-Directional Control capability and is capable of performing Active Tests to access vehicle-specific subsystems and component tests. The tester outputs commands to the ECU to drive the actuators in order to determine the integrity of the system or parts by reading the ECU data, or by monitoring the operation of the actuators. For example, x431 v has the ability to actuate relays, injectors, coils, perform system tests, etc. Also, it will actuate solenoids valve and actuators for active testing to identify the error easily moreover. The bidirectional functions are quite extensive. even open an e.g.r. valve and seeing the difference in idle response and oxygen sensor voltage. Please note: Active tests are NOT universal for all vehicles, check compatibility with VIN number before purchase. Active tests vary depending on the manufacturer, year, and model, and only the available tests display in the menu.



LAUNCH X431 Creader Elite For VAG CARS Supports 31+Reset Function :

1. Steering Angle Reset

Reset the steering angle to zero to keep the car running straight.

2. Injector Coding

Write the new injector code into the car system for the correct cylinder injection quantity.

3. IMMO

Disable any lost keys and add new keys. **ONLY for cars with an easy IMMO system.

4. DPF Regeneration

Especially works for the D-P-F system with D-P-F regeneration, D-P-F component replacement teach-in, and D-P-F teach-in after replacing the engine control unit.

5. A/C relearn

The vehicle air conditioner replaces the electronic control unit, replaces the actuator, or the memory of the electronic control unit memory is lost, and requires air conditioning initialization learning.

6. ABS Bleeding

Help exhaust the air after repairing the ABS pump system.

7. AdBlue Reset

Reset urea after the diesel exhaust treatment fluid is replaced or filled up.

8. Throttle Matching

Initialize the throttle actuators to the default state.

9. TPMS Reset

Makes sense in displaying sensor IDs from the vehicle's ECU, input TPMS sensor replacement IDs, and testing sensors.

10. Tire Reset

Set the size parameters of the modified or replaced tire.

11. AFS Headlamp Reset

Initialize the adaptive headlamp system.

12. Sunroof Initialization

Initialize the sunroof when locked off or closed.

13. Battery Reset

Register the battery after replacement.

14. Seat Calibration

Calibrate the memory in replaced or repaired seats.

15. Oil Reset

Allows you to perform a reset for a new calculation of the Engine Oil Life system once changed the oil.

16. A/F Reset:

Set or learn Air/Fuel ratio parameters.

17. GEARBOX LEARN

Help complete the gearbox self-learning to improve gear-shifting quality.

18. Transport Mode

Deactivate the transport mode.

19. Windows Calibration

Perform door window matching to recover ECU initial memory.

20. Language Change

Change vehicle system language.

21. Suspension Reset

Adjust the vehicle body height sensor for level calibration.

22. NOx Sensor Reset

Reset catalytic converter learned value stored in ECU.

23. Stop/Start Reset

Set up the automatic start-stop function in ECU.

24. Coolant Bleeding

Activate the electronic water pump.

25. Brake Reset

It is important in the maintenance of the electronic braking system's safety and efficiency.

26. Gear Learning

The scan tool monitors certain camshaft position sensor signals to determine if all conditions are met to continue with the procedure for Engine running.

..........



Actually LAUNCH X431 Creader Elite For VAG CARS supports more than 31+ reset Functions, and it supports almost reset functions for the car, How to find the more reset Function ??????

The Normal reset Function is in the main menu - "reset button", but for the other reset function, you should go to "Diagnostic For Audi" - "System Selection" - "Basic Setting"/"Long Code"/"Adaptation", all the 3 buttons have reset function, they cover all reset function for Audi, very powerful function !!!

LAUNCH X431 Creader Elite For VAG CARS Supports Guide Function :

The Guide Function is used to detect or add the function of the car, such as locking the door/windows, rolling to the top or matching the key, or comfort function, and so on.
Simply put, it is convenient for maintenance, to find the fault point step by step according to your intention, provide relevant data, and give you a maintenance idea.

The Following Function need use The Guide Function :

√Service Regeneration, Particle Filter(DPF)

√Adapt Injector Correction Value

√ Reset Engine Control Adaptation Values

√ Throttle Learning

√ Fill Coolant Circuit

√ Adapt Values, SCR system

√ Activating/Deactivating Cruise Control System

√ Basic Setting Of Transmission

√ Basic Setting of Sensors (-G85/-G200/-G201/-G251)

√ Basic Setting/Bleeding Brake System

√ Initial A/C Compressor Run-In

√ Adaptation Automatic Locking At 15 km/h

√ Distance Control System Calibration

√ Deactivate Or Activate Airbags And Belt Tensioners

√ Adaptation Menu Key Multifunction Steering Wheel

√ Adapting Service Intervals

√ Service Interval Display, Resetting

√ Transport Mode, Switching Off/On

√ Level Control System Basic Settings

√ Brake Pad Change

√ Headlight Beam Adjustment

√ Battery Adaptation

√ Rear View Camera System Calibration

√ Driver Assistance Systems Front Sensor System Calibration etc.

LAUNCH X431 Creader Elite For VAG CARS Supports Full 10 OBD2 Function :

This scanner supports all 10 test modes for OBD-II cars which are great for daily repair work. The table below describes the purpose of each mode of operation:

1. Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)

2. Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes, and resets monitors.

3. Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and storing freeze frame data.

4. I/M Readiness Status: This shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

5. Read Live Data Stream: Show the information of continuous data stream from a vehicle in a live graphic (waveform) display.

6. View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the onboard computer at the time the emission-related fault occurs.

7.O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s onboard computer.

8. On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.

9. Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

10. Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.



The MALL function of LAUNCH X431 Creader Elite For VAG CARS

LAUNCH X431 Creader Elite supports AUDI, BENZ, BMW, for GM, It is also for other brands too, like Toyota, VW, Ford, etc, those brands need to subscribe with the MAll button, and it takes USD49.95/Brands, you can choose the one you want to subscribe !!!

The Other Functions that LAUNCH X431 Creader Elite For VAG CARS Supports :

1. Auto VIN Scan ( Smart Diagnosis ) :

Adopts Auto-VIN technology that will automatically recognize vehicle information which you get the vehicle's make, model, and year information more easily

2. Maintain Information ( powerful & useful Function ) :

This function has a how-to for some special functions, which is about examples of operating special functions for real vehicles to help you learn the operation of the special functions; It also has Online Coding Help that will show you the steps for this function； And has Channel Information, it will show you how to do basic settings to make the channel return to its original normal value. All of this maintenance information can assist you in better resolving the vehicle's issue

3. DTC Library :

Allows you to retrieve the definition of the diagnostic trouble code from the abundant DTC database.

4. Display Real-Time Battery Voltage

If the charging system is not working properly, the battery will not get the proper charging voltage and it could go flat. This OBDII scanner can display the instantaneous voltage across the battery terminals in a graphical way. This helps you to get early warnings for possible battery and the charging system problems

5. Screenshot & Screen Recorder, Print Diagnostic Report

It is easy to save the diagnostic data that you want, also the diagnostic report!
It also supports printing Diagnostic reports, Scan the QR to Share first, then print.



LAUNCH X431 Creader Elite For VAG CARS Update and Service :

Update via wifi :

Lifetime Free Update For Diagnostic Function + Reset Function

Service :

15 days Free return & Refund ( for several countries )
5 Years Warranty
Lifetime Free Tech support

LAUNCH X431 Creader Elite For VAG CARS supports Full OBD II Protocols:

1. SAE J1850 PWM (41.6 Kbaud)
2. SAE J1850 VPW (10.4 Kbaud)
3. ISO 9141-2 (5 baud init, 10.4 Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)

LAUNCH X431 Creader Elite For VAG CARS Parameter :

• Screen Size: 4 inch Touch Screen
• Resolution: 480*800 pixels
• CPU: 4-core 1.3GHz processor
• RAM: 1GB
• ROM: 16GB
• WiFi: 802.11b/g/n 2.4GHz
• USB: TYPE-C
• OBD II Input voltage range: 9~18V
• Power up via DC 5V data cable or Diagnostic cable through connection to vehicle's DLC
• Working Temperature: -10℃ to 45℃ (14℉ to 113 ℉)
• Storage Temperature: -20℃ to 70℃ (-4℉ to 158 ℉)

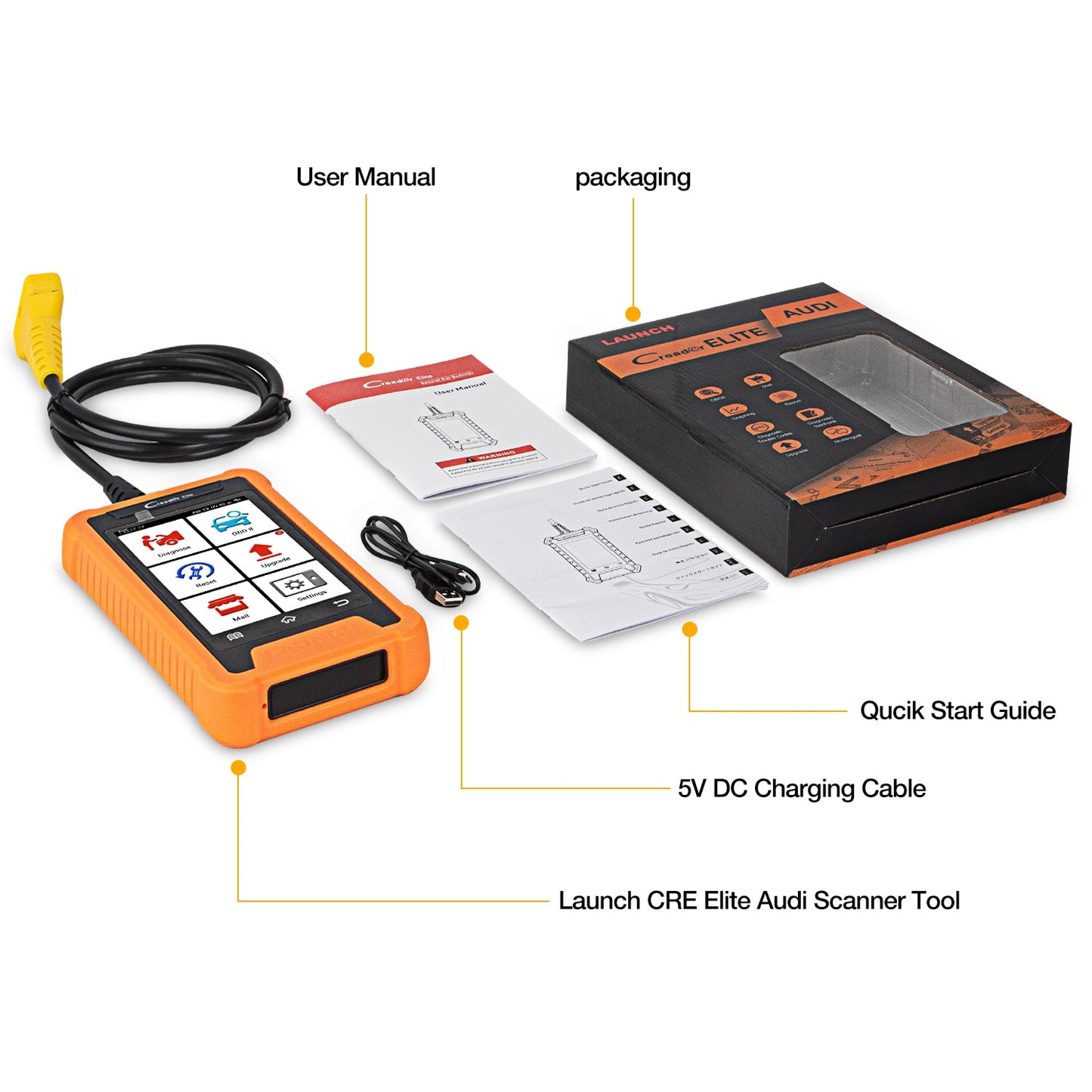

LAUNCH X431 Creader Elite For VAG CARS Packing List:

1. LAUNCH Creader Elite Special Car Scanner
2. Data Cable
3. User Manual Multi-language
4. Quick Start Guide Multi-language
