SPECIFICATIONS



Special Features: Wifi

Software Version: Newest

Software Update: Yes

Origin: Mainland China

Language: German, Russian, English, Korean, Japanese, Spanish, French, Italian, Portuguese

LAUNCH CRP123E Support protocols: support OBDII EOBD JOBD KOBD protocols

LAUNCH CRP123E Support System: Engine ABS Airbag SRS Transmission diagnostic

LAUNCH CRP123E Language: English, Spanish, French, German, Italian, Russian, Japanese, Korean, Portuguese

LAUNCH CRP123E Function 4: Full OBD2 Function

LAUNCH CRP123E Function 3: Battery tester

LAUNCH CRP123E Function 2: Automatically generate diagnostic reports

LAUNCH CRP123E Function 1: Fast VIN Auto-detect

Item Type: Code Readers & Scan Tools

Hardware Version: 2019 newest version

Certification: CE

CRP123E Support reset function: Oil/ETC/SAS Reset Function

CRP123E CRP123X support car: Over 10000 Car Models, Up to 57 Brands

CRP123E CRP123I Update: Lifetime Free Update

Brand Name: LAUNCH

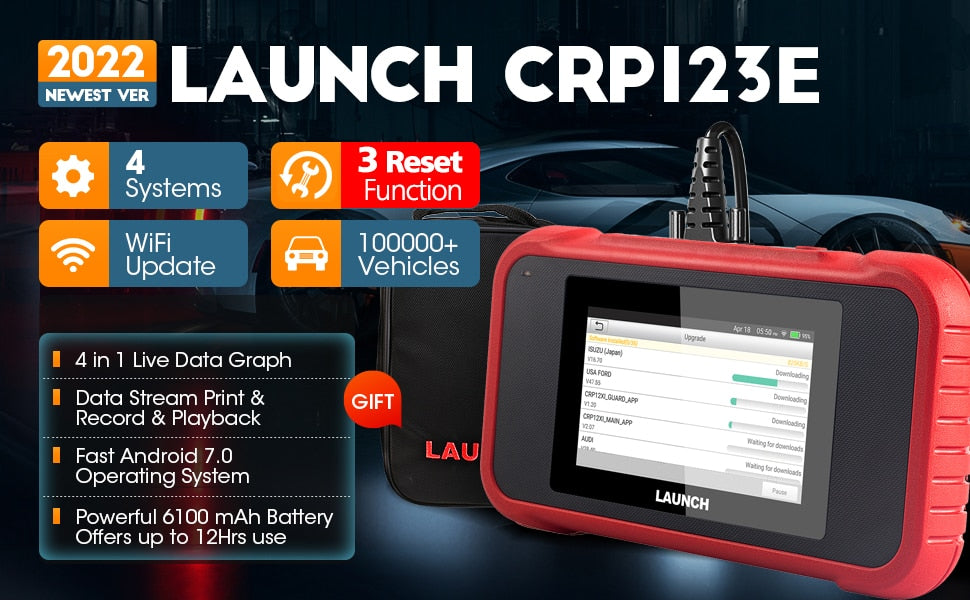

LAUNCH CRP123E OBD2 Code reader Scanner, Diagnose Engine ABS SRS Airbag Transmission System, Oil / ETC / SAS Reset Function with Battery Test & Auto VIN Function, Wi-Fi One-Click Update Lifetime Free, Android 7.0 OS, 9 Language Support, Full OBD2 Functions

GOOD NEWS! GOOD NEWS! GOOD NEWS!

LAUNCH CRP123E has been Updated now, it add 3 reset Functions: Oil service Reset + ETC Reset + SAS Reset, More Powerful now!

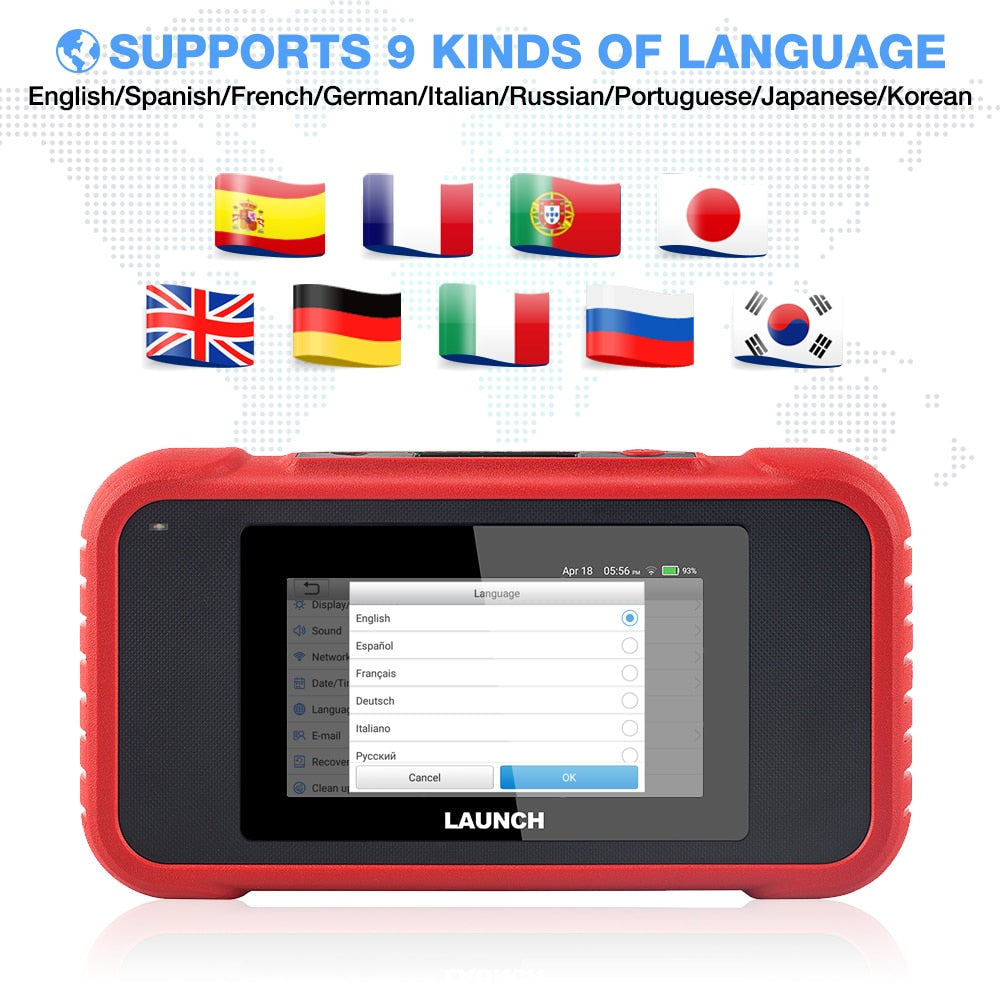

LAUNCH CRP123E Support 9 Languages :



English, Spanish, French, German, Italian, Russian, Japanese, Korean, Portuguese

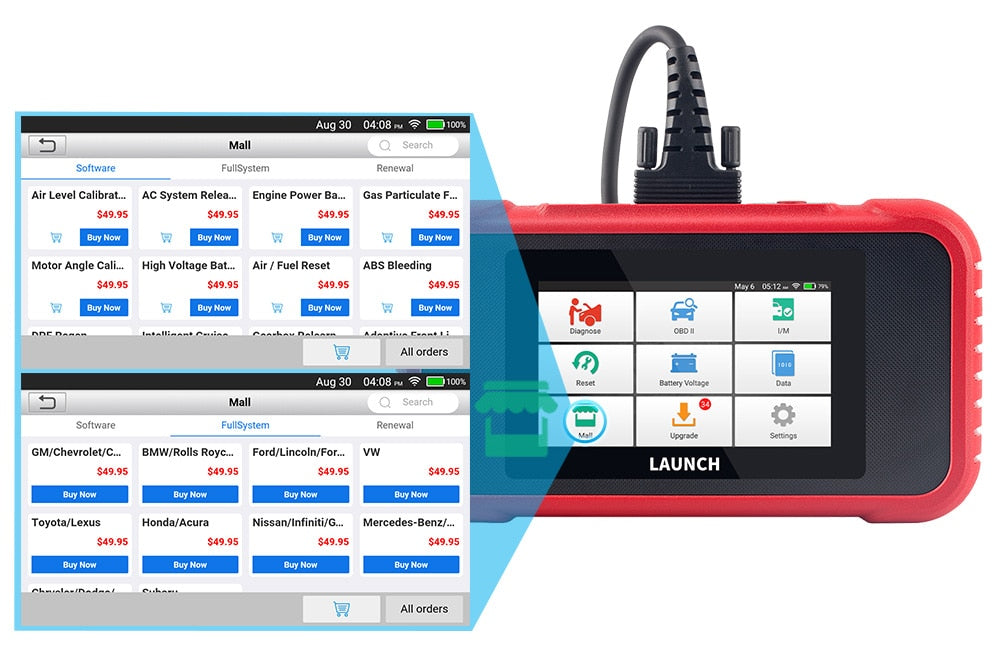

LAUNCH CRP123E Mall Function :



It is the New function of LAUNCH CRP123E, in the Mall, it can subscribe reset function and Full system of the car, each one is USD$49.95/pc.

This function is better for to you choose more functions to do!

Why LAUNCH CRP123E is so popular among technicians, DIY beginners, auto repair shops, and automotive engineers?

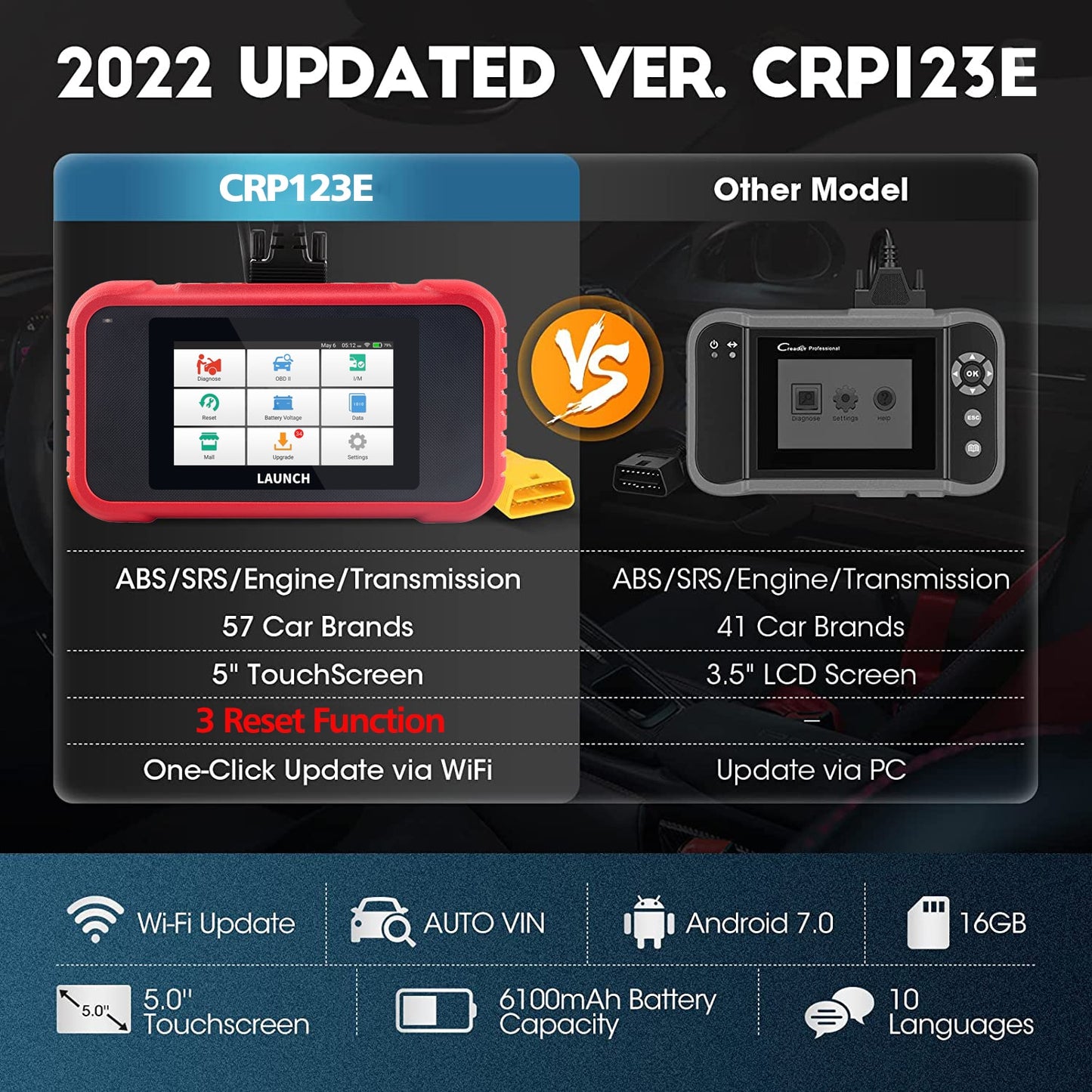

1. LAUNCH CRP123E is an Upgraded Version of CRP123 / VII+ , the function of CRP123E is more perfect and powerful

2. Fast 7.0 Android Large 5" touch HD screen, Upgraded Memory from 8GB to 16GB for more vehicle models program. Upgrade the battery from 4000mAh to 6100mAh, LAUNCH CRP123E obd2 Scan tool will work for a long time

3. Launch CRP123E Diagnostic Engine, Transmission, ABS, and SRS Airbag four systems, read and erase code, live data stream, store, and playback data stream, helps to quick analysis and diagnosis, and turn off the system warning lights.

4. The battery voltage test, can monitor the battery voltage timely

5. AUTO VIN technology that can identify vehicle make, model, and year information to shorten the vehicle navigation process.

6. Full OBD2 Function, Read fault code, delete codes, Read data stream, etc

7. One Click wifi lifetime free update, and over 57+ Car Brands, 10000+ Vehicles Models, Upgrade new makeup to 2021 models, this scan tool works on most 1996 and newer OBDII Compliant vehicles, Cover OBD2/EOBD/JOBD vehicles,

8. 2 in1 Diagnostic Tool, Health Report Record, Playback and Print，

All diagnostic data can be recorded and generated into diagnostic reports which can be shared to email and then print on a computer.

9. Online Maintenance Resources: Operating skills, DTC Help, Automotive Technology Handbook, Repair Case, and How-to Videos. Let you master and understand car breakdown problems faster

10. More Stronger and More Resistant to Falls. The anti-slip handle design and anti-fall shell greatly extend the lifetime of the launch scanner.

And more

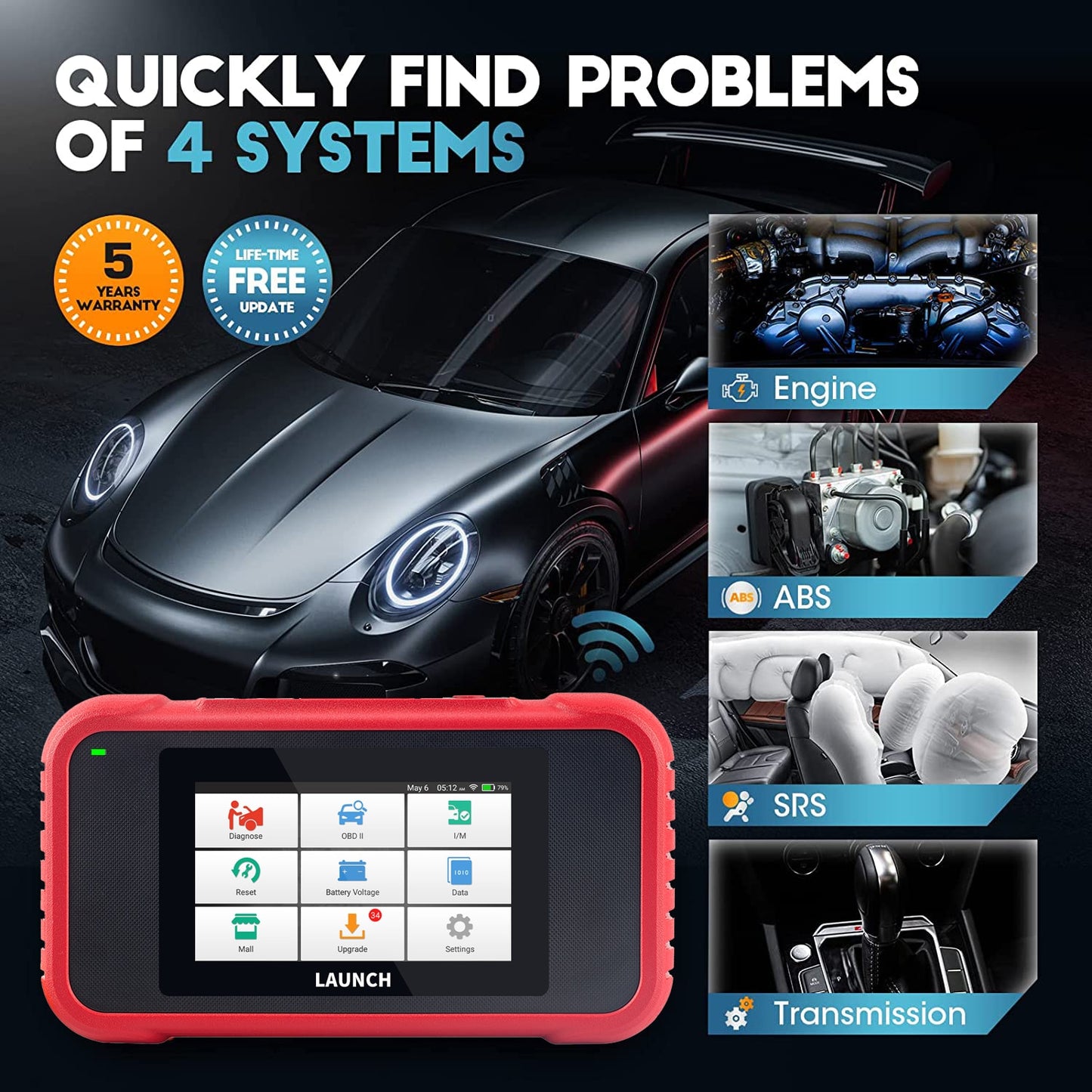

LAUNCH CRP123E Diagnose 4 Systems - Check Engine, ABS, SRS, and Transmission System

Engine System Diagnosis

By Reading, Clearing DTCs, and viewing Live Data streams, the scan tool can help you easily pinpoint the cause of the Engine System problem and turn off the warning light related, thus ensuring the engine works properly, and enhancing its performance.

ABS System Diagnosis

By accessing to ABS to view its Live Data Stream, and retrieving the fault codes, this LAUNCH Creader scanner can troubleshoot the ABS issue with a visual inspection of all brake components that caused the warning light, and turn the light off.

SRS System Diagnosis

By detecting every electronic parameter in the SRS system to check their health status, this diagnostic tool can address the SRS potential issues timely to ensure your driving safety and turn off the warning light of the Airbag.

Transmission system diagnosis

By checking the Transmission system, this tool can figure the problem out via reading codes, or check the health status via Live Data viewing, and turn off the warning light, making sure that the right amount of power goes to the wheels to drive at a given speed.



Effortlessly Do the Maintenance by Yourself – 3 Built-in Reset Functions, Purchase More from MALL Menu

How would oil reset helps your work?

* If the service lamp is on, you need to reset the driving mileage or driving time so that the service lamp turns off and the system enables the new service cycle.
* After changing engine oil or electric appliances that monitor oil life, you need to reset the service lamp.

How would steering angle calibration help you?

* After replacing the steering angle position sensor, and steering mechanical parts (such as the steering gearbox, steering column, end tie rod, and steering knuckle), performing four-wheel alignment, or recovering the car body, use CRP123E to reset the steering angle.

When would you use throttle adaptation?

* The ECU is replaced and the ECU does not yet store throttle working features.
* The throttle assembly is replaced or the throttle is cleaned.
* The intake pipe is replaced or removed.



LAUNCH CRP123E Battery tester Function - Real Time Battery Voltage Graphing

Check the battery status in real-time and eliminate the most easily overlooked battery problems



LAUNCH CRP123E Auto VIN Function - Quick VIN Identification

The CRP123E is an easy-to-use scanner aiming at helping you solve automotive issues quickly and accurately. In addition to manually selecting the vehicle information like year, make, model, and VIN, you can quickly access the system via AutoDetect for VIN acquisition.



LAUNCH CRP123E Supports Full obd2 Functions which are Ready for Engine System

$01 - Request Current Powertrain Diagnostic Data

$02 - Request Powertrain Freeze Frame Data

$03 - Request Emission-Related Diagnostic Trouble Codes

$04 - Clear/Reset Emission-Related Diagnostic Information

$05 - Request Oxygen Sensor Monitoring Test Results

$06 - Request On-Board Monitoring Test Results for Specific Monitored Systems

$07 - Request Emission-Related Diagnostic Trouble Codes Detected During the Current or Last Completed Driving Cycle

$08 - Request Control of On-Board System Test or Component

$09 - Request Vehicle Information

$0A - Request Emission-Related Diagnostic Trouble Codes with Permanent Status



LAUNCH CRP123E Other Function :

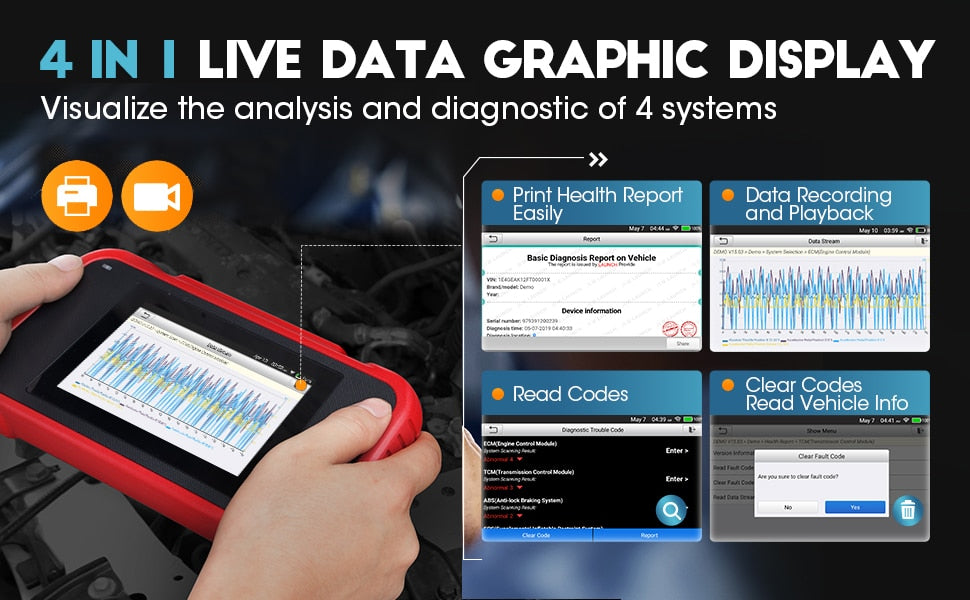

Live Data Stream Analyse in Graph

The launch scanner CRP123E shows you live sensor data and provides data graphing for intuitive diagnostics and monitoring of your vehicle performance, helping customers to better analyze the abnormal parameter.

Date Record & Playback

Another great feature of this automotive diagnostic scanner is that it would allow you to view the Live Data Stream, and record the data in Waveform. This would save you the hassle of reading through and digesting all the information which is being presented to you. You can even playback these data, for better analysis and rectification as well as future use.

Google DTC Inside

After you get the diagnosis results, quickly get the maintenance information through the built-in Google DTC system.

Professional, efficient connection of Internet mass information, easy to improve hands-on ability



Share Report via Wi-Fi & print Report

Rather than taking the additional hassle, with this LAUNCH scanner, you would easily be able to share the diagnostics report to your clients or technicians via Wi-Fi. They would take a look at the full, clear, and accurate diagnostic report, and then understand what would need to be done. No more Googling unreliable fixes that would waste your energy.

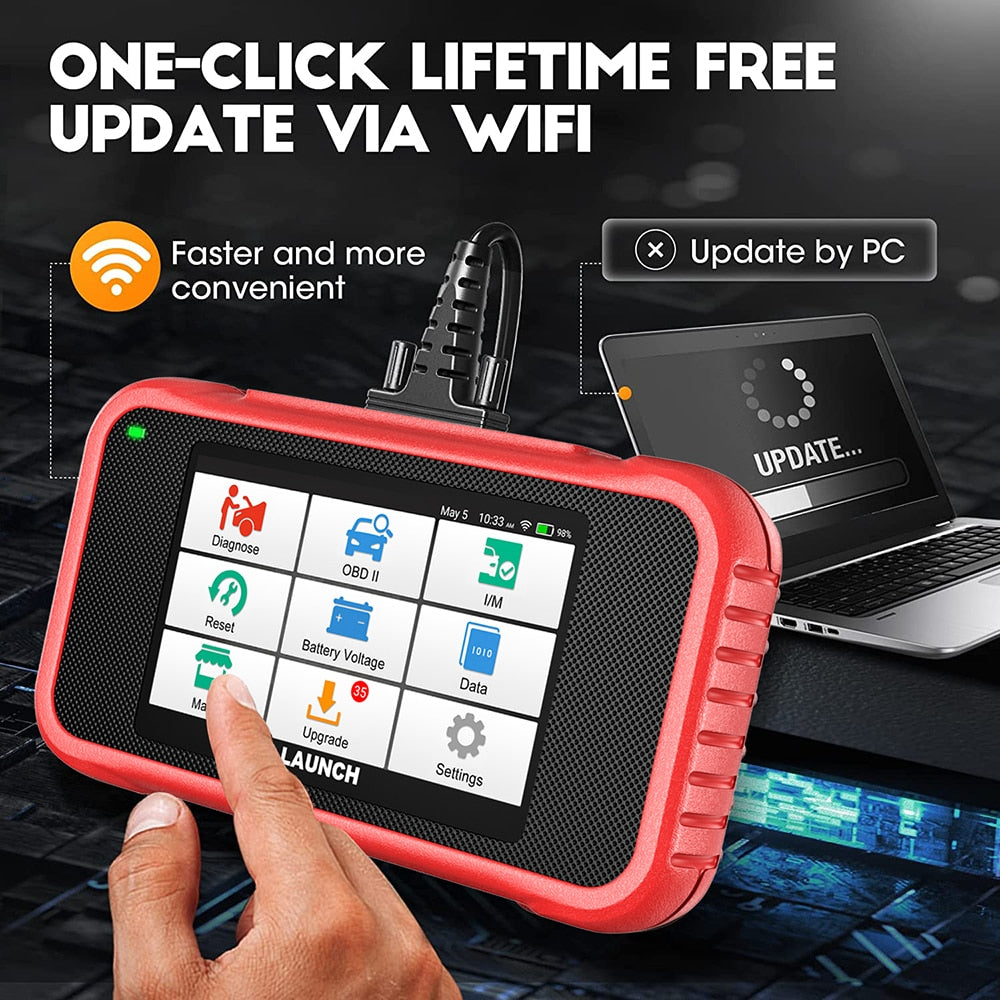

LAUNCH CRP123E Update - Lifetime Free Update via WIFI, One-Click update, easy to Operate!



LAUNCH CRP123E supports Over 10000 Car Models, Up to 57 Brands:

For VW, For NISSAN, For EOBD2(EOBD2), For VOLVO, For MITSUBISHI, For Dodge, For Vauxhall, For Mini, For DEMO, For USA FORD, For MAZDA, For DAEWOO, For TOYOTA, For Lincoln, For DACIA, For Tlisuzu, For Lexus, For CITROEN, For SUZUKI, For LANDROVER, For CHRYSLER, For SUBARU, For Lancia, For Chevrolet, For SPRINTER, For KIA, For Cadillac, For SMART(SMART), For JPISUZU, For Buick, For SKODA, For Jeep, For BUGATTI, For SEAT, For JAGUAR, For BMW, For SAMSUNG, For Infiniti, For BENZ, For SAAB, For HYUNDAI, For AUTOSEARCH, For RENAULT, For HONDA, For AUSTFORD, For PORSCHE, For Gmsa, For AUDI, For PEUGEOT, For GM, For Alfa Romeo, For OPEL, For FIAT, For ACURA, For Nissangtr, For Euroford, For Abarth



Launch CRP123E Item Parameter:

Screen:5.0 inch 720P LCD touchscreen display
OBD II interface input voltage: 9V~18V DC input voltage: 5V
Connection: standard 16 PIN OBD diagnostic interface
Working temperature:-10°C to 50°C
Storage ambient temperature:-20°C to 70°C
Dimension:228*125*34.5(mm)
Weight:<565g

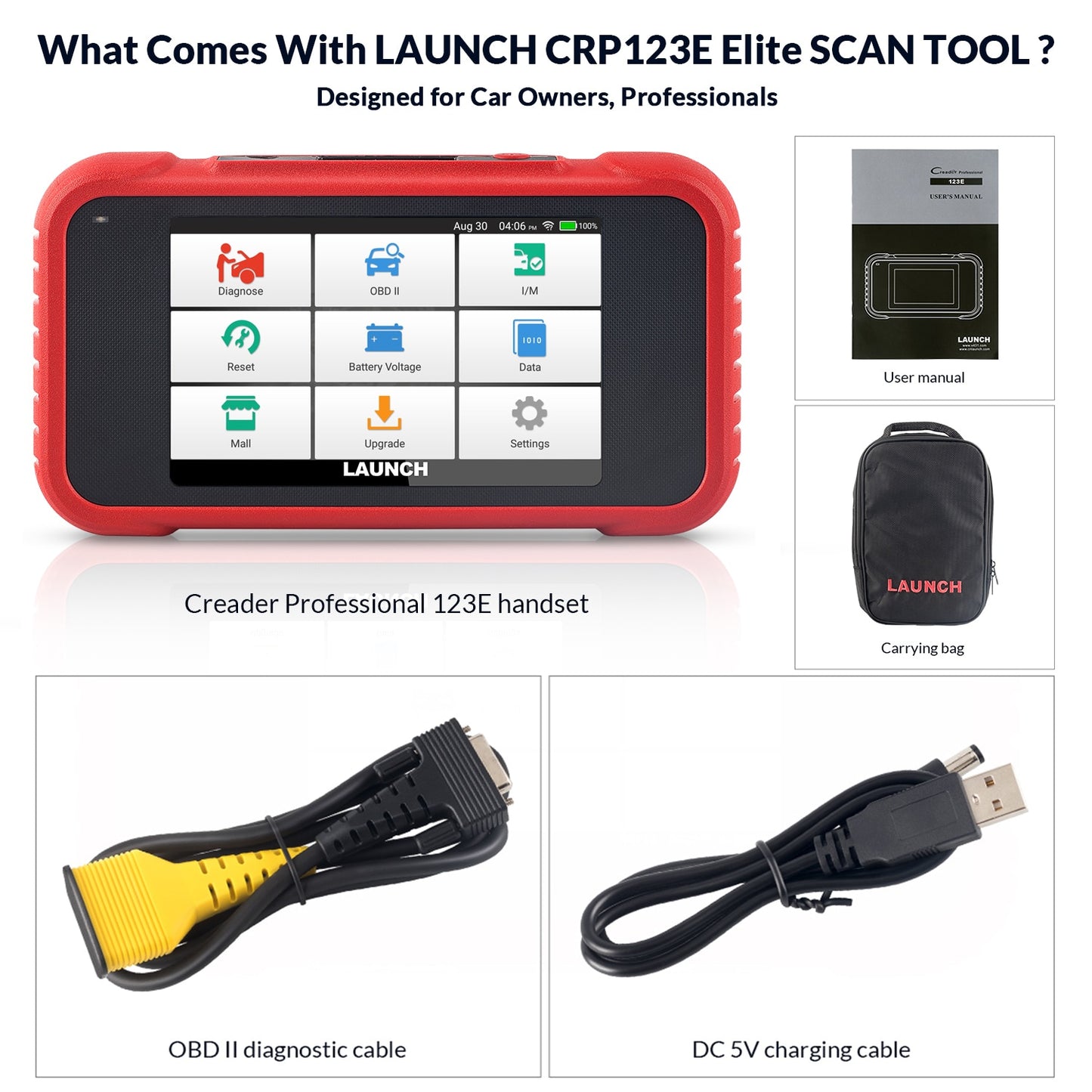

Launch CRP123E Packing List:

1 x Creader Professional 123E handset
1 x OBD II diagnostic cable
1 x DC 5V charging cable
1 x User manual
1 x Carrying bag
