LAUNCH X431 CRP429C OBD2 Scanner Car OBD OBD2 Diagnostic Tool 4 System + 15 Reset Service OBD II Code Reader pk CRP123E CRP129E
LAUNCH X431 CRP429C OBD2 Scanner Car OBD OBD2 Diagnostic Tool 4 System + 15 Reset Service OBD II Code Reader pk CRP123E CRP129E
SPECIFICATIONS
Warranty: 1 year
Update: Lifetime Free Update
Special Features: Wifi
Software Version: 2023 version
Software Update: Yes
Size: 5'inch Touch Screen
ROM: 16GB storage
Origin: Mainland China
Operation system: Android 7.0
Multi-Protocol: OBDII and OBDI, JOBD,KOBD, EOBD
Language: English, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish
Item name: LAUNCH CRP429C
Item Type: Code Readers & Scan Tools
Hardware Version: 2023 version
Full OBD2 Function: Read Codes, Delete Codes, Read Data Stream, etc
Feature: Touch Screen and Keypad input
Diagnostic Report: Email Share and Print
Diagnostic Record: Diagnose Report Print Share Via email
Diagnostic Feedback: One-Click Feedback
Certification: CE
Brand Name: LAUNCH
Battery Test: Read Battery Real-time Voltage
4 System Diagnostic: Engine, ABS, SRS Airbag, Transmission
15 Reset Service: Reset OIL, EPB, TPMS, SAS, Gear, IMMO, BMS, EST, DPF, Injector, ABS Bleeding

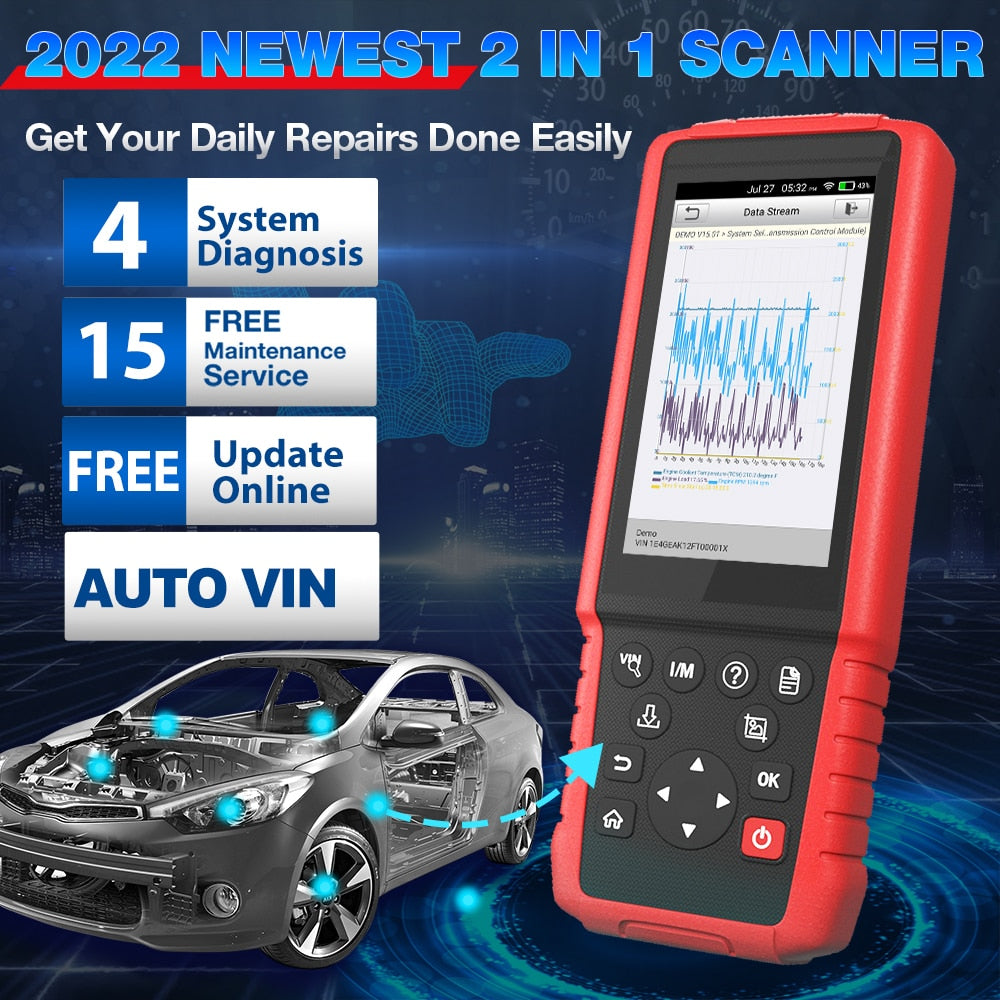

LAUNCH X431 CRP429C Professional Diagnostic Tools Engine ABS SRS AT 4 System Diagnosis with A/F DPF, TPMS 15 Reset, Auto VIN Scan, 10 Language Supports, Wifi Free Update Online
New Function added in October 2022
1. Extended Free Update period: from 1 year free to lifetime free update
2. Added 4 Reset Services, total get 15 Reset Service
a. EGR Adaption
learn the EGR (Exhaust Gas Recirculation) valve after it is cleaned or replaced.
b. A/F Reset
This function is applied to set or lean air/fuel rate parameters
c. Suspension Calibration
adjust the height of the body It needs to be performed in the following cases:
1. When replacing the body height sensor, or control module in the air suspension system.
2. When the vehicle height is incorrect
d. NOx Sensor Reset
NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) in engine exhaust. If the NOx fault is re-initialized and the NOx catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine ECU.

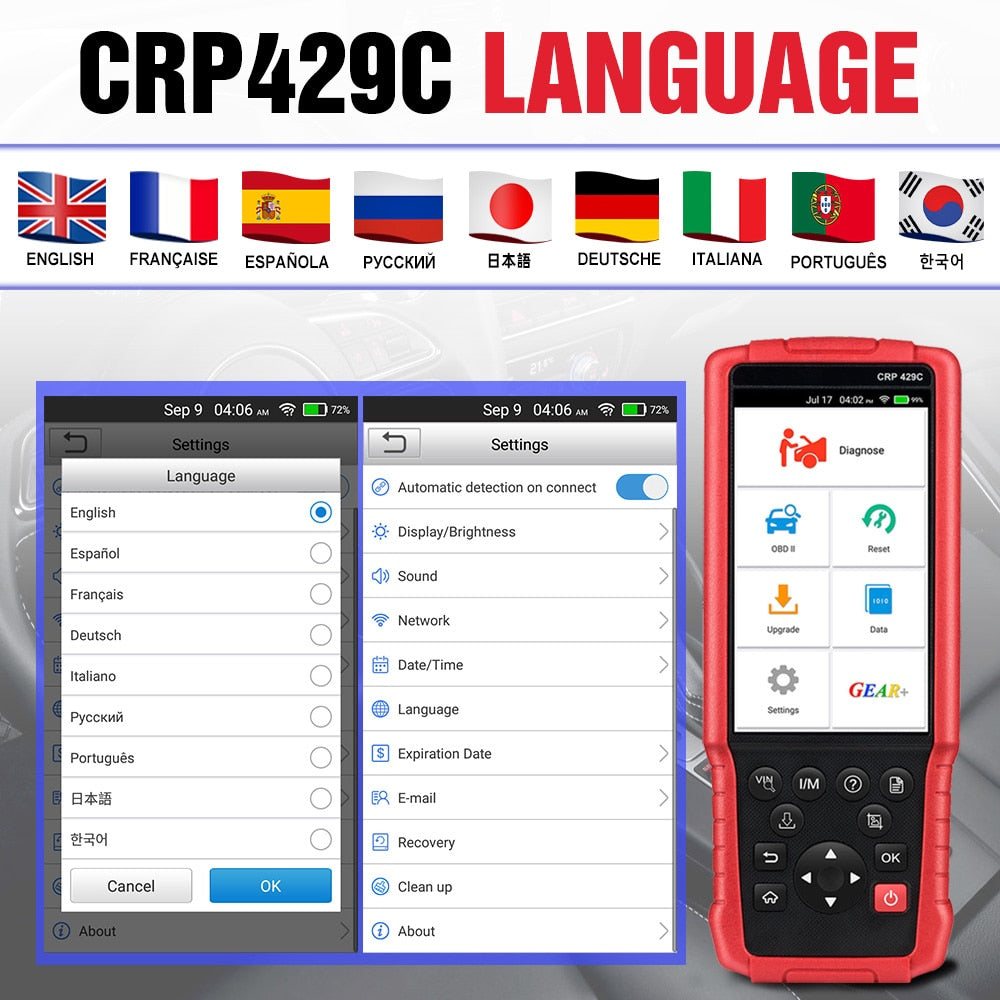

10 Language Support, Switch freely for free
English, French, Spanish, Russian, Japanese, German, Italian, Portuguese, Korean and Chinese
The device's default language is English, you can switch the supported language freely by choosing the setting menu.

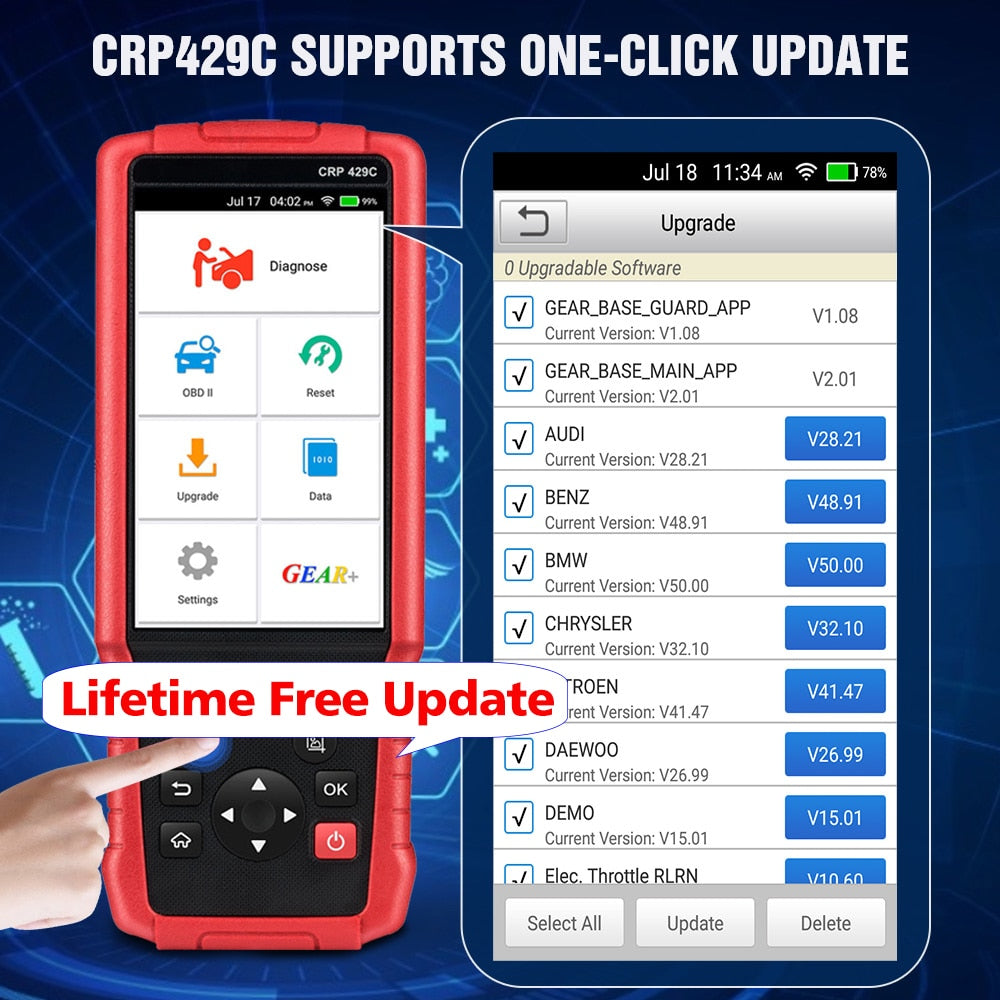

Free Update via Wifi

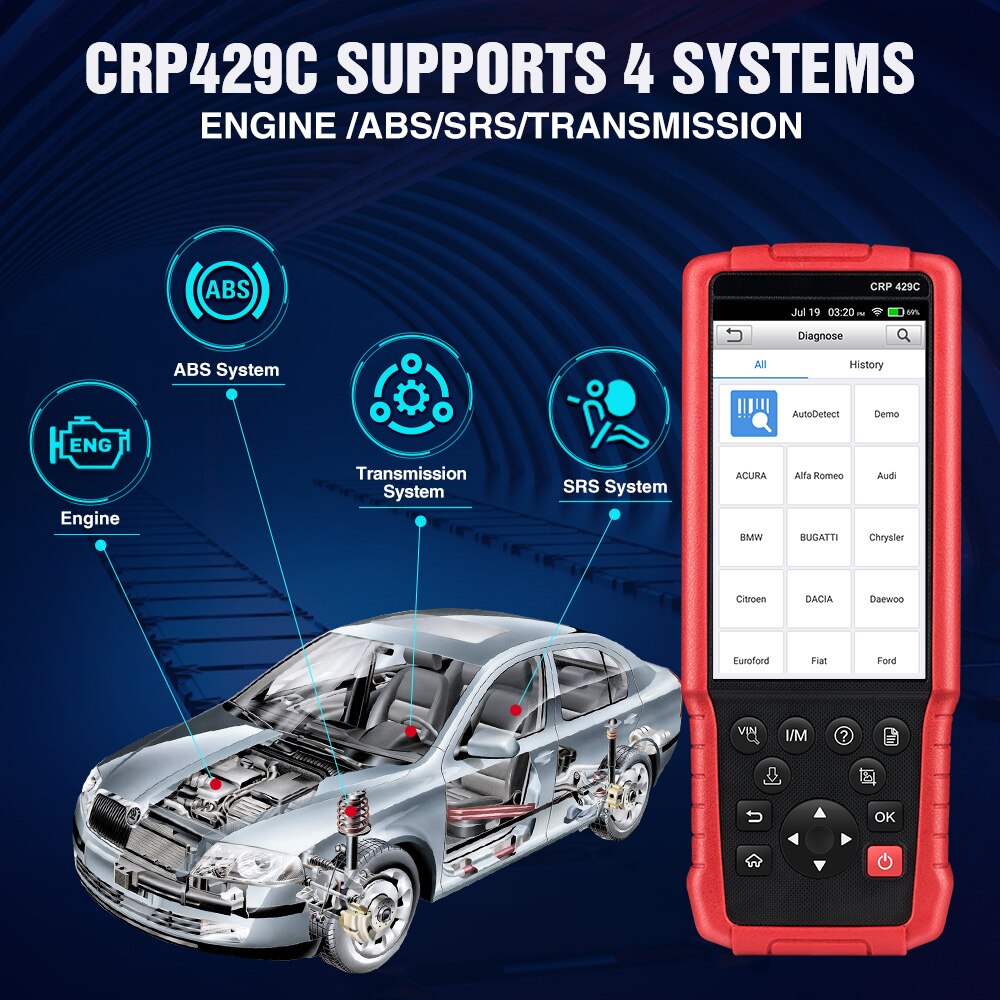

4 Major System Diagnosis For ABS, SRS Airbag, Engine, and Transmission
1. Check the Engine System
The diagnostic tool can help detect the engine ignition, fuel injection, air and fuel ratio, and exhaust emission conditions in the Engine system to enhance vehicle performance, save energy and reduce exhaust emission.
2. Check the ABS System
Read and clear DTCs data flow in the ABS system. Performs various tests to check the operating conditions of the Anti-lock Braking System, and turn off the warning light.
3. Check SRS Airbag System
The safety restraint system is made up of impact sensors, a control module, and the airbags themselves, and this diagnostic device can detect every electronic parameter to check its health status. Read and clear the fault code in SRS (Airbag) system and turn off the warning light of the airbag for making sure the engine work properly and safely.
4. Check the Transmission System
Read and clear codes and view live data in transmission systems, keeping the transmission systems output optimally adapted to the speed and load. Retrieve the error information from Automatic Transmission (AT) which is a type of motor vehicle transmission that can automatically change gear ratios as the vehicle moves, freeing the driver from having to shift gears manually.
15 Maintenance Reset Service
1. A/F Reset
This function is applied to set or lean air/fuel rate parameters
2. EGR Adaption
learn the EGR (Exhaust Gas Recirculation) valve after it is cleaned or replaced.
3. Suspension Calibration
adjust the height of the body It needs to be performed in the following cases:
1. When replacing the body height sensor, or control module in the air suspension system.
2. When the vehicle height is incorrect
4. NOx Sensor Reset
NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) in engine exhaust. If the NOx fault is re-initialized and the NOx catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine ECU.
5. Oil Reset Service
This function enables you to reset the oil service for the engine oil life system, which calculates an optimal oil life change interval depending on the vehicle's driving conditions and weather events. It needs to be performed in the following cases:
1. If the service lamp is on, run car diagnostics first for troubleshooting. After that, reset the driving mileage or driving time, so as to turn off the service lamp and enable a new driving cycle.
2. If the service lamp is not on, but you have changed the engine oil or electric
appliances that monitor oil life, you need to reset the service lamp.
6. Electronic Parking Brake Reset
reset the brake pad after replacing the brake pad. It needs to be performed in the following cases:
1. The brake pad and brake pad wear sensor are replaced.
2. The brake pad indicator lamp is on.
3. The brake pad sensor circuit is short, which is recovered.
4. The servo motor is replaced.
7. Battery Maintenance System Reset
perform a resetting operation on the monitoring unit of the vehicle battery, in which the original low battery fault information will be cleared and battery matching will be done. It needs to be performed in the following cases:
1. The main battery is replaced.
2. The battery monitoring sensor is replaced.
8. Diesel Particulate Filter (DPF) Regeneration
clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high-temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the filter performance. It needs to be performed in the following cases:
1. The exhaust back pressure sensor is replaced.
2. The PM trap is removed or replaced.
3. The fuel additive nozzle is removed or replaced
4. The catalytic oxidizer is removed or replaced.
5. The DPF regeneration MIL is on and maintenance is performed.
6. The DPF regeneration control module is replaced
9. Steering Angle Calibration
reset the steering angle, after replacing the steering angle position sensor, replacing steering mechanical parts ( such as steering gearbox, steering column, end tie rod, and steering knuckle), performing four-wheel alignment, or recovering the car body. To reset the steering angle, first find the relative zero point position for the car to drive in a straight line. Taking this position as a reference, the ECU can calculate the accurate angle for left and right steering
10 Reset TPMS
makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs, and testing sensors.
11. IMMO Service
perform the anti-theft key matching function, so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car. It needs to be performed in the following cases: When the ignition switch key, ignition switch, combined instrument panel, ECU, BCM, or remote control battery is replaced.
12. ABS Bleeding
perform various bi-directional tests to check the operating conditions of the Anti-lock Braking System (ABS). It needs to be performed in the following cases:
1. When the ABS contains air.
2. When the ABS computer, ABS pump, brake master cylinder, brake cylinder, brake line, or brake fluid is replaced.
13. Electronic Throttle Position Reset
make initial settings to throttle actuators and returns the learned values stored on ECU to the default state. Doing so can accurately control the actions of regulating the throttle (or idle engine) to adjust the amount of air intake.
14. Gear Learning
perform tooth learning for the car, to turn off the MIL. It needs to be performed in the following cases:
1. After the engine ECU, the crankshaft position sensor, or crankshaft flywheel is replaced.
2. The DTC ‘tooth not learned’ is present.
15. Injector Coding
Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when the injector is turned off
......
Note: These special functions are NOT for all car models, if you are confused, Please send your car brand, model, and release year to the seller to check it for you.

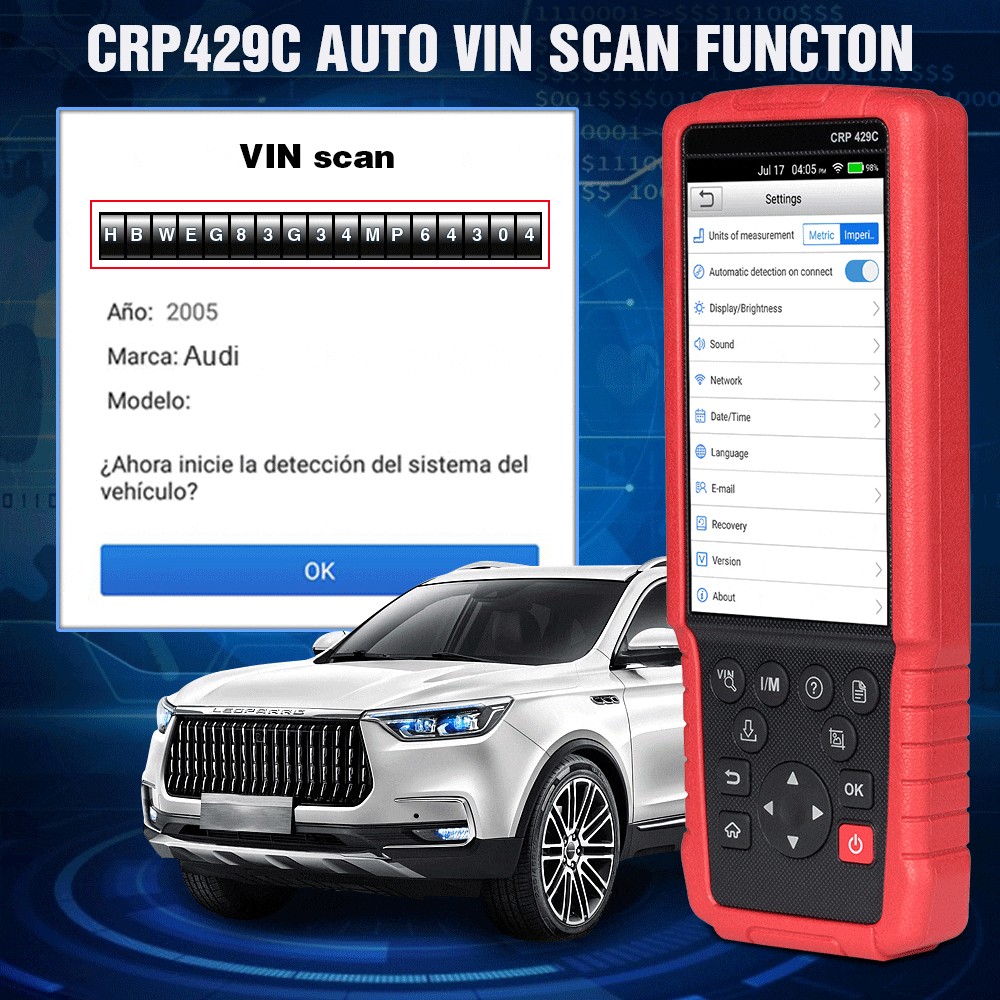

Support automatic identification of VIN for the matching of vehicle models

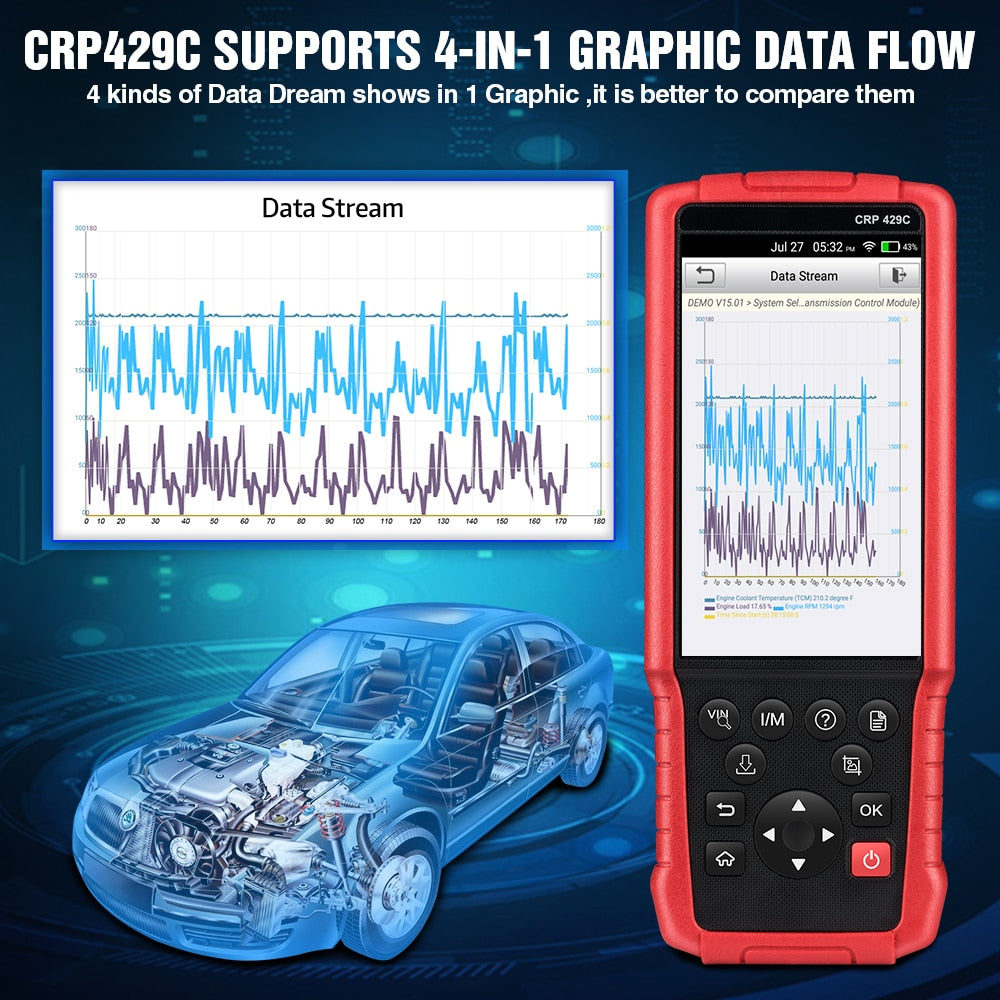

Live Data Stream Analyse in Graph
The launch scanner CRP429c shows you live sensor data and provides data graphing for intuitive diagnostics and monitoring of your vehicle performance, helping customers to better analyze the abnormal parameter.

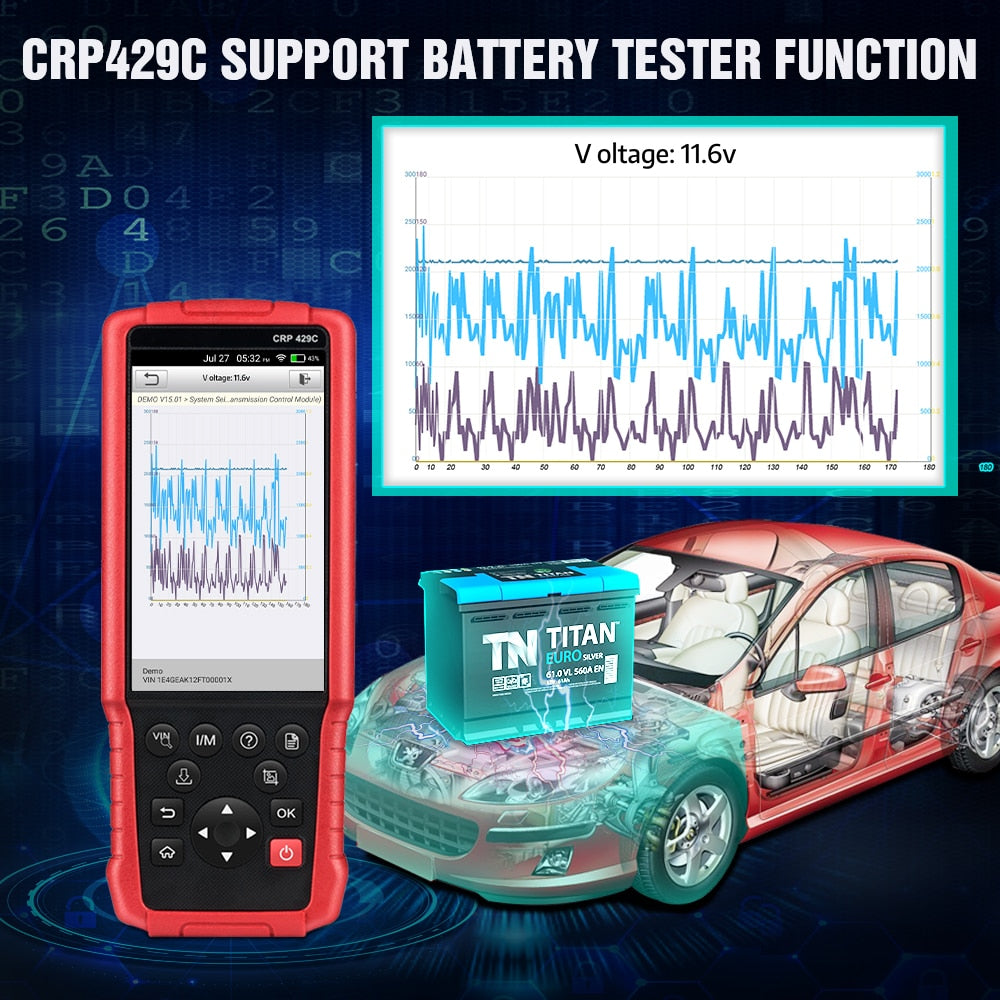

Battery Test
Displays battery real-time voltage once properly connected to the vehicle

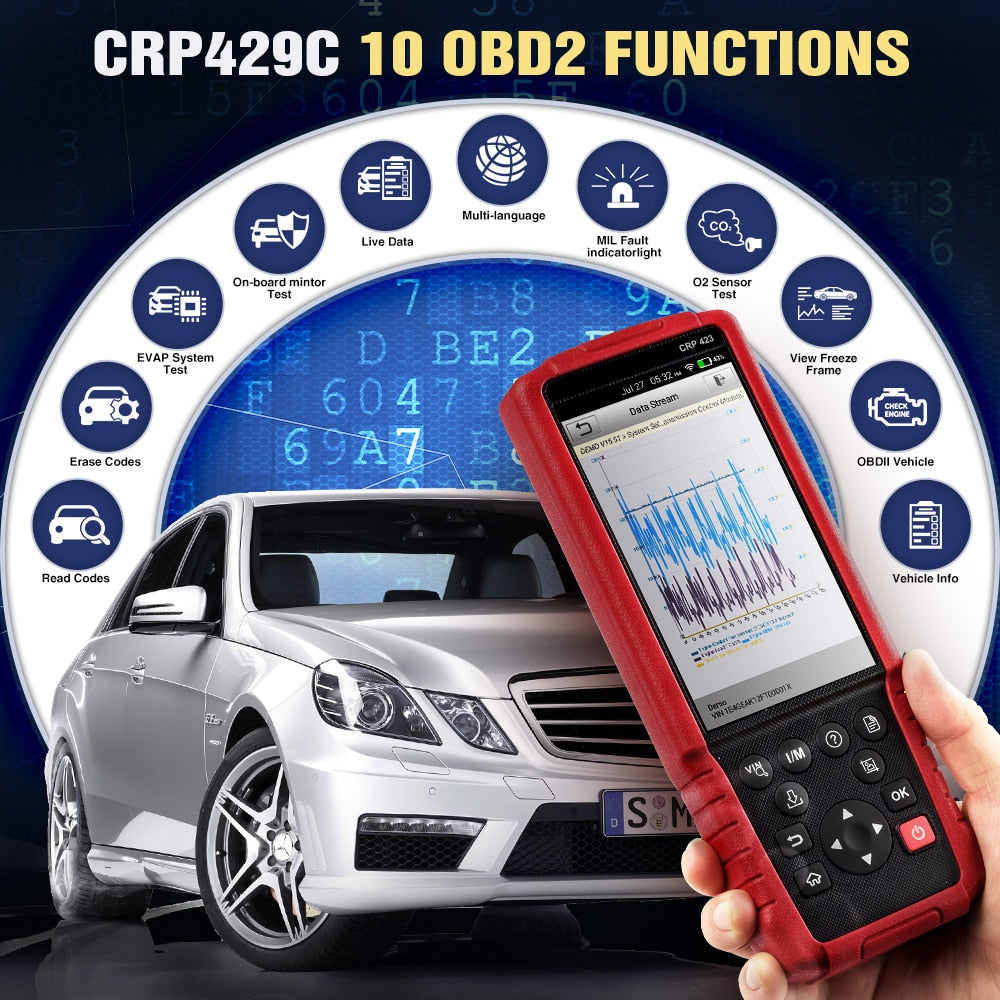

Full 10 Mode OBDII/EOBD/JOBD Car Diagnostics Functions
This scanner supports all 10 test modes for OBD-II cars which are great for daily repair work. The table below describes the purpose of each mode of operation:
1. Reading Codes
Show the detailed description of the Diagnostic Trouble Code (DTCs)
2. Erasing Codes & Reset
Turns off Check Engine Light (MIL), clears codes, and resets monitors.
3. Data Stream
Reads and displays live ECU/PCM data stream, plots functions graphically, and stores freeze frame data.
4. I/M Readiness Status
Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
5. Read Live Data Stream
Show the information of continuous data stream from a vehicle in a live graphic (waveform) display.
6. View Freeze Frame Data
Check the certain vehicle conditions which are recorded by the onboard computer at the time the emission-related fault occurs.
7. O2 Sensor Test
Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s onboard computer.
8. On-Board Monitor Test
Retrieves and displays test results for emission-related powertrain components and systems.
9. Read Vehicle Information
Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
10. Component Test
Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

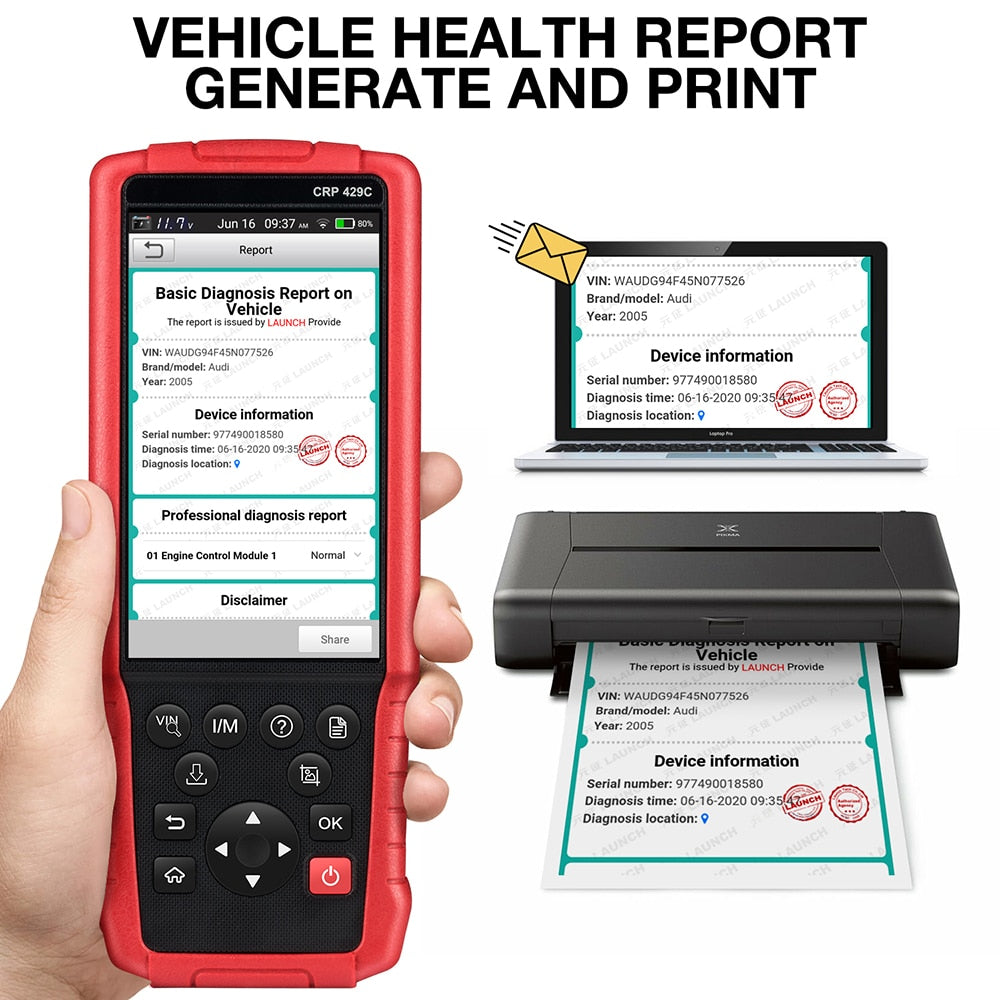

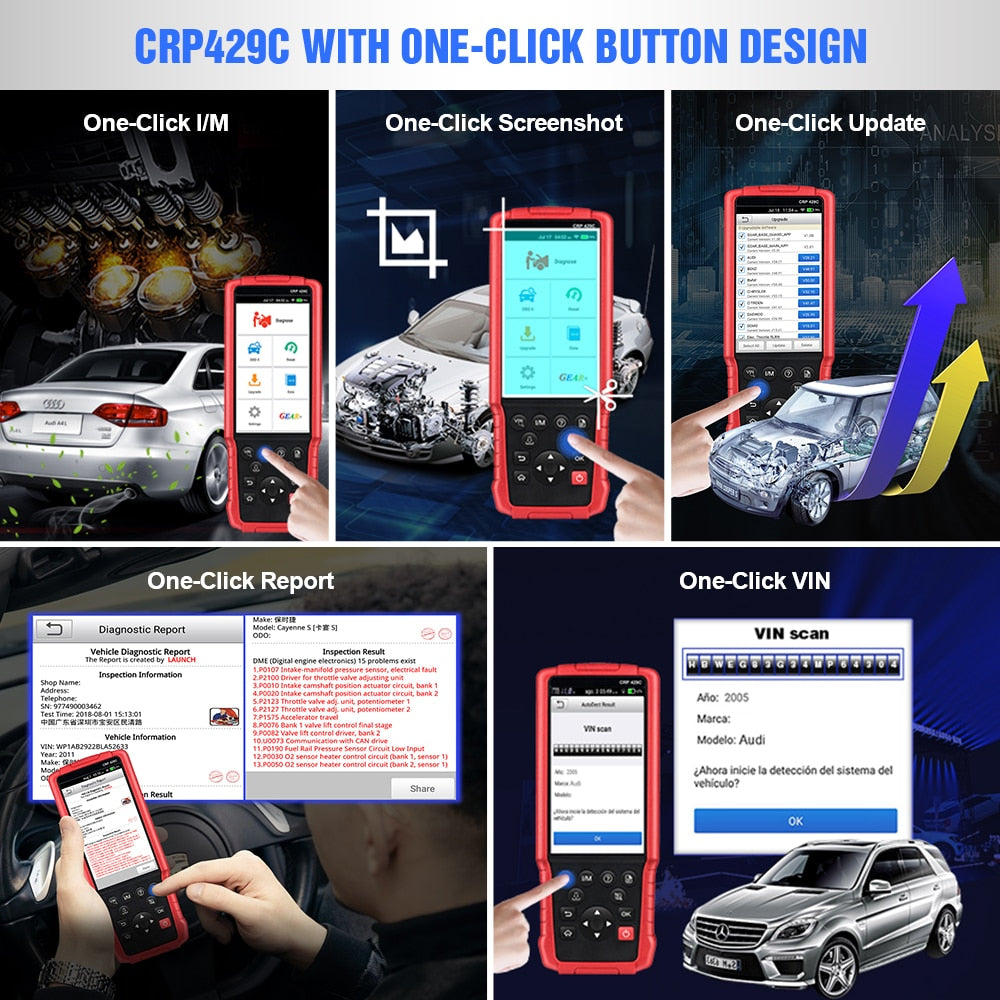

Diagnostic Report Share and Print
Launch CRP429C obd2 scanner support auto-generate and store vehicle diagnostic reports which can let your mechanic know how to do vehicle inspection and maintenance. And the diagnostic report can be shared to email and then print.
The diagnostic report can help you save time to analyze the problem, it is very great for a repair shop, and mechanics can print out the vehicle report for customers.

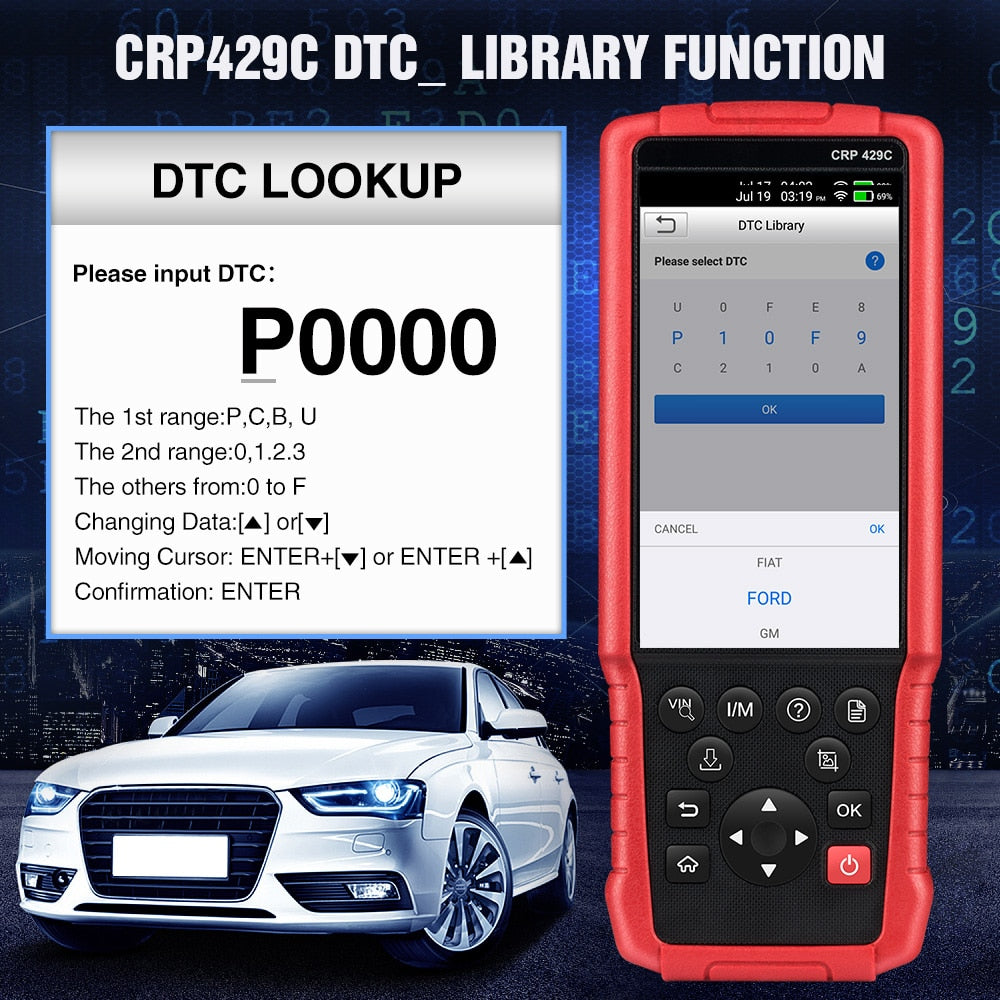

DTC Library
Allows you to retrieve the definition of the diagnostic trouble code from the abundant DTC database.

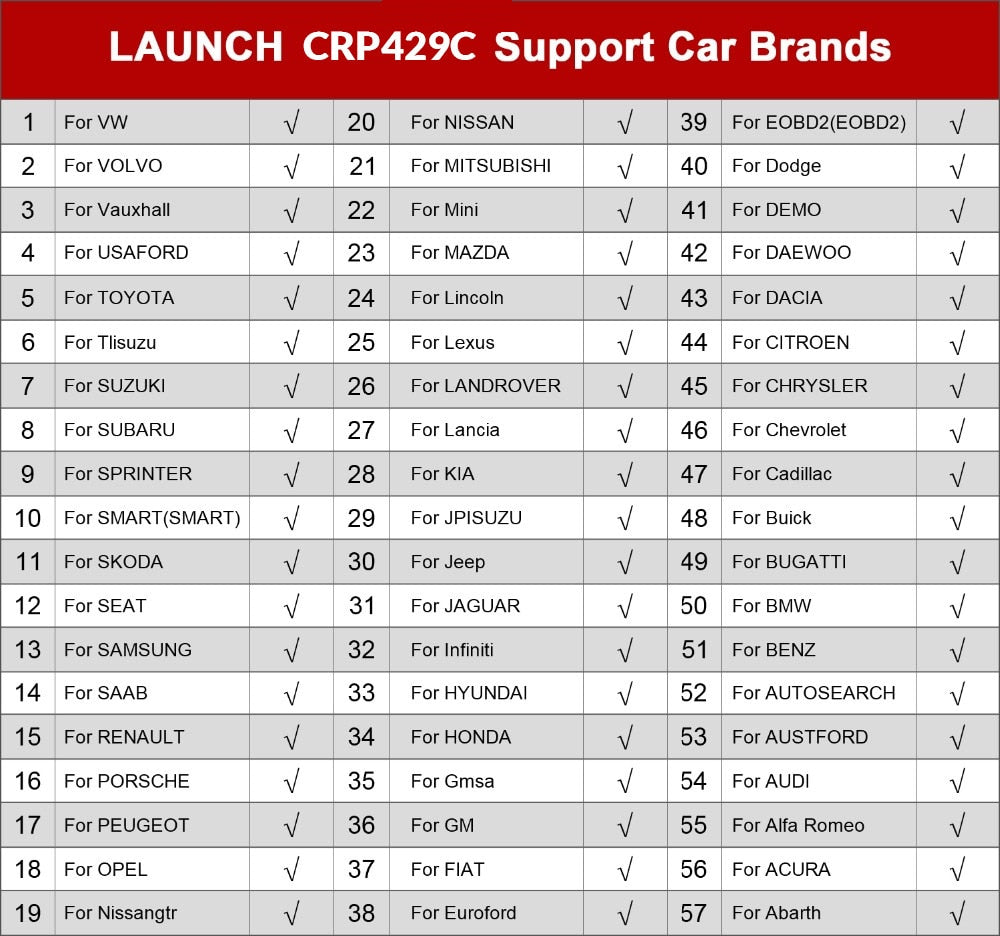

57+ Car Brands,10000+ Vehicles Supported
for AUDI, for AUTOSEARCH, for BENZ, for BMW, for Mini, for CHRYSLER, for Dodge, for Jeep, for CITROEN, for DAEWOO, for DEMO, for EOBD2(EOBD2), for FIAT, for Abarth, for Alfa Romeo, for Lancia, for GM, for Buick, for Cadillac, for Chevrolet, for HONDA, for ACURA, for HYUNDAI, for JAGUAR, for JPISUZU, for Tlisuzu, for KIA, for LANDROVER, for MAZDA, for MITSUBISHI, for NISSAN, for Infiniti, for Nissangtr, for OPEL, for Gmsa, for Vauxhall, for PEUGEOT, for, PORSCHE, for RENAULT, for DACIA, for SAMSUNG, for SAAB, for SEAT, for SKODA, for SMART, for SPRINTER, for SUBARU, for SUZUKI, for TOYOTA, for Lexus, for USA FORD, for Euroford, for Lincoln, for AUSTFORD, for VOLVO, for VW, for BUGATTI

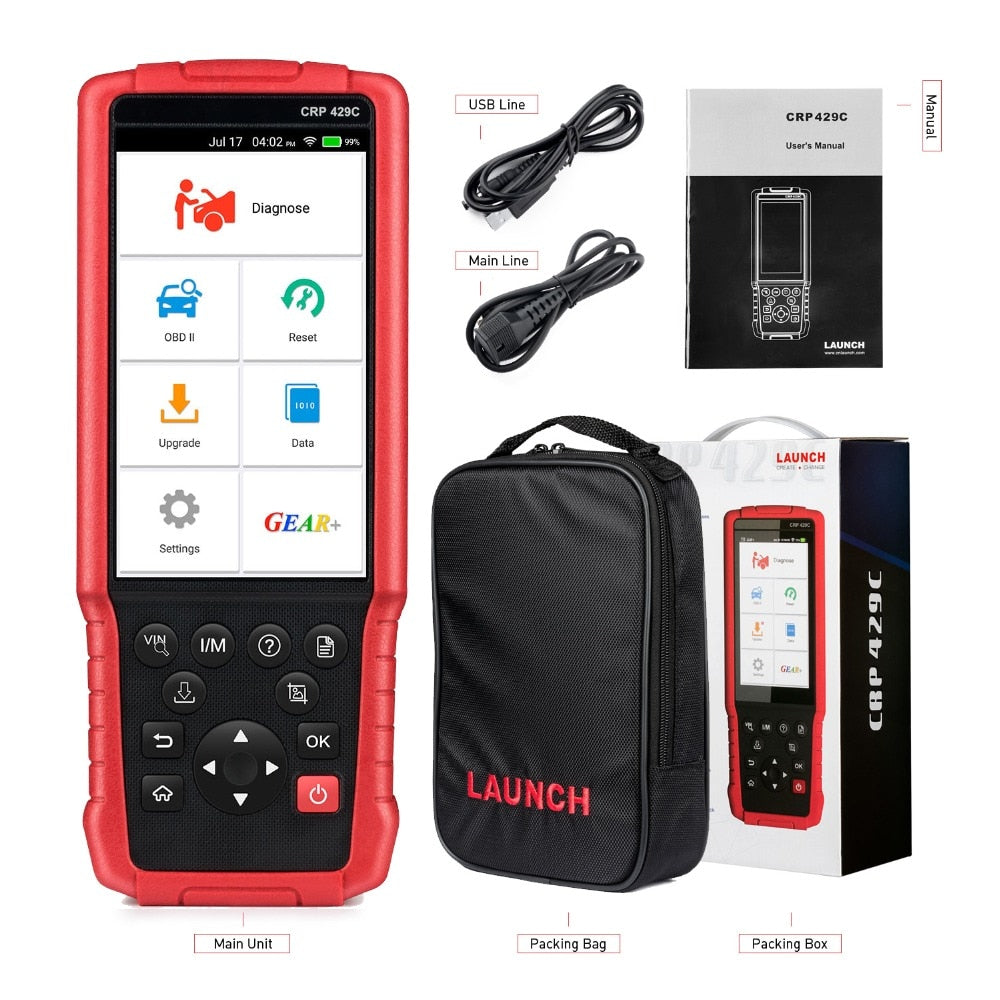

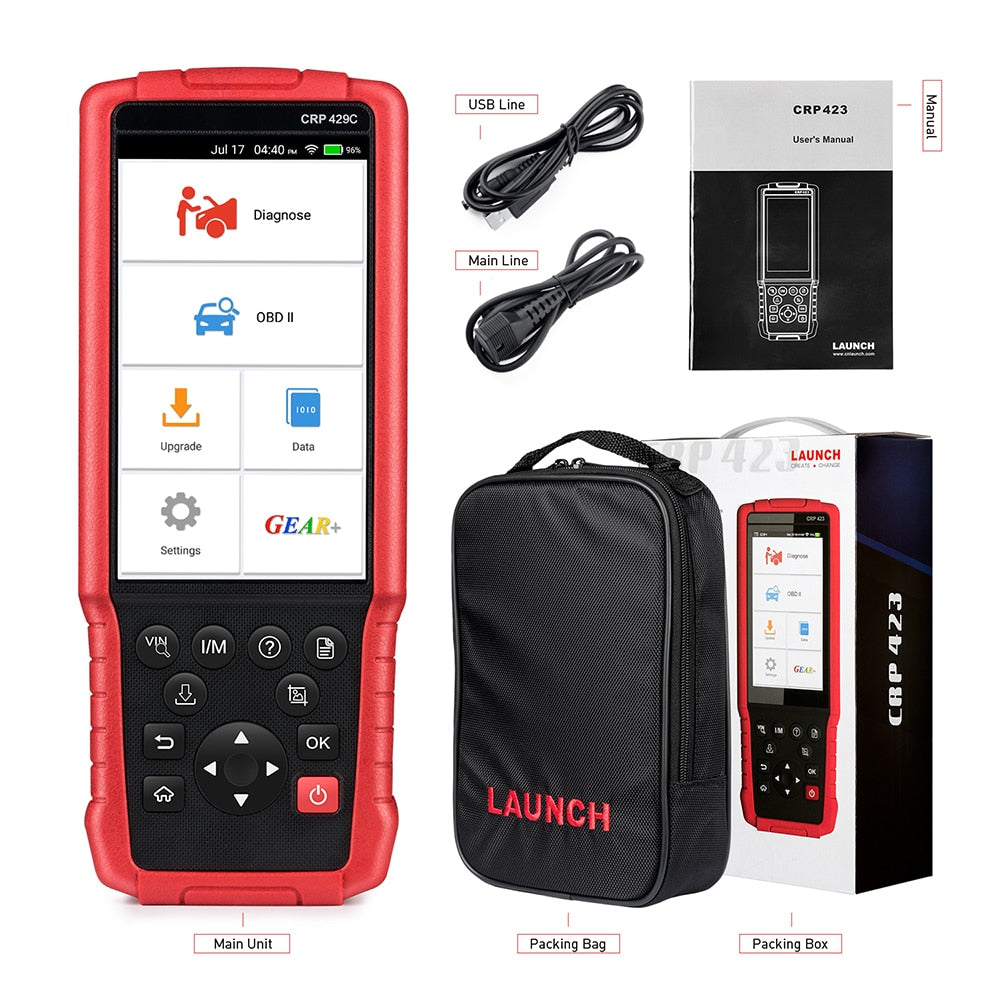

Packing List
