SPECIFICATIONS



Test hose: Length=1.5 m QTY: 3PC

Pressure gauge 3: Diameter 63 mm-60 MPa(60 MPA/600 Kg/c㎡) QTY: 1PC

Pressure gauge 2: Diameter 63 mm-40 MPa(40 MPA/400 Kg/c㎡) QTY: 1PC

Pressure gauge 1: Diameter 63 mm-25 MPa(25 MPA/250 Kg/c㎡) QTY: 1PC

Origin: Mainland China

Max Measuring Range: 200 PSI & Above

Display Type: DIGITAL

Certification: CE

Brand Name: VEVOR

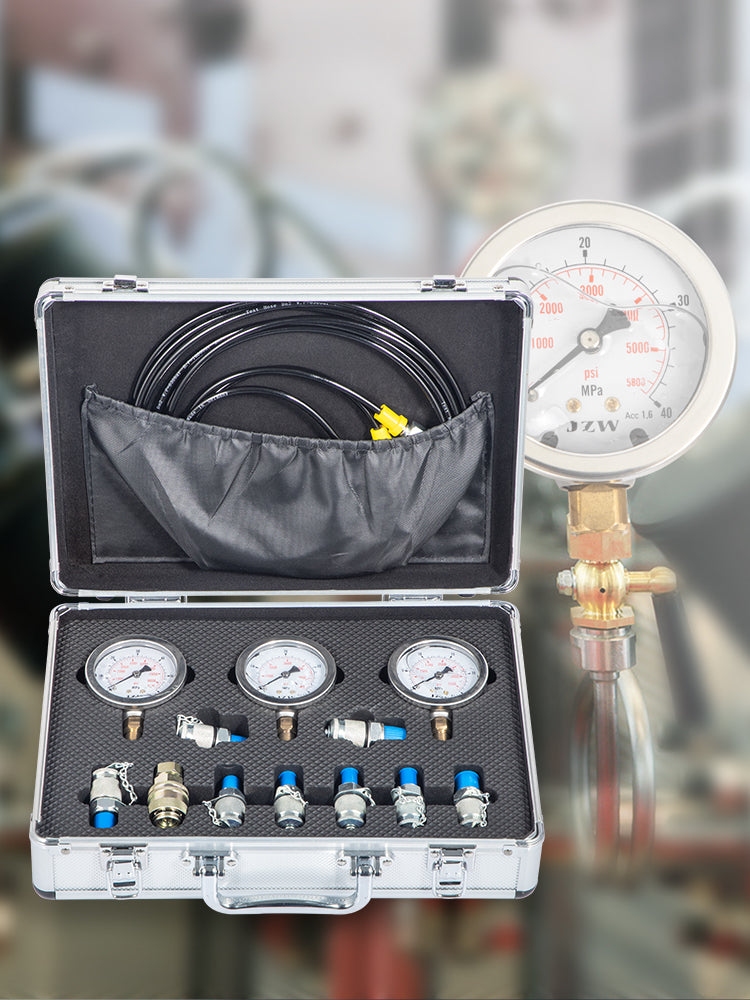

6/8/9/11 PCS Test Couplings Hydraulic Pressure Test Kit

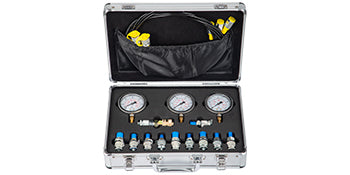

Our straight hydraulic pressure testing set includes three pressure gauges, and three connect tubes, eight couplings. It provides you with reliable pressure-measuring results. It features a compact structure, high pressure, and impact resistance.

• Accurate Pressure Gauge

• Interchangeable Test Couplings

• Durable Materials

• Portable Case & 5.25' Test Hose



Tough Equipment & Tools, Pay Less

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million plus members worldwide.

Why Choose VEVOR?

• Premium Tough Quality

• Incredibly Low Prices

• Fast & Secure Delivery

• 30-Day Free Returns

• 24/7 Attentive Service

Key Features

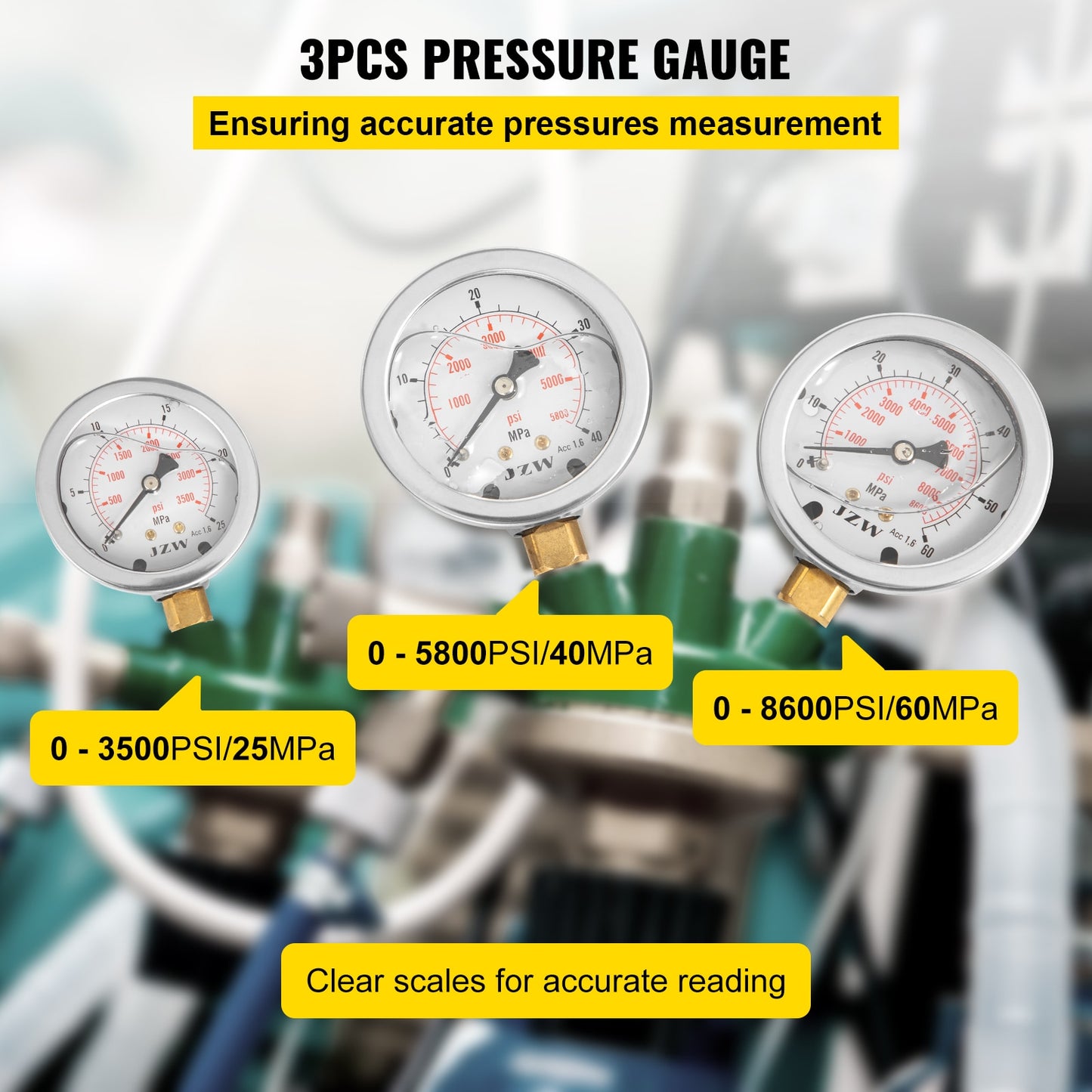

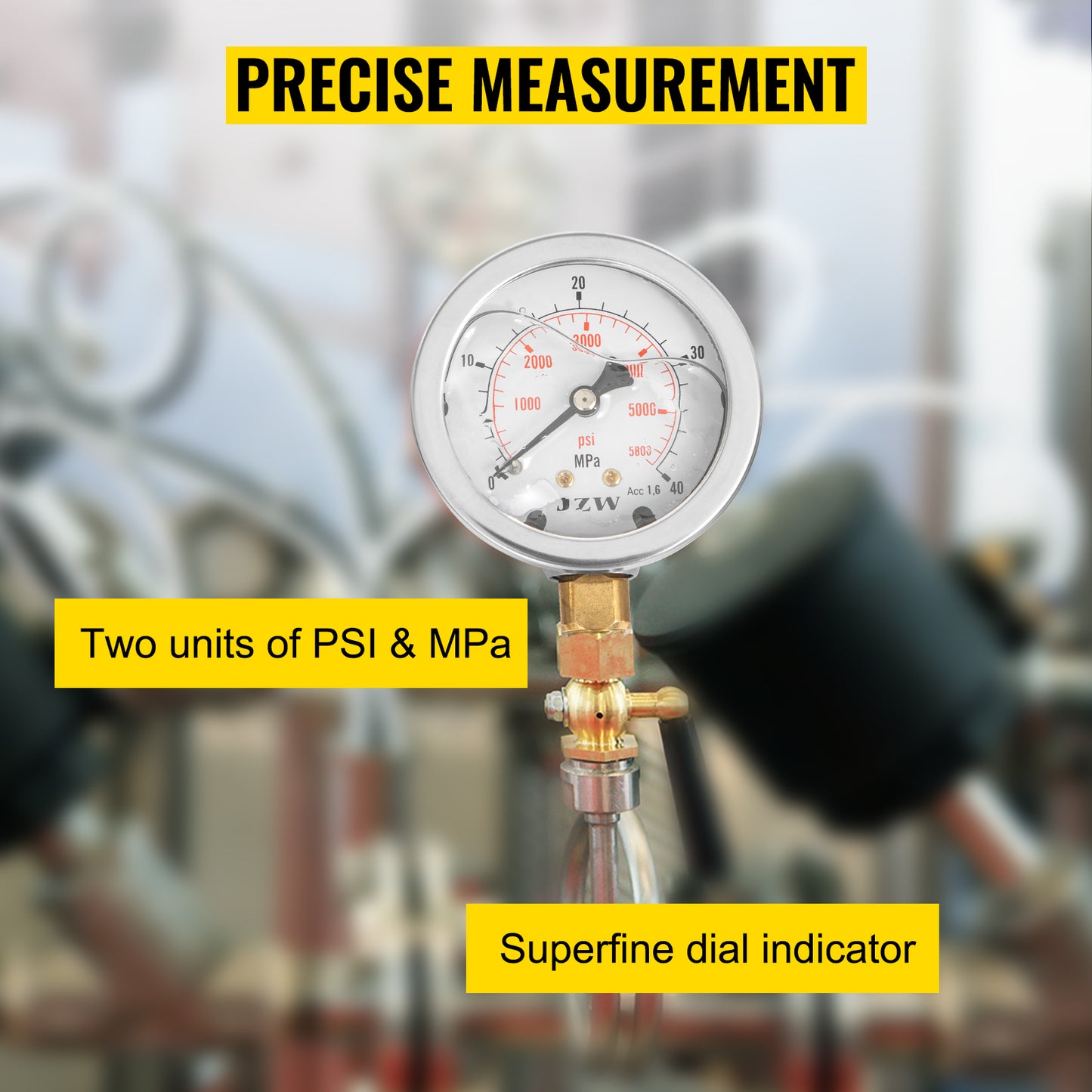

Accurate Pressure Gauge

3 pressure gauge ranges: 0-25Mpa, 0-40Mpa, 0-60Mpa. Clear and accurate scale.

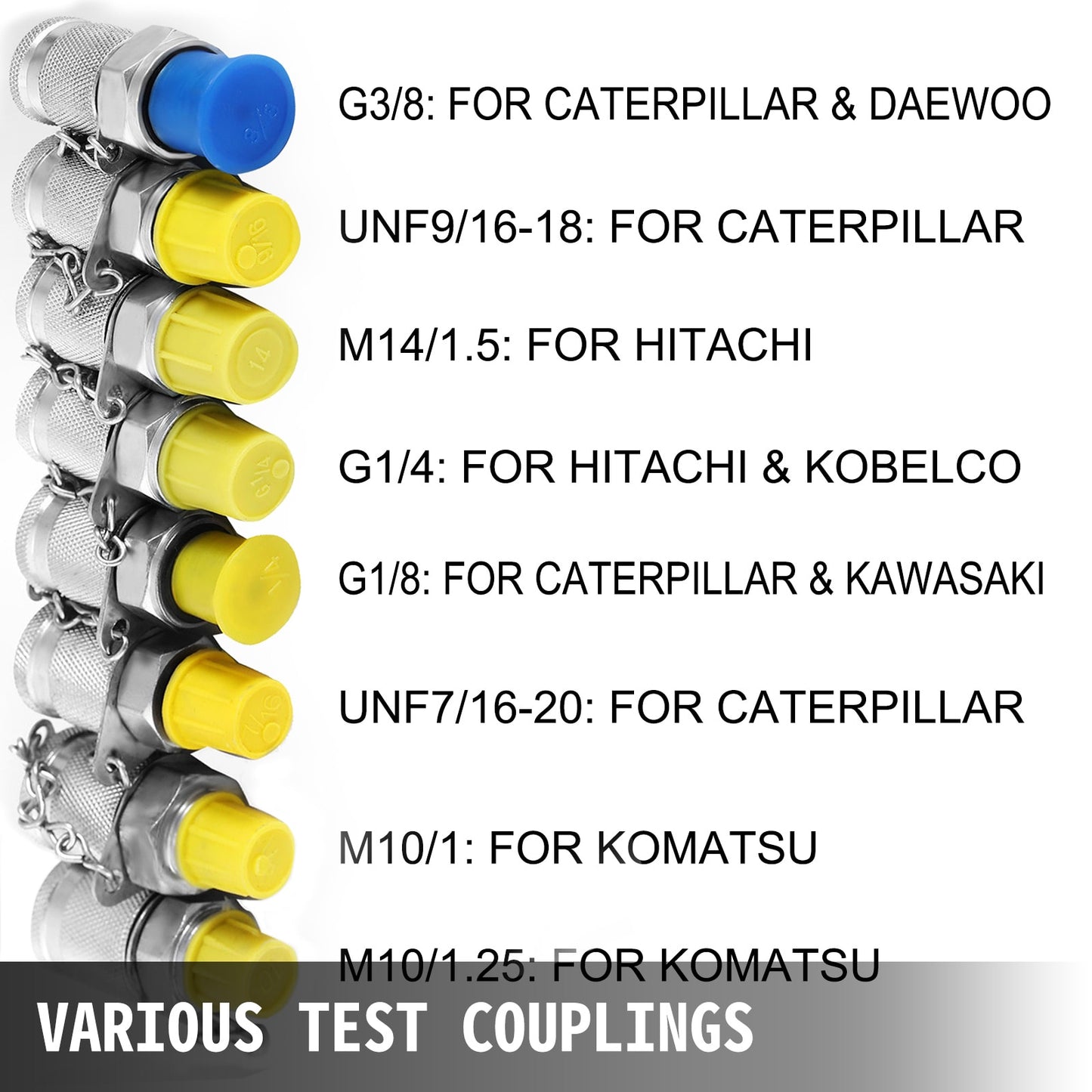

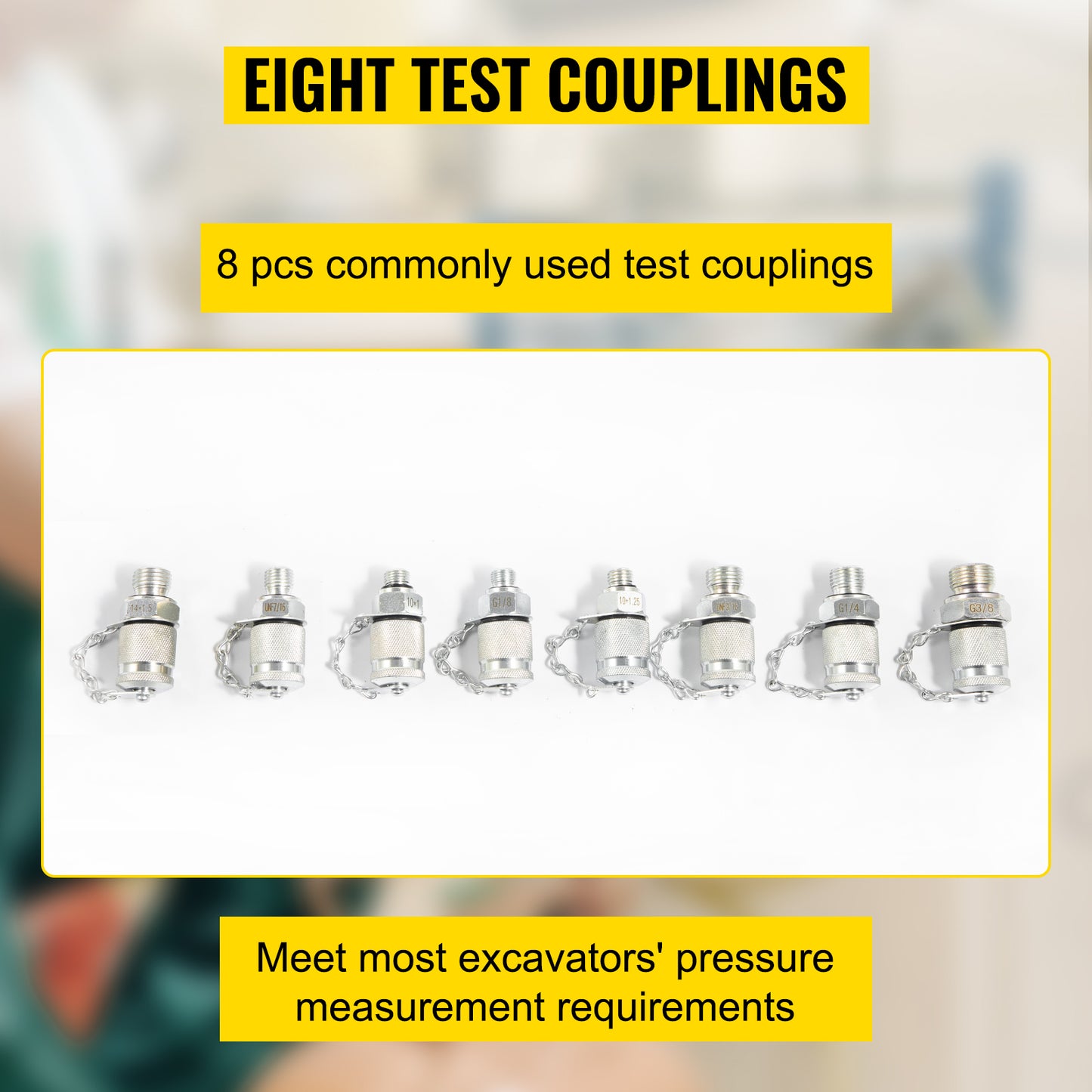

Various Test Couplings

This hydraulic test gauge kit comes with 6/8/9/11 PCS test couplings. High quality with resistance to oil, acid, alkali, corrosion, and high pressure.

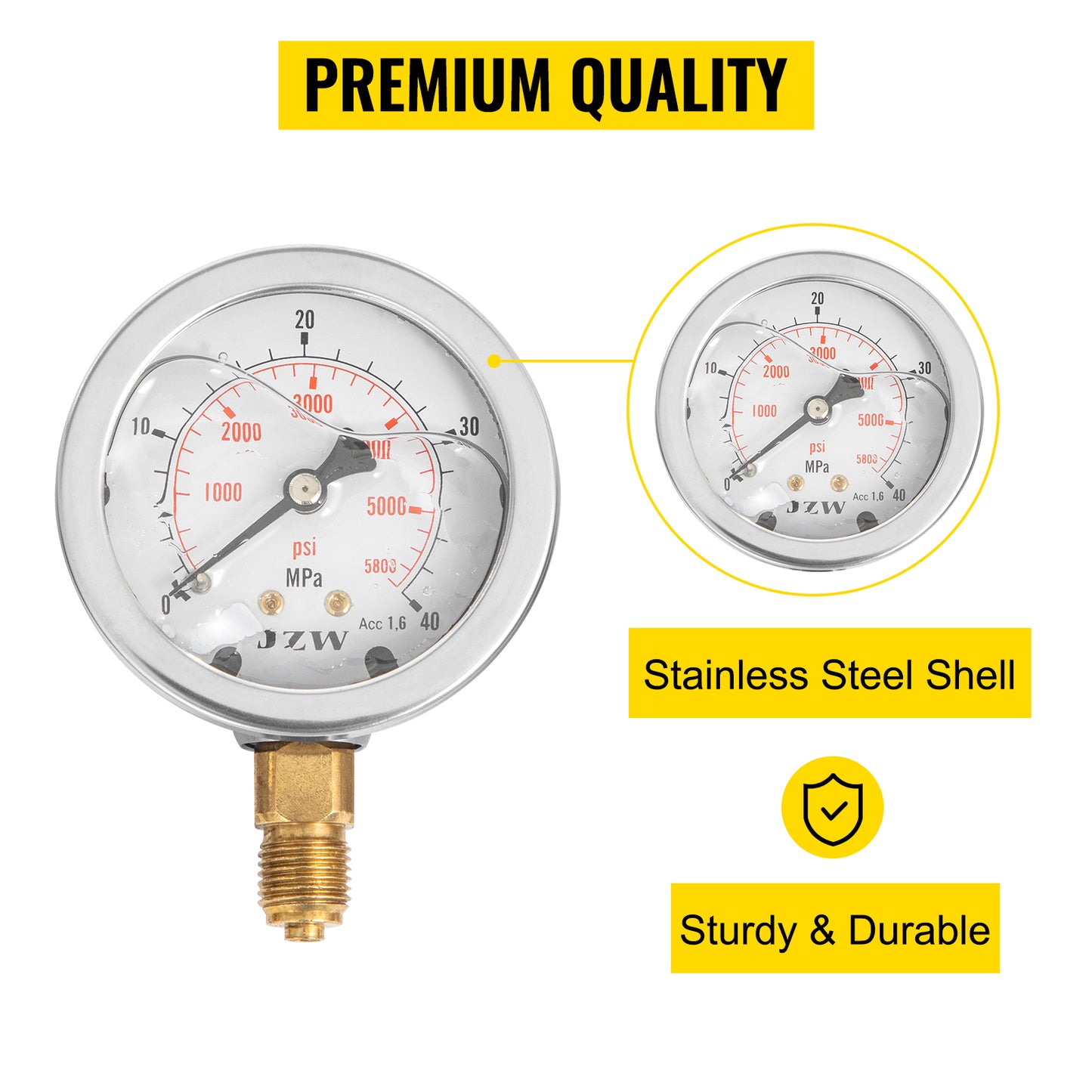

Premium Quality

The hydraulic gauges are constructed with 304 stainless steel and red copper. The couplings are made of carbon steel, making the device sturdy and durable to have a long service life.

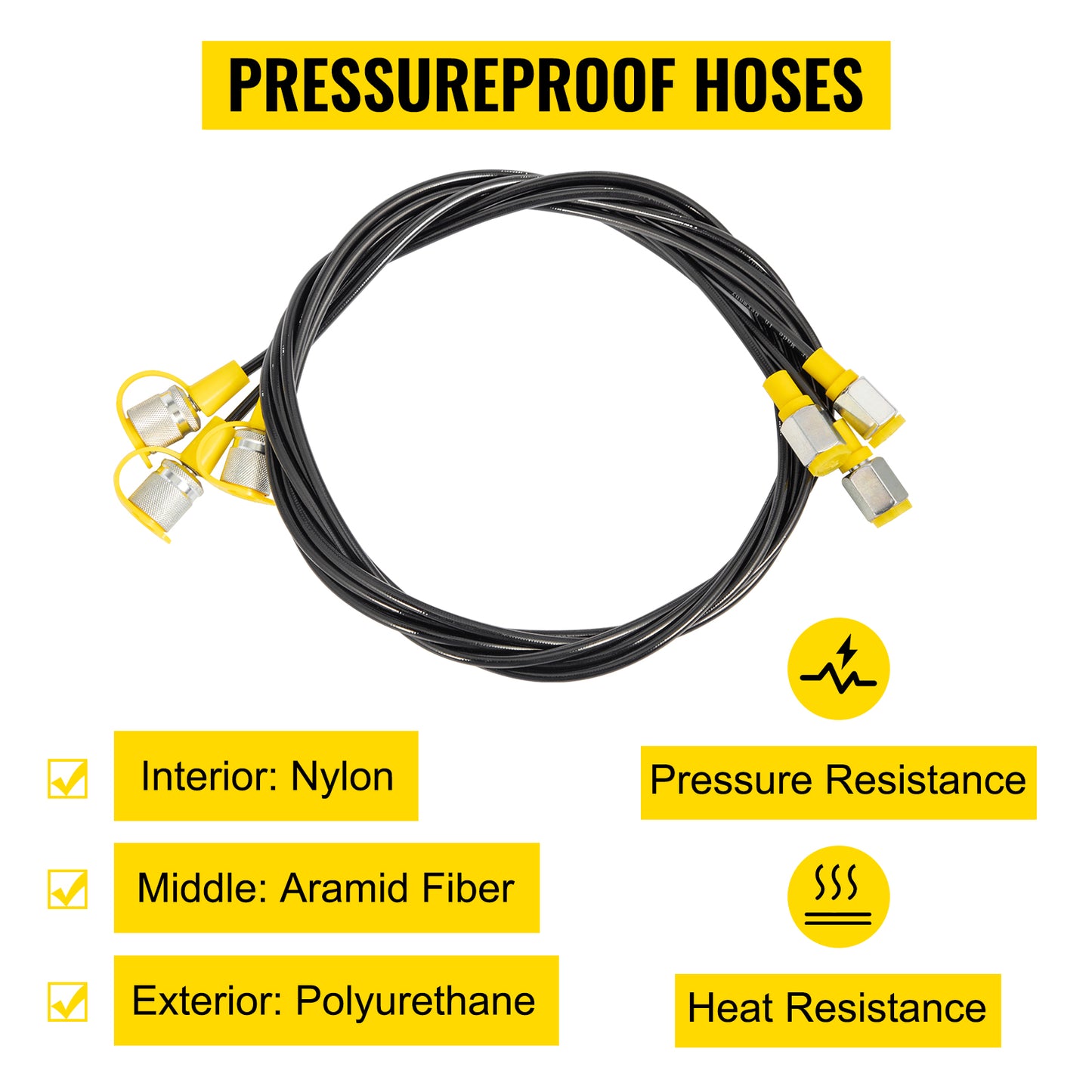

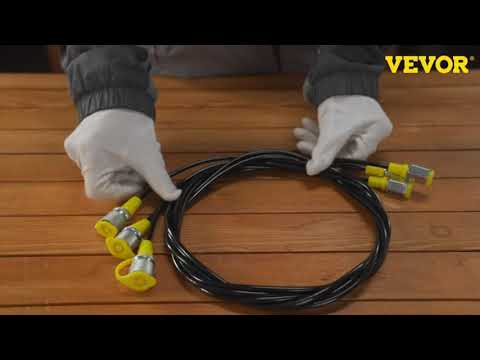

Pressure Proof Hoses

The test hoses have the characteristics of resistance to heat and pressure with premium material and particular structure. In addition, 5.25FT/1.6M long hoses allow you to work from a long distance.

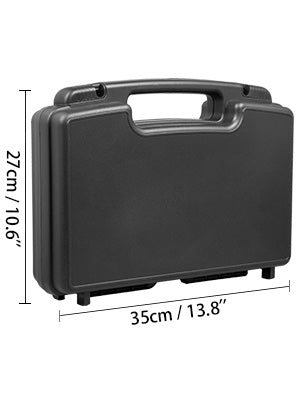

Sturdy Storage Case

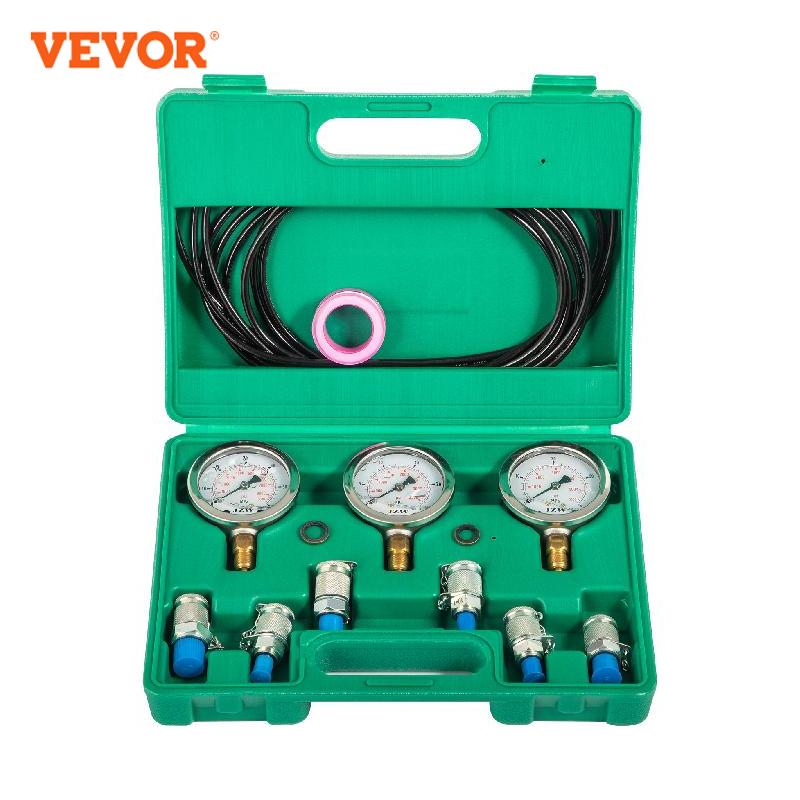

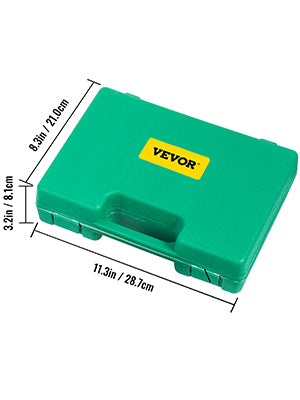

The hydraulic kit comes with a robust plastic case. Its card slot design and compact size ensure neat storage and portable use.

Versatile Usage

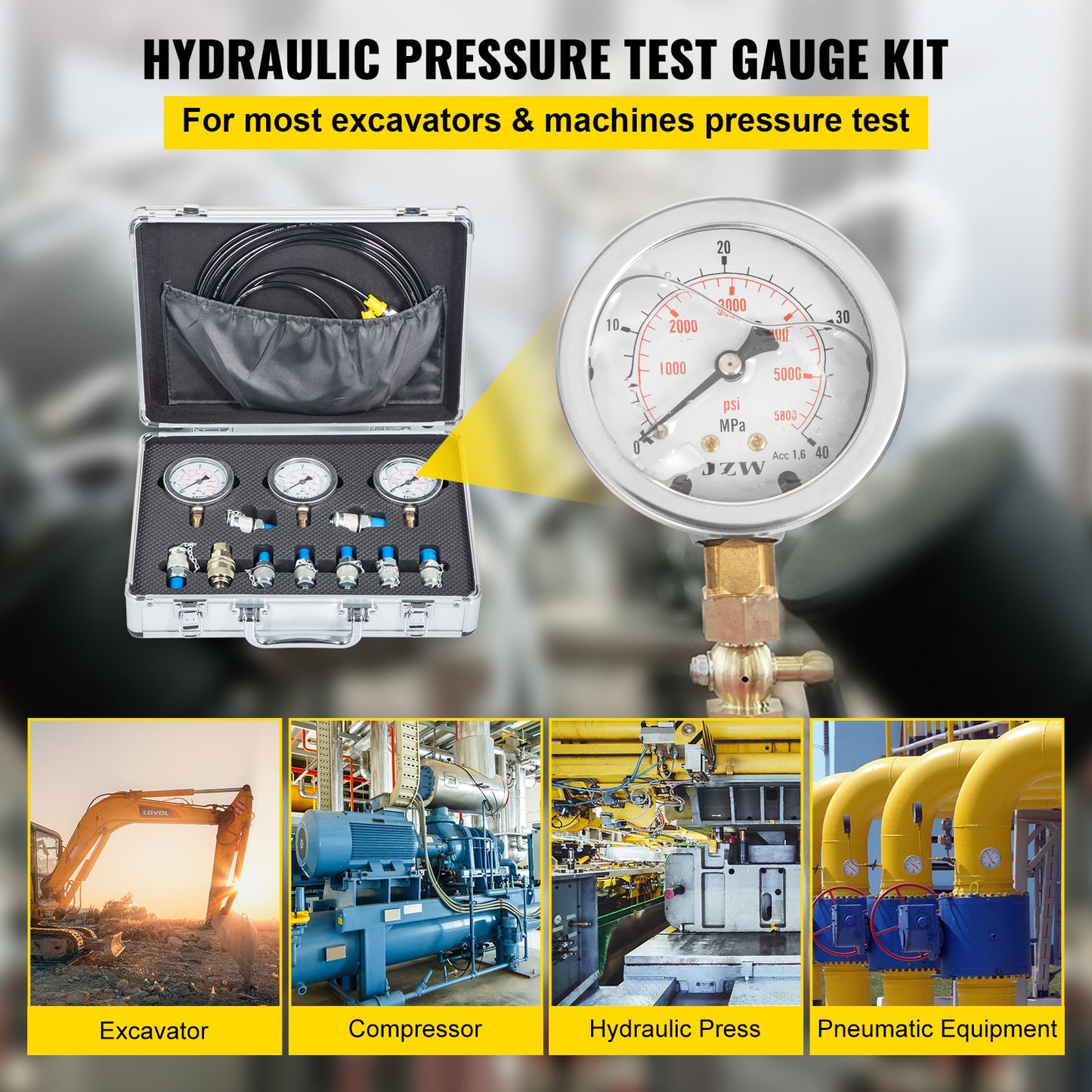

The hydraulic gauge test kit is suitable for most excavators and machines on the market. It is widely used in construction, machinery, shipping, mining, petroleum, chemical industry, etc.

Specifications

• Pressure Gauge 1: φ60 mm-3500PSI/25MPa

• Pressure Gauge 2: φ60 mm-5800PSI/40MPa

• Pressure Gauge 3: φ60 mm-8600PSI/60MPa

• Test hose: Length=1.6 M / 63" QTY: 3PC

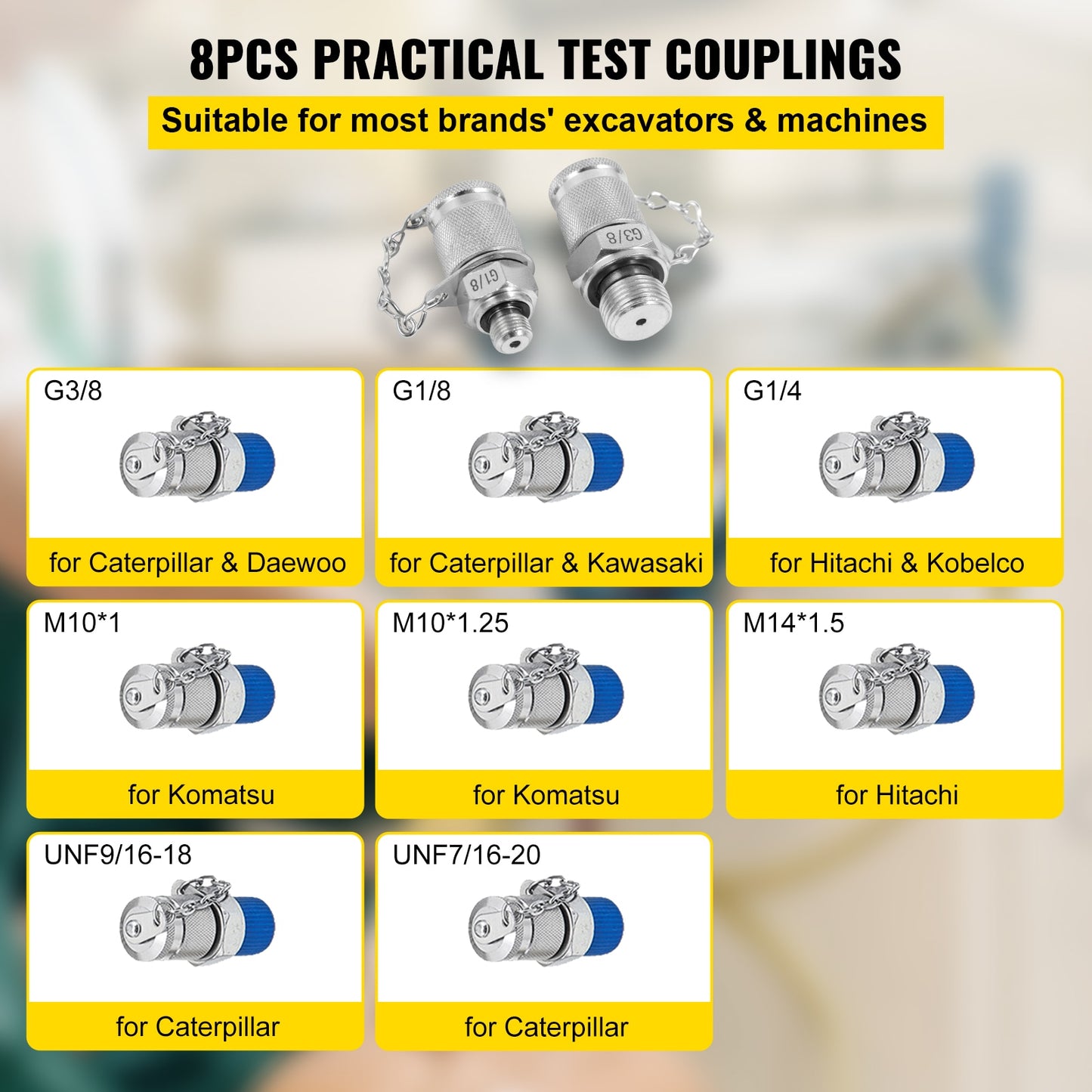

• Test coupling: G1/8 QTY: 1PC

• Test coupling: G1/4 QTY: 1PC

• Test coupling: G3/8 QTY: 1PC

• Test coupling: M10/1 QTY: 1PC

• Test coupling: M10/1.25 QTY: 1PC

• Test coupling: M14/1.5 QTY: 1PC

• Test coupling: UNF7/16-20 QTY: 1PC

• Test coupling: UNF9/16-18 QTY: 1PC

• Quick connector -(for Caterpillar CAT) QTY: 1PC

Package Content

• 1 Set Excavator Hydraulic Pressure Test Kit

Specifications

• Materials: Stainless Steel, Red Copper, Carbon Steel

• Pressure Gauge 1: φ60 mm-3500PSI/25MPa

• Pressure Gauge 2: φ60 mm-5800PSI/40MPa

• Pressure Gauge 3: φ60 mm-8600PSI/60MPa

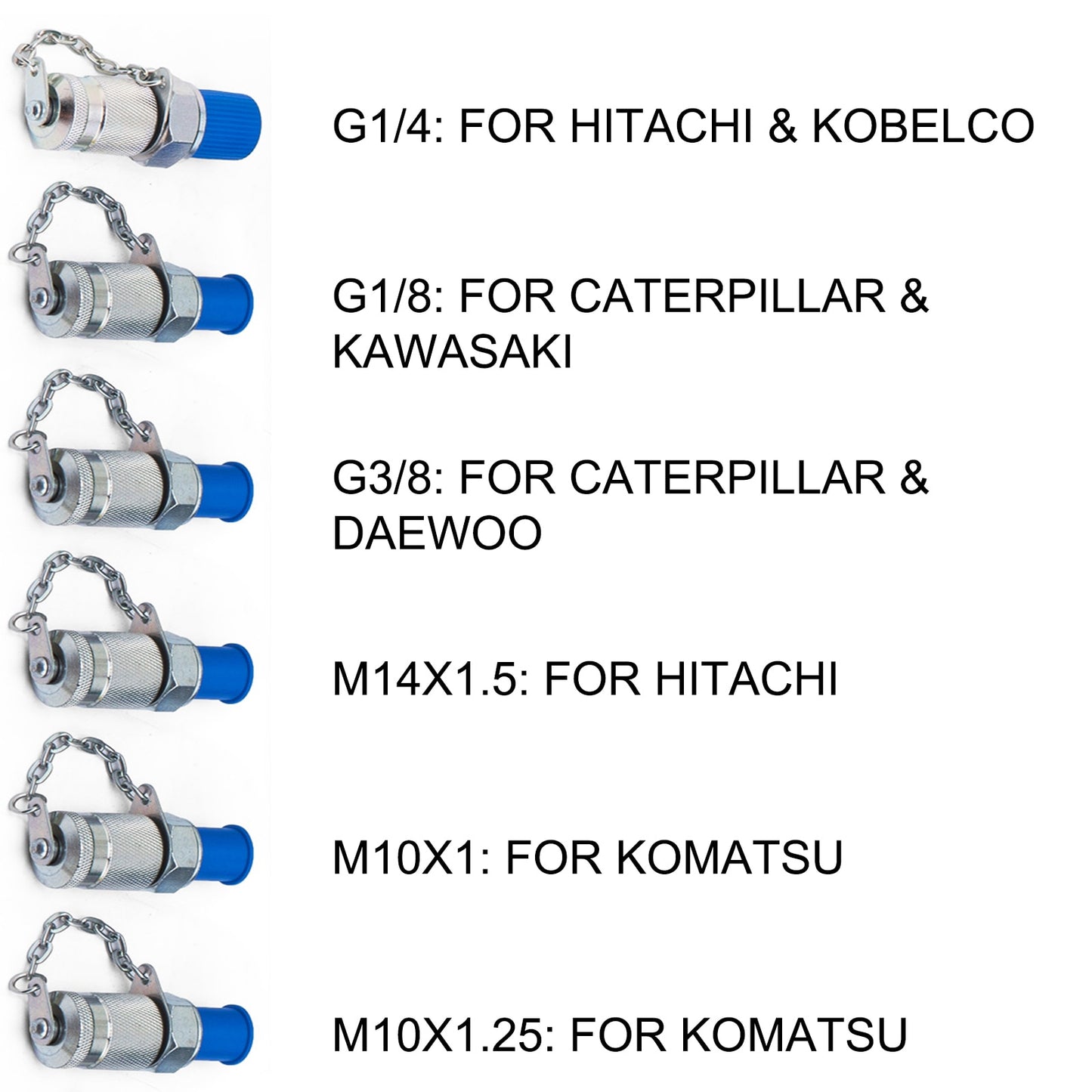

• Coupling Models: G1/4, G1/8, G3/8, M14x1.5, M10x1, M10x1.25

• Hose Length: 1.6 M / 63"

• Gauge Screw Size: J4/1

Package Content

• 3 x Pressure Gauges

• 6 x Couplings

• 3 x Connect Hoses

Specifications

• Gauge: 0-10Mpa/0-1400PSI, 0-25Mpa/0-3500PSI, 0-40Mpa/0-5800PSI, 0-60Mpa/0-8600PSI (Ø63mm)

• Gauge Shell: 304 Stainless Steel

• Hose Length: 5.25ft/1.6 m

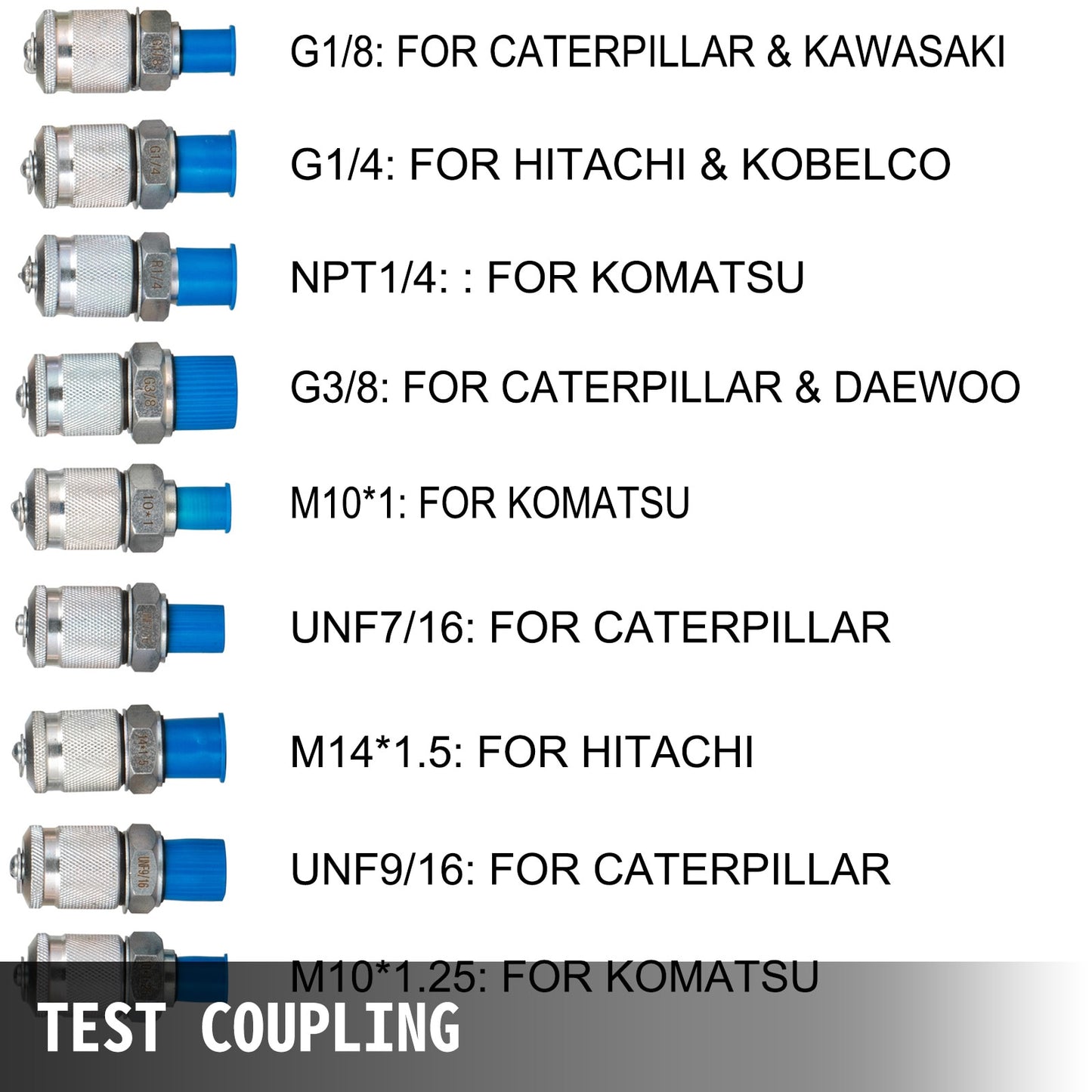

• Test Coupling: G1/8, G1/4, G3/8, M10x1, M10x1.25, M14x1.5, UNF7/16-20, UNF9/16-18, NPT1/4

Package Content

• 4 X Pressure Gauges

• 9 X Couplings

• 1 X Quick Connector

• 3 X Connect Hoses

• 1 X Plastic Carry Case

Specifications

• Material: Stainless Steel

• Pressure Gauge 1: φ60 mm-3500PSI/25MPa

• Pressure Gauge 2: φ60 mm-5800PSI/40MPa

• Pressure Gauge 3: φ60 mm-8600PSI/60MPa

• Connect Hose Length: 1.6 M / 63"

• Pressure Gauge Screw Size: G 4/1

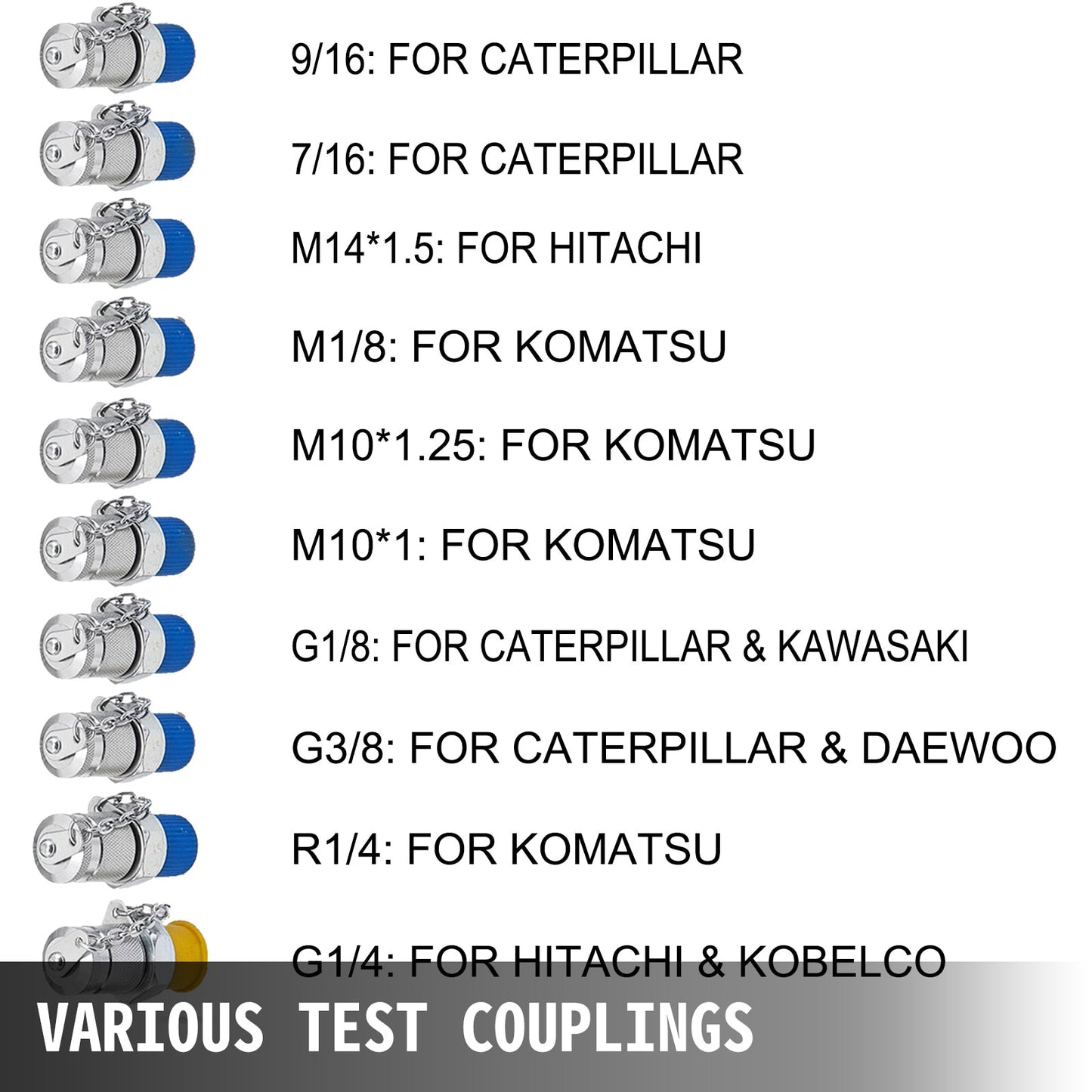

• Quick Release Connector: G1/8

• Test coupling 1: G 1/4

• Test coupling 2: R 1/4

• Test coupling 3: G 3/8

• Test coupling 4: G 1/8

• Test coupling 5: M 10*1

• Test coupling 6: M 10*1.25

• Test coupling 7: M 1/8

• Test coupling 8: M14*1.5

• Test coupling 9: 7/16

• Test coupling 10: 9/16

Package Content

• 3 x Pressure Gauge

• 10 x Couplings

• 1 x Quick Connector

• 3 x Connect Hose

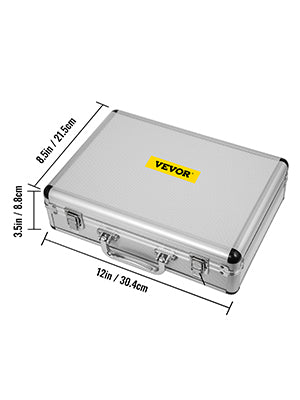

• 1 x Aluminum Carry Case

Key Features

【PRECISE PRESSURE MEASUREMENT】- Equipped with three gauges for different working pressures: 25/40/60 Mpa, ensuring accurate and reliable pressure readings. The clear and bright scale guarantees precise measurements, enhancing efficiency and convenience.

【VERSATILE FITTINGS】- This hydraulic pressure tester is compatible with a range of interchangeable test couplings, including sizes like G1/8, G1/4, G3/8, M10/1, M10/1.25, M14/1.5, UNF7/16-20, UNF9/16-18, and Quick connectors, offering flexibility in usage.

【PREMIUM MATERIALS】- The test hose is crafted using a combination of nylon (interior), aramid fiber (middle), and polyurethane (exterior), imparting heat and pressure resistance qualities to ensure durability and reliability.

【ROBUST PROTECTION】- The hydraulic test gauges are safeguarded by a sturdy case and thick high-grade sponge, effectively shielding them from external pressures. This rugged protection guarantees the longevity of the gauges. The compact size of the kit makes it easily portable.

【VERSATILE APPLICATIONS】- Designed for a wide range of excavators and machinery in the market, this hydraulic pressure gauge test kit finds utility in construction, machinery, shipping, mining, petroleum, chemical industries, and more. Its diverse applications make it an indispensable tool.
