SPECIFICATIONS



Brand Name: Reolink

Origin: Mainland China

High Definition: 5.0 Megapixels

Supported Operating Systems: Windows 7

Supported Operating Systems: Mac OS

Supported Operating Systems: Windows 8

Supported Operating Systems: Windows 10

Lens (mm): 4mm

Style: Dome Camera

Connectivity: IP/Network Wired

Installation: Normal

Minimum Illumination(Lux): 0

Scene: Indoor and Outdoor

Color Night Vision: No

Megapixels: 5mp

Storage: None

Video Compression Format: H.264

IR Distance(m): 30M

Certification: CE

Certification: FCC

Certification: RoHS

Dimensions (L x W x D)(mm): 22cm x 15cm x 13cm

Color: White

Power Mode: Mains Electricity

Alarm Action: FTP Photo

Alarm Action: Email Photo

Movement Range(Tilt): Other

is_customized: No

Model Number: 5MP Dome security protection

Supported Mobile Systems: Android

Supported Mobile Systems: IOS

Smart home platform: Google Assistant

AI Functions: Human Detection

IP Rating: IP66

Special Features: Waterproof / Weatherproof

App name: Other

TF Card: None

Digital Zoom: NONE

Power Supply(V): 12V

Audio Output: None

Power Consumption(W): 5W Surveillance camera

Sensor: CMOS

Sensor Brand: Omnivision

Operating Temperature: -10°-60°

Shell Material: Metal

Power Supply: With POE

Viewing Angle: 80°

Optical Zoom: NONE

Movement Range(Pan): Other

Rechargeable Battery: NONE

Video Resolution: 2560 x 1920 (5.0 Megapixels) security camera

Outdoor Camera Night Vision: 30 meters (100 ft)

Audio: Built-in microphone, Audio recording

Security IP Camera Storage: Micro SD card (Max. 256GB)

Browser Supported: IE, Edge, Chrome, Firefox, Safari

Smart Alarm: Motion Detection/Human Detection/Car Detection

Record Mode: Motion-triggered recording (default); 24/7 recording; scheduled recording

Protocols & Standards: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

Maximal User Access: 20 users (1 admin account & 19 user accounts)

Smart Home: Google Assistant

Outdoor Camera Waterproof: IP66 IP camera

Security Camera Operating Temperature: -10°C ~ +55°C (14°F ~ 131°F)

Dimension: 105*93mm

Weight: 467.5g

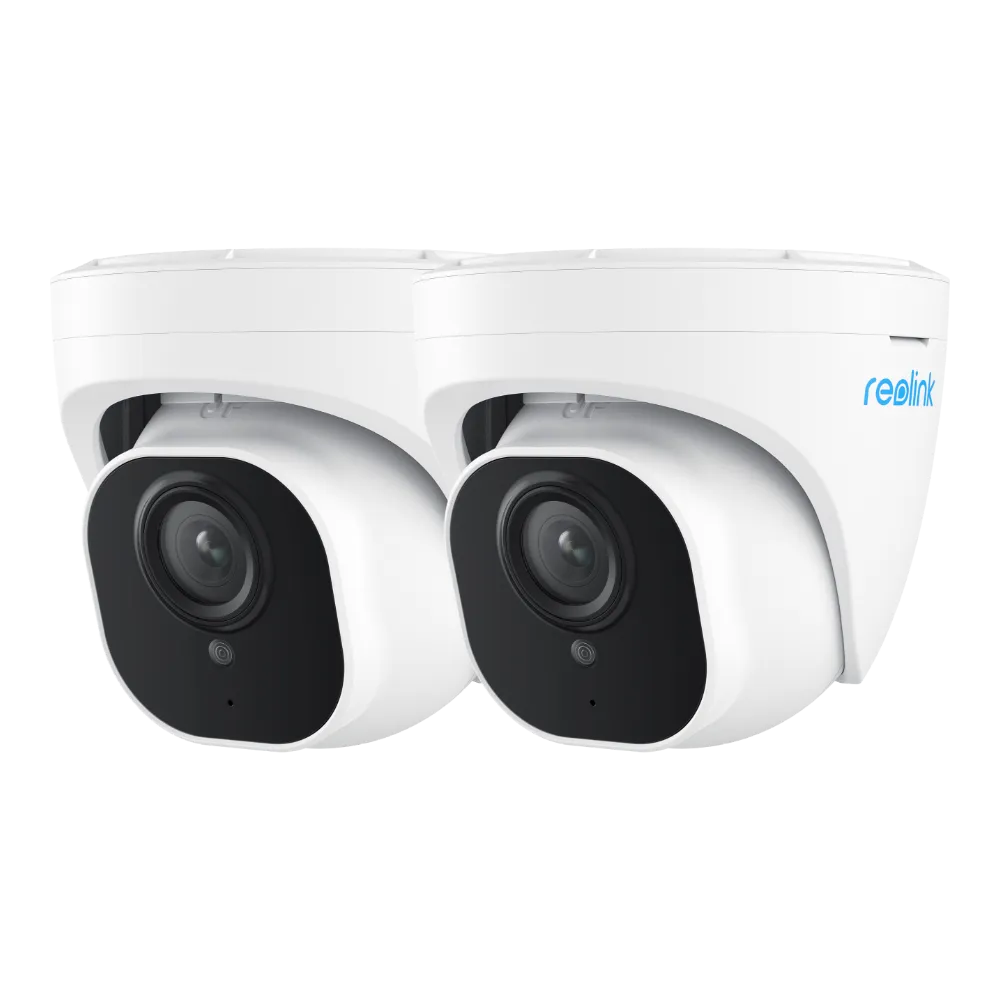

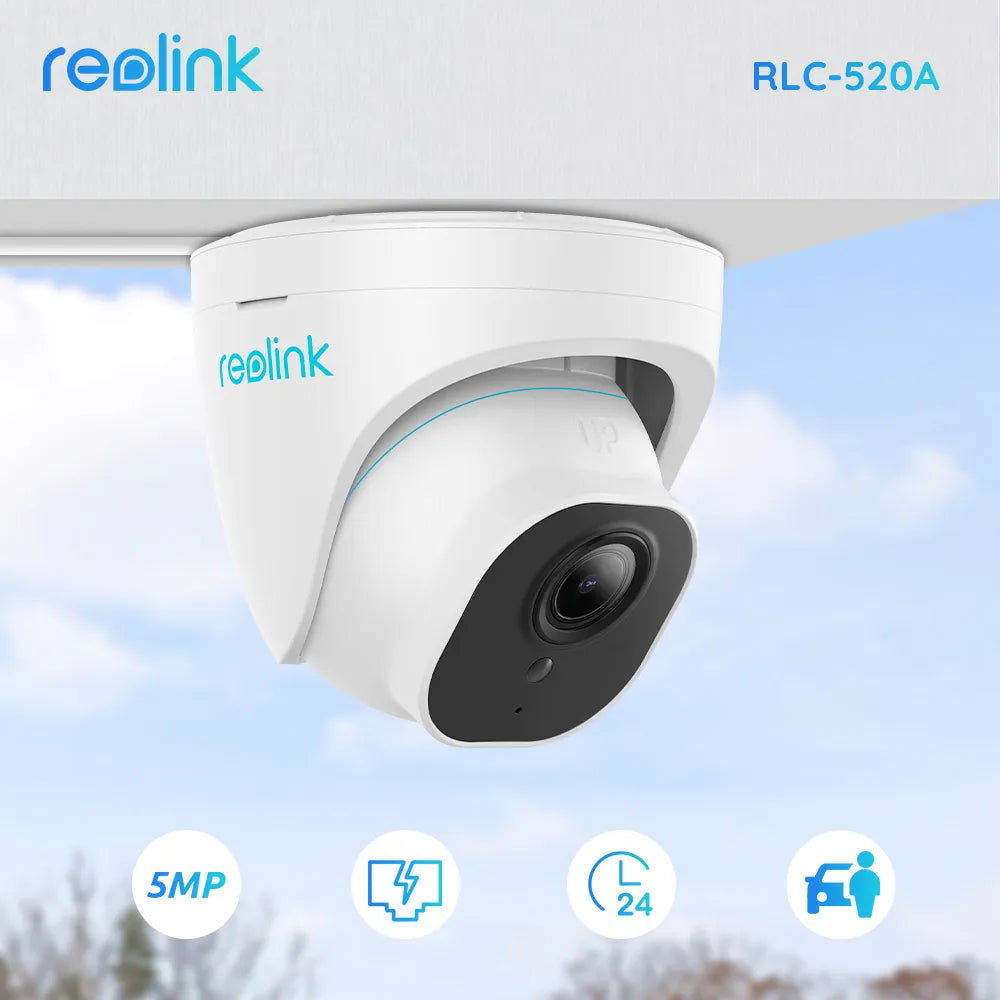

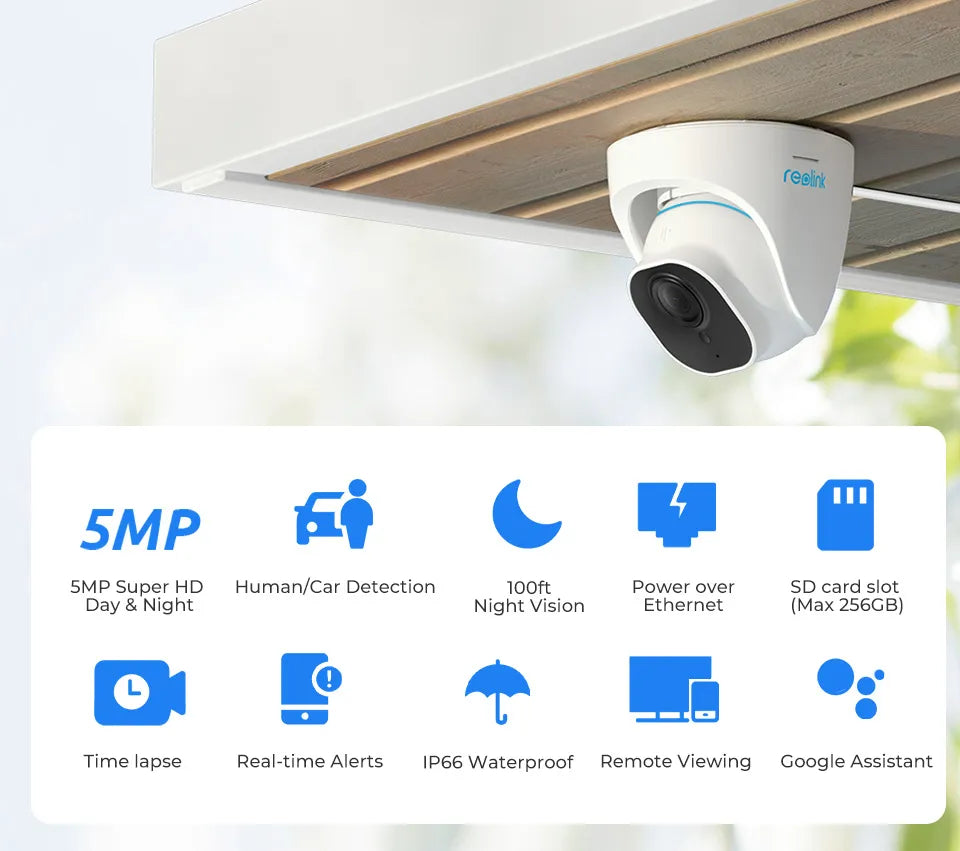

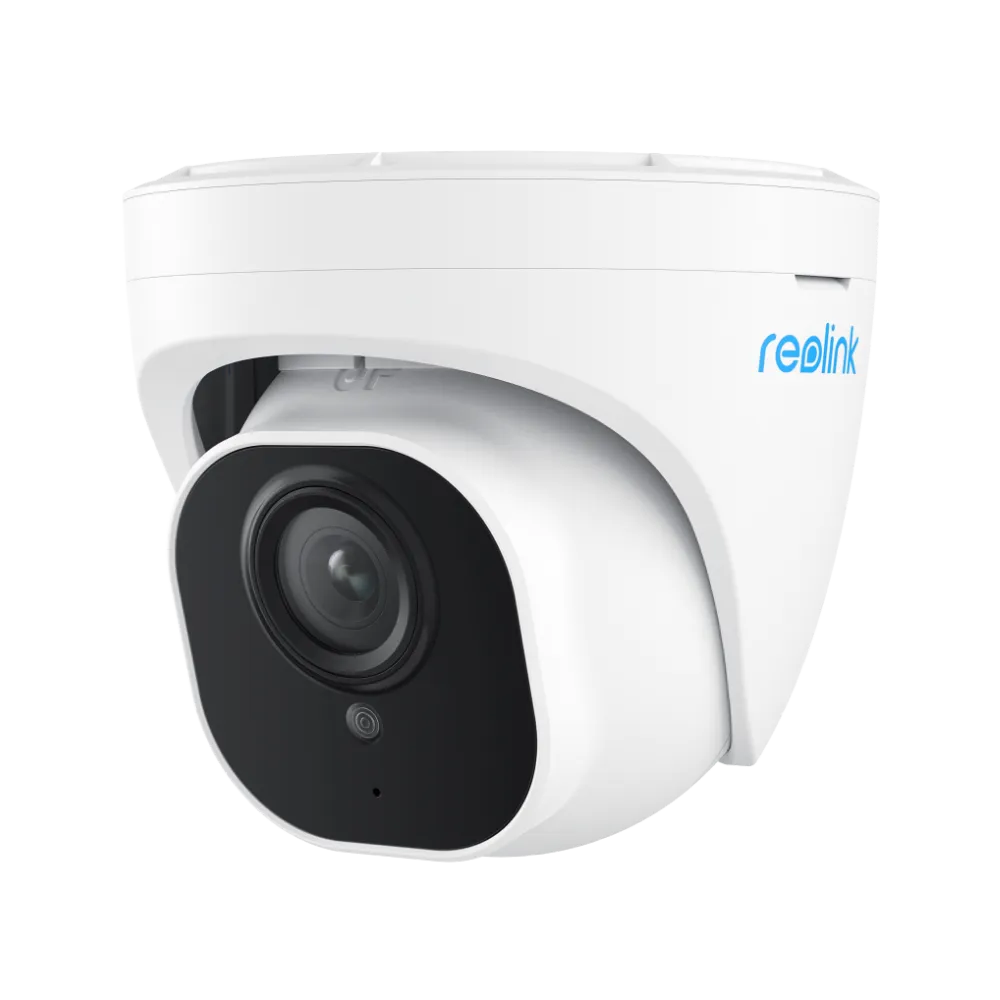

Reolink 5MP PoE Outdoor Dome Security Camera

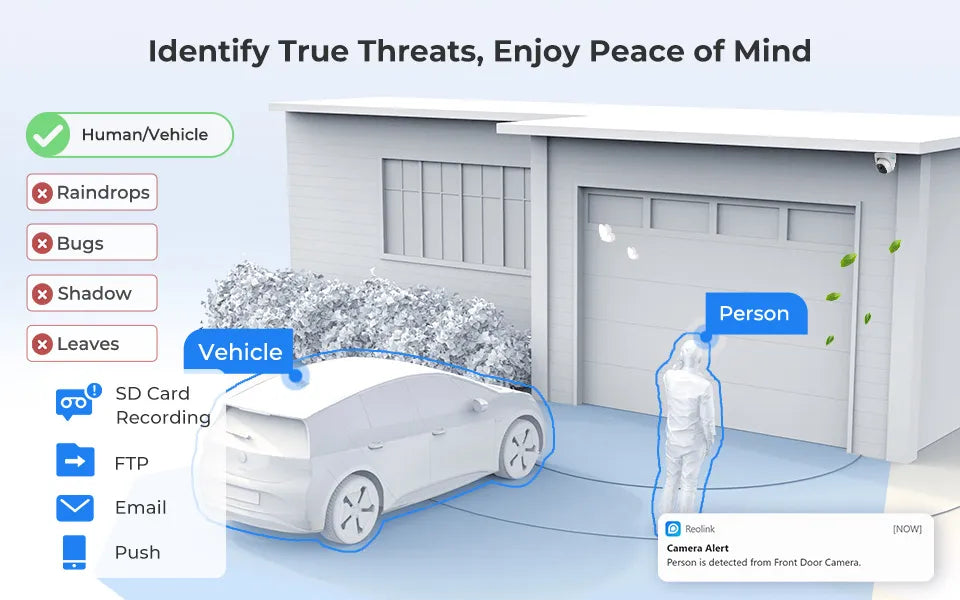

Smart Alerts, Less trifle

Powered by smart motion detection technology, this camera can tell people and vehicles from other objects. Get alerts when a suspicious person or car is loitering around your house or store. Protect your property from potential threats.

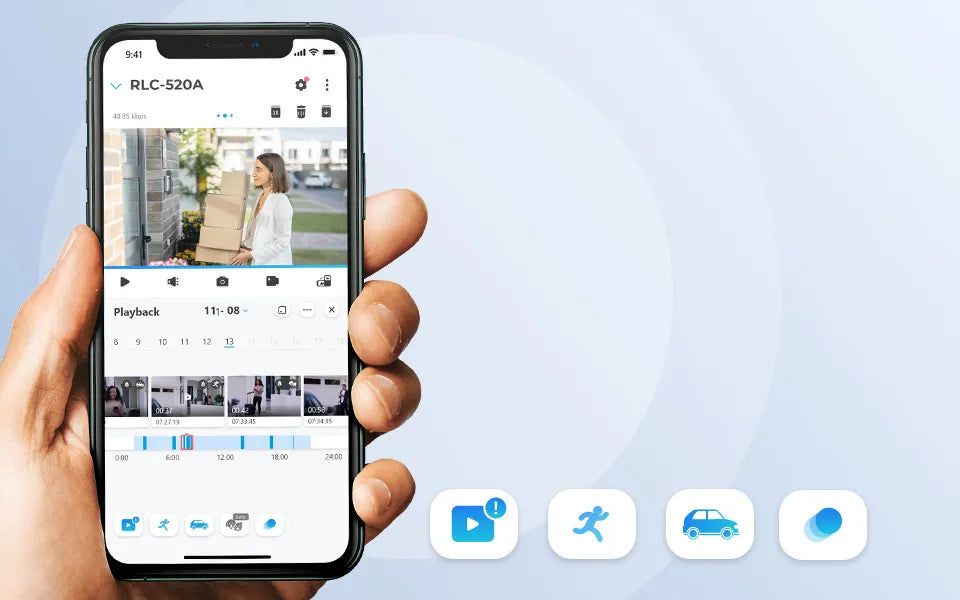

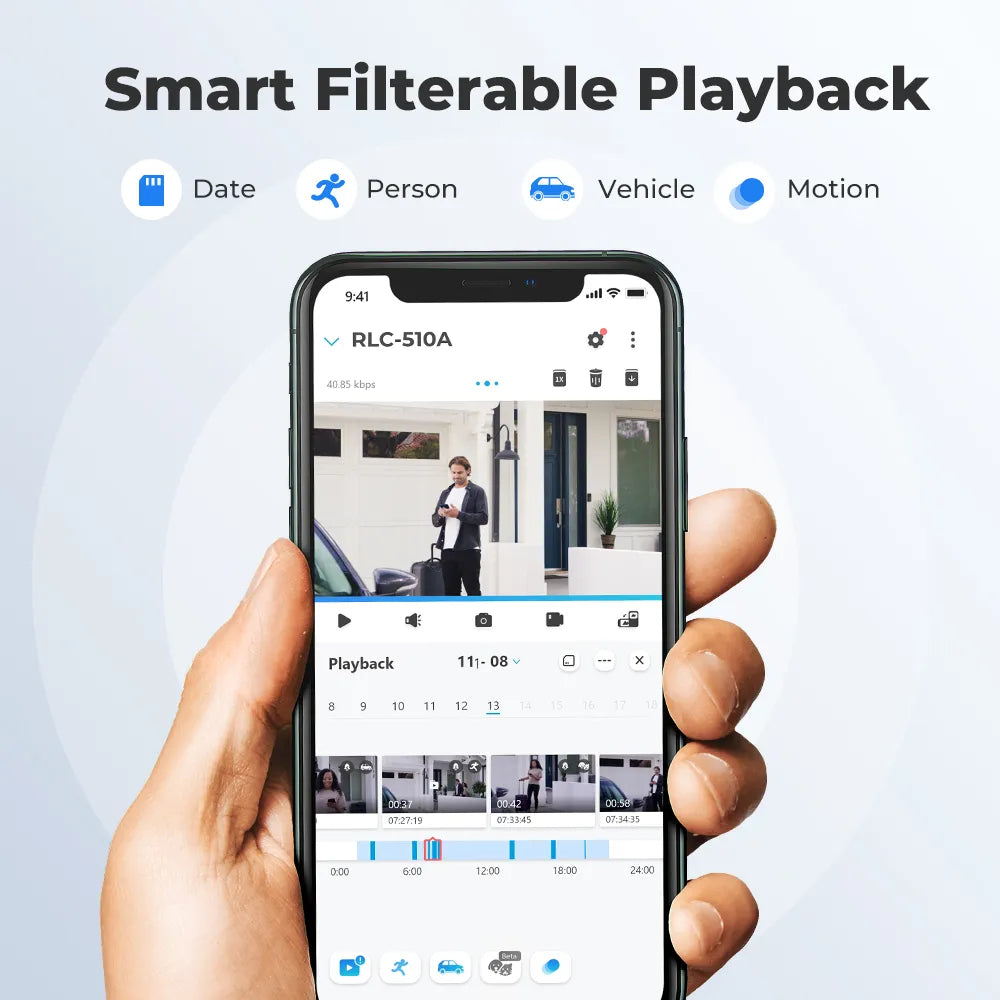

Smart Playback, Easy locate the key moment

Filter clips by person, vehicle, or motion. Finding important videos is much easier.

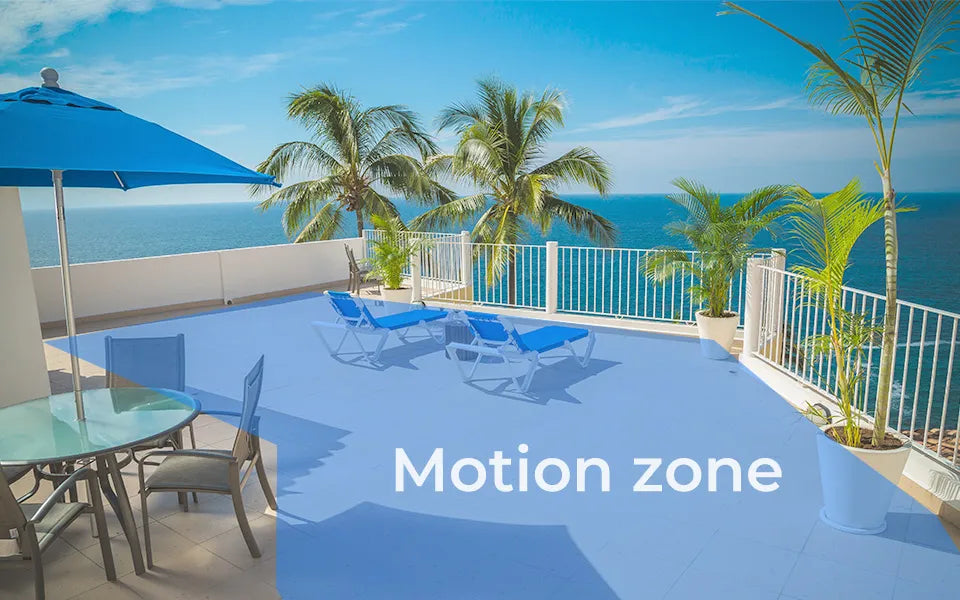

Focus on the Areas That Matter

Create the specific areas which you want to receive motion alerts from. It can save you the trouble of unwanted alarms from out of designated areas.

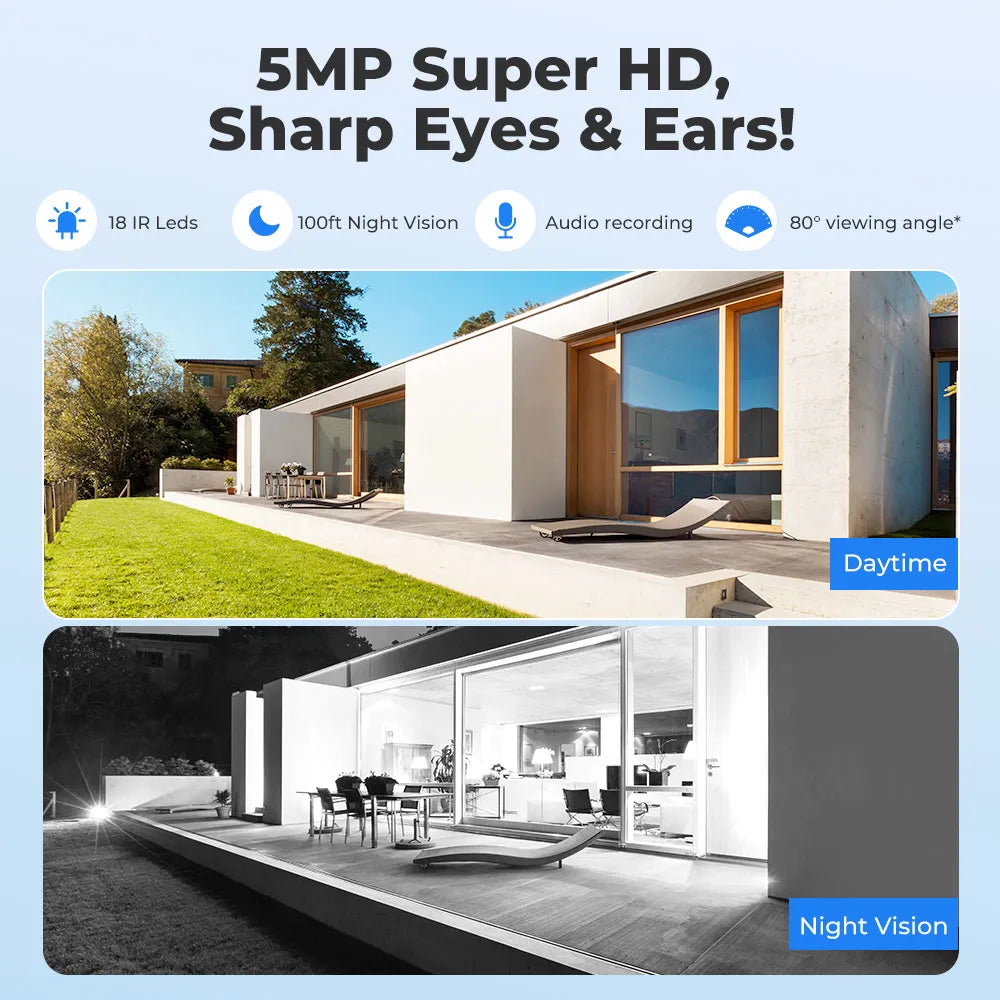

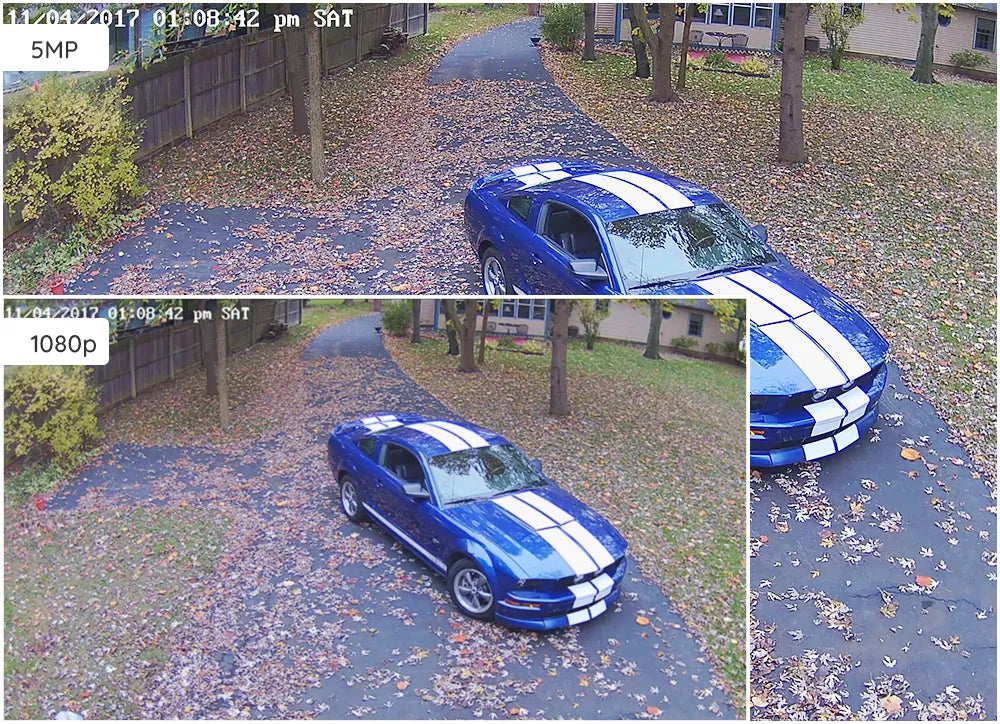

Videos Now Clearer, in True 5MP Super HD

The 5MP Dome with a resolution of 2560x1920, captures nearly 2.4X clearer and sharper video than 1080p ones. It also has an auto backlight which makes the image clearer.

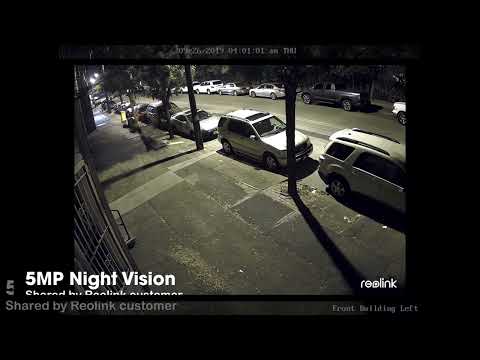

Up to 30m night vision

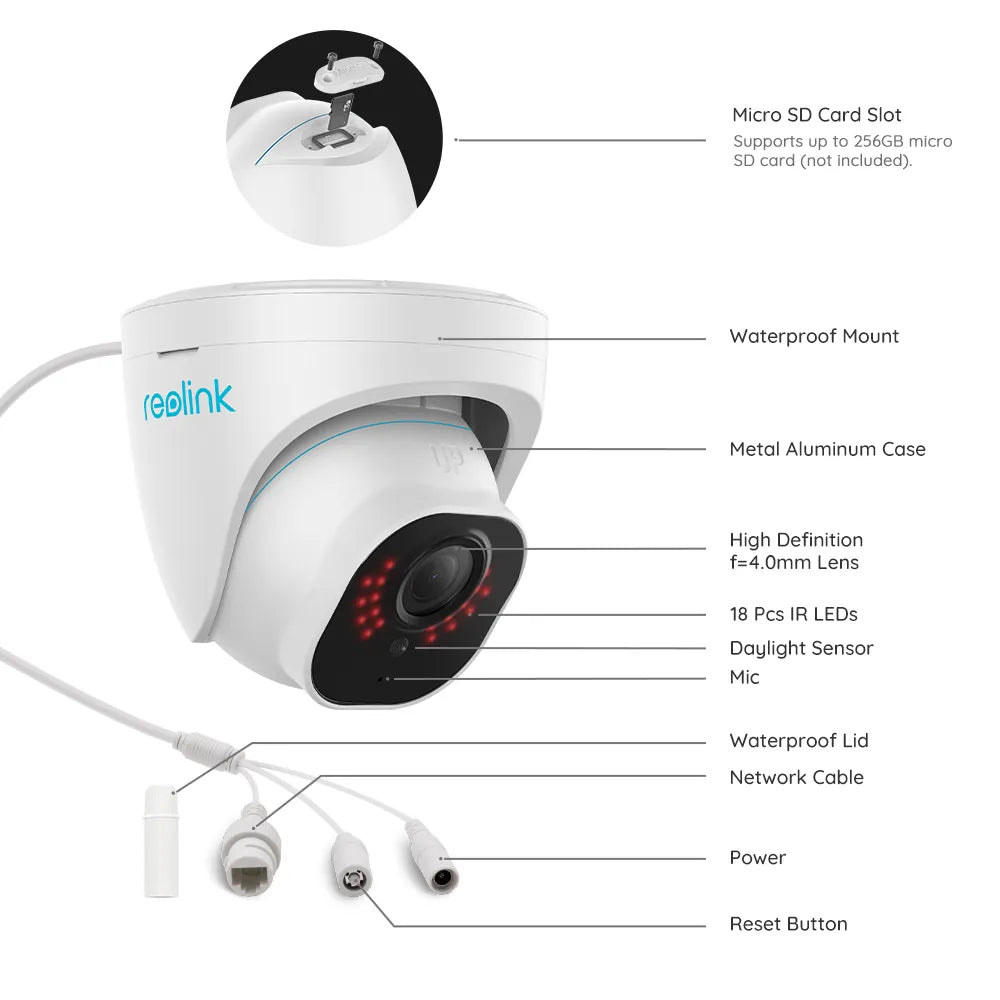

18pcs infrared LEDs and advanced IR technology make letting you see any event clearly even in the dark. With a 100-foot night vision distance, you can accurately identify people present in the event through videos captured by this IP camera.

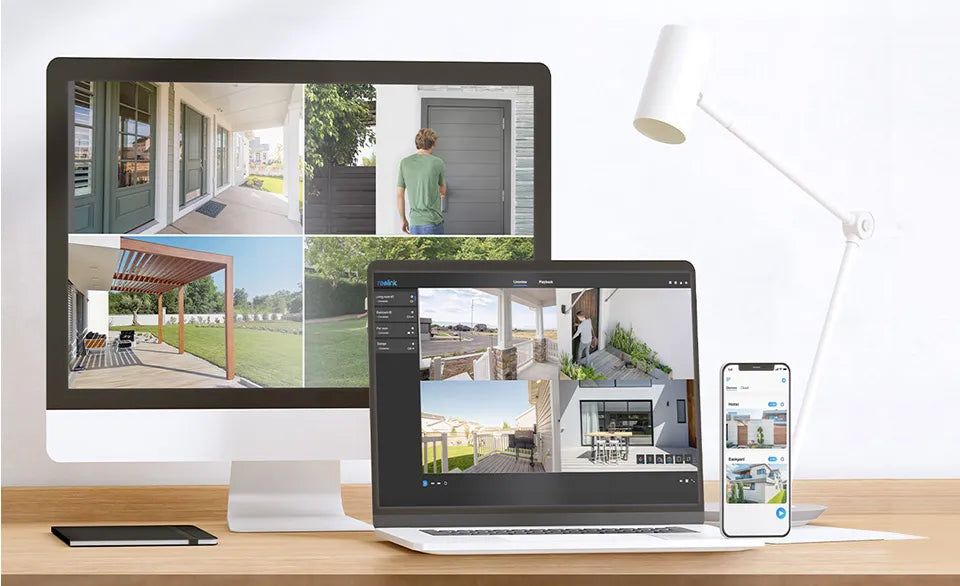

Remote Viewing, Anytime, from Anywhere

Remotely access the IP camera to see live viewing and recordings via the free Reolink App on your mobile device, free Reolink Client on your computer, and web browsers (IE, Google Chrome, Microsoft Edge, Safari, Firefox, etc.).

Save Videos on a Micro SD Card

The SD card could choose to record continuously or record only when there is a motion detected. The camera supports pre-record and post-record. When the SD card is full, it will automatically cover the old video.

Work with New Version NVR for 24/7 Reliable Recording

If you have multiple IP cameras or if you want 24/7 recording, a Reolink NVR is your best choice. The NVR works perfectly and efficiently with the cameras for round-the-clock monitoring and recording for your home & business security and surveillance.

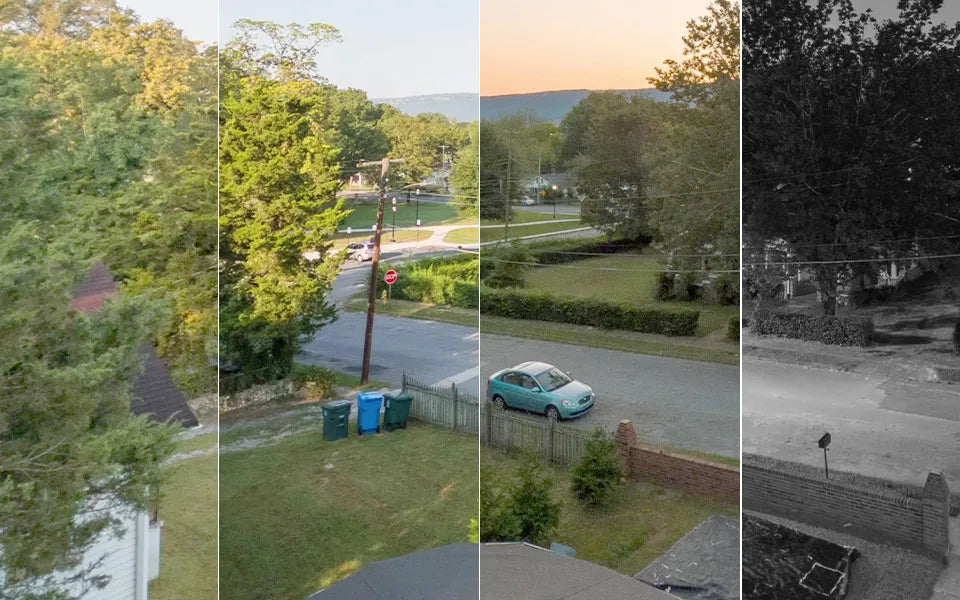

Time Lapse – See the Day in a Minute

Use your security camera to shoot time-lapse videos. Keep track of your 3D printing, see the whole construction process in a few minutes, or capture beautiful views from sunrise to sundown. Easy to use and fun to share with others.

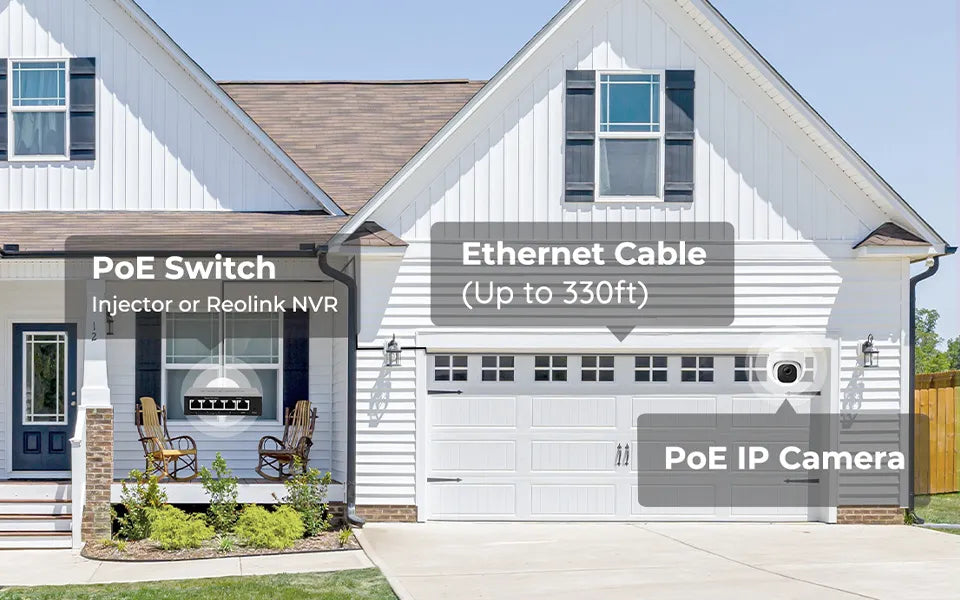

PoE - Faster Installation with Less Effort

The 5MP Dome PoE security IP camera uses a single cable to transmit both data and power. Simplified wiring means easier and cleaner installation. It is the best choice for DIY enthusiasts.

Listen to what's happening around

This 5MP IP camera can pick up audio and it will give you a clear voice of what's going on on the other side.

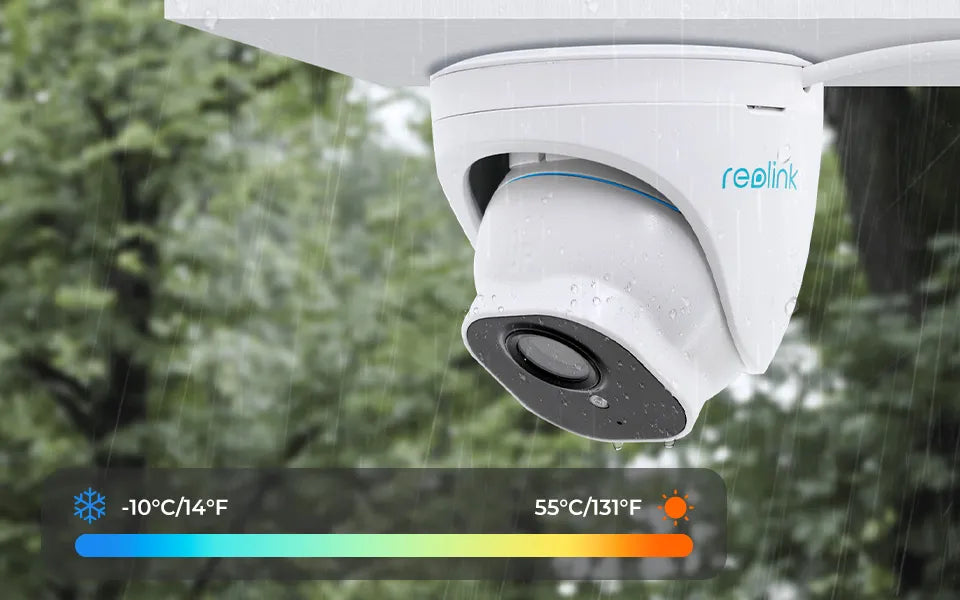

IP66 Waterproof for Outdoor Use

The rugged housing and body make the Reolink 5MP IP camera waterproof. It works perfectly both inside and outside your house, in any harsh weather conditions.

Work with Google Assistant

It can’t be easier to control a security camera that works with Google Assistant. Just say “Hey Google, show me the backyard” and you will see live feed from the camera on your Google Nest Hub or Chromecast-enabled TVs.

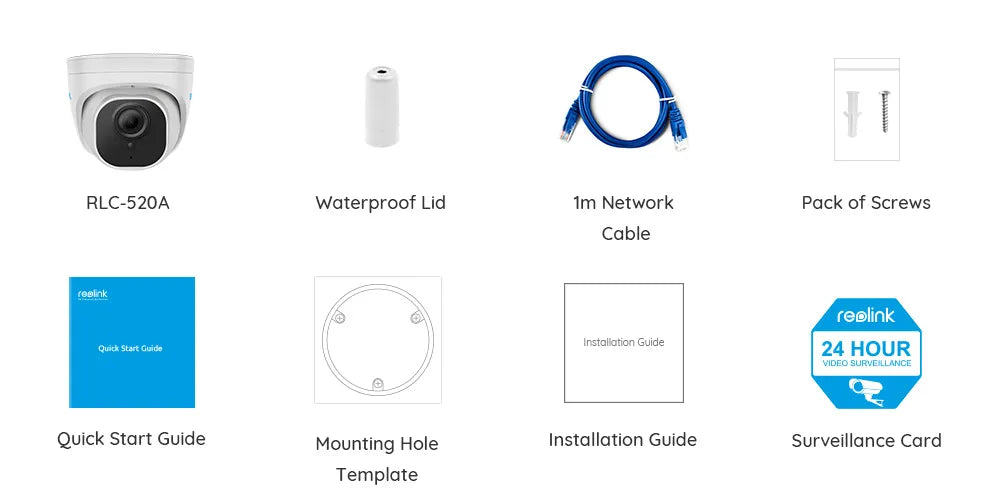

What's in the box





Q: Does the camera receive power through the NVR or do I need an additional injector to power the cameras?

A: Hello, you can either power it via PoE using your Reolink PoE NVR or use a 12V1A power adapter.

Q: Will this camera work with the rlk16-410b8, including time-lapse?

A: Yes, it will work with the rlk16-410b8. However, please note that when you connect the camera directly to the NVR, some functions like time-lapse and smart home won't be available. In that case, we recommend using it as a standalone camera or connecting it via a PoE switch to the NVR.

Q: Can this camera be viewed via the Reolink mobile app without being connected to an NVR?

A: Yes, it can.

Q: What is the length of the included Ethernet cable? Is it short, or do I need to purchase a longer one?

A: The camera comes with one 1m network cable for the initial test. If you need a longer installation, you will need to purchase a longer cable separately.

Q: Can the 5MP IP camera record without an internet connection?

A: Yes, after the initial setup with an internet connection via the Reolink App/Client, the camera can record without internet access. However, you may need to remove the SD card to check the recordings in this situation.

Q: What are the working environment specifications for Reolink POE cameras?

A: Reolink POE cameras are designed to work in the following environments:

• Operating temperature: -10°C to +55°C (14°F to 131°F)
• Operating humidity: 10% to 90%

Q: Is this camera ONVIF compliant/compatible? If so, which protocol?

A: Yes, it is ONVIF 2.1 compliant.

Q: How does the time-lapse feature work with the Android app? Can I set it to capture a time-lapse for 12 hours a day, 7 days a week? Will it record the time-lapse to the NVR or SD card?

A: Yes, you can choose how long you want the camera to capture in a time-lapse before it automatically finishes. The captures will be stored on the SD card. For detailed setup instructions, please refer to this link:
