SPECIFICATIONS

is_customized: No

Zoom Mode: 6X hybrid zoom

Weight: 1.21KG

Waterproof: Support

Viewing Angle: 100°

Video Resolution: Up to 3840 x 2160 (8.0 megapixels) at 25 frames/sec

Video Compression Format: H.264,H.265

Tracking Method: Digital Tracking; Pan/Tilt Tracking First; Digital Tracking First

Tilt Speed: 1.5°-60°/s (Speed can be set)

Supported Operating Systems: Windows 7, Mac OS, Windows 8, Windows 10

Supported Mobile Systems: Android, IOS

Style: PT Camera

Special Features: Waterproof / Weatherproof

Smart home platform: Google Assistant

Smart Alarms: Motion detection; human detection; vehicle detection; pet detection (beta)

Sensor Brand: SONY

Sensor: CMOS

Scene: Indoor and Outdoor

Recording Modes: Motion/scheduled recording (default: motion recording)

Protocols & Standards: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

Preset: 32

Power Supply(V): 12.0V

Power Supply: With POE

Power Mode: Mains Electricity

Power Consumption(W): <12W

Pan Speed: 2.5°-90°/s (Speed can be set)

Pan &Tilt Range: Pan: 355°,Tilt: 0°~90°

POE Power: IEEE 802.3af, 48V active

Origin: Mainland China

Optical Zoom: Other

Operating Temperature: -10°-55°

Movement Range(Tilt): Other

Movement Range(Pan): Other

Model Number: Reolink TrackMix PoE IP camera

Megapixels: 8MP

Maximal User Access: Supports up to 12 simultaneous video streams (10 substreams&2 mainstreams) 20 users (1 admin account&19 user accounts);

Limited Warranty: 2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/.

Lens (mm): 8mm,2.8mm

Lens: f=2.8mm@F=1.6, f=8mm@F=1.6

Interface-System: Reset button

Interface-Storage: Micro SD card slot (Max. 256GB)

Interface-Power: DC power port

Interface-Ethernet: One 10M/100Mbps RJ45

Interface-Audio: Built-in microphone and speaker

Installation: Ceiling, Wall Mounted, Pendant Mount, Vertical Pole Mount

Infrared Night Vision: Up to 15 meters (50ft) (LED: 2pcs/850nm)

Image Sensor: 1/3"+1/2.8"CMOS Sensor

IR Distance(m): Up to 15 meters (50ft) (LED: 2pcs/850nm)

IP Rating: Other

Humidity: Operating humidity: 10% ~ 90%

High Definition: 8.0 Megapixels

Frame Rate: Mainstream: 2fps - 25fps;Substream: 4fps - 20fps

Field of View: Horizontal: 104°-38° ;Vertical: 60°-21°

Dimensions (L x W x D)(mm): 228.2*147*129mm

Digital Zoom: Other

Day & Night: IR-cut filter with auto-switching

DC Power: DC 12.0V 2A, <12W

Connectivity: RJ45

Color Night Vision: Spotlights: 2pcs/6500K/450 lumens

Color Night Vision: YES

Color: White

Code Rate: Mainstream: 4096Kbps -8192Kbps;Substream: 128Kbps -1228Kbps

Certification: CE, FCC

Browsers Supported: Edge, Chrome, Firefox, Safari

Brand Name: Reolink

Auto Tracking: Support

Audio Output: Two-Way Audio

App name: Other

Alarm Action: FTP Photo, Telefon Alarm, Email Photo, Local Alarm

AI Functions: Human Detection

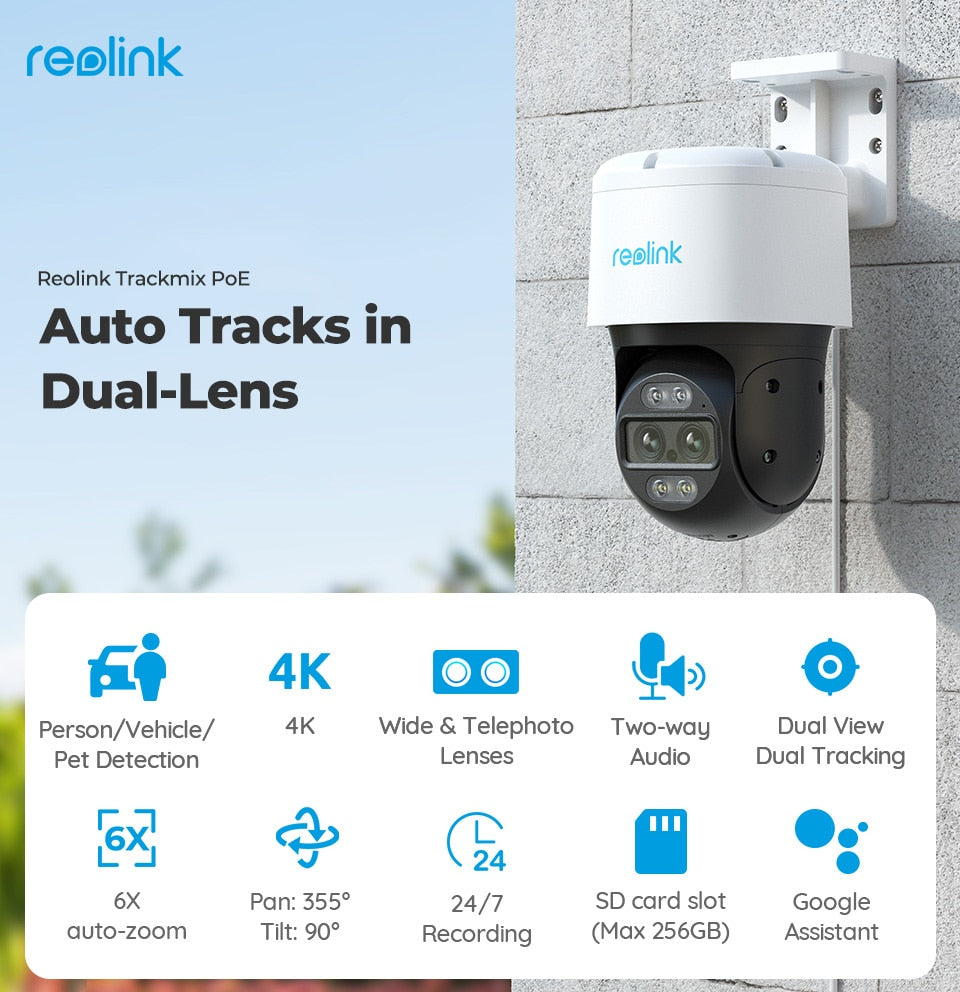

Reolink TrackMix Poe camera 4k Dual Lens PTZ outdoor security protection Animal Car Human Detect Security Camera Motion Auto Tracking

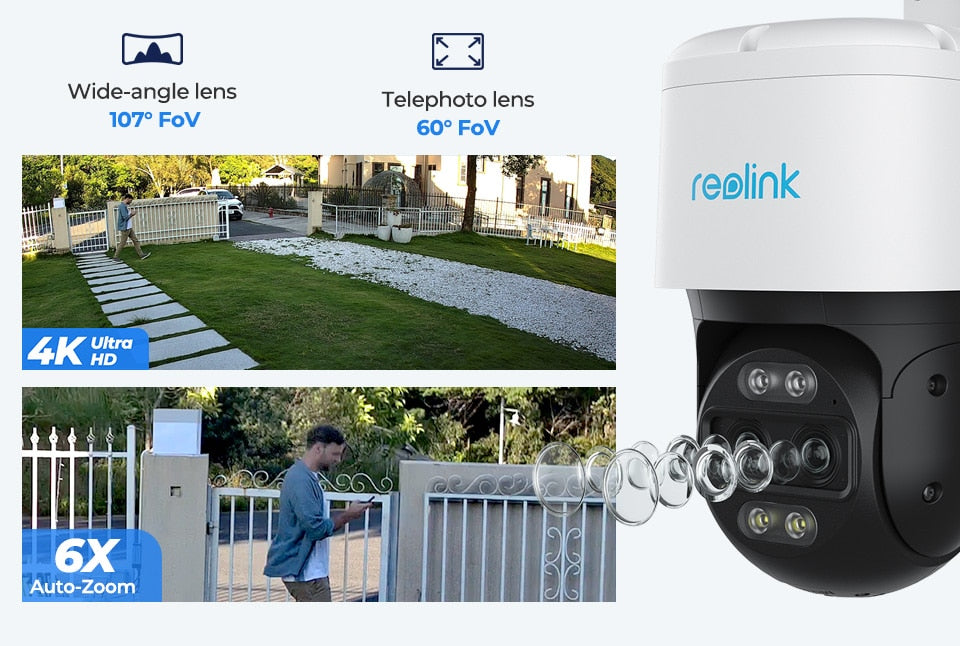

4K HD & Big picture & Big Detail

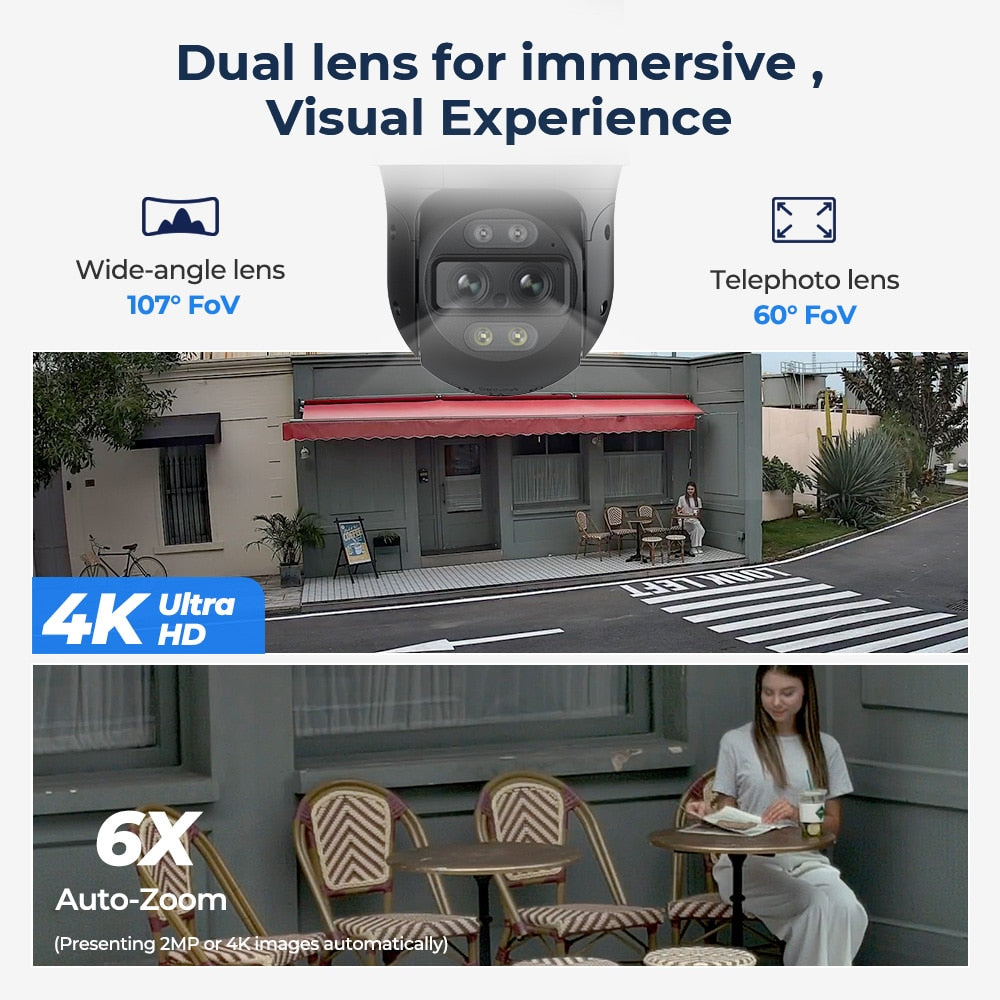

The Wide-Angle & Telephoto dual Lenses camera captures both full-view and close-up images of the same event synchronously and presents them on the same screen.

Its 6X hybrid zoom allows you to zoom in for astonishing details or zoom out for maximum coverage.

*Trackmix POE camera has only one-pixel lens combinations, which are 4K 8mm Wide-Angle Lenses + 1080P 2.8mm Telephoto Lenses.

1080P =2MP.





AI Person/Vehicle Detection & Accurate Alerts & Without Subscription



You don't need to subscribe to the camera's capacity to detect people and vehicles. It can analyze the shapes of people and vehicles, thus sending you more accurate and meaningful alerts in real-time.



Auto Track & Auto Focus



The dual-tracking camera can pan, and tilt (up to 355°H, 90°V) to auto-track the object and show it in both the panoramic and zoomed views.



Active deterrence to scare the unwelcomed away



When having detected the unwelcome approaching, the built-in siren goes off and the spotlight turns on to deter unwelcome strangers, You also will get alerted via email, and push notifications from Reolink App.



Two-way Audio, Talk Like You're Here



Built-in microphone & speaker allow you to listen and talk to whoever the camera catches in real-time: A "hello" to families and friends or warning to suspicious strangers.



Color Night Vision With Spotlights On



The built-in IR LEDs and spotlights allow you to clearly see objects in color at night, keeping your family firmly guarded after sundown.

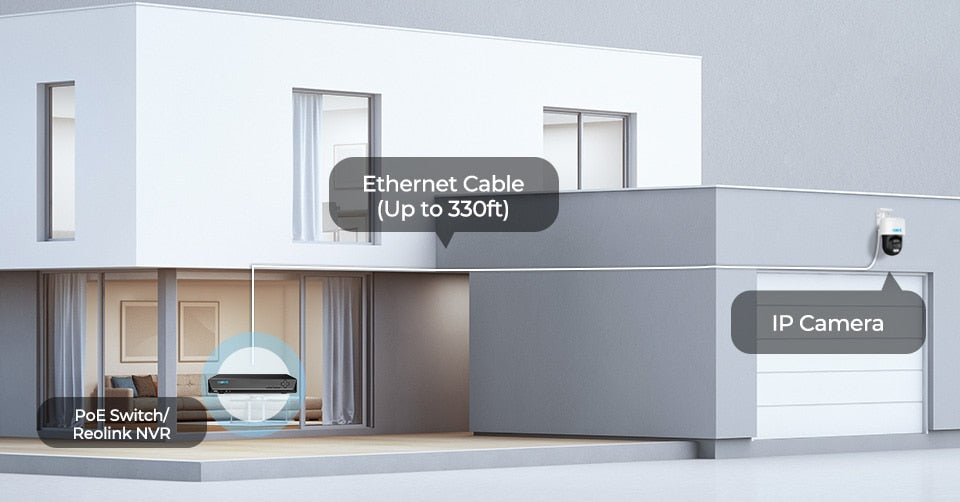

PoE Makes Easier Wiring and Installation



Power over Ethernet (PoE) is an advanced technology, which enables you to use a single network cable for both video and power transmission, installation easier! Besides, thanks to PoE you will never worry about electric leaks!



Have Fun with Time Lapse



Reolink TrackMix PoE supports time-lapse video recording, you can film snow piling up in your backyard, or record the construction process in minutes.

Note: Only its wide-angle view supports time-lapse, which is incompatible when the camera is connected to NVRs.

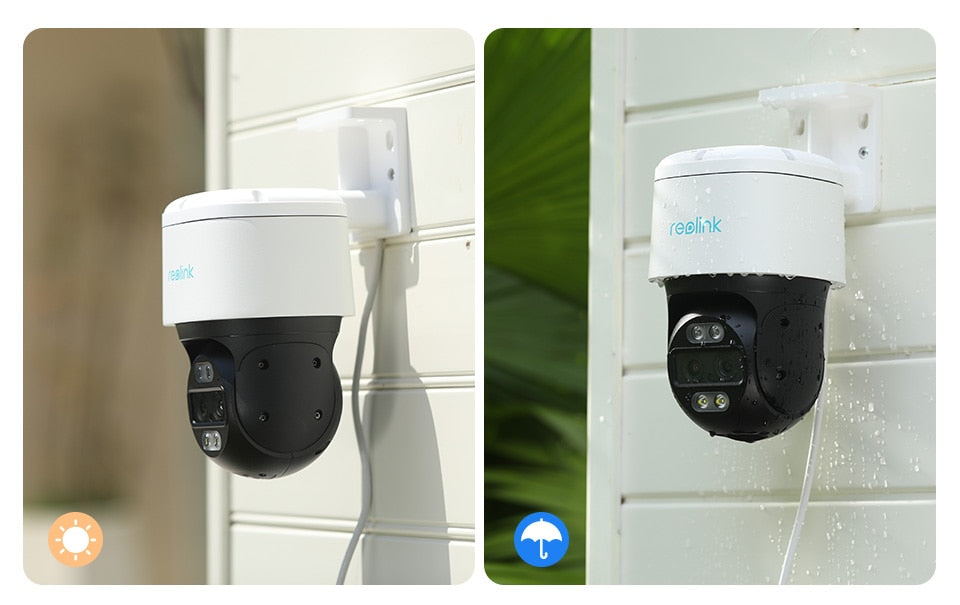

Certified Weatherproof



TrackMix PoE can work perfectly in both indoor and outdoor environments. It is designed for harsh environments, and its robust housing can withstand intense heat, humidity, and cold.

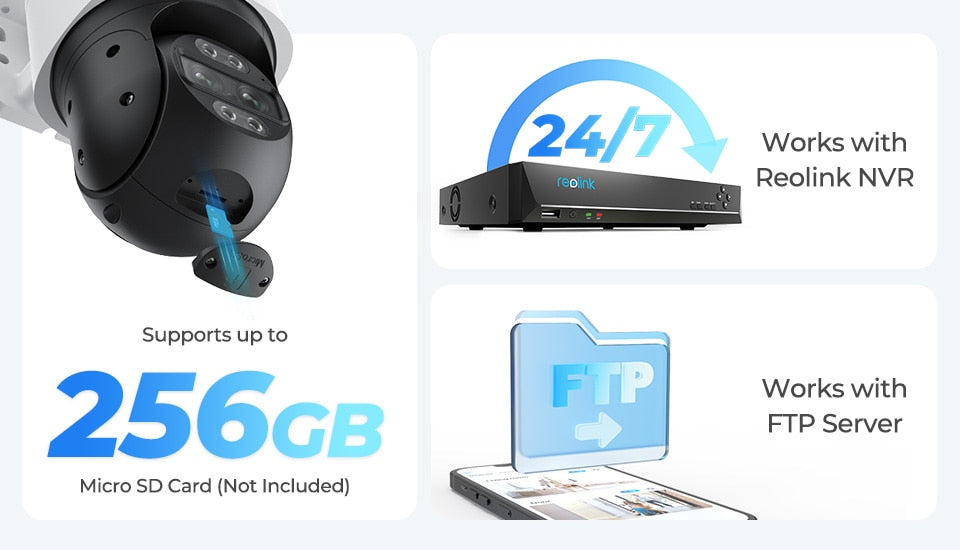

Multiple Recording Options

This smart IP camera supports 24/7 continuous, motion-triggered, or scheduled recordings. All the videos can be saved to the micro SD card, Reolink NVR, or FTP server. Choose a way you like and enjoy customized security.



Smart Home Platform



As easy as saying "Hey Google, show me the backyard", you can check what's happening there on your Google Nest Hub or Chromecast-enabled TVs.



See more details of TrackMix Poe



PS:

DC Power adapter is NOT included in the box of the Reolink TrackMix PoE camera.

The ratings of the power adapter should be DC 12V 2/1A.

You may order the DC power adapter additionally via the link of Reolink DC power adapter or Reolink PoE Injector.





Specification of Reolink TrackMix Poe



Model	Reolink Trackmix PoE
Video & Audio	Image Sensor	1/3"+1/2.8"CMOSSensor
	Video Resolution	UP To 3840 x 2160 (8.0 Megapixels)at 25 frames/sec
	Lens	f=2.8mm@F=1.6，f=8mm@F=1.6
	Video Format	H.264, H.265
	Field of View	Horizontal: 104°-38°
		Vertical:60°-21°
	Zoom Mode	6X hybrid zoom
	Day & Night	IR-cut filter with auto-switching
	Infrared Night Vision	Up to 15 Meters (50ft)(LED: 2pcs/850nm)
	Color Night Vision	Spotlight:2pcs/6500K/450 Lumens
	Audio	Two-way Audio
Power	POE	IEEE 802.3af, 48V Active
	DC Power	DC 12.0V⎓2A,<12W
Interface	Power	DC power port
	System	Reset Button
	Ethernet	One10M/100MbpsRJ45
	Storage	MicroSD card slot (Max. 256GB)
	Audio	Built-in Microphone and Speaker
Pan & Tilt	Pan &Tilt Range	Pan: 355°, Tilt: 0°~90°
	Pan Speed	2.5°-90°/s (Speed can be set)
	Tilt Speed	1.5°-60°/s (Speed can be set)
	Preset	32
	Auto Tracking	Support
Software Features	Frame Rate	Main Stream: 2fps - 25fps
		Sub Stream: 4fps - 20fps
	Code Rate	Main Stream: 4096Kbps -8192Kbps
		Sub Stream: 128Kbps -1228Kbps
	Browser Supported	Edge, Chrome, Firefox, Safari
	OS Supported	PC: Windows, Mac OS; Smartphone: iOS, Android
	Smart Alarm	Motion detection/Human Detection/Vehicle Detection/Pet Detection
	Record Mode	Motion Record/Schedule Record (Default: Motion Record)
	Protocols & Standards	HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
	Maximal User Access	Support up to 12 simultaneous video streams (10 substreams & 2 mainstreams) 20 Users (1 admin account & 19 user accounts);
	Work with	Google Assistant
Working Environment	Temperature	Operating Temperature: -10°C~+55°C(14°F~131°F)
	Humidity	Operating Humidity: 10% ~ 90%
	Waterproof	Support
Size & Weight	Dimension	228.2*147*129mm
	Weight	1.21KG（camera only）
Warranty	Limited Warranty	2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/

Q: What is Hybrid Zoom?

A: Hybrid zoom is a combination of optical zoom and digital zoom. The Reolink Trackmix series is equipped with a wide-angle lens and a telephoto lens. First, the wide-angle lens provides digital zoom. Then it switches to the telephoto lens for optical zoom. After that, the telephoto lens zooms in digitally. Thus, compared to digital zoom, hybrid zoom can retain more details and provide sharper images when zooming in.



Q: What is dual-tracking?

A: Dual-tracking refers to the two ways that a Trackmix camera simultaneously uses to auto-track an object in both the wide-angle and zoomed views.



Q: Can I use this camera with Synology?

A: Yes, this PoE IP camera can work with Synology. There are 2 methods for you to save videos in it.

Method 1 (recommended): You can add this camera to the Synology Surveillance Station. Please contact Reolink customer service in Aliexpress Message to learn how to add a camera.

Method 2: You can treat your Synology device as an FTP server. For detailed steps, please contact Reolink customer service in Aliexpress Message to check How to Set up FTP for Reolink Products.

Please note that by default the wide-angle view will be shown on the Synology. You can manually switch it to the zoomed view. For a dual-view display, make sure the camera can occupy two channels.



Q: Can I turn off the spotlights?

A: Yes, you can turn off the spotlights manually.

By default, the camera's spotlights are motion activated: it will turn on automatically when a motion is detected. You can turn them off or adjust the brightness to your liking.

Please note that with the spotlights on you can enjoy clear color night vision, but if the spotlights are turned off, you will only see black and white images at night.



Q: Can this camera support a smart home like Google Assistant?

A: Yes. Please note that only its wide-angle view supports Google Assistant.



Q: Can this camera be used outdoors/indoors?

A: Yes. It is certified weatherproof and its operating temperature is from -10°C to 55°C, perfect for outdoor and indoor usage.



Q: How can I power up this camera?

A: There are two methods:

1. Via an Ethernet cable, connect the camera to a PoE NVR, PoE injector, PoE switch, or directly to a router with a PoE port, for both power supply and video signal transmission.

Note: Please make sure that the PoE injector/switch is 802.3at compliant (48V) and supports active mode.

2.Via its DC 12V 2A power adapter for power supply only.(Not luded in the box)



Q: What kind of micro SD card can I use?

A: This camera supports up to 256GB micro SD cards with FAT32 format and Class 10 read & write speed.
