SPECIFICATIONS



is_customized: No

connect way: 2.4G/5G Hz Dual-band Wi-Fi

Zoom Mode: 6X hybrid zoom

Weight: 1.21KG

Waterproof: Support

Viewing Angle: 100°

Video Resolution: Up to 3840 x 2160 (8.0 megapixels) at 25 frames/sec

Video Compression Format: H.264,H.265

Tracking Method: Digital Tracking; Pan/Tilt Tracking First; Digital Tracking First

Tilt Speed: 1.5°-60°/s (Speed can be set)

Supported Operating Systems: Windows 7, Mac OS, Windows 8, Windows 10

Supported Mobile Systems: Android, IOS

Style: PT Camera

Storage: 256GB

Special Features: Waterproof / Weatherproof

Smart home platform: Google Assistant

Smart Alarms: Motion detection; human detection; vehicle detection; pet detection (beta)

Sensor Brand: SONY

Sensor: CMOS

Scene: Outdoor

Recording Modes: Motion/scheduled recording (default: motion recording)

Protocols & Standards: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

Preset: 32

Power Supply(V): 12.0V

Power Supply: With POE

Power Mode: Mains Electricity

Power Consumption(W): <12W

Pan Speed: 2.5°-90°/s (Speed can be set)

Pan &Tilt Range: Pan: 355°,Tilt: 0°~90°

POE Power: IEEE 802.3af, 48V active

Origin: Mainland China

Optical Zoom: Other

Operating Temperature: -10°-55°

Movement Range(Pan): Other

Model Number: Reolink TrackMix wifi IP camera

Megapixels: 8MP

Maximal User Access: Supports up to 12 simultaneous video streams (10 substreams&2 mainstreams) 20 users (1 admin account&19 user accounts);

Limited Warranty: 2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/.

Lens (mm): 2.8-8mm

Lens: f=2.8mm@F=1.6, f=8mm@F=1.6

Interface-System: Reset button

Interface-Storage: Micro SD card slot (Max. 256GB)

Interface-Power: DC power port

Interface-Ethernet: One 10M/100Mbps RJ45

Interface-Audio: Built-in microphone and speaker

Installation: Wall Mounted

Infrared Night Vision: Up to 15 meters (50ft) (LED: 2pcs/850nm)

Image Sensor: 1/3"+1/2.8"CMOS Sensor

IR Distance(m): Up to 15 meters (50ft) (LED: 2pcs/850nm)

IP Rating: Other

Humidity: Operating humidity: 10% ~ 90%

High Definition: 8.0 Megapixels

Frame Rate: Mainstream: 2fps - 25fps;Substream: 4fps - 20fps

Field of View: Horizontal: 104°-38° ;Vertical: 60°-21°

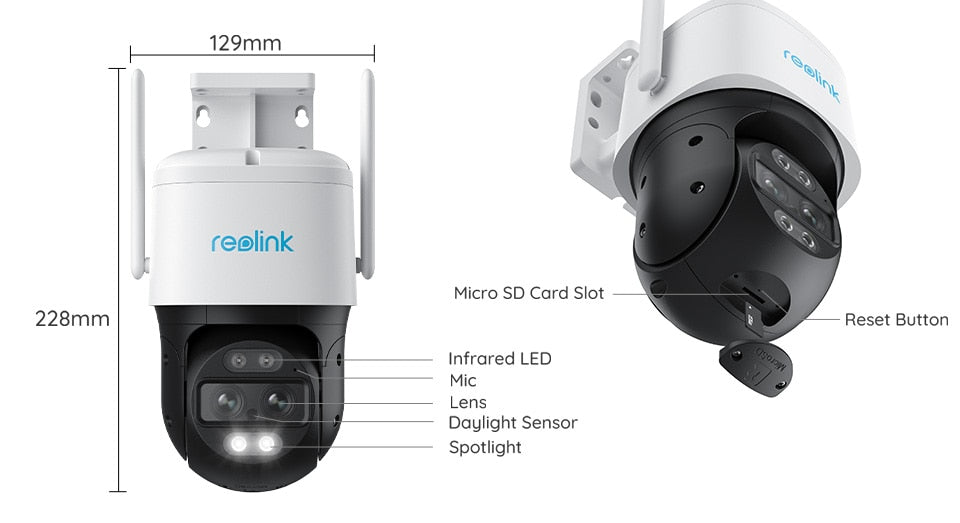

Dimensions (L x W x D)(mm): 228.2*147*129mm

Digital Zoom: Other

Day & Night: IR-cut filter with auto-switching

DC Power: DC 12.0V 2A, <12W

Connectivity: RJ45

Color Night Vision: YES

Color Night Vision: Spotlights: 2pcs/6500K/450 lumens

Color: White

Code Rate: Mainstream: 4096Kbps -8192Kbps;Substream: 128Kbps -1228Kbps

Certification: CE, FCC

Browsers Supported: Edge, Chrome, Firefox, Safari

Brand Name: Reolink

Auto Tracking: Support

Audio Output: Two-Way Audio

App name: Other

Alarm Action: FTP Photo, Telefon Alarm, Email Photo, Local Alarm

AI Functions: Human Detection

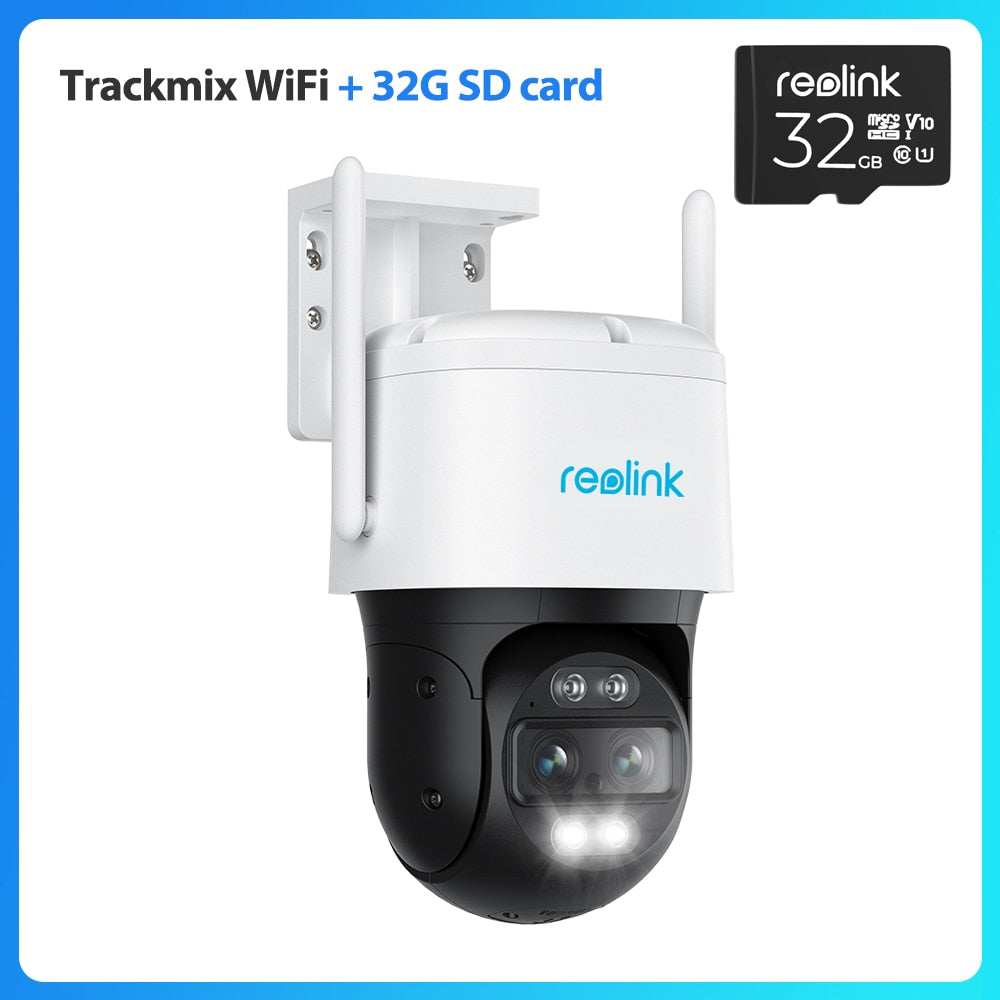

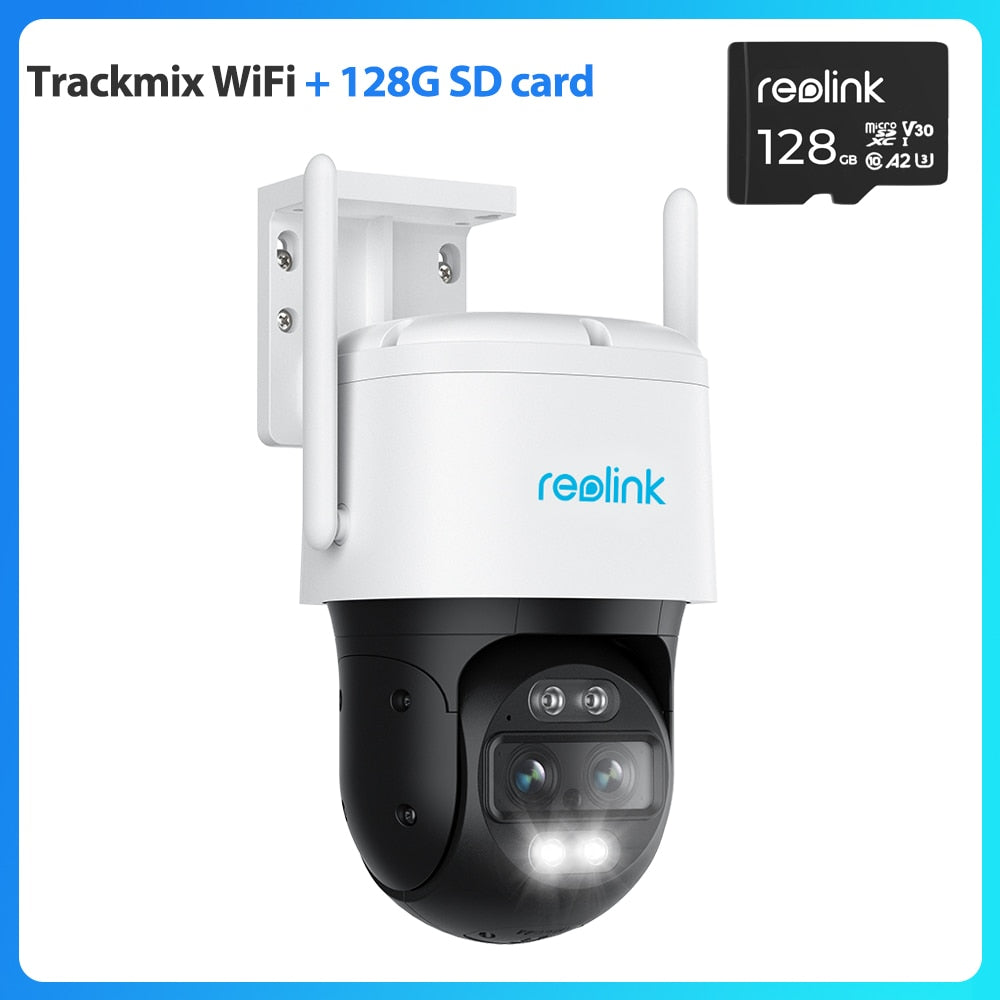

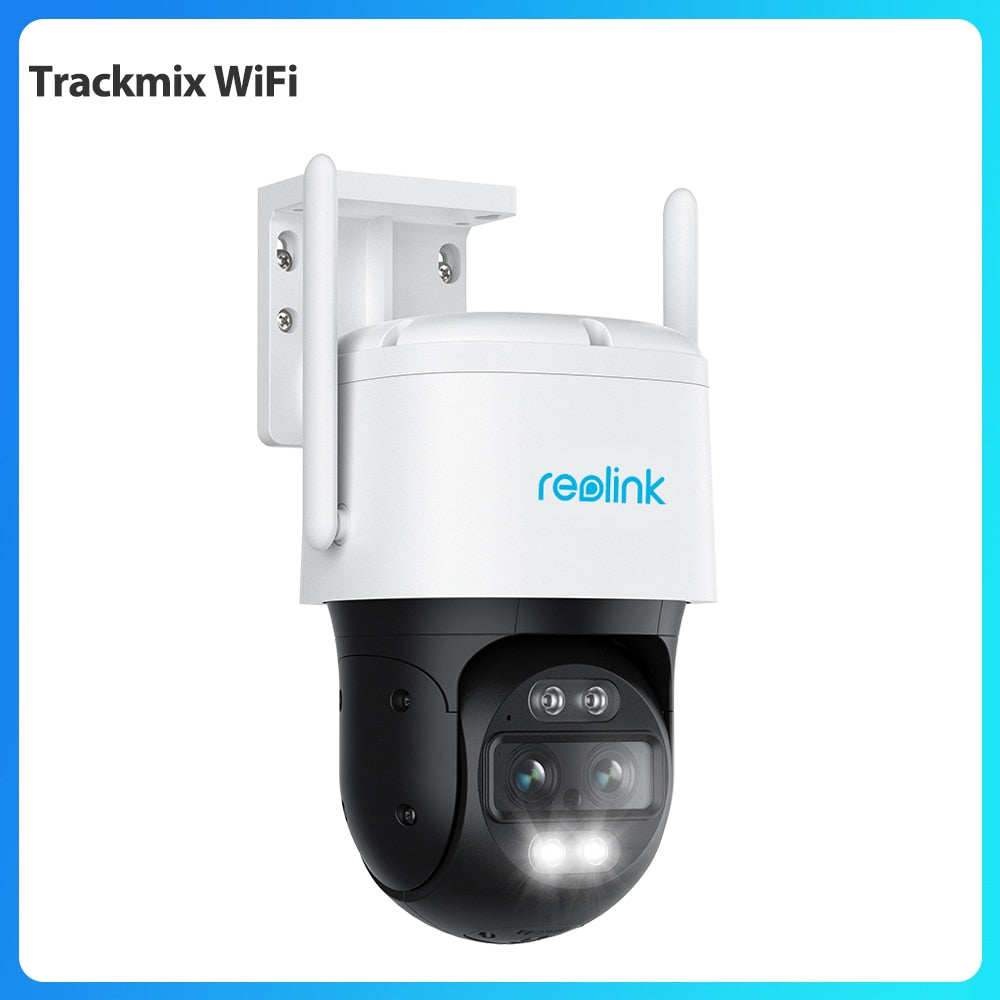

Reolink Trackmix wifi 4K Security Outdoor Camera Dual-Lens Motion Tracking PTZ camera 6X Zoom Animal Car Human Detect IP Camera





4K HD & 6X Auto zoom

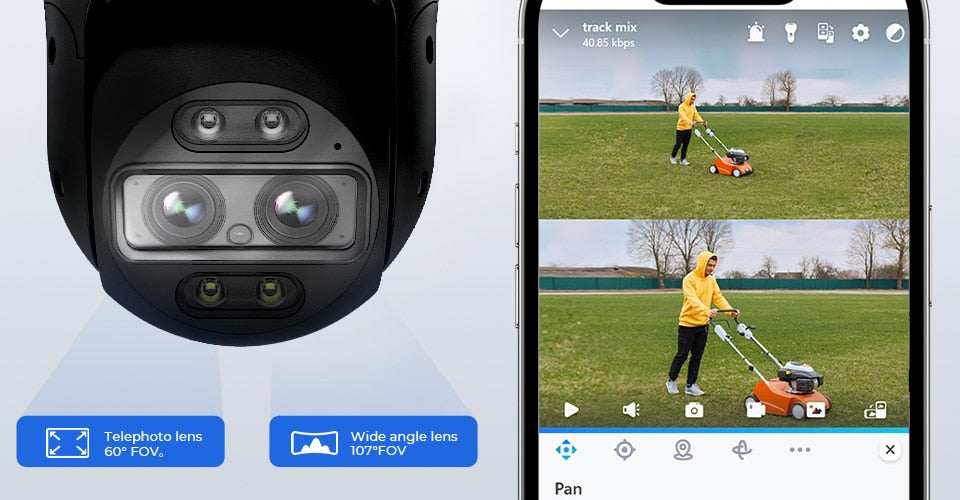

The Wide-Angle & Telephoto dual Lenses camera captures both full-view and close-up images of the same event synchronously and presents them on the same screen.

Its 6X hybrid zoom allows you to zoom in for astonishing details or zoom out for maximum coverage.







Auto tracking of People's Vehicles and Pets





Auto Track & Auto Focus

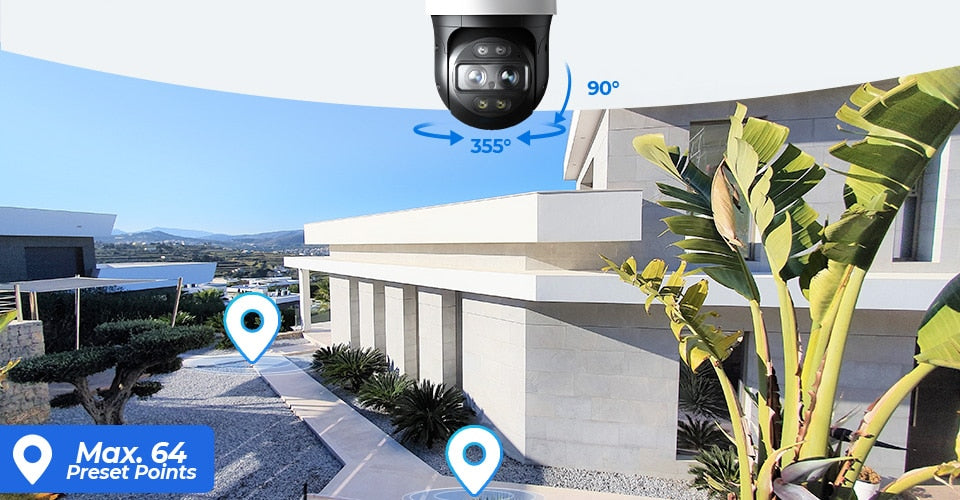

The dual-tracking camera can pan, and tilt (up to 355°H, 90°V) to auto-track the object and show it in both the panoramic and zoomed views.



Active deterrence to scare the unwelcomed away



When having detected the unwelcome approaching, the built-in siren goes off and the spotlight turns on to deter unwelcome strangers, You also will get alerted via email, and push notifications from Reolink App.

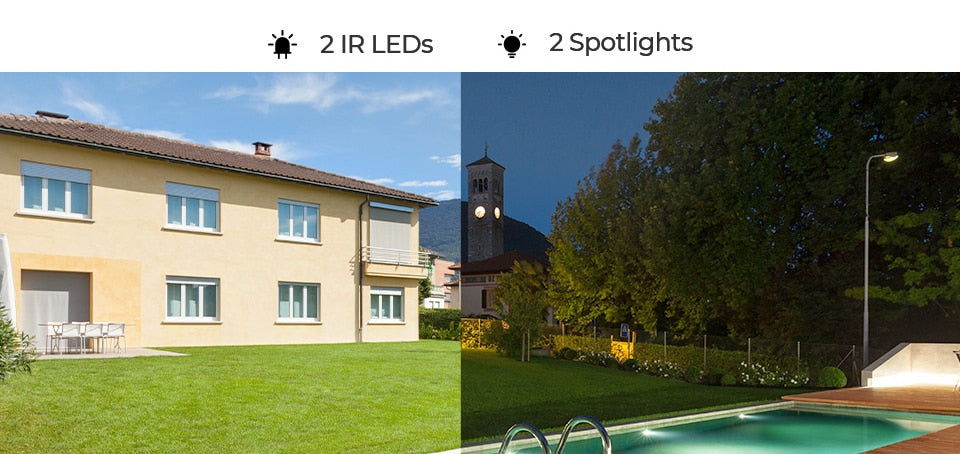

Two Night Vision Modes



The built-in IR LEDs and spotlights allow you to clearly see objects in color at night, keeping your family firmly guarded after sundown.

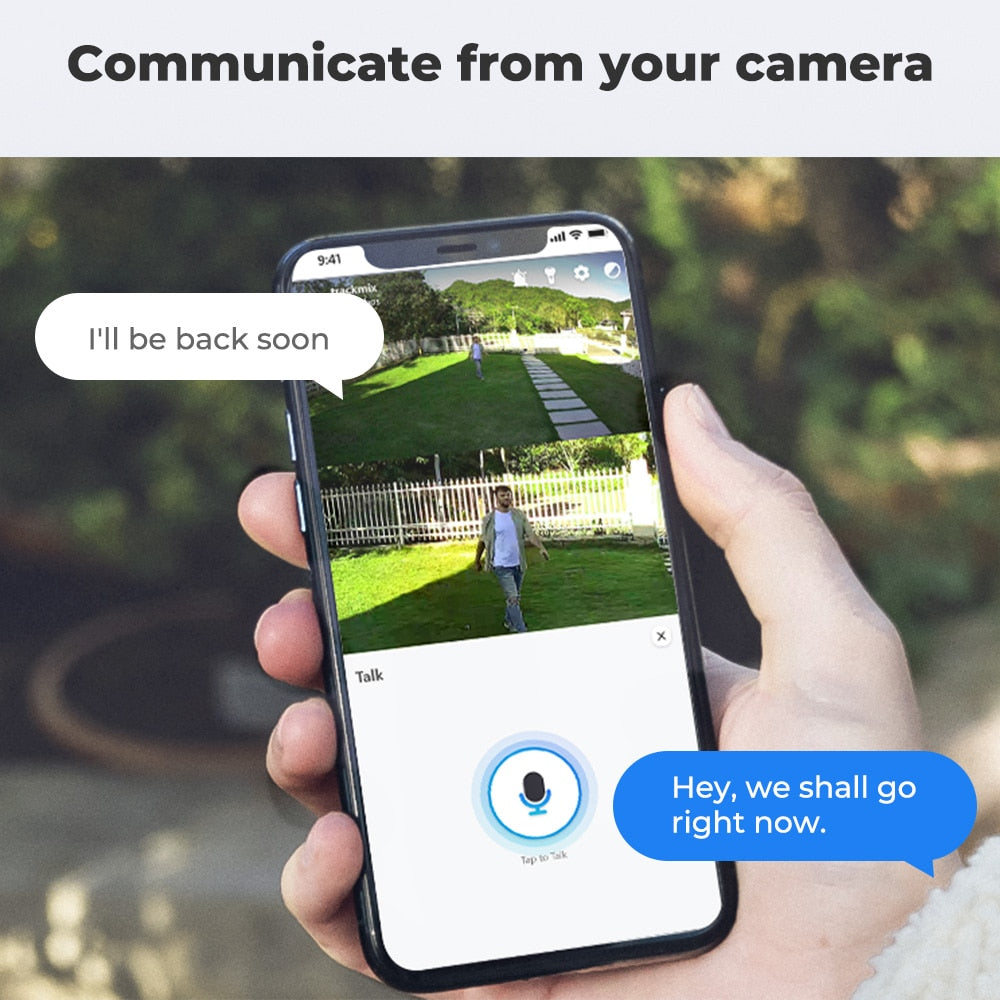

Two-way Audio, Talk Like You're Here



Built-in microphone & speaker allow you to listen and talk to whoever the camera catches in real-time: A "hello" to families and friends or warning to suspicious strangers.

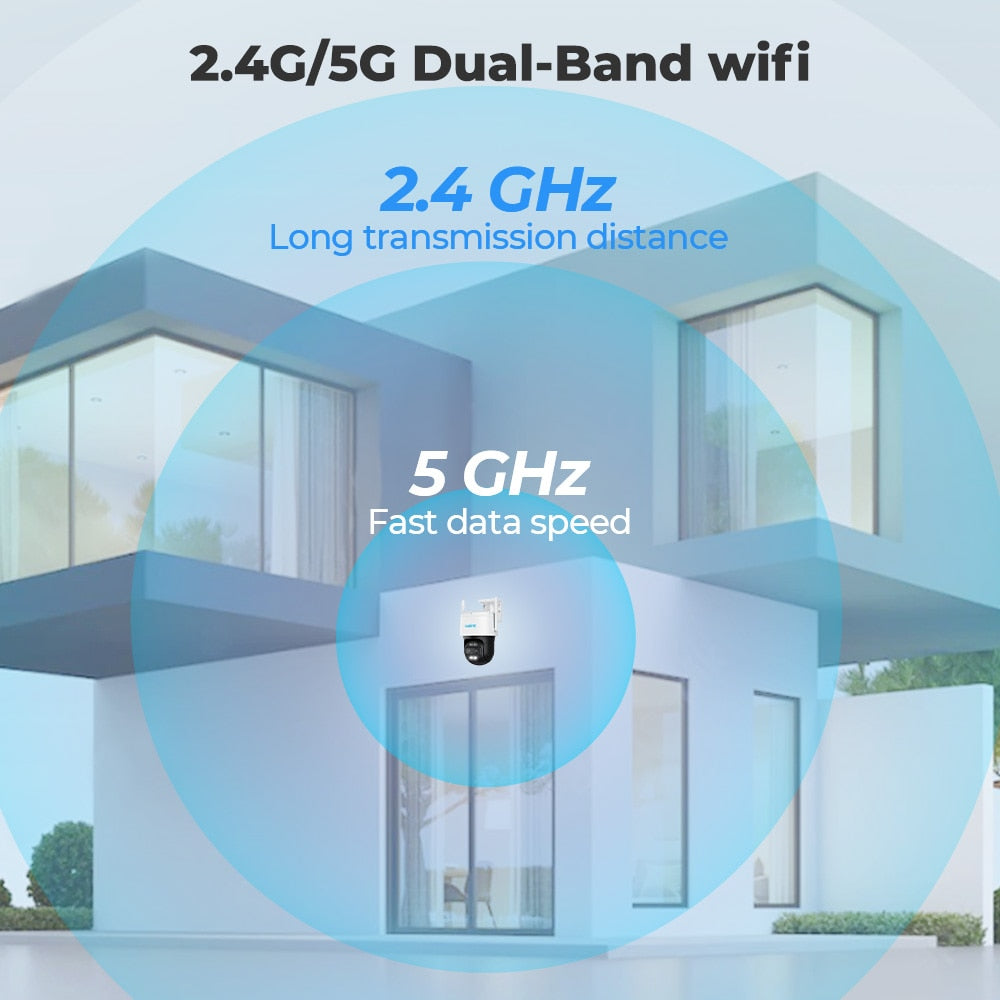

Smart Home Platform&2.4/5GHZ Dual-band wifi



As easy as saying "Hey Google, show me the backyard", you can check what's happening there on your Google Nest Hub or Chromecast-enabled TVs.

The 4K WiFi camera works on both 2.4 GHz and 5 GHz bands to provide a high-speed and stable connection.

You can choose the best WiFi band handily.







Have Fun with Time Lapse&



Reolink TrackMix PoE supports time-lapse video recording, you can film snow piling up in your backyard, or record the construction process in minutes.

Note: Only its wide-angle view supports time-lapse, which is incompatible when the camera is connected to NVRs.

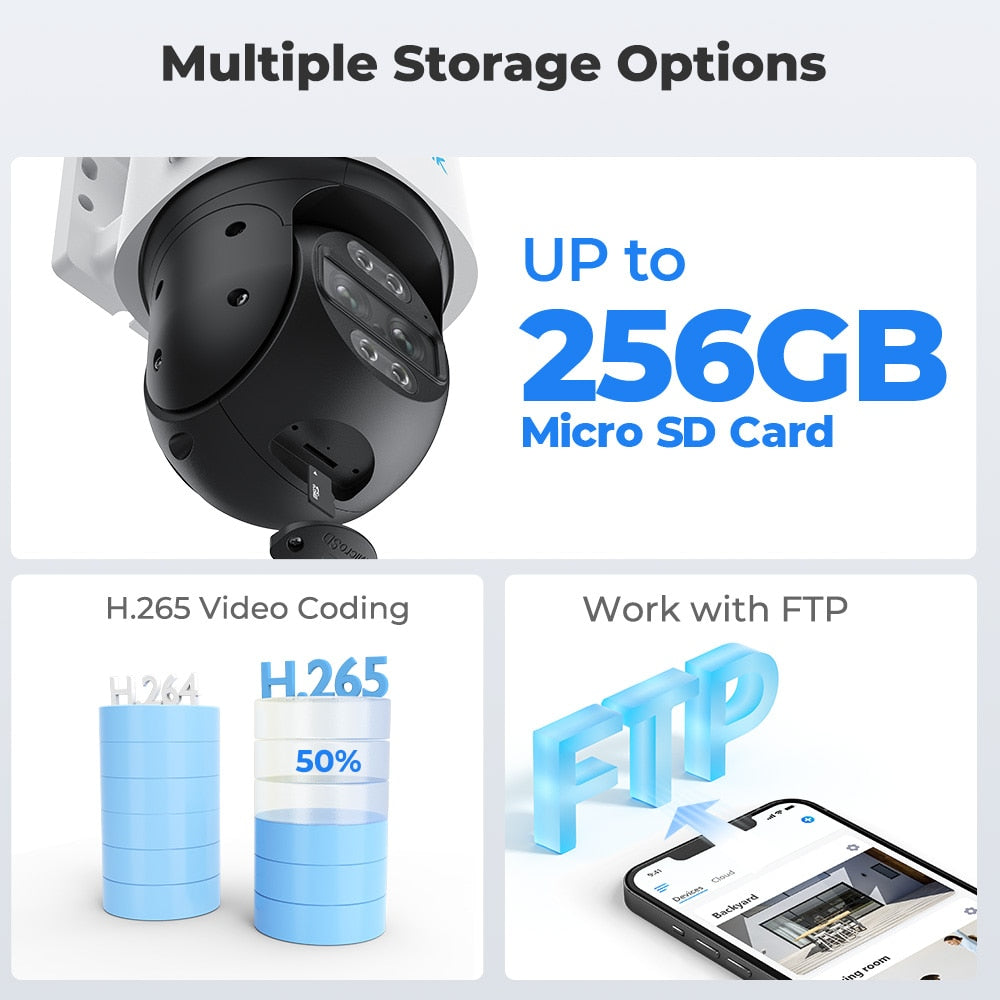

Multiple Recording Options

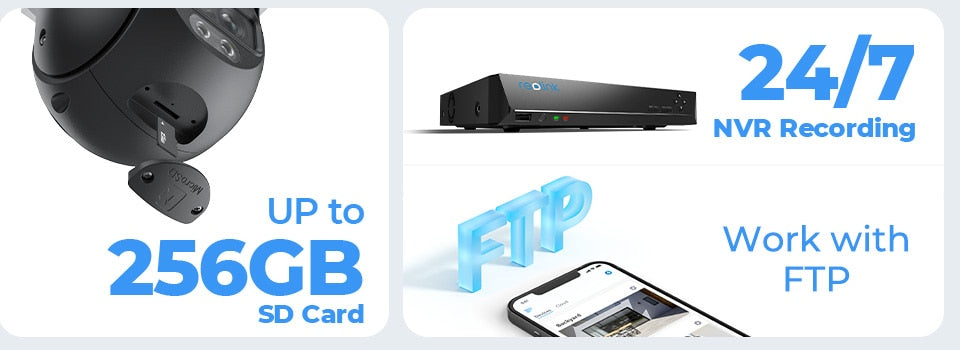

This smart IP camera supports 24/7 continuous, motion-triggered, or scheduled recordings. All the videos can be saved to the micro SD card, Reolink NVR, or FTP server. Choose a way you like and enjoy customized security.





See more details of TrackMix WIFI







Q: What is Hybrid Zoom?

A: Hybrid zoom is a combination of optical zoom and digital zoom. The Reolink Trackmix series is equipped with a wide-angle

lens and a telephoto lens.



First, the wide-angle lens provides digital zoom. Then it switches to the telephoto lens for optical zoom. After that, the telephoto lens zooms in digitally. Thus, compared to digital zoom, hybrid zoom can retain more details and provide sharper images when zooming in.





Q: What is dual-tracking?

A: Dual-tracking refers to the two ways that a Trackmix camera simultaneously uses to auto-track an object in both the wide-angle and zoomed views.





Q: Why can't I connect it to 3rd party software?

A: The RTSP and other ports may be disabled by default.

You can launch Reolink Client, then go to Device Settings >> Network >> Advanced >> Port Settings to make sure all ports are

enabled before using 3rd party software.





Q: Can I turn off the spotlights?

A: Yes, you can turn off the spotlights manually. By default, the camera's spotlights are motion activated: it will turn on automatically when a motion is detected. You can turn them off or adjust the brightness to your liking. Please note that with the spotlights on you can enjoy clear color night vision, but if the spotlights are turned off, you will only see black and white images at night.





Q: Can this camera support a smart home like Google Assistant?

A: Yes. Please note that only its wide-angle view supports Google Assistant.





Q: Can this camera be used outdoors/indoors?

A: Yes. It is certified weatherproof and its operating temperature is from -10°C to 55°C, perfect for outdoor and indoor usage.





Q: How can I power up this camera?

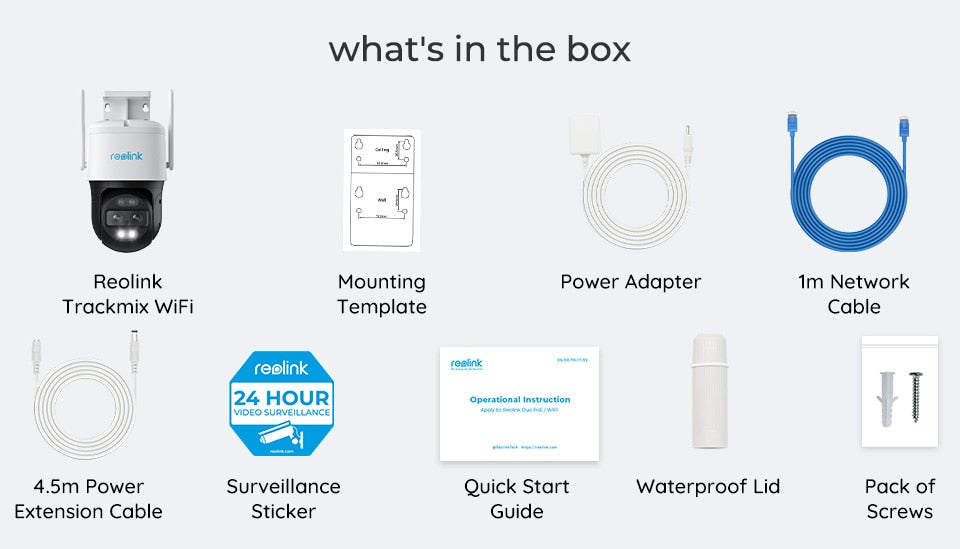

A: The camera can be powered by a 12V 2A DC power adapter (A 1.2meter power adaptor and a 4.5m extension cable are

shipped with the camera). The power adapter is included in the package.





Q: What kind of micro SD card can I use?

A: This camera supports up to 256GB micro SD cards with FAT32 format and Class 10 read & write speed.





Q: How do I use live view and playback?

A: You can add and set up the camera on Reolink APP/Client. Then click the camera to check the live view and playback of it

from anywhere, at any time. Yet, via the App, you can live view in the dual*view display only in fluent mode; Via browsers,

you cannot check two views synchronously.





Reolink APP/Client is free of charge and the service is free of subscription.
