SPECIFICATIONS



Voltage: v

Thinkdiag update: 1-year free update

Thinkdiag support system: a full system of the car

Thinkdiag support car: will cover 10000+ cars

Thinkdiag quality: better than think driver thinkdiag mini AP200 ap200m MUCAR BT200

Thinkdiag old version works with Android phone

Thinkdiag's new version works with iPhone / Android phone

Thinkdiag language: English, French, Spanish, German, Portuguese, Italian, Japanese, Russian, Polish, Turkish

Thinkdiag function: read code, clear code

Thinkdiag connect way: Bluetooth

Thinkdiag Special function: 16 reset function

Thinkdiag Function 3: Active Test ( Bi-direction control )

Thinkdiag Function 2: ECU Coding

Special Features: Bluetooth

Software Version: v

Power: w

Origin: Mainland China

Model Name: Thinkdiag old version

Material Type: Plastics

Item Width: 5inch

Item Weight: 0.1kg

Item Type: Engine Analyzer

Item Length: 11inch

Item Height: 8inch

Hardware Version: v1.23.004

External Testing Certification: CE

Electronic: No

Brand Name: THINKCAR





ThinkCar Thinkdiag Full system OBD2 Code Reader with 16 reset function ecu coding active tester for Android/IOS update version of Easydaig scanner

( Better than Thinkdriver, thinkdiag mini, MUCAR BT200 )

How To Choose Type 1/Type 2/Type 3/Type 4 ? Which one is better?

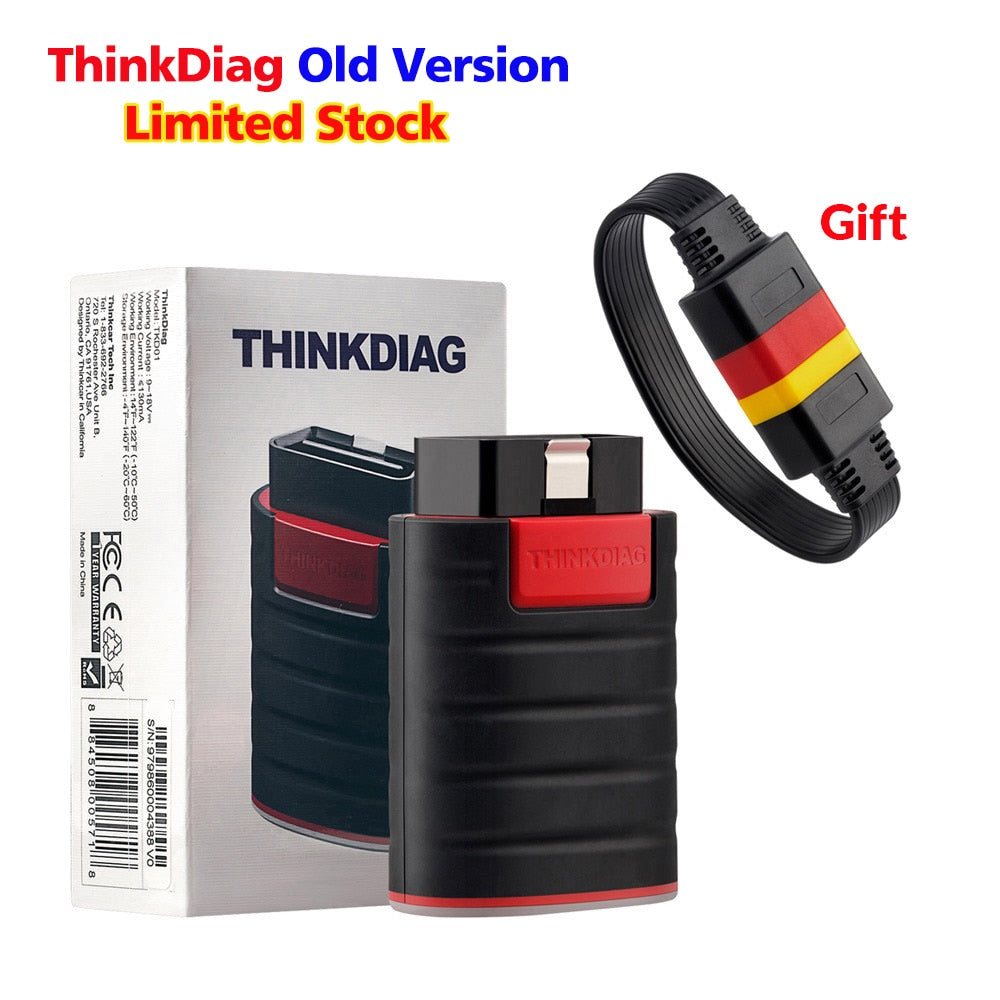

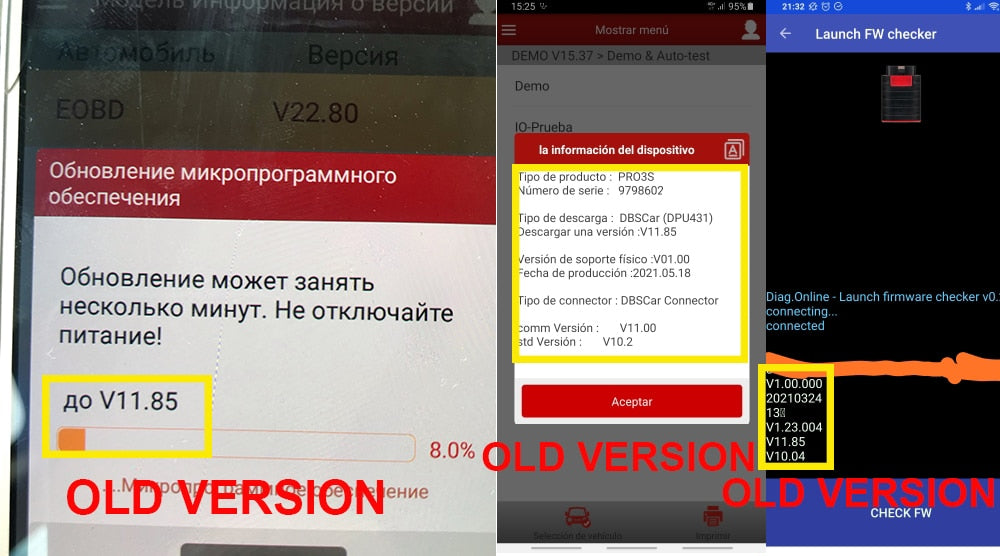

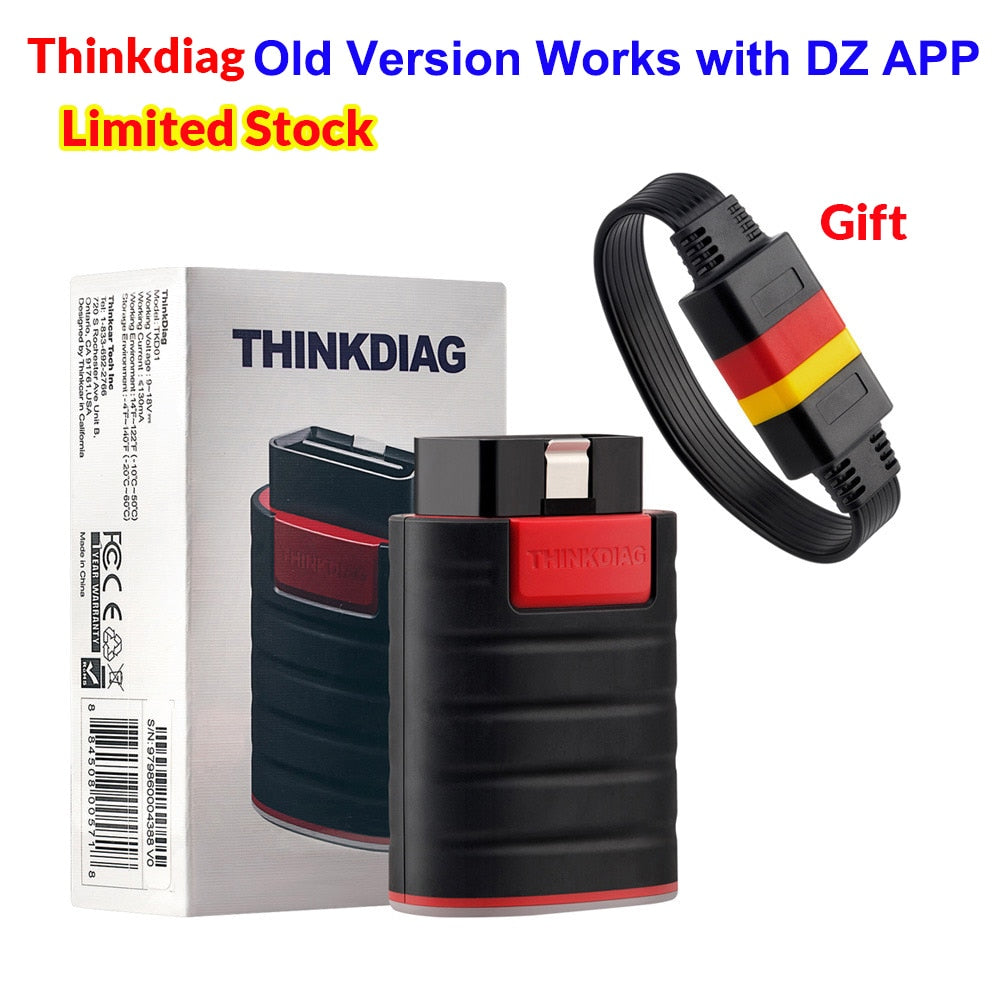

----Type 1 and Type 2 are THINKDIAG OLD: THINKCAR Thinkdiag V1.23.004 Old Version Full System Scanner All Software OBD2 Diagnostic Tools 15 reset Ecu Coding pk ELM327
1. Supports DZ App, you need to subscribe to the software first, or it does not work. The software in EasyDiag4 is Lifetime Free use.
2. Also supports Thinkdiag App ( 1 software 1-year free update + EOBD + DEMO )
3. Supports Android phones only ( better to Android version lower than 11)!

4. please note, the DZ app is not our app, we do not have technician support for it !!!

----Type 3 and Type 4 are THINKDIA 2022 NEW VERSION ThinkDiag ALL Car Brands All Reset Service 1 Year Free 2021 OBD2 Diagnostic Tool Active Test ECU Code Surpass Thinkdiag
1. Supports ThinkDiag App, with all software 1-year free Update ( Diagnose software + Reset software ). After 1 year, need to subscribe to the software to use ( can contact us to subscribe )!
2. Can not Support DZ App.
3. Supports Android Phone + iPhone ( better to Android version lower than 11)! ThinkDiag ALL Car Brands All Reset Service 1 Year Free 2021 OBD2 Diagnostic Tool Active Test ECU Code Surpass Thinkdiag
Please choose the correct one that you want to order !!!



Thinkdiag supports 10 languages Thinkcar ThinkDiag Mini OBD2 Bluetooth Scanner Code Reader Car All System Scan DPF SAS EPB 15 Reset OBD 2 Auto Diagnostic Tools

English, French, Spanish, German, Portuguese, Italian, Japanese, Russian, Polish, and Turkish.



ThinkDiag is The FIRST and BEST Choice for CAR OWNER and Technician, All will Love it!

* Full professional OE level functions:  THINKCAR Thinkdriver Bluetooth OBD2 All System Car Scanner ABS SRS Oil SAS Reset Code Reader OBD 2 Diagnostic Tool PK Thinkdiag
like reading and clearing codes gathering real-time data with the ability to graph it reading ecu data running actuation tests and bi-directional special Functions, claims low cost for each additional manufacturer.

* All System diagnoses:

Thinkdiag obd2 scanner supports reading all vehicle systems (including ENG, ABS, SRS, ABS, AFS, EBD, TCS, chassis, body, and electric and electronic equipment system, etc.) of the error code, cleanup code, reading the data flow, the freeze frame. It can also perform all the commands that a mechanic needs, to know the product problem whether caused by the car's electrical wiring or the car’s component.

* Driver activation test: THINKCAR THINKSAFE OBD2 Automotive Scanner All System All Makes Free Oil ABS EPB Reset OBD 2 Car Diagnostic Tool PK Thinkdiag
Thinkdiag obd2 scanner supports Shutter Grill Relay Test, Low-Pressure EGR Actuator Test, High-Pressure EGR Actuator Test, Intake Pressure Control Valve Actuator Test, Low-Pressure EGR System Test, Low-Pressure EGR Differential Pressure Sensor Test, 2-stage turbocharger boost test, Idle speed adjust, VTEC low V/T check, O2S Test, Compression Test, EVAP Test, IMT (IMRC) test, VTEC Test, VTEC(VCM) Test.

* To prevent the car from being used by unauthorized keys, the anti-theft key matching function must be performed so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use in the car. When the ignition switch key, combined instrument panel, ECU, BCM, or remote control battery is replaced, anti-theft key matching must be performed.

Snap On Scanner Also Supports Advanced And Deep Maintenance Functions

Headlight Fitting, Seat Matching, Door and Window Initialization Study, Sunroof Initialization, Air Suspension Matching, Gearbox Matching, Injector Calibration, Multimedia Video Reset, Cluster Reset, Immobilizer Service, Tire Change Reset, (depending on the specific car models, not for all cars, )

For 2017 and later FCA Vehicles with Secure Gateway Module (SGW) Register with AutoAuth to enable your Thinkcar Thinkdiag to communicate with the FCA SGW Authentication System and bypass the SGM, so as to perform diagnostics and bi-directional without using a bypass cable. (but currently using this function needs to be paid, you can choose to use it or not. ) MUCAR BT200 Lifetime Free All Car Full System Oil SAS Obd 2 Diagnostic Tools Bluetooth Scanner for Auto Obd2 Tester 15 Resets

2022 Newest Elite Version ThinkDiag Ideal Choice for:

Technician, advanced DIY, garage, car dealer, used car dealer, auto repair shop, automotive engineer, diagnostic tech, truck man, automobile tech, home mechanic, DIY beginner, automotive student, backyard mechanic, a retired mechanic, weekend DIY, individual.



What is Active Test & Bi-directional Control?

Bi-Directional Control capability and is capable of performing Active Tests to access vehicle-specific subsystems and component tests. The tester outputs commands to the ECU to drive the actuators in order to determine the integrity of the system or parts by reading the ECU data, or by monitoring the operation of the actuators. For example, x431 v has the ability to actuate relays, injectors, coils, perform system tests, etc. Also, it will actuate solenoids valve and actuators for active testing to identify the error easily moreover. The bidirectional functions are quite extensive. even open an e.g.r. valve and seeing the difference in idle response and oxygen sensor voltage. Please note: Active tests are NOT universal for all vehicles, check compatibility with VIN number before purchase. Active tests vary depending on the manufacturer, year, and model, and only the available tests display in the menu. THINKCAR Pro Bluetooth IOS Android Car Intelligent Diagnostic Tool OIL IMMO SAS Reset OBD2 Scanner Auto Code Reader PK AP200



What is ECU Coding?

The advanced coding function is used to re-flash the vehicle control modules, which allows you to update the computer software on the vehicle to the latest version, as well as to reprogram adaptive data for certain components after making repairs or replacements, providing solutions for the issues of drivability, fuel efficiency, power loss, fault codes, the durability of mechanical parts, etc. But please note, ecu coding is NOT universal for all vehicles, please check compatibility with the VIN number before purchase.

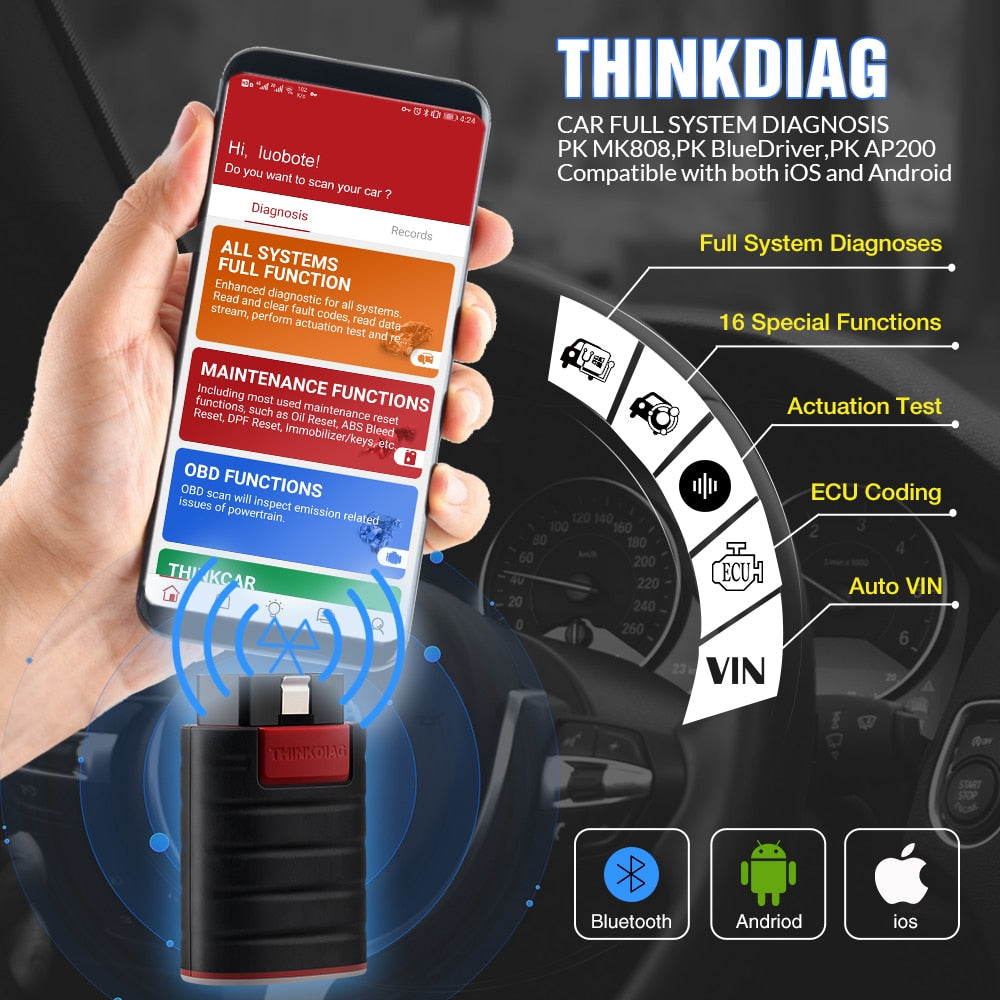

THINKDIAG is an Automotive Diagnostic Device same to Easydiag. it supports full systems diagnosis for the car and 15 kinds of reset functions. It includes kinds of car software .you can delete car error codes and reset the system if you have the thinkdiag.
ThinkDiag will be a $3000 level professional scan tool.
ThinkDiag is perfect to use with our unique App. Easy and convenient, anytime and anywhere. Comprehensive functions include a diagnostic module, ThinkStore module, ThinkMoments module, Me module, etc

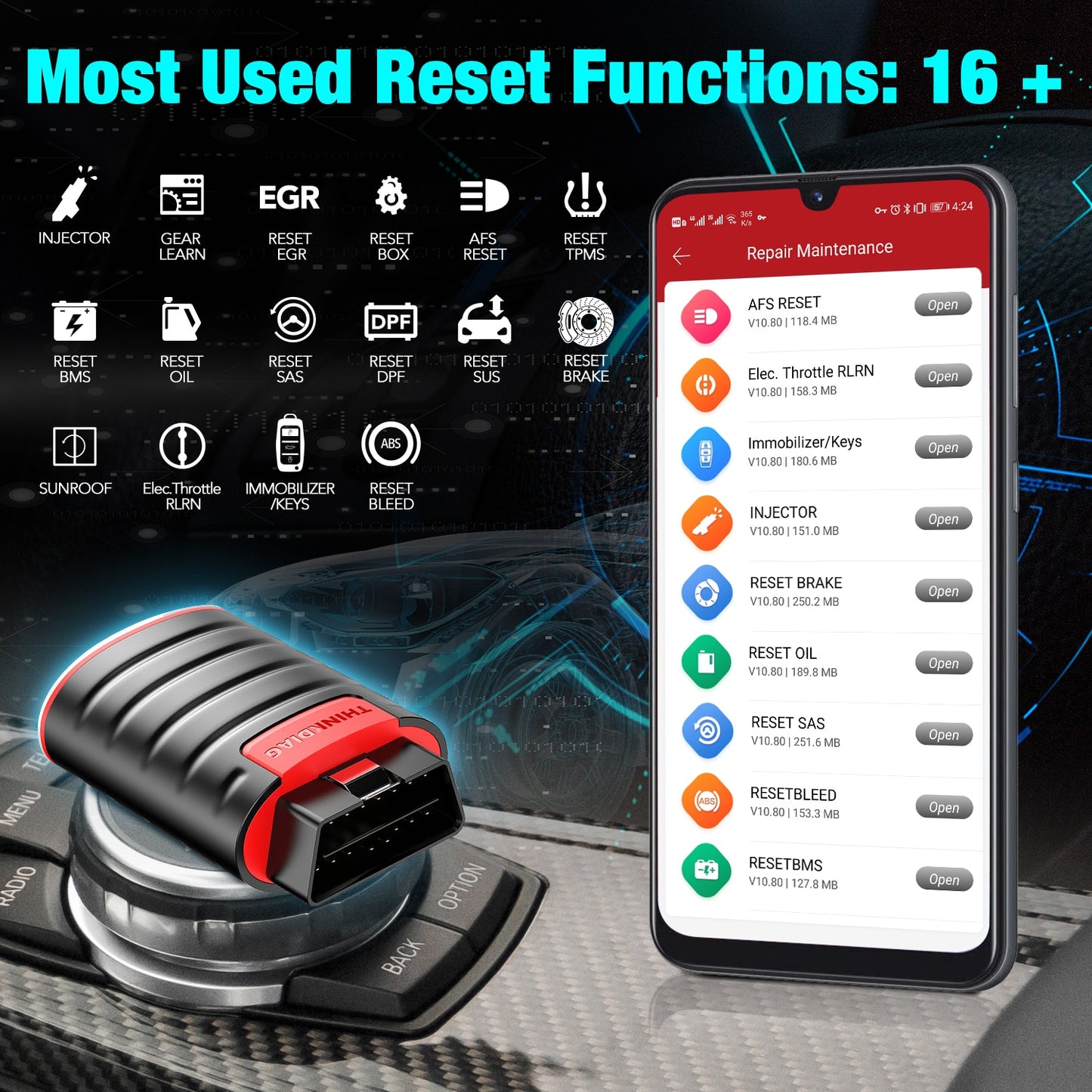

16 maintenance functions to meet the maintenance vehicle repair and after-sales maintenance.

1. Oil Reset Service

The lightening of the car maintenance light indicates that the vehicle needs maintenance. Reset the mileage or driving time to zero after the maintenance, so the maintenance light will go out and the system will start a new maintenance cycle.

2. Steering Angle Calibration

To reset the steering angle, first find the relative zero point position for the car to drive in a straight line. Taking this position as a reference, the ECU can calculate the accurate angle for left and right steering. After replacing the steering angle position sensor, replacing steering mechanical parts (such as the steering gearbox, steering column, end tie rod, and steering knuckle), performing four-wheel alignment, or recovering the car body, you must reset the steering angle.

3. Electronic Parking Brake Reset

If the brake pad wears the brake pad sense line, the brake pad sense line sends a signal sense line to the onboard computer to replace the brake pad. After replacing the brake pad, you must reset the brake pad. Otherwise, the car alarms.

4. Battery Register & Battery Maintenance

This function enables you to perform a resetting operation on the monitoring unit of the vehicle battery, in which the original low battery fault information will be cleared and battery matching will be done.

5. ABS Bleeding

When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity. lf the ABS computer, ABS pump, brake master cylinder, brake cylinder, brake line, or brake fluid is replaced, the ABS bleeding function must be performed to bleed the ABS.

6. Electronic Throttle Position Reset & Learn

Elec. Throttle Adaption is to utilize the car decoder to initialize the throttle actuator so that the learning value of the ECU returns to the initial state. By doing these, the movement of the throttle (or idle motor)can be more accurately controlled, thus adjusting the intake volume.

7. Diesel Particulate Filter (DPF) Regeneration

DPF regeneration is used to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high-temperature heating combustion, fuel additive, or catalyst reducePM ignition combustion) to stabilize the filter performance.

8. Tire Pressure Monitor System Reset

After the tire pressure, MIL turns on and maintenance is performed, the tire pressure resetting function must be performed to reset the tire pressure and turn off the tire pressure MIL. Tire pressure resetting must be performed after maintenance is performed in the following cases: tire pressure is too low, tire leaks, tire pressure monitoring device is replaced or installed, the tire is replaced, a tire pressure sensor is damaged, and the tire is replaced for the car with tire pressure monitoring function.

9. Gear Learning

The crankshaft position sensor learns crankshaft gear machining tolerance and saves it to the computer to more accurately diagnose engine misfires. lf gear learning is not performed for a car equipped with a Delphi engine, the MlL turns on after the engine is started. The diagnostic device detects the DTC P1336'gear not learned'. In this case, you must use the diagnostic device to perform gear learning for the car. After gear learning is successful, the MIL turns off. After the engine ECU, crankshaft position sensor or crankshaft flywheel is replaced, or the DTC 'gear not learned" is present, gear learning must be performed.

10. Anti-theft ( IMMO ) Matching

To prevent the car from being used by unauthorized keys, the anti-theft key matching function must be performed so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use in the car. When the ignition switch key, ignition switch, combined instrument panel, ECu, BCM, or remote control battery is replaced, anti-theft key matching must be performed.

11. Injector matching MaEET

Write the injector's actual code or rewrite the code in the ECU to the injector code of the corresponding cylinder so as to more accurately control or correct cylinder injection quantity. After the ECU or injector is replaced, the injector code of each cylinder must be confirmed or re-coded so that the cylinder can better identify injectors to accurately control fuel injection.

12. Air Suspension Reset

This function can adjust the height of the body. When replacing the body height sensor in the air suspension system, or control module or when the vehicle level is incorrect, you need to perform this function to adjust the body height sensor for level calibration.

13. Gearbox /Transmission Reset

This function can complete the gearbox self-learning to improve gear-shifting quality. When the gearbox is disassembled or repaired (after some of the car battery is powered off), it will lead to shift delay or impact problems. In this case, this function needs to be done so that the gearbox can automatically compensate according to the driving conditions so as to achieve more comfortable and better shift quality.

14. Sunroof RESET

This function can set the sunroof to lock off, close when it rains, slide/tilt the sunroof memory function, temperature threshold outside the car, etc.

15. AFS Reset (EGR)

This feature is used to initialize the adaptive headlamp system. According to the ambient light intensity, the adaptive headlamp system may decide whether to automatically turn on the headlamps, and timely adjust the headlamp lighting angle while monitoring the vehicle speed and body posture.

16. EGR Reset

This function is used to learn the EGR (Exhaust Gas Recirculation) valve after it is cleaned or replaced.


Note: These special functions are NOT for all car models, if you are confused, Please send your car brand, model, and release year to the seller to check it for you.



Thinkdiag Full system Diagnosis :

Thinkdiag can diagnose the electronic control system of prevailing vehicle models covering Asia, European, America, and China. Full-range car models and full car system diagnosis make it a professional automotive diagnostic tool.
Diagnosis functions include: Read DTCs, Clear DTCs, Read datastream, Special functions, etc;

To diagnose the Brake system you feel the brake pedal is mushy and notice unusual odor or noise, etc. A properly operating brake system is critical to ensure safe vehicle control and operation;

To diagnose the Emission system the system is affected by vehicle age or poor quality fuel. A good emission system reduces harmful gases to a large degree and protects you from being fined;

To diagnose the Fuel system if the vehicle won’t start or the “Check Engine” light is illuminated. Check the car’s fuel system regularly ensures the best performance of your car with the lowest emissions;

To diagnose Transmissionif your car is slipping or difficult to shift. The system plays an important part in the overall performance of your car;

To diagnose the Wiper system you observe a chattering or streaking wiper. If the car is not regularly checked, the accident might happen because you can’t see clearly;

To diagnose the Light system you see rapid signal blinking or dimming lights.

And many more ...

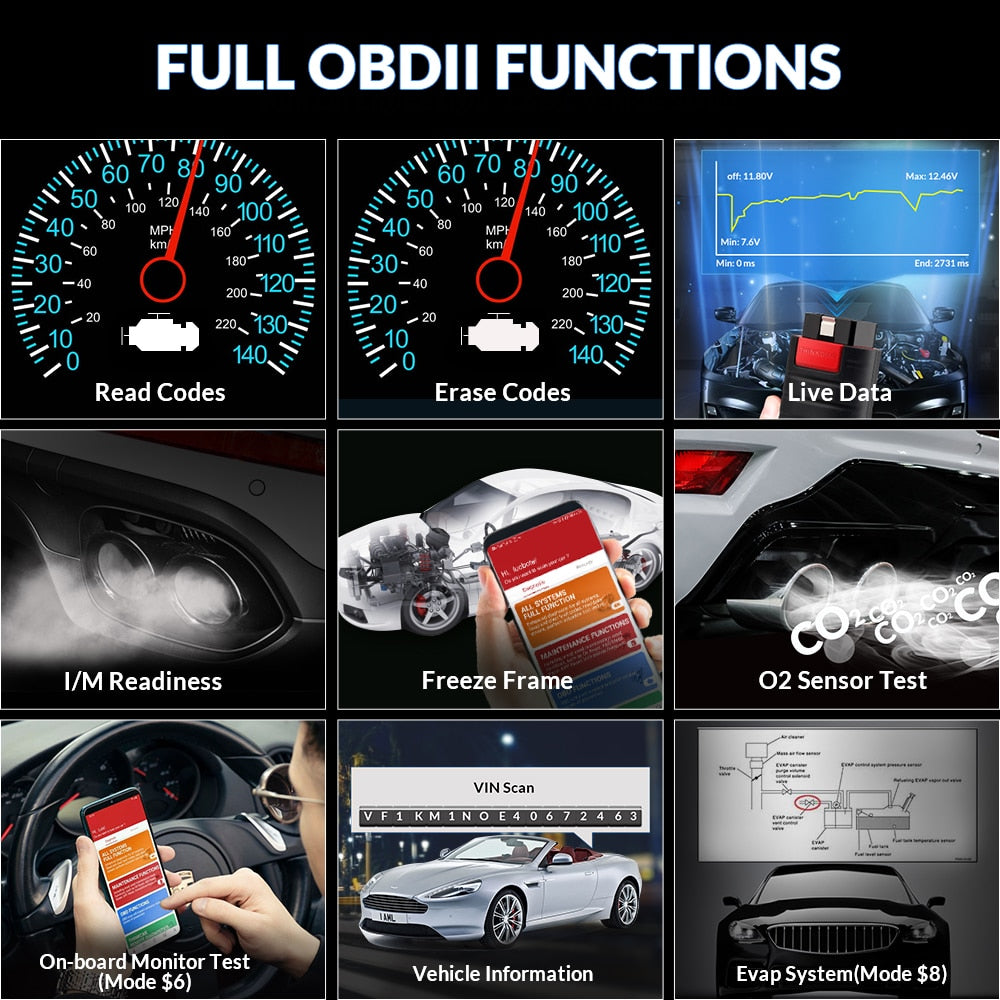

Thinkdiag Supports Full OBD2 Diagnostic Functions :

Reading Codes
Show the detailed description of the Diagnostic Trouble Code (DTCs)

Erasing Codes & Reset
Turns off Check Engine Light (MIL), clears codes, and resets monitors.

Data Stream
Reads and displays live ECU/PCM data stream, plots functions graphically, and stores freeze frame data.

I/M Readiness Status
Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

Read Live Data Stream
Show the information of continuous data stream from a vehicle in a live graphic (waveform) display.

View Freeze Frame Data
Check the certain vehicle conditions which are recorded by the onboard computer at the time the emission-related fault occurs.

O2 Sensor Test
Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s onboard computer.

On-Board Monitor Test
Retrieves and displays test results for emission-related powertrain components and systems.

Read Vehicle Information
Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

Component Test
Certain vehicle components can be actuated by commands sent from the scanner to test their operability

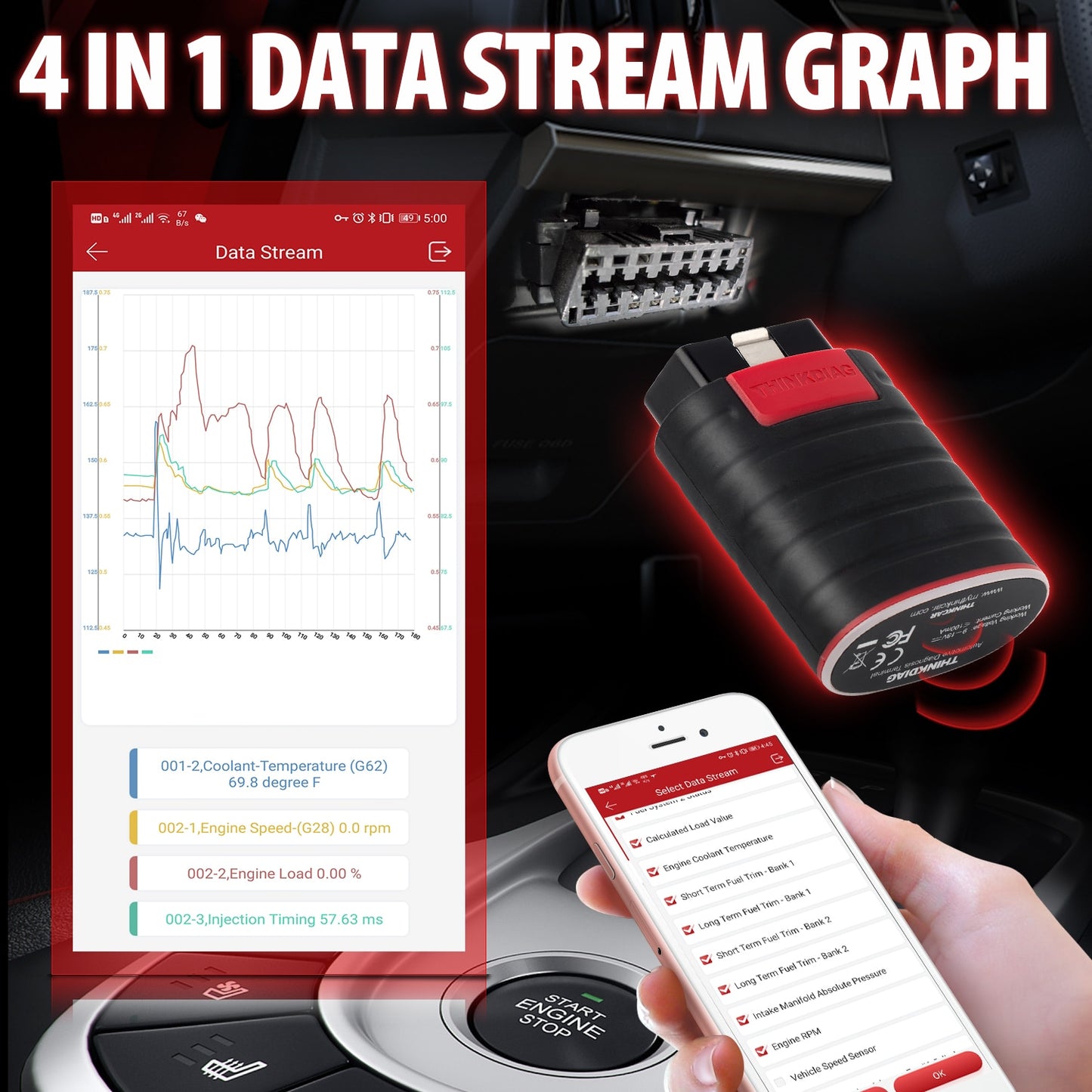

4 Data display in 1 Graph

Thinkdiag will Read the vehicle’s live data, and present it in a graph. Optional combination of multiple data.

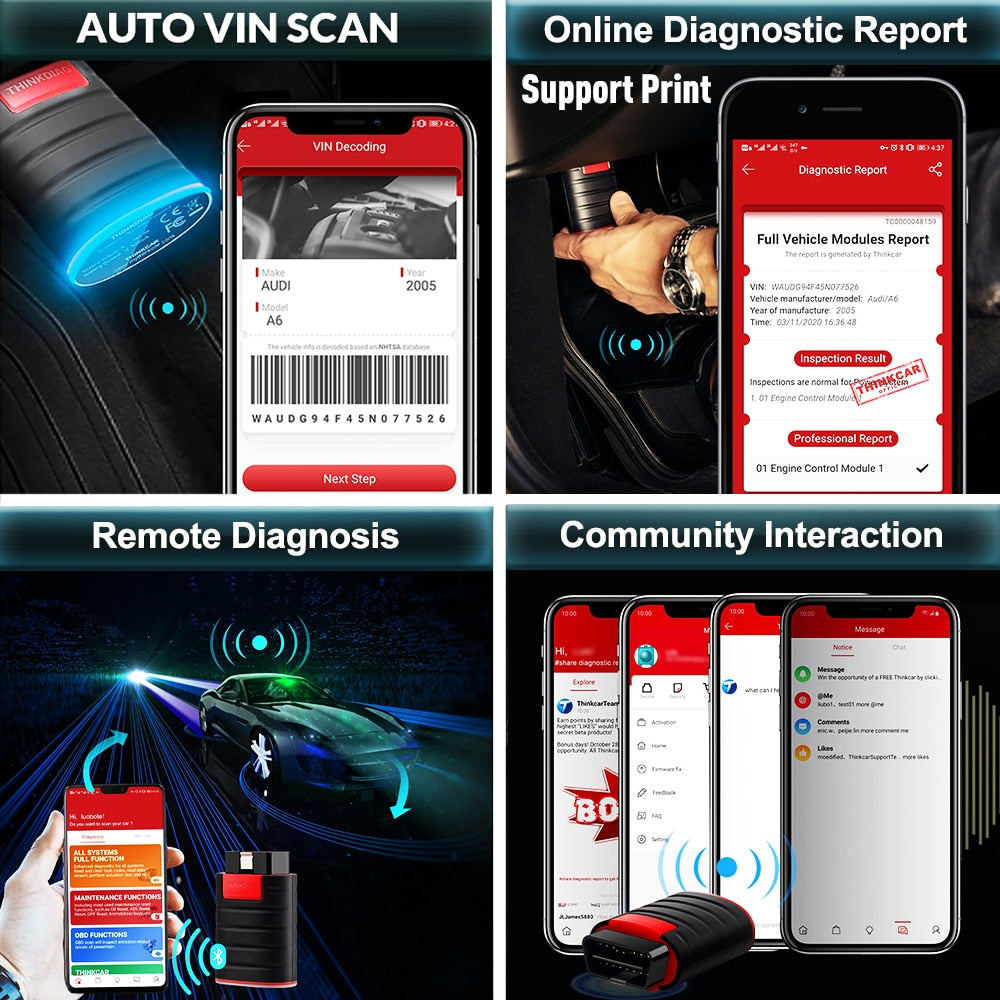

The other function of Thinkdiag :

1. Auto Detect car's vin in 1o seconds
2. Support printed car health report
3. Remote Diagnosis
4. Community support

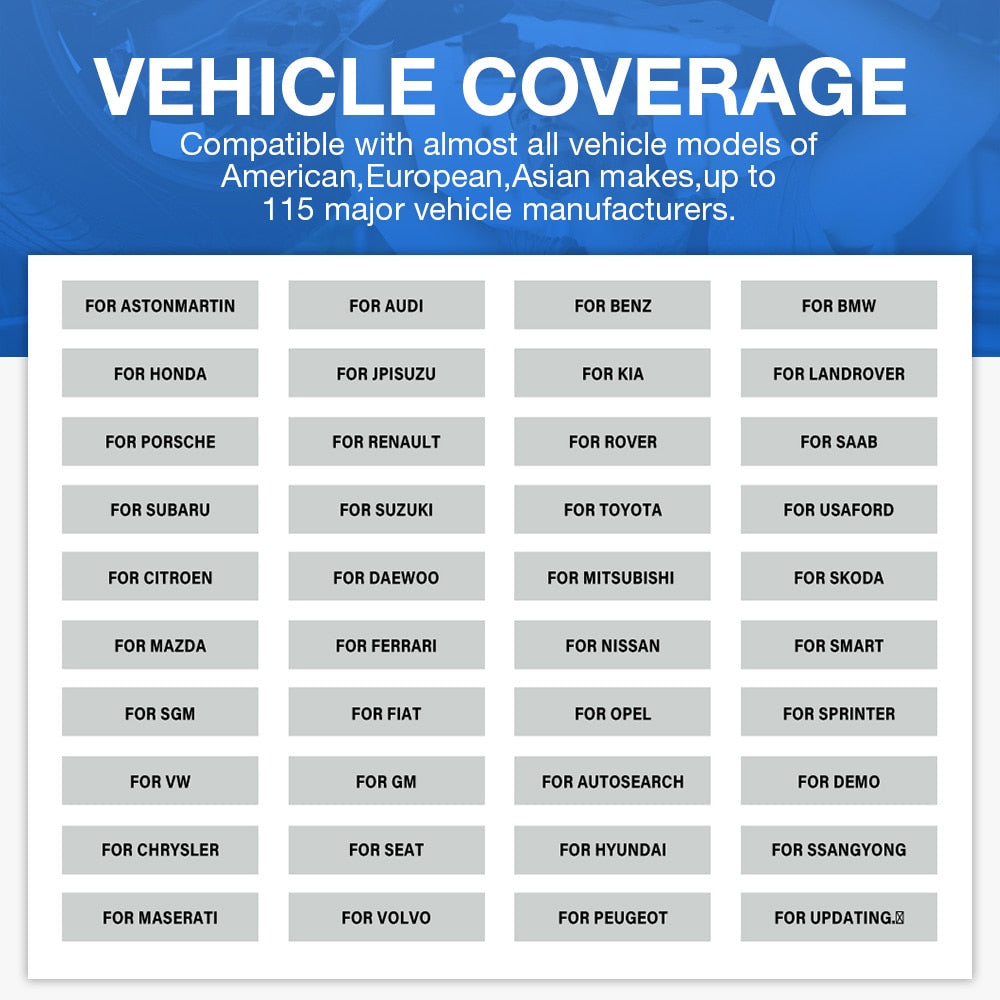

Thinkdiag covers up to 115 major vehicle

Cover 115 Brands and Counting

For OBDII diagnostics, the obd2 code reader works great for most cars built in 1996 or later, being compatible with the following protocols:

-ISO 14230-4 (KWP2000)
-ISO 15765-4 (CAN)
-ISO 9141-2 (iso)
-ISO 14229 (uds)
-SAE J1850 (VPW & PWM)

-Original protocols of makers For advanced functions such as active test, all system diagnostics, and maintenance service, it covers 95% of car models available in the market including:

DEMO, For ABARTH, For ACURA, For ALTO, For AUSTFORD,For BEILV,For BQww, For BQZZ, For BUICK, For CADILLAC, For CHANGANFORD, For CHEVROLET, For CHRYSLER, For DODGE, For JEEP, For CITROEN, For Citroen(Iran), For DACIA, For DAIHATSu, For DFHONDA, For DODGE, For EUROFORD, For FIAT, For ABARTH, For LANCIA, For ROMEO, For FORDUSA, For FORDEURO, For LINCOLN, For CHANGANFORD, For FUKANG, For FUQI, For GM(Brasilia), For GM, For BUICK, For CADILLAC, For CHEVROLETGM, For BUICK, For CADILLAC, For CHEVROLET, For GZHONDA, For HANGTIANMIT_TY, For HBQc, For HONDA, For ACURA, For DFHONDA, For GZHONDA, For HUAYANG, For HUIZHONG, For HYUNDAIH, For IRKIA, For JEEP, For KIA, For KOREAKIA, For KOREAKIA, For KOREAKIA, For LANCIA, For LEXUS, For LINCOLN, For MITSUBISHI, For NJFIAT, For PORSCHE, For RENAULT, For DACIA, For RENAULTSAMSUNG, For ROMEO, For TJTOYOTA, ForTOYOTA, For LEXUS, For TJTOYO, For WEILI, For YONGYUAN, For YOUNGLOTUS, For YQEF, For ZHONGSHUN, For AUDI, For BENGLEY, For BMW, For MINI, For BMWHC, For ROLLSROYCE, For BUGATTI, For CHBUICK, For CHCADILLAC, For CHCHEVROLET, For DFNISSAN, For DFPEUGEOT, For GMSA, For HCBMw, For INDONESIASUZUKI, For lNFINITI, For ISUZUJP, For ISUZUTL, For JAGUAR, For LAMBORGHINI, For LANDROVER, For JAGUAR, For LYNKCo, For MAYBACH, For MAZDA, For YQMAZDA, For MERCEDES, For MAYBACH, For MINI, For NISSAN, For INFINITI, For DFNISSAN, For NISSANGRT, For OPEL, For GMSA, For VAUXHAL, For PEUGEOT, For ROLLSROYCE, For SEAT, For SKODA, For SMART, For Spart, For SPRINTER, For SUBARU, For SUZUKI, For TLISUZU, For VAUXHALL, For VENUCIA， For VOLKSWAGEN, For BENTLEY, For BUGATTI, For LAMBORGHINI, For VOLVO, For YQMAZDA

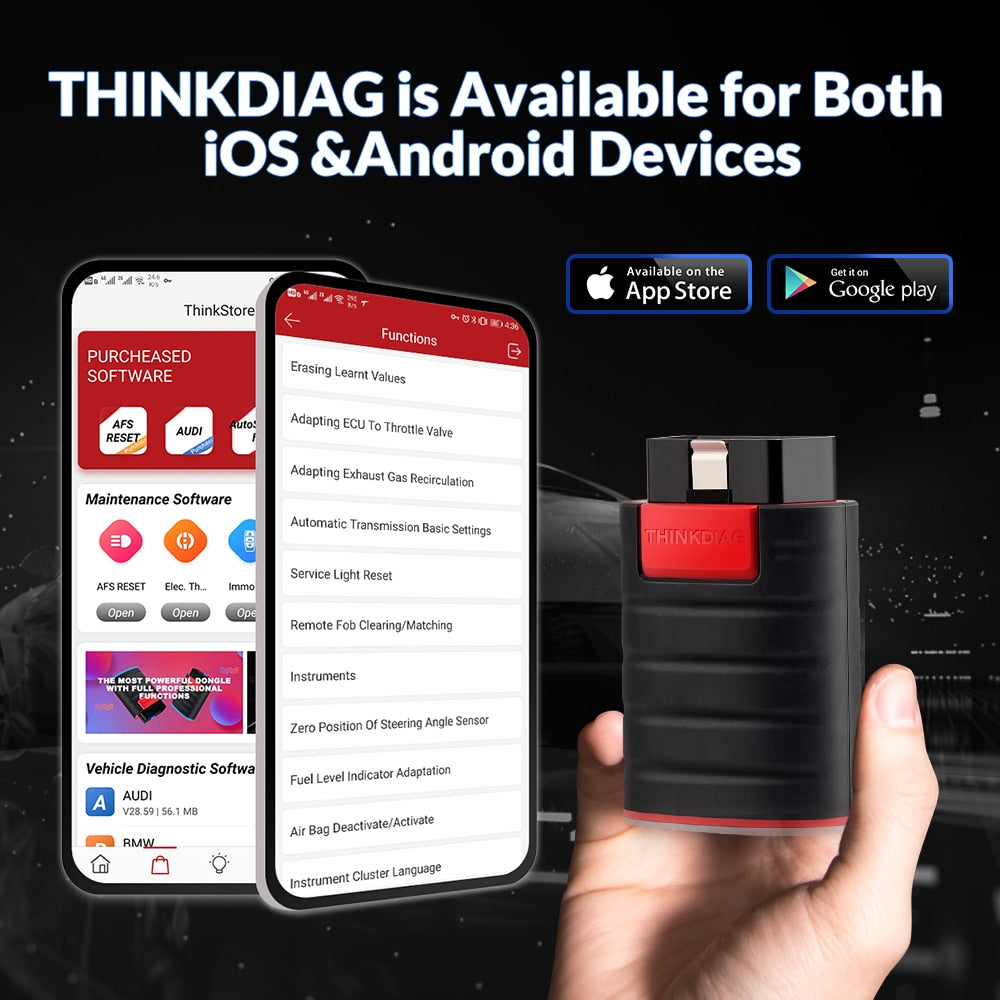

Work on Android and IOS

You only need to install the APP on your phone or tablet to use it. Thinkdiag can not only support the Android system but also the IOS system.

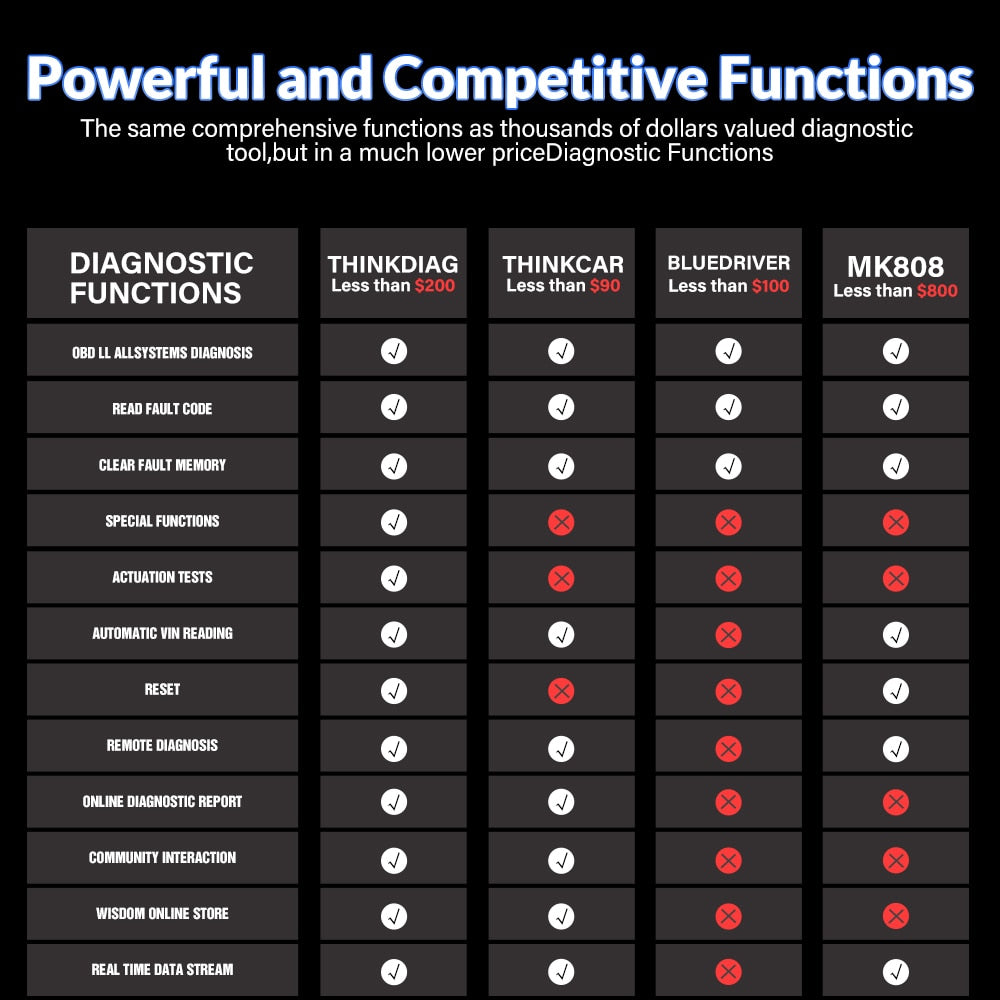

The same comprehensive functions as thousands of dollars valued diagnostic tool, but at a much lower price diagnostic Functions

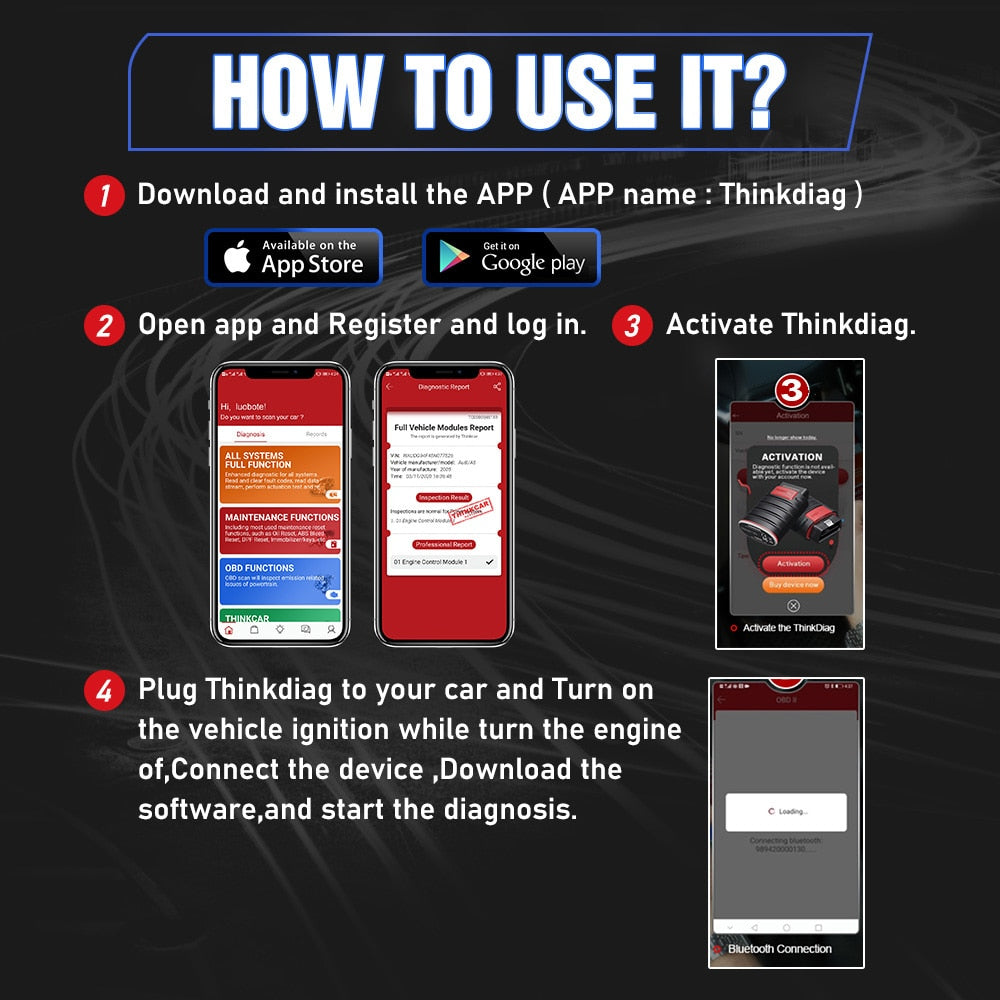

Easy to use Thinkdiag :

Step 1:Smartphone go to download thinkdiag APP ( If you choose Thinkdiag Old version, go to download DZ App )

Step 2:open thinkdiag APP ( DZ App ), and go to register.

Step 3:Login to activate Thinkdaig.

Step 4:Plug Thinkdiag into your car, Bluetooth connect, and Download the software (Thinkdiag's old version need to subscribe to the software first ), then you can use it!



Buyer Questions & Answers

1. Does thinkdiag work on all vehicles?

It supports more than 115 brands, and almost kinds of cars in the world.
If you buy one Thinkdiag, you will get:

Thinkdiag + All software ( all car software + all reset software ) 1-year free update.

2. How to change language?

It doesn't support changing language, the APP language will follow the system language of your phone.

3. Can it support a truck?

No, it doesn’t support a 24V car.

4. What’s the serial number?

The Serial number is 97986xxxxxxx

5. Does it work with X431?

ThinkDiag works with Thinkdiag APP only

6. What's the difference between Thinkdiag and Thinkdriver?

They both belong to the Thinkcar brand, which is the main brand of LAUNCH. ThinkDiag supports all car software and all reset software free, but Thinkdriver is only with 3 cars free, the others need a subscription

7. What APP should I download?

Pls download ThinkDiag APP only

8. Can I use it after 1 year?

Yes, you can still use it after 1 year, do not worry. The Full obd function is a lifetime free update.

9. Can Thinkdiag work without the Internet?

Yes, after you update, you can use Thinkdiag without the internet.

10. How much of the subscription after 1 year?

It takes $99 for a 1-year update and $139 for a 2-year update.

11. I got Thinkdiag, but can not download the software, why?

Do not worry, pls make sure you download Thinkdiag APP, if not, please change it, then it is ok!

Thinkdiag Packing List :

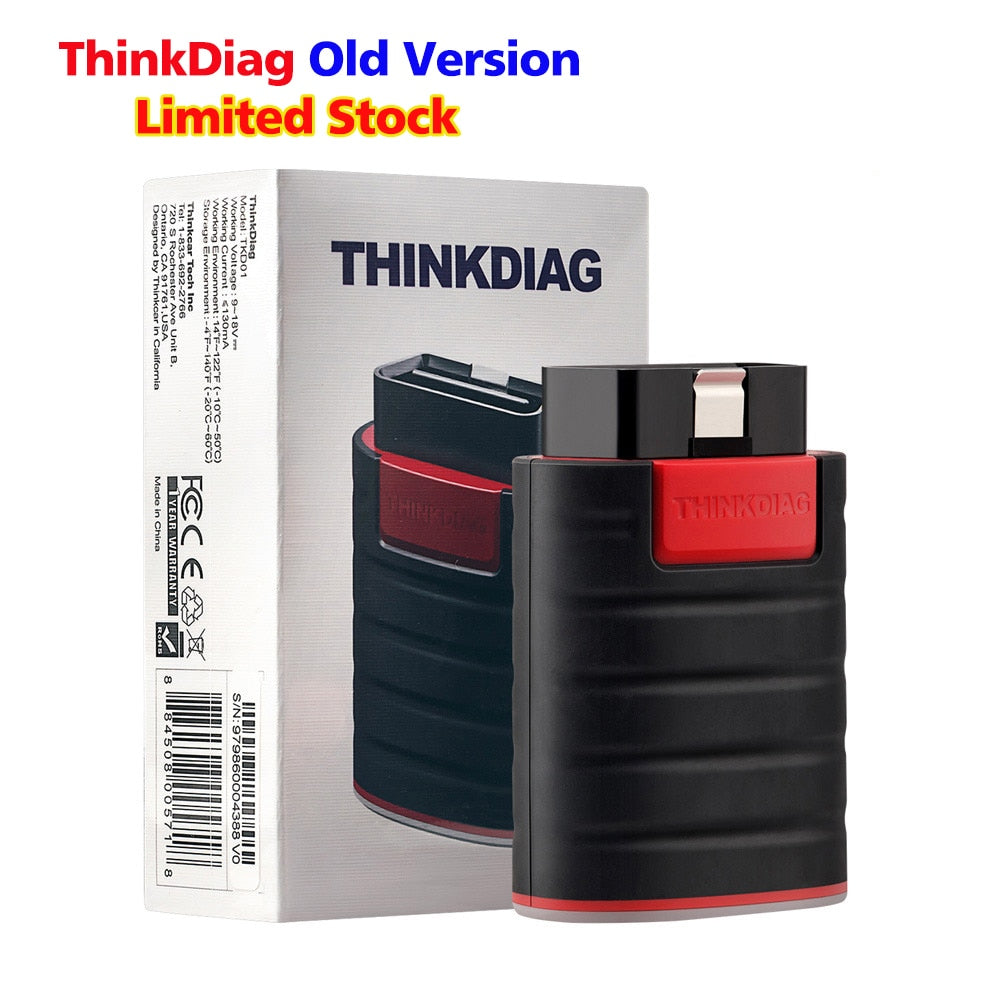

Type 1: Thinkdiag old Version + OBD Cable

Type 2: Thinkdiag Old boot

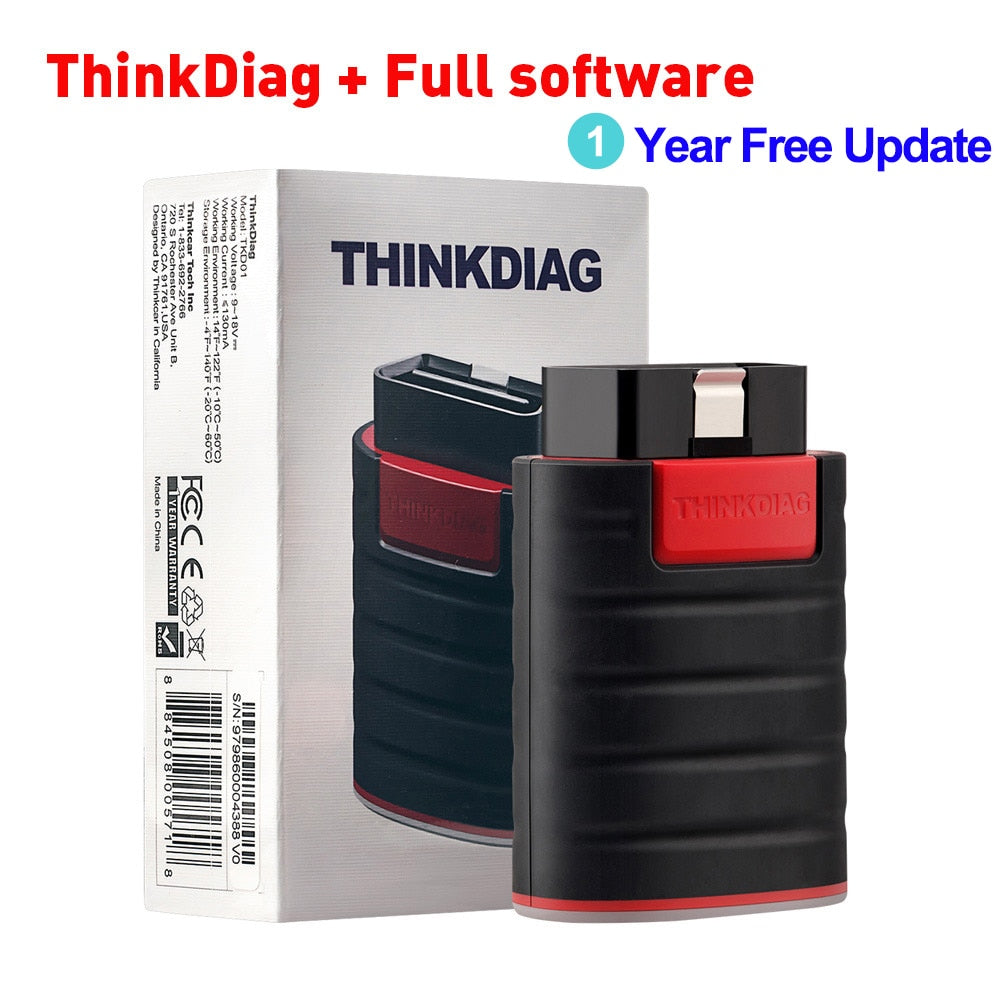

Type 3: Thinkdiag New Version

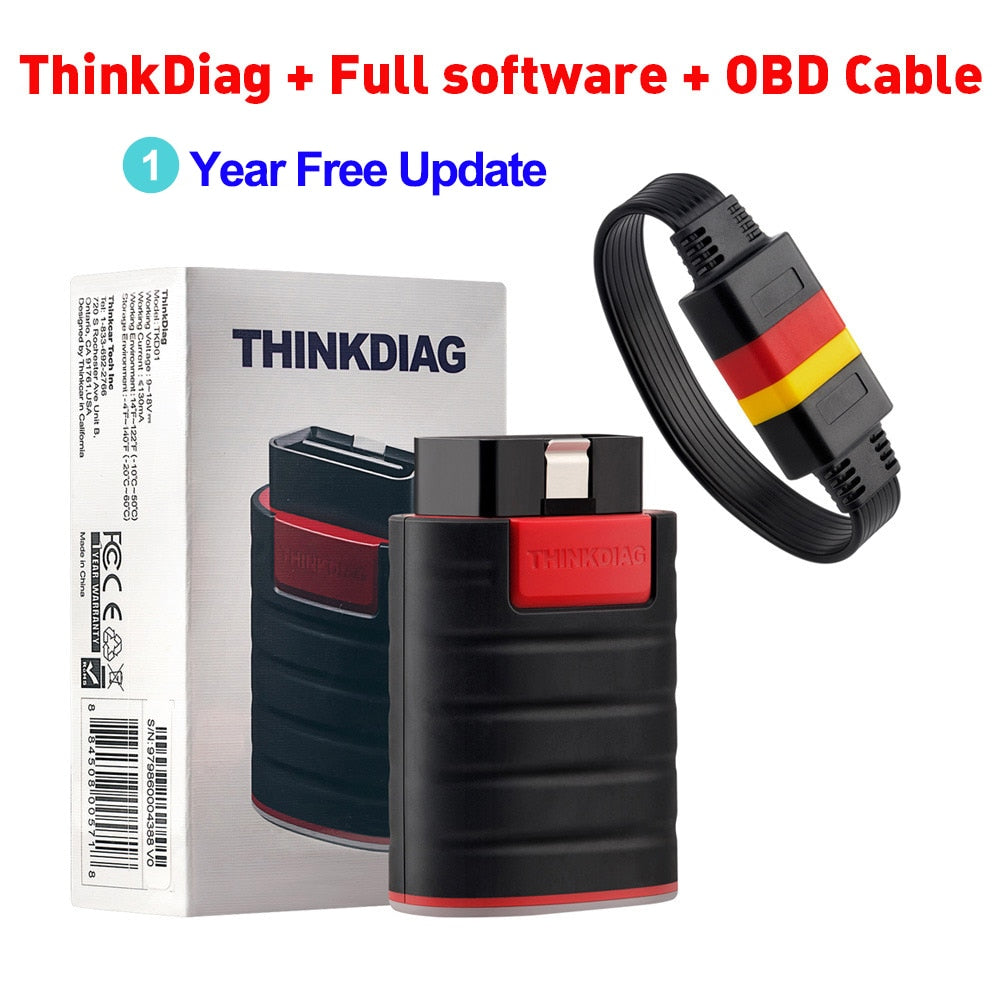

Type 4: ThinkDiag New Version + OBD Cable
